This article provides step-by-step instructions on how to download the IDP Signature Pack from the Juniper website for offline installation.
To download the IDP Signature Pack from the Juniper website for offline installation, follow the steps outlined below:
1. Access the Juniper Download Page
Navigate to the Juniper Download page

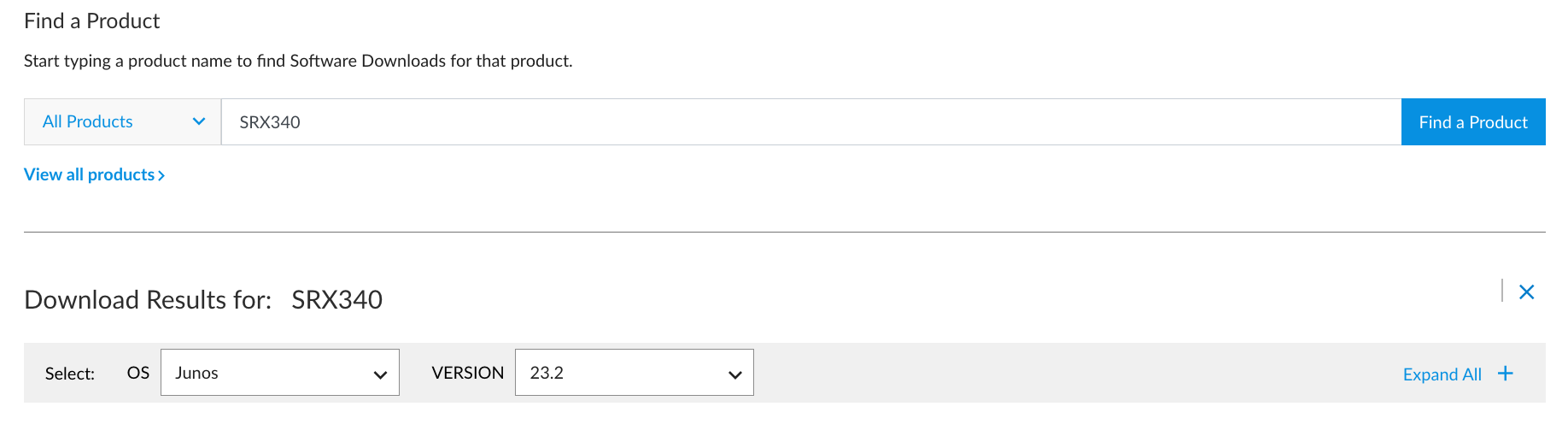

2. Select the SRX Model
Choose the SRX model on which the IDP signature is to be installed.
3. Choose the Main Release
Select the Main Release that corresponds to the version running on the SRX device.
Note: Do not select the Services Release. If the device operates on a Services Release, select the Main Release associated with that Services Release.

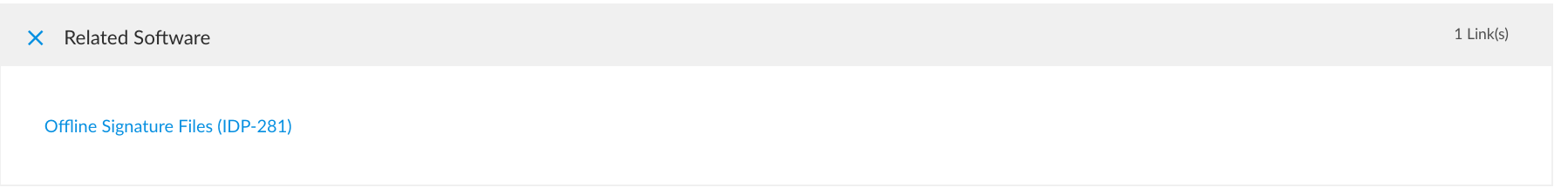

4. Locate the IDP Offline Signature Pack
After selecting the Main Release, scroll down to the Downloads section and expand the related software section. The IDP Offline Signature Pack link will be available under the Related Software section for the selected model and version.

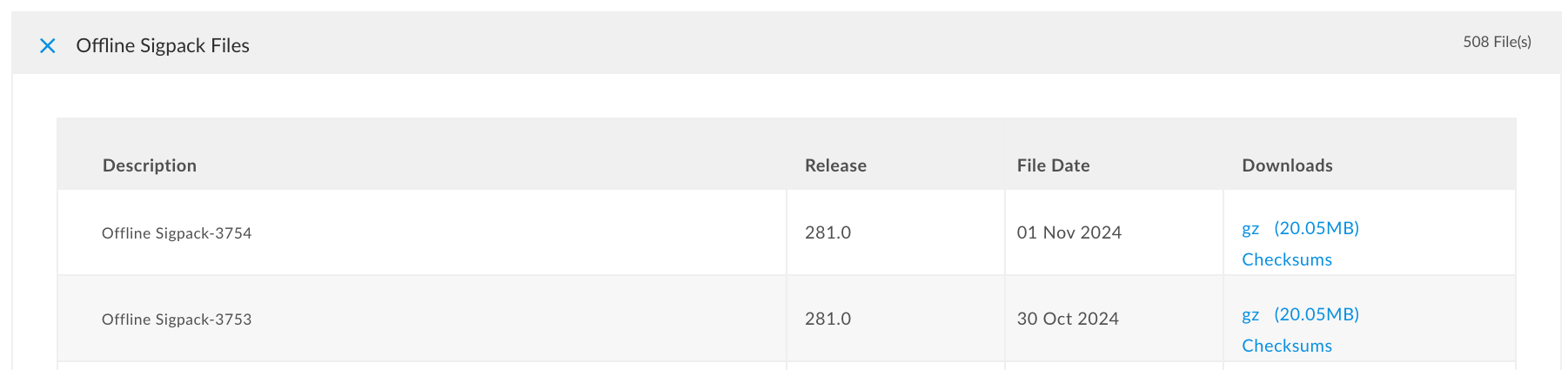

5. Download the IDP Offline Signature Pack
Click on the IDP Offline Signature Pack link to be redirected to the offline signature pack file page. Download the desired version from this page.
6. Transfer the Offline Package to the SRX Device
Once downloaded, copy the offline package file to the SRX device using SCP or SFTP.
7. Unzip the Offline Signature Pack File
Execute the following command to unzip the offline signature pack file that has been copied to the device:
root@SRX> request security idp security-package offline-download package-path /var/tmp/offline-update.tar.gz
8. Verify the Download Status
Check the download status with the command:
root@SRX> request security idp security-package offline-download status -------------------------------------------------------------------------- Done; Signature package offline download successful
Upon completion of the offline download, all required files will be automatically copied to the following directories:
- /var/db/idpd/sec-download/ - /var/db/idpd/sec-download/sub-download/
9. Install the Signature Pack
Installation of the signature pack follows the standard installation procedure. Execute the following command to install the downloaded signature pack:
root@SRX> request security idp security-package install
10. Check the Installation Status
Verify the installation status with the command:
root@SRX> request security idp security-package install status
This completes the download and installation process of the signature database. To verify the currently installed signature database, use the command:
root@SRX> show security idp security-package-version
11. Install Policy Templates Offline
To install policy templates offline, perform the following steps:
- Ensure all required files have been copied and unzipped using the above steps. Proceed with the standard installation method.
- Execute the following command to install the policy templates:
root@SRX> request security idp security-package install policy-templates
- Check the installation status:
- To verify the policy template version, use the command:
This procedure ensures the IDP Signature Pack and associated policy templates are correctly downloaded and installed on the SRX device for offline operation.
