This article will assist with Dynamic Host Configuration Protocol (DHCP) troubleshooting in a step-by-step approach with Juniper Networks MX Series Routers.
Issue is reported with client does not receive IP address from DHCP server
The DHCP relay agent operates as the interface between DHCP clients and the server. The DHCP Relay Agent relays DHCP messages between DHCP clients and DHCP servers on different IP networks.

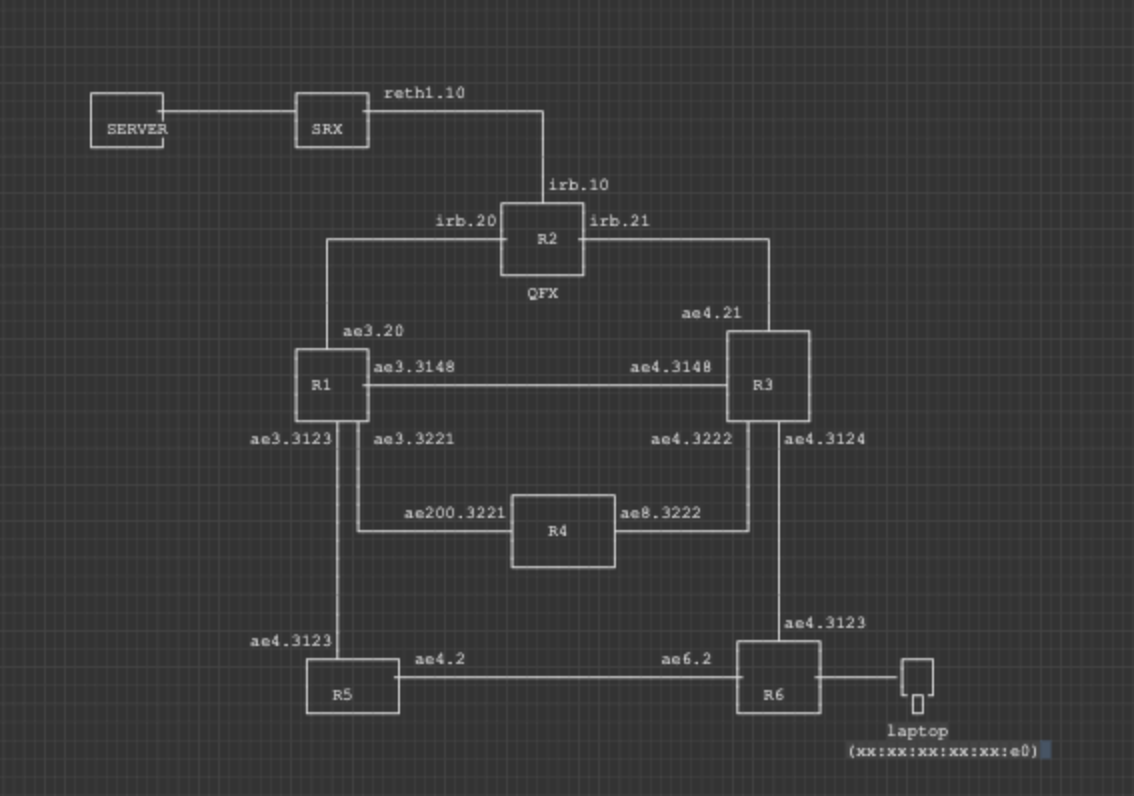

Considering the below Topology
The DHCP relay binding is not in bound state
{master}
User-R1-re> show dhcp relay binding
IP address Session Id Hardware address Expires State Interface
0.0.0.0 340872069 xx:xx:xx:xx:xx:e0 0 SELECTING ae4.3126
Perform the following steps to troubleshoot DHCP issue
DHCP – server Ip - XXX.XX.126.28
The Above topology represent the MX working as DHCP relay agent
The client MAC address (Dekstop MAC ) - xx:xx:xx:xx:xx:e0 is connected to either LHR-KB / LHR-JH 2. Is the DHCP client connected to the DHCP Server with a DHCP Relay Agent? · Yes - Continue to Step 3. The DHCP server is connected to the DHCP client through the Relay Agent 3. A DHCP Relay Agent needs to be configured if the DHCP client and the DHCP Servers are connected in different broadcast domains. R1-RE0 – >
set forwarding-options dhcp-relay server-group TEST xxx.xx.126.28
set forwarding-options dhcp-relay active-server-group TEST
set forwarding-options dhcp-relay group ALL forward-only -- >>>>Forward specified DHCP client packets
set forwarding-options dhcp-relay group ALL interface ae3.0
set forwarding-options dhcp-relay group ALL interface ae3.20
set forwarding-options dhcp-relay group ALL interface ae3.3123
set forwarding-options dhcp-relay group ALL interface ae3.3138
R5-RE0 -- >
set interfaces ae4 unit 3126 description TEST-DHCP
set forwarding-options dhcp-relay group ALL overrides
set forwarding-options dhcp-relay group ALL interface ae4.6
set forwarding-options dhcp-relay group ALL interface ae4.3123
set forwarding-options dhcp-relay group ALL interface ae4.3126
4. Do a packet capture on the interfaces to analyze if the DORA process works. Collect the below outputs
monitor traffic interface x matching "port 67 || port 68" no-resolve detail
monitor traffic interface x matching "upd port 67 || upd port 68" no-resolve detail
Laptop ---R5-RE0 -– > ae4.2 -- R5-RE0 -- ae4.3123 --- ae3.3123-- R1-RE0 – ae3.20 ->>---<< Switch-QFX -> Firewall-SRX1500-> DHCP server --> Not working
DHCP, Request packets – on interface ae4.2
User-Re0> monitor traffic interface ae4.2 matching "udp port 67 || udp port 68" no-resolve detail
Address resolution is OFF.
Listening on ae4.2, capture size 1514 bytes
16:55:45.649373 Out IP (tos 0x0, ttl 63, id 46185, offset 0, flags [DF], proto: UDP (17), length: 576) xx.x.177.199.68 > xxx.xx.126.28.67: BOOTP/DHCP, Request from xx:xx:xx:xx:xx:e0, length 548, xid 0x32d1d10a, Flags [none]
Client-IP <IP Address>
Client-Ethernet-Address xx:xx:xx:xx:xx:e0
Vendor-rfc1048 Extensions
Magic Cookie 0x63825363
DHCP-Message Option 53, length 1: Release
Client-ID Option 61, length 7: ether xx:xx:xx:xx:xx:e0
Hostname Option 12, length 11: "EG8145X6-10"
Requested-IP Option 50, length 4: <IP Address>
Server-ID Option 54, length 4: xxx.xx.xxx.28
16:55:56.014246 Out IP (tos 0x0, ttl 64, id 40460, offset 0, flags [none], proto: UDP (17), length: 576) <IP Address>.67 > xxx.xx.126.28.67: BOOTP/DHCP, Request from xx:xx:xx:xx:xx:e0, length 548, hops 1, xid 0x27b39276, Flags [none]
Gateway-IP <IP Address>
DHCP-Message Option 53, length 1: Discover
Requested-IP Option 50, length 4: 10.2.177.199
Parameter-Request Option 55, length 15:
Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
Domain-Name, BR, Static-Route, YD
YS, NTP, Vendor-Option, POSIX-TZ
Option 120, Classless-Static-Route, Classless-Static-Route-Microsoft
DHCP, Request and DHCP, Reply going out from ae3.3123
User-Re0> monitor traffic interface ae3.3123 matching "udp port 67 || udp port 68" no-resolve detail
Listening on ae3.3123, capture size 1514 bytes
16:41:41.327475 In IP (tos 0x0, ttl 63, id 8090, offset 0, flags [DF], proto: UDP (17), length: 576) <IP Address>.68 > xxx.xx.126.28.67: BOOTP/DHCP, Request from xx:xx:xx:xx:xx:e0, length 548, xid 0xf66f852c, Flags [none]
Server-ID Option 54, length 4: xxx.xx.126.28
16:41:51.540410 Out IP (tos 0x10, ttl 125, id 16306, offset 0, flags [DF], proto: UDP (17), length: 328) xx.xx.126.28.67 > <IP Address>.67: BOOTP/DHCP, Reply, length 300, hops 1, xid 0x1777f410, Flags [none]
Your-IP <IP Address>
DHCP-Message Option 53, length 1: Offer
Subnet-Mask Option 1, length 4: 255.255.255.0
Default-Gateway Option 3, length 4: <IP Address>
Domain-Name-Server Option 6, length 8: xx.xx.100.37,xxx.xx.100.38
Hostname Option 12, length 11: "eg8145x6-10"
Lease-Time Option 51, length 4: 7200
Server-ID Option 54, length 4: xx.xx.126.28
To check if DHCP request packet is going out from ae3.20 towards QFX and SRX Enable Firewall filter to count packets for DHCP request and reply
set firewall family inet filter DHCP-RELAY-TEST-IN term 1 from protocol udp
set firewall family inet filter DHCP-RELAY-TEST-IN term 1 from source-port 68
set firewall family inet filter DHCP-RELAY-TEST-IN term 1 then count BOOTP-REQUEST-COUNT
set firewall family inet filter DHCP-RELAY-TEST-IN term 1 then log
set firewall family inet filter DHCP-RELAY-TEST-IN term 1 then accept
set firewall family inet filter DHCP-RELAY-TEST-IN term 2 then accept
set firewall family inet filter DHCP-RELAY-TEST-OUT term 1 from protocol udp
set firewall family inet filter DHCP-RELAY-TEST-OUT term 1 from destination-port 67
set firewall family inet filter DHCP-RELAY-TEST-OUT term 1 then count BOOTP-REPLY-COUNT
set firewall family inet filter DHCP-RELAY-TEST-OUT term 1 then log
set firewall family inet filter DHCP-RELAY-TEST-OUT term 1 then accept
set firewall family inet filter DHCP-RELAY-TEST-OUT term 2 then accept
set interface ae3.20 family inet filter input DHCP-RELAY-TEST-IN
set interface ae3.20 family inet filter output DHCP-RELAY-TEST-OUT
Verification :
The Below Output will state the DHCP relay state should be in selecting state under working conditions
show dhcp relay binding
show dhcp relay statistics
In the Above case no issue was reported on MX
As per the testing Client tested in a different MW with a different Dekstop MAC 5c:60:ba:70:59:6b and found DHCP, Request and DHCP, Reply
Hence concluded no issue with MX
[User]RE1-re0> monitor traffic interface ae3.20 matching "port 67 || port 68" no-resolve detail
Listening on ae3.20, capture size 1514 bytes
16:44:57.620160 Out IP (tos 0x0, ttl 127, id 53247, offset 0, flags [none], proto: UDP (17), length: 344) <IP Address> > xxx.xx.126.28.67: BOOTP/DHCP, Request from xx:xx:xx:xx:xx:6b, length 316, xid 0x93cafb6b, Flags [none]
Client-Ethernet-Address xx:xx:xx:xx:xx:6b
DHCP-Message Option 53, length 1: Request
Client-ID Option 61, length 7: ether xx:xx:xx:xx:xx:6b
Hostname Option 12, length 15: "DESKTOP-BRPE7R0"
FQDN Option 81, length 18: "DESKTOP-BRPE7R0"
Vendor-Class Option 60, length 8: "MSFT 5.0"
Parameter-Request Option 55, length 14:
Subnet-Mask, Default-Gateway, Domain-Name-Server, Domain-Name
Router-Discovery, Static-Route, Vendor-Option, Netbios-Name-Server
Netbios-Node, Netbios-Scope, Option 119, Classless-Static-Route
Classless-Static-Route-Microsoft, Option 252
16:44:57.674738 In IP (tos 0x10, ttl 126, id 0, offset 0, flags [DF], proto: UDP (17), length: 336) xxx.xx.126.28.67 > <IP Address>.68: BOOTP/DHCP, Reply, length 308, xid 0x93cafb6b, Flags [none]
DHCP-Message Option 53, length 1: ACK
Domain-Name-Server Option 6, length 8: xxx.xx.100.37,xxx.xx.100.38
FQDN Option 81, length 19: [N] "desktop-brpe7r0."
