Description

SRX300 STAT LED

Solution

As we can see, a solid amber light has a couple of reasons:

  • Device is starting up
  • Committing rescue configuration
  • Committing clear configuration

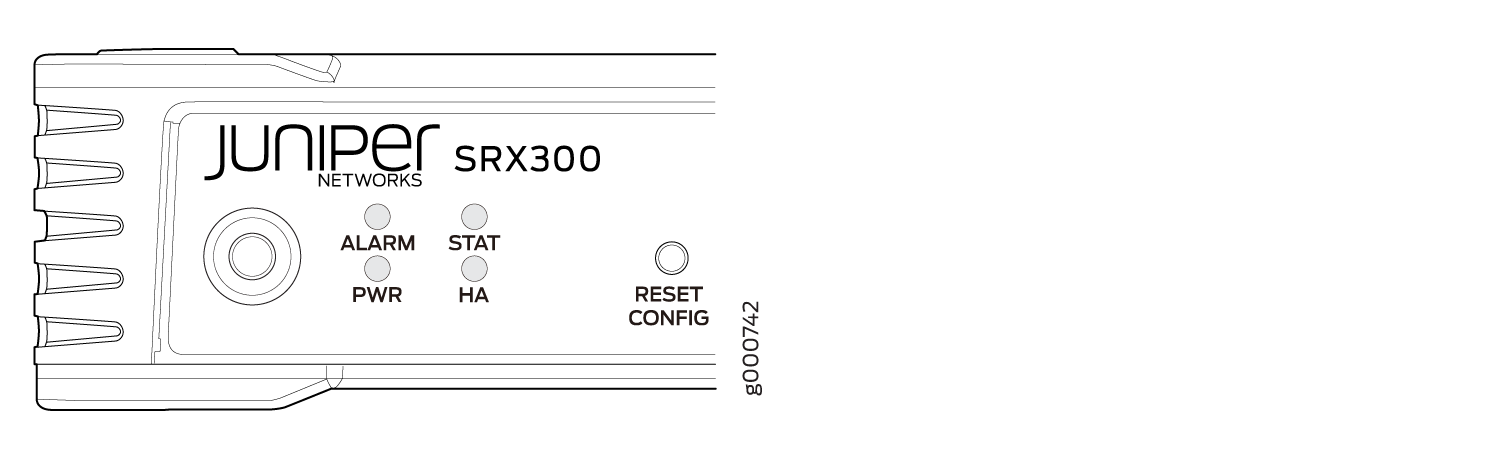

Table 2 lists the front panel LEDs.

Table 2: SRX300 Firewall Front Panel LEDs

Component

Description

ALARM

  • Solid amber (noncritical alarm)

  • Solid red (critical alarm)

  • Off (no alarms)

STAT

  • Solid green (operating normally)

  • Solid amber

    • Device is starting up

    • Committing rescue configuration

    • Committing clear configuration

    • Solid red (error detected)

    PWR

    • Solid green (receiving power)

    • Solid red (power failure)

    • Off (no power)

    HA

    • Solid green (all HA links are available)

    • Solid amber (some HA links are unavailable)

    • Solid red (HA links are not functional)

    • Off (HA is disabled)





    Link reference:

    SRX300 Chassis | Juniper Networks
