Description

This article provides solution on how to resolve the issue when the J-Web menu is incomplete as it lacks some tabs.

Symptoms

The J-Web menu does not have all the expected tabs, just a few. This causes that the switch cannot be fully managed via J-Web.

Solution

You should open J-Web and click on "Maintain" tab. Then click on "Update J-Web". Upon loading the screen, proceed to download application package. Upon completing the download, click on "Select Application Package" and complete the update. After this, all menu tabs should appear.

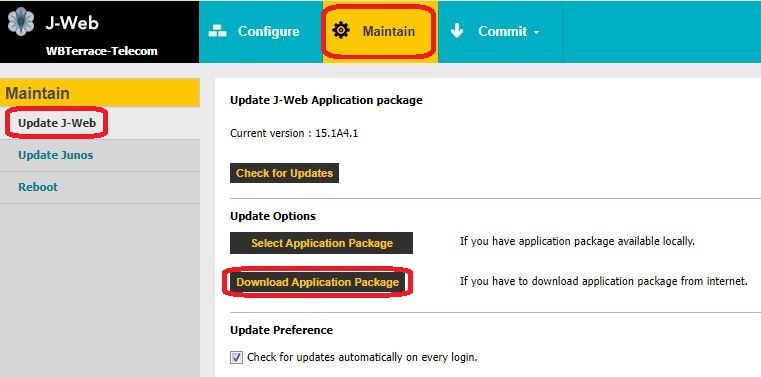

Image attached for illustration purposes:

J-Web update.JPG

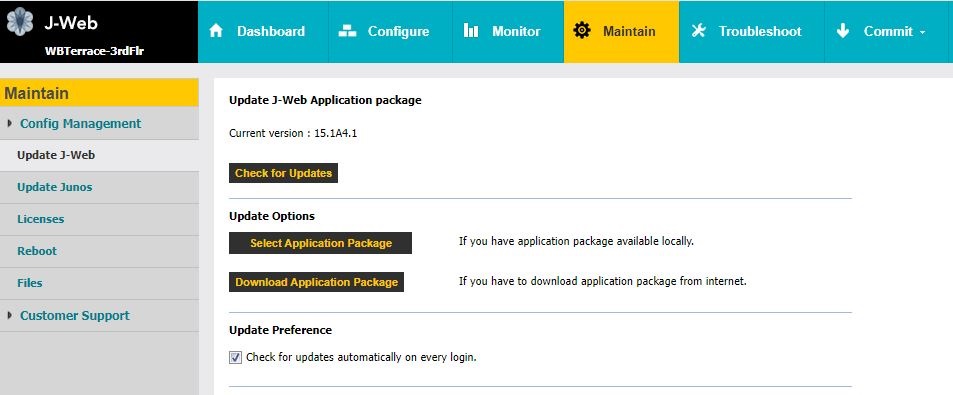

The below image illustrates what the J-Web menu should look like when all expected tabs are available:

J-Web all menu tabs.jpg

Modification History

2024-06-19 : Article Created
