This article provides a step-by-step guide on configuring static NAT on an SRX device using the MIST UI.

Follow these steps to configure static NAT from MIST UI:

1 Navigate to Organisations > WAN > Networks:

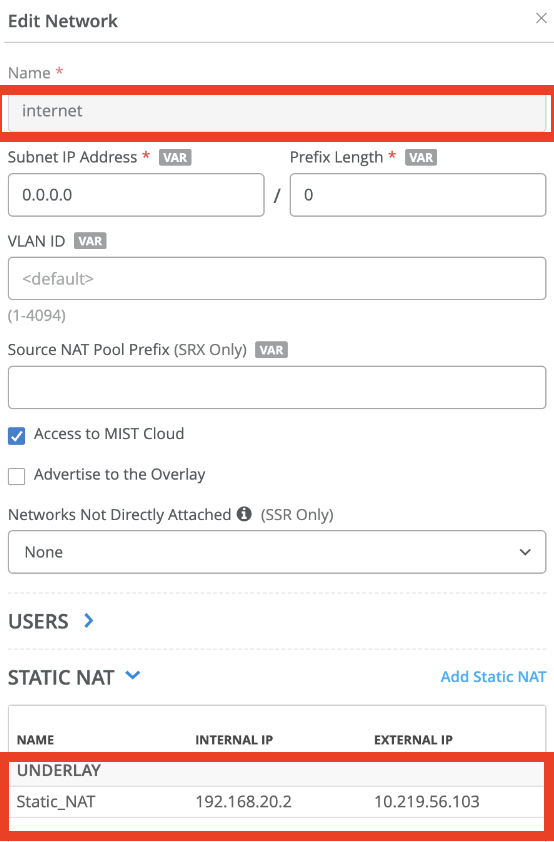

• Create a network with the name "internet" and configure static NAT under the same network. As shown below: (Network name should be internet otherwise MIST will not push application policy from WAN to LAN)
  • Set the Subnet IP address to 0.0.0.0 with prefix 0.

2. Create LAN Network under Organisations > WAN > Networks:

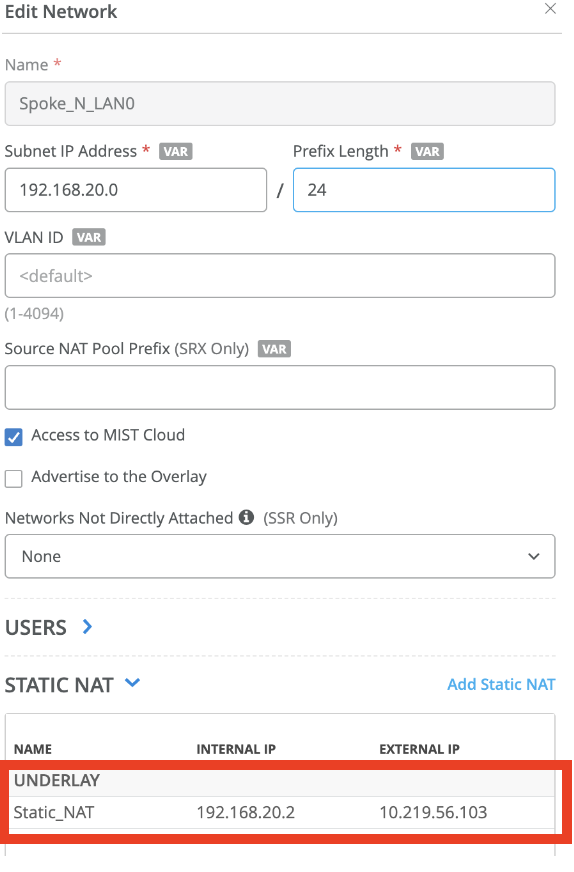

• Create LAN Network (if not already created) and configure static NAT in LAN network as well. As shown below:

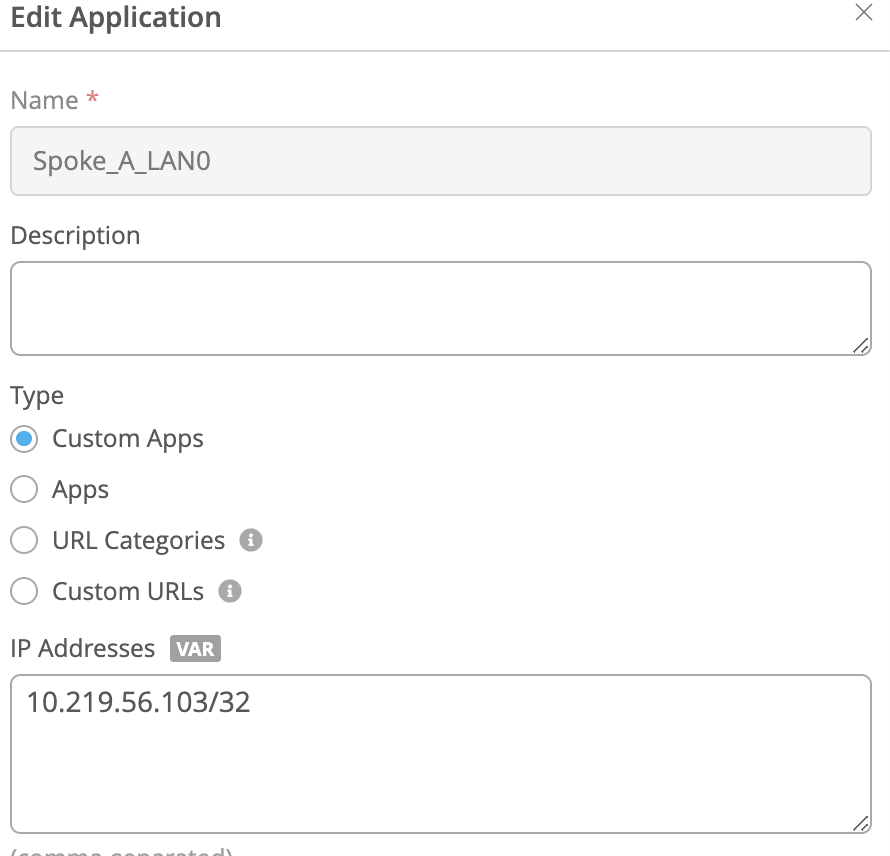

3. Create Application for external IP for static NAT. (Organisations > WAN > Applications)

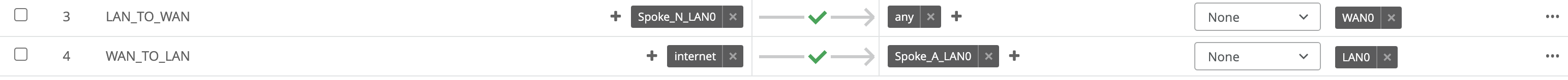

4. Create Application Policies:

• Two policies are required for LAN to WAN and WAN to LAN traffic.
