This article explains the steps in how to add the secondary node in the Junos space fabric.

How to add secondary node in the Junos space fabric?

Please follow the below steps in adding the secondary node in Junos space fabric:

Step 1: Deploy Junos space either by using VMware or KVM.

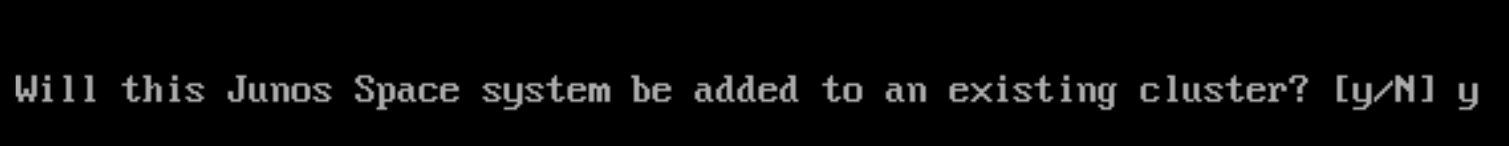

Step 2: During the deployment process of Junos space please give "Y" when it shows below option:

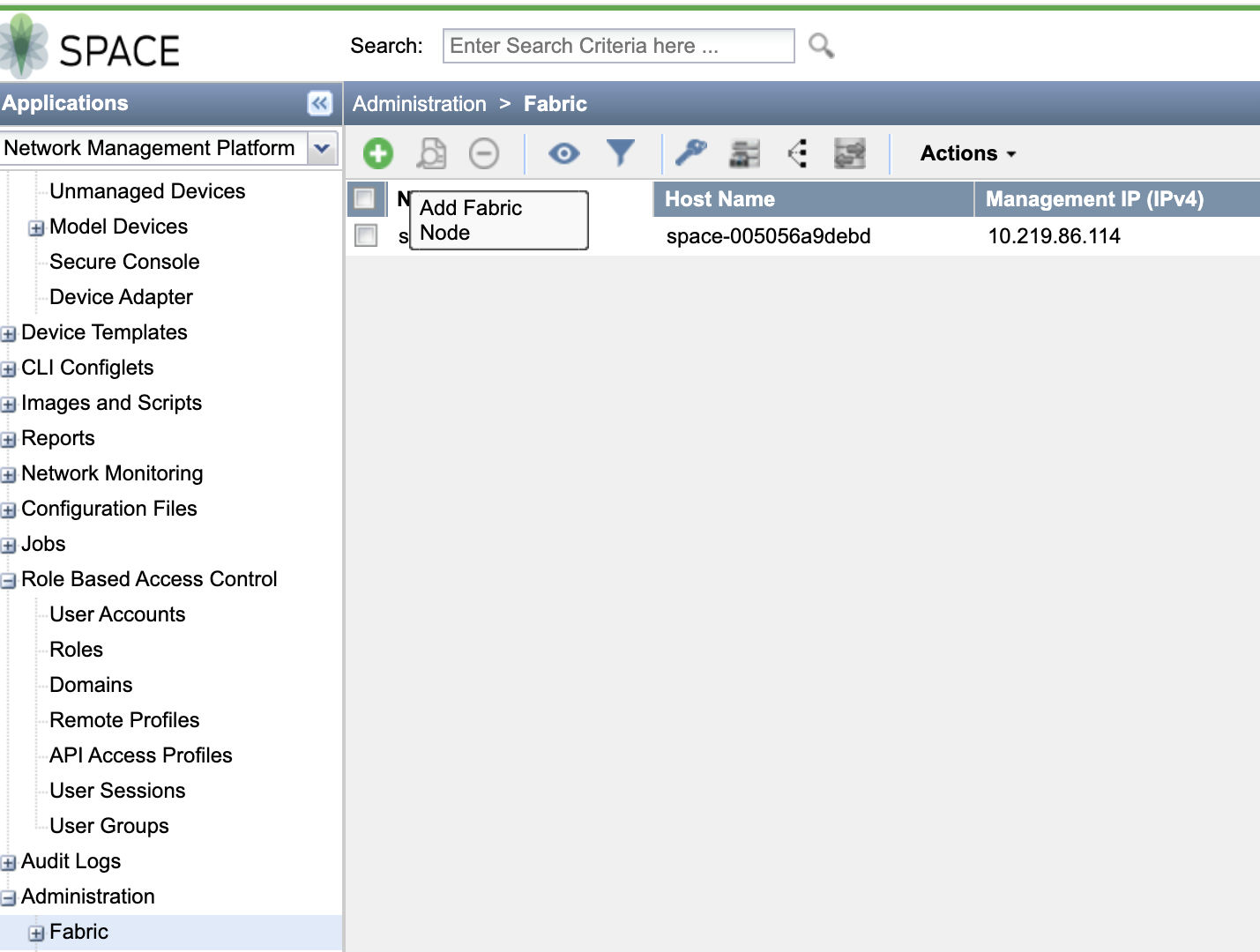

Step 3: Once the deployment completed, please login to UI and Navigate to Administration-->Fabric-->Add Fabric node.

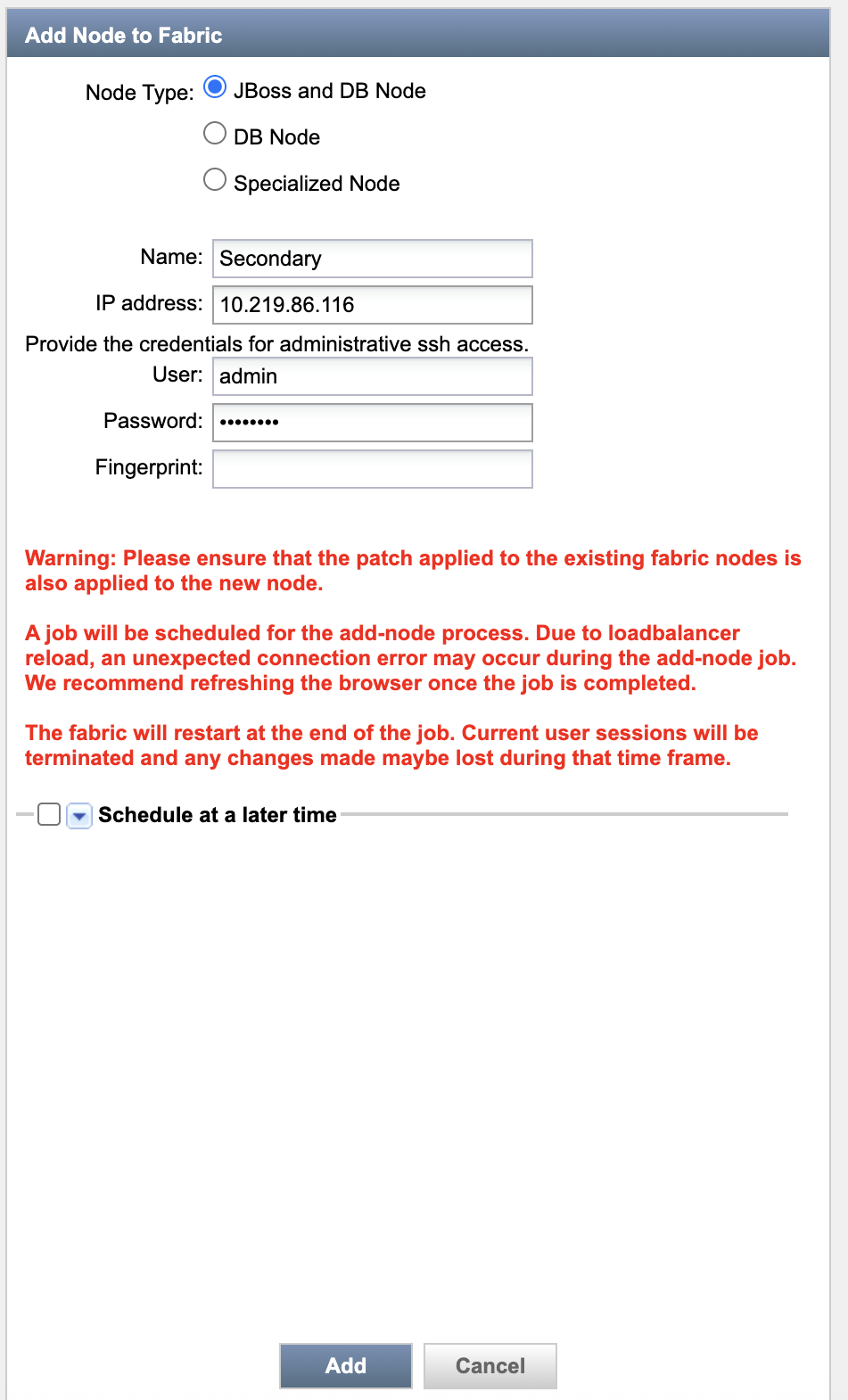

Step 4: Then choose which type of node you want to add and fill the server details, in this scenario please choose Jboss and DB node option and click add.

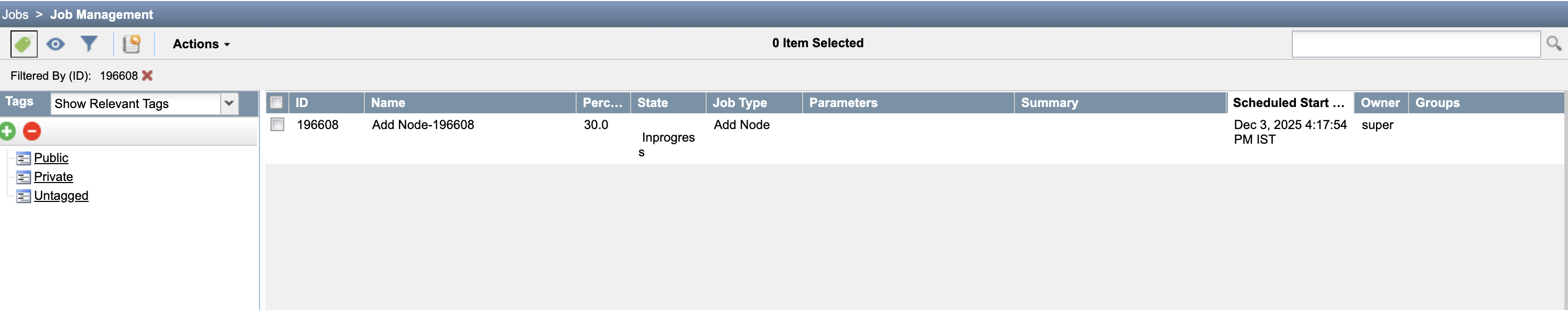

Step 5: Once you click add, the node addition Job ID will be created and you can check the Job details in the Job management page.

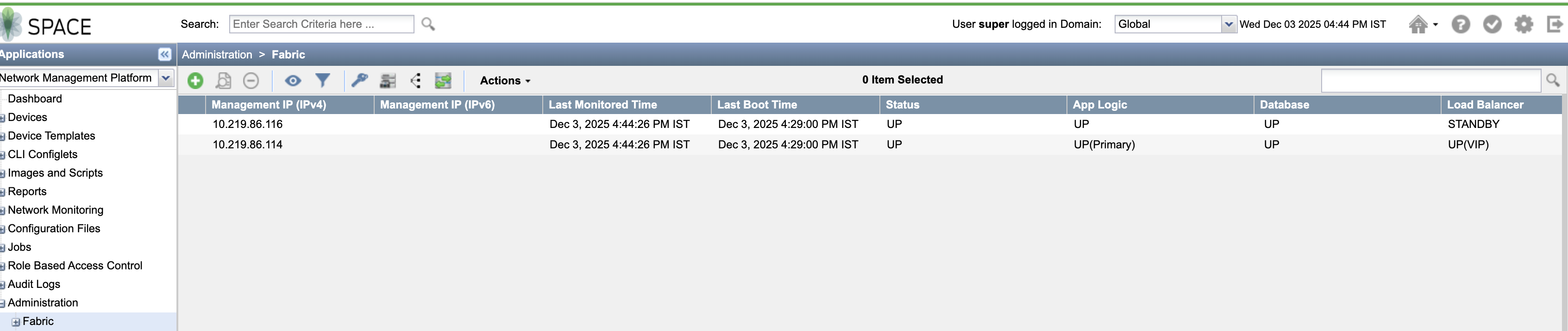

Step 6: Once the Job completed the new node will be added in the Fabric as a standby node.

Note: Once the Job has been completed the Junos space services will be restarted and GUI will not be accessible for sometime.

If you need any further assistance please contact JTAC

2024-03-20 : Article Created

2025-12-03 : Minor change and visibility changed.
