Description

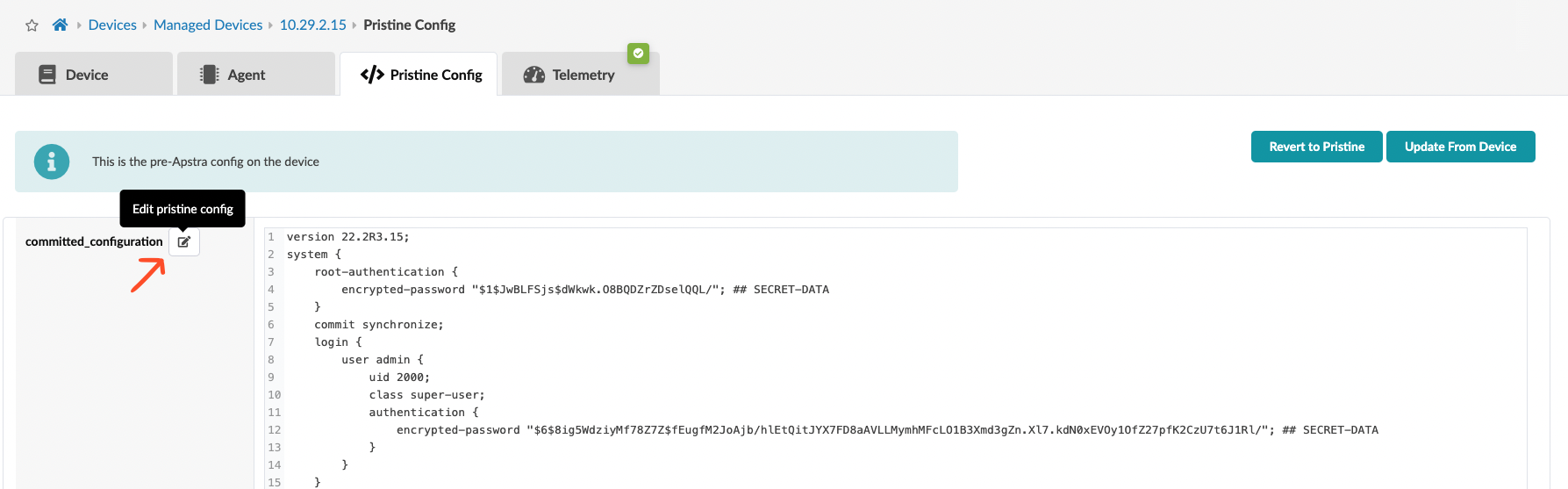

Apstra release 4.2.0 or later, has a UI button "Force Update" to update device pristine configuration in Apstra UI without un-deploying the device . This is available under Managed Devices > Device-IP > Pristine-Config > Edit Pristine Config.


Edit-pristine-button-Apstra


This button is not available in Apstra 4.1.2 GA or prior releases; users using Apstra 4.1.2 can apply the UI patch in Apstra 4.1.2.



Symptoms

Users cannot update pristine config from UI in Apstra 4.1.2 GA release without unassigning the device.

Solution


Note: Users must take precaution while updating the device pristine configuration, since as any incompatible and syntax error will lead to configuration deployment errors.

There's no action required for users running Apstra 4.2.0 or later, however for users running Apstra 4.1.2 following steps can be followed to apply the UI patch:
  1. Check the Apstra 4.1.2 VM UI version under Platform > About, the Juniper Apstra UI version should be 4.1.2-187, this version means 4.1.2 UI does not have "Force update" button.
  2. Download the Apstra 4.1.2 UI patch aos-web-ui.run from here . Once dowloaded, scp this file to Apstra VM.
  3. Make sure the correct permissions are set to execute this file on Apstra VM.

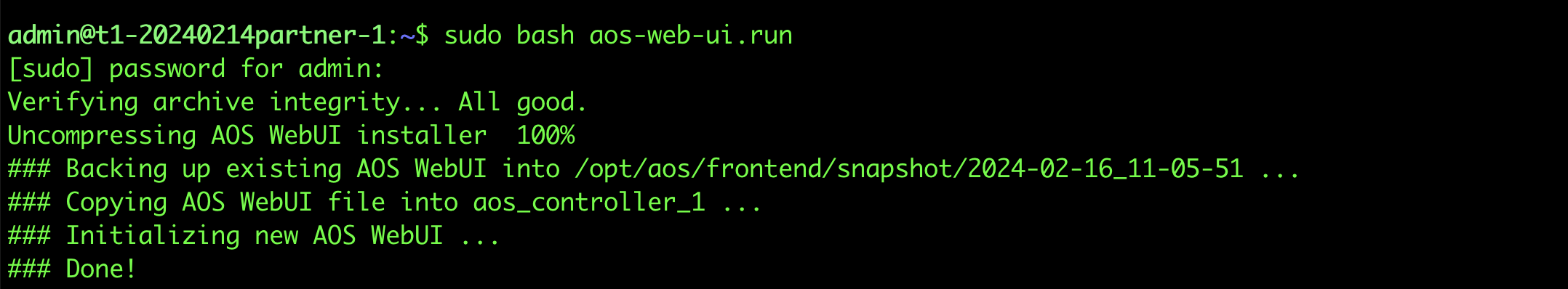

  4. Apply the UI patch by running- "sudo bash aos-web-ui.run". Apply-UI-Patch

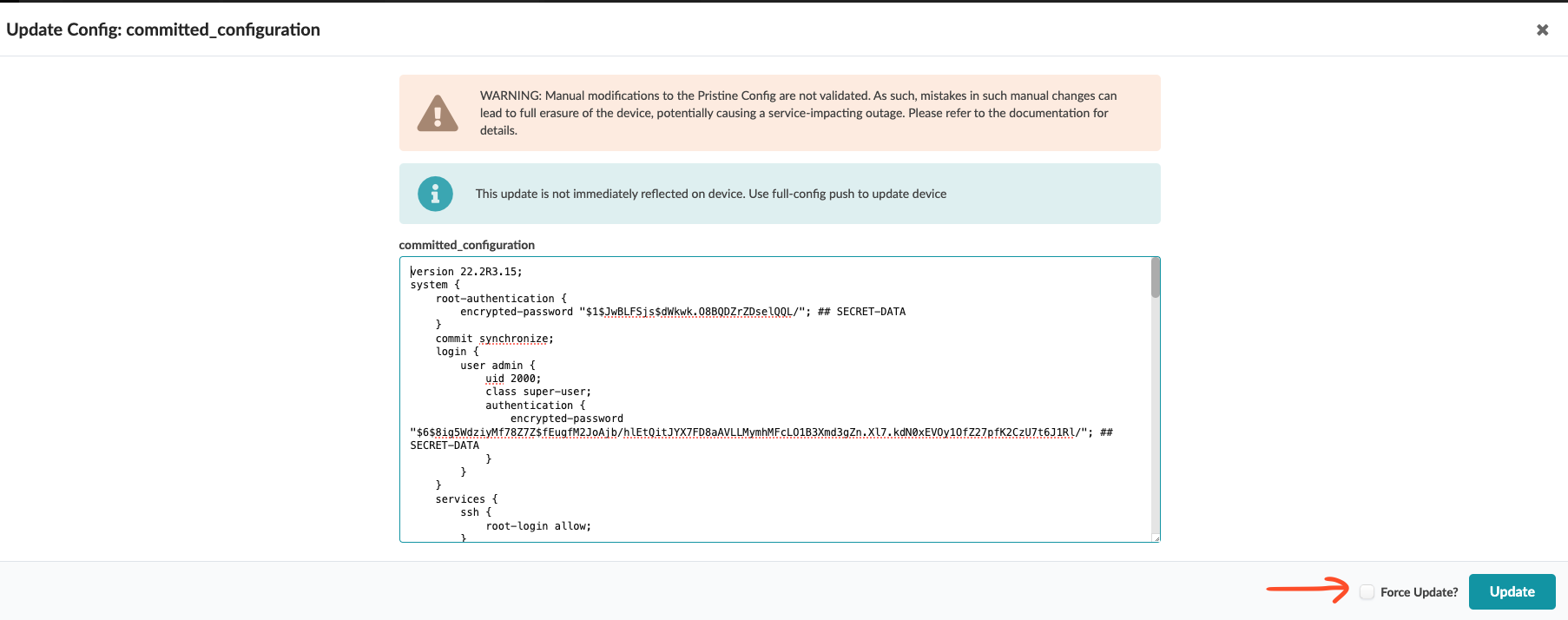

  5. Once UI patch is applied, the UI version will change to 4.1.2-212 and will show "Force update" button. Force-Update-button

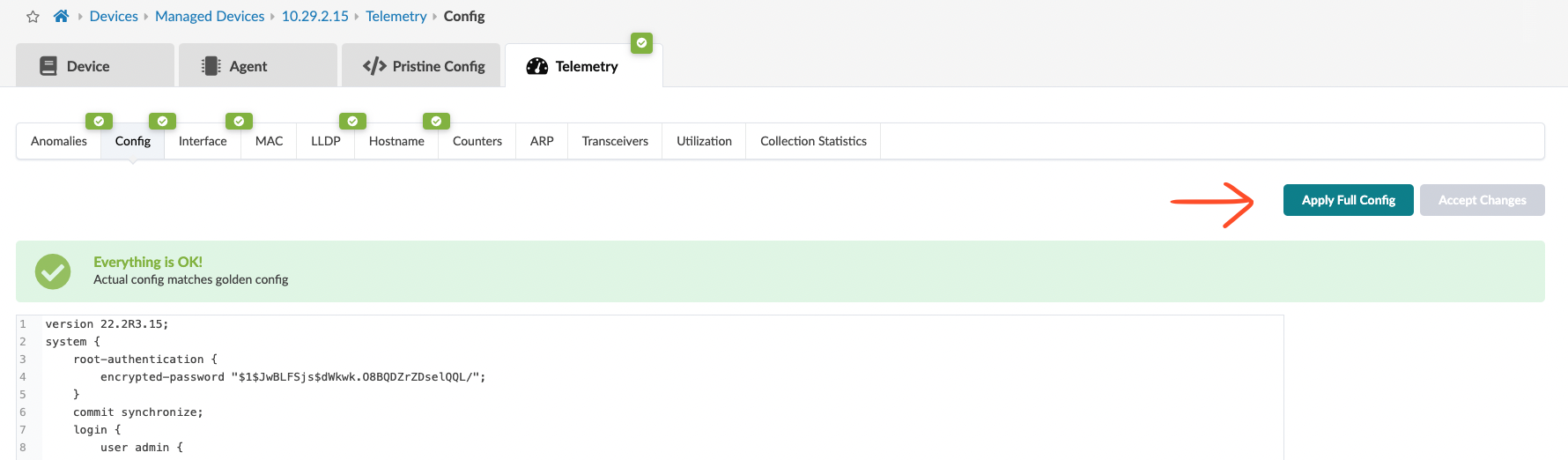

In order to update a device pristine configuration configuration, users can navigate to Managed Devices > Device-IP > Pristine-Config > Edit Pristine Config, fix/update the device pristine configuration. Make sure to check the button "Force Update" and click on Update. Followed by device pristine update, user can perform a full config push under Telemetry > Config > Apply Full Config to update device configuration.

Apply-Full-Config


Modification History

Version 1.0
