Description

Unpacking, mounting, verifying, and installation of SRX4100

Solution



To unpack the services gateway:

  1. Move the cardboard carton to a staging area as close to the installation site as possible, where you have enough room to remove the components from the chassis.
  2. Open the carton.
  3. Pull out the packing material holding the services gateway in place.
  4. Verify the parts received against the inventory (packing list). The packing list specifies the part numbers and carries a brief description of each part in your order.
  5. Save the shipping carton and packing materials in case you need to move or ship the services gateway at a later time.

Verifying Parts Received with the SRX4100 Services Gateway

Table 1: Parts List for a Fully Configured Services Gateway
ComponentQuantity
Services gateway1
Power supply (preinstalled)2AC or DC
AC power cord appropriate for your geographical location (only for AC models)2
Rack mount kit1
Documentation Roadmap and Product Warranty1
ROHS Card1
End User License Agreement1
Safety Guide1
DB-9 to RJ-45 cable1
RJ-45 cables2


Installing the SRX4100 Services Gateway in a Rack

You can mount the services gateway on four posts in a 19-in. rack or cabinet by using the rack-mount kit shipped with the device. (The remainder of this topic uses rack to mean rack or cabinet.)

Before mounting the device on four posts in a rack:

  1. Verify that the site meets the requirements described in SRX4100 Site Preparation Checklist.

  2. Place the rack or cabinet in its permanent location, allowing adequate clearance for airflow and maintenance, and secure it to the building structure.

  3. Verify that the rack or cabinet meets the specific requirements described in SRX4100 Services Gateway Rack Requirements and Cabinet Requirements for SRX4100 Services Gateways.

  4. Remove the services gateway from the shipping carton (see Unpacking the SRX4100 Services Gateway).

Ensure that you have the following parts and tools available:

  • Phillips (+) screwdriver, number 2

  • Fourteen flat-head screws (provided with the rack mount kit)

Eight rack-mounting screws to secure the chassis to the rack (not provided with the rack mount kit)


To mount the services gateway in a four-post rack:

1. Attach the mounting ears to the front of the chassis, using the screws provided. Then, attach the fixed brackets to the rear of the device, using the screws provided.

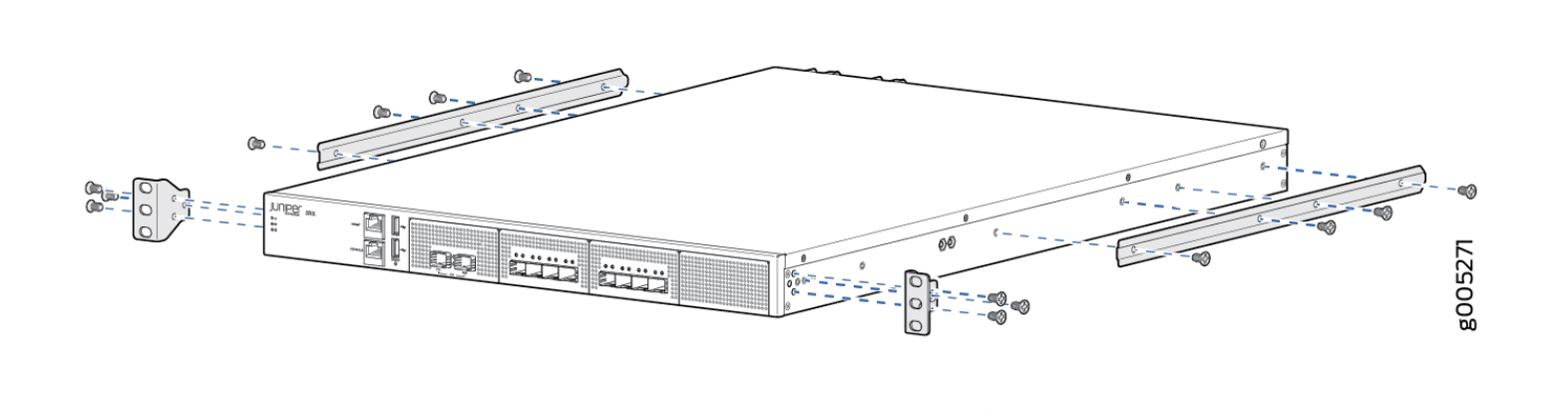

 Figure 1: Attaching the Mounting Ears and Fixed Brackets
Figure 1.png
NOTE: Ensure that the rear of the device is supported throughout the process of mounting the device into the rack.


2.Slide the device into the rack, and secure the mounting ears to the rack, using the mounting screws.

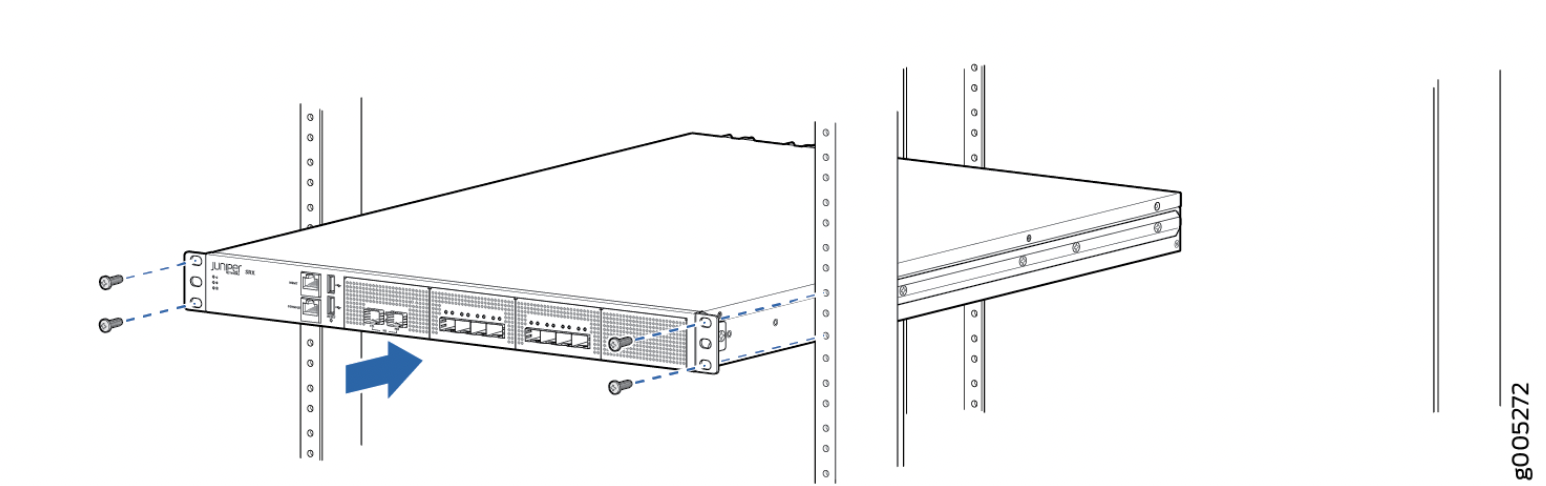

Figure 2: Securing the Mounting Ears to the Rack
Figure 2.png

3.Slide the adjustable brackets into the fixed brackets attached to the rear of the device

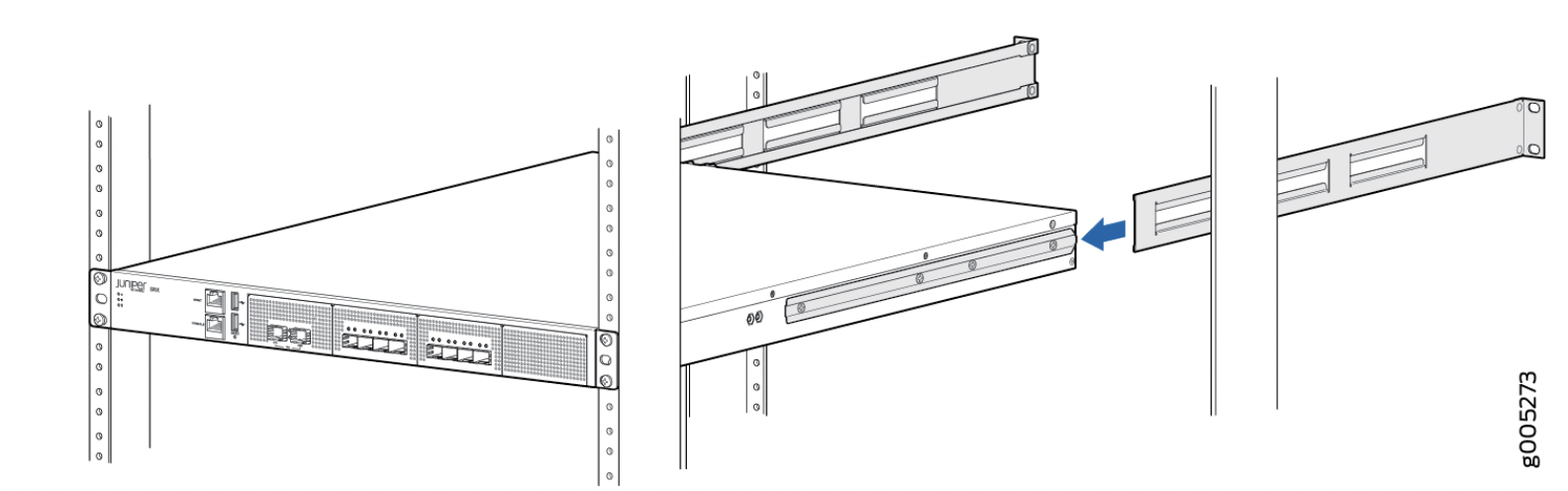

Figure 3: Attaching the Adjustable Brackets
Figure 3.png


4.Secure the adjustable brackets to the rack, using the mounting screws.

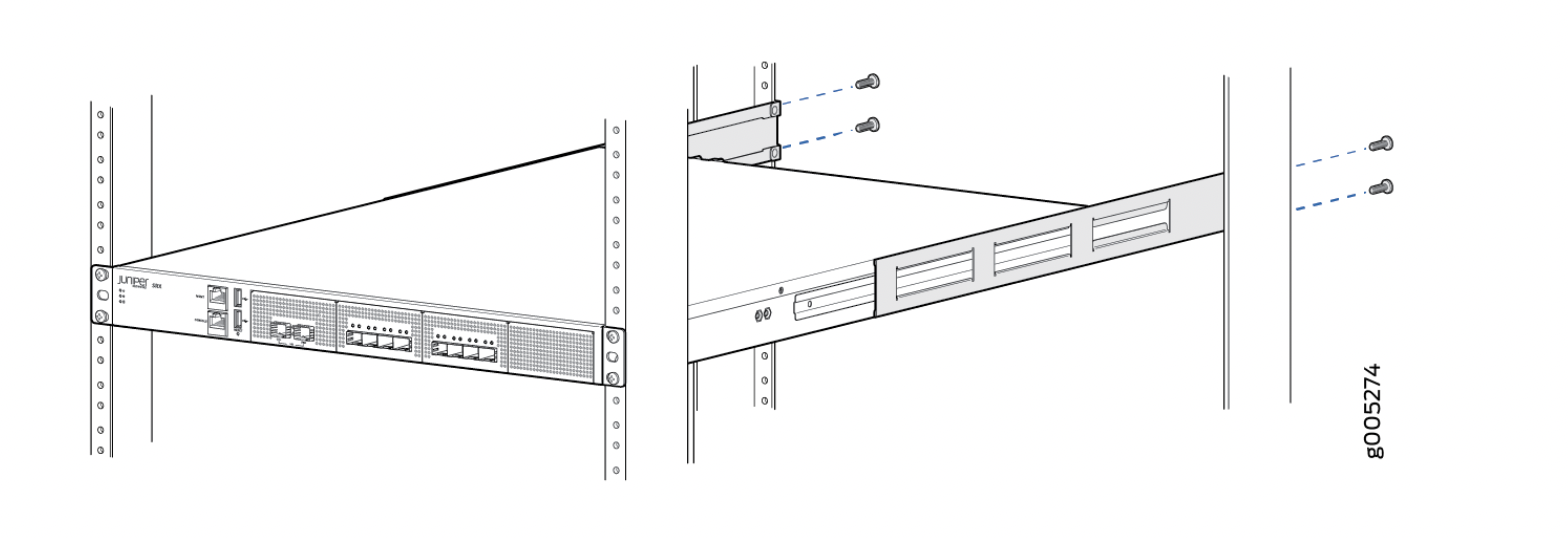

Figure 4: Securing the Adjustable Brackets to the Rack
Figure 4.png
