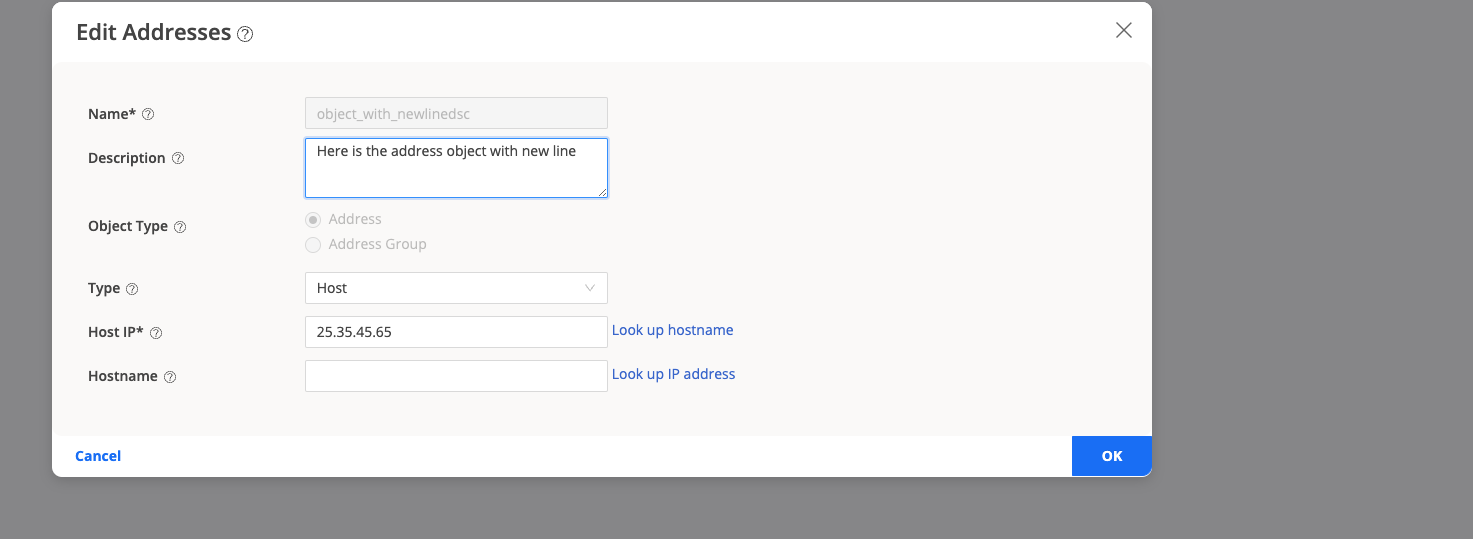

• Customer created address object with description having new line characters. Here is an example of address object with new line character in the object
• description.

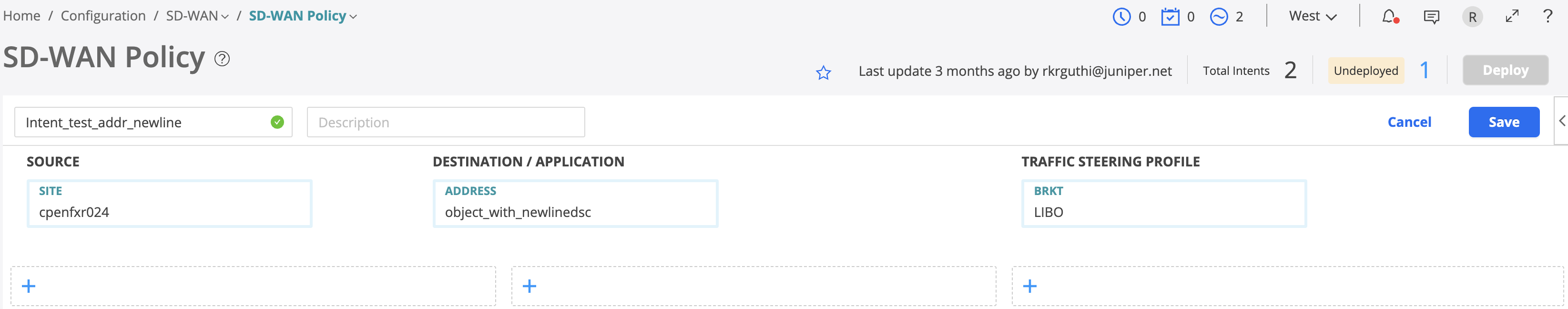

• SDWAN policy intent created referring new address object. Here is an example of SDWAN policy intent created with address object created in earlier step.

• SDWAN deployment failed due to commit error on the device since new line character present in address object description.

 <nc:error-message>\ndescription: 'Here is the address object with new line\ncharacter': Must be a string excluding '&amp;', '&lt;', '&gt;' and '\\n'\n</nc:error-message>\n</nc:rpc-error>\n<nc:rpc-error>\n<nc:error-type>protocol</nc:error-type>\n<nc:error-tag>operation-failed</nc:error-tag>\n<nc:error-severity>error</nc:error-severity>\n<nc:error-message>syntax error, expecting &lt;rpc&gt; or &lt;/rpc&gt;</nc:error-message>\n<nc:error-info>\n<nc:bad-element>ip-prefix</nc:bad-element>\n</nc:error-info>\n</nc:rpc-error>\n

User can follow instructions to resolve the problem and proceed with SDWAN policy deployment.



• Remove new line character from address object description. Here is an example of screenshot showing address object edited without any new line character.

• Deploy the SDWAN policy again with intents referring to the address object.

• This bug fixed in CSO 6.3 patch11 or later versions where  address object description will be restricted to single line.
