Description

Configuring Permanent Route Support Using NSM

Symptoms


Solution

note ScreenOS 5.1 has added a new option called permanent. You can configure a static route to keep the route active even when the interface link state is down or when the interface IP is removed.

To configure permanent route support using NSM, perform the following steps:

alt Connect to NSM. For more information, go to Connecting to the NetScreen-Security Manager [juniper.net] .

alt Expand Device Manager , and then click to select FW/VPN Devices .

Image of step two


alt From the FW/VPN Device Tree tab, right-click the device you want to configure, and then click Edit .

Image of step three


alt Expand Network , and then click to select Virtual Router .

Image of step four


alt From the Virtual Router window, locate the Virtual Router on which you want to enable permanent route support, and then click the Edit button.

Image of step five


alt In the left pane, click to select Routing Table .

Image of step six


alt In the right pane, under Destination-based Routing Table , click the add or edit button.

Image of step seven

note Permanent route support can be configured on the Destination-based Routing Table , Source-based Routing Table , or Source-interface-based Routing Table .

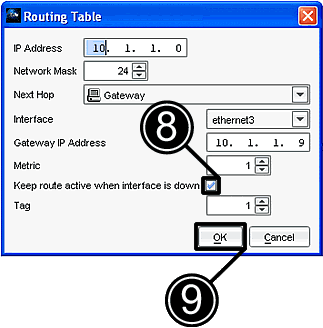

alt In the Routing Table window, click to select Keep route active when interface is down to enable permanent route support.

Image of step eight and nine

alt Click OK .
