When a static bypass LSP and a dynamic bypass LSP both exists for protecting an LSP, the dynamic LSP is torn-down for optimization (as long as static bypass LSP is up) and the following syslog message appears for the event of bypass LSP tear-down:

The following syslog message is seen:

Additionally, the dynamic bypass LSP does not show up in the output of ' show mpls lsp bypass ':

1. RSVP LSP from DUT to R2 is up:

   labroot@DUT> show mpls lsp
   Dec 25 20:51:09
   Ingress LSP: 1 sessions
   To              From            State Rt P     ActivePath       LSPname
   2.0.0.2         1.0.0.1  Up     0 *                      DUT-to-R2

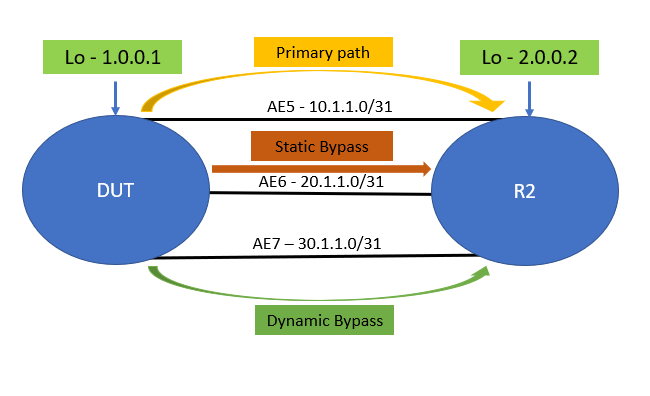

2. Below is the configuration for Static Bypass, protecting interface AE5. The bypass LSP is a strict LSP traversing AE6 only:

   set protocols rsvp interface ae5.0 link-protection bandwidth 150m
   set protocols rsvp interface ae5.0 link-protection subscription 65000
   set protocols rsvp interface ae5.0 link-protection optimize-timer 60
   set protocols rsvp interface ae5.0 link-protection bypass BYPASS_DUT-to-R2_AE6 path 20.1.1.1 strict
   set protocols rsvp interface ae5.0 link-protection bypass BYPASS_DUT-to-R2_AE6 bandwidth 150m
   set protocols rsvp interface ae5.0 link-protection bypass BYPASS_DUT-to-R2_AE6 subscription 65k
   set protocols rsvp interface ae5.0 link-protection bypass BYPASS_DUT-to-R2_AE6 admin-group exclude AVOID-LINK
   set protocols rsvp interface ae5.0 link-protection bypass BYPASS_DUT-to-R2_AE6 admin-group exclude ALL-AVOID

3. In a normal situation, only Static Bypass LSP will be up:

   labroot@DUT> show mpls lsp bypass
   Dec 25 20:54:27
   Ingress LSP: 1 sessions
   To              From            State   Rt Style Labelin Labelout LSPname
   2.0.0.2         1.0.0.1  Up       0  1 SE       -        0 BYPASS_DUT-to-R2_AE6

4. Lets cost out AE6 by setting COLOR 'AVOID-LINK' on the AE6 bundle. Since the static bypass is configured to avoid this link, the static bypass LSP will go down due to unavailable path:

   labroot@DUT# show | compare
   Dec 25 20:59:42
   [edit protocols mpls interface ae6.0]
   +    admin-group 'AVOID-LINK ;

   This will lead to dynamic bypass for this LSP to get established since the static bypass has gone down:

   labroot@DUT> show mpls lsp bypass
   Dec 25 21:00:57
   Ingress LSP: 2 sessions
   To              From            State   Rt Style Labelin Labelout LSPname
   2.0.0.2         1.0.0.1  Up       0  1 SE       -        0 Bypass->10.1.1.1
   10.1.1.1        1.0.0.1  Down     0  0  -       -        - BYPASS_DUT-to-R2_AE6

5. Bring back static bypass LSP path-AE6 in service again by removing the COLOR 'AVOID-LINK'. This will help Static bypass LSP to come up again.

   labroot@DUT0# show |compare
   Dec 25 21:03:27
   [edit protocols mpls interface ae6.0]
   -    admin-group 'AVOID-LINK ;
   labroot@DUT> show mpls lsp bypass
   Dec 25 21:04:17
   Ingress LSP: 2 sessions
   To              From            State   Rt Style Labelin Labelout LSPname
   2.0.0.2         1.0.0.1  Up       0  1 SE       -        0 Bypass->10.1.1.1
   2.0.0.2         1.0.0.1  Up       0  1 SE       -        0 BYPASS_DUT-to-R2_AE6

6. However, on the next 'optimize-timer' expiry, which is configured as 60 seconds here, the dynamic bypass LSP will be torn down. Since the static LSP is already up for it:

   Dec 25 21:04:30.782  DUT rpd[27801]: %DAEMON-4-RPD_RSVP_BYPASS_DOWN: RSVP bypass Bypass->10.1.1.1 for protecting interface ae5.0 went down, reason: reshuffling data LSP to reduce no of bypasses

This is a day one expected behavior.

1. This behavior is by design. The optimize timer initiates a periodic optimization process that reshuffles data LSPs among bypass LSPs to achieve the most efficient use of network resources. The optimization process attempts to either minimize the number of bypasses currently in use, minimize the total amount of bandwidth reserved for all bypasses, or both
2. When the periodic re-optimization timer finds a static (more preferred) bypass configured LSP with non-zero bandwidth, then the code deletes the running dynamic bypass instance.
