This article describes how to configure multiple devices using a Jinja template configuration and Ansible playbook to avoid manually configuring each device separately.

Manually configuring each device in a large topology can be a cumbersome, time-consuming an error-prone process requiring a separate login to each device.

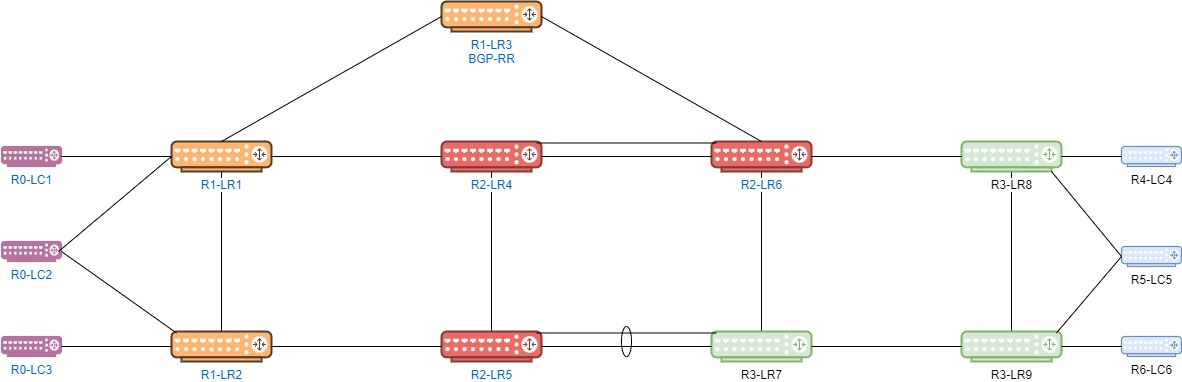

Example with set up lab environment containing 3 logical systems on 3 routers each:

1. lr1, lr2 lr3 exist on r1
2. lr4, lr5, lr6 exist on r2
3. l7, lr8, lr9 exist on r3

The logical-system "lr3" will serve as a route reflector. The following example configuration on "lr1" will stay the same for the remaining 7 logical systems, except for the local-address.

set logical-systems lr1 protocols bgp group pe type internal
set logical-systems lr1 protocols bgp group pe export nhs
set logical-systems lr1 protocols bgp group pe neighbor 192.168.0.3 local-address 192.168.0.1
set logical-systems lr1 protocols bgp group pe neighbor 192.168.0.3 family inet unicast
set logical-systems lr1 protocols bgp group pe neighbor 192.168.0.3 family inet-vpn unicast
set logical-systems lr1 protocols bgp group pe neighbor 192.168.0.3 family inet6 labeled-unicast explicit-null
set logical-systems lr1 protocols bgp group pe neighbor 192.168.0.3 family l2vpn signaling
set logical-systems lr1 protocols bgp group pe neighbor 192.168.0.3 family evpn signaling
set logical-systems lr1 protocols bgp group pe neighbor 192.168.0.3 family inet-mvpn signaling

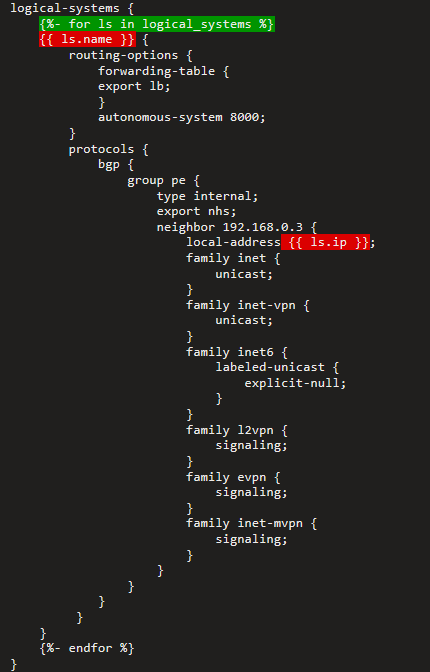

By generating a Jinja2 configuration template, repetitive configuration tasks across multiple devices can be automated. For example, in the above case you could use a Jinja2 configuration template to automatically build BGP configuration files, which could be applied using an Ansilbe playbook. All of this can be done without logging into a single router. The following snippet from the Jinja2 template shows how to place the variables and loop through the logical systems:

The same concept can be extended to reduce repetitive configuration tasks such as configuring MPLS, IS-IS, interfaces and other services separately.
Identify a common template and variables within the template which could be modified to automatically build configuration files suited for all devices (or logical systems in this case).
The following steps are required:

1. Build the Jinja 2 configuration template and replace the variables with identifiers.
2. Build inventory files specifying the IP addresses/host-names of all devices (i.e. r1, r2, r3 in this case)
3. Build the variable files for each host, which includes the names of logical-systems in each device and assign the variable values for each logical-system.
4. Build the Ansible playbook to automate the tasks of creating and applying configurations.
5. Arrange all relevant files correctly in proper directory structure as show in the dry run below.
6. Run the Ansible playbook from the Ansible host server.

To start, copy the project files from the following GitHub location:

Gather the project files from the Github location " https://github.com/pranavs2508/apply-bgp-configuration "

Or

Use "git clone https://github.com/pranavs2508/apply-bgp-configuration " on your Linux terminal.

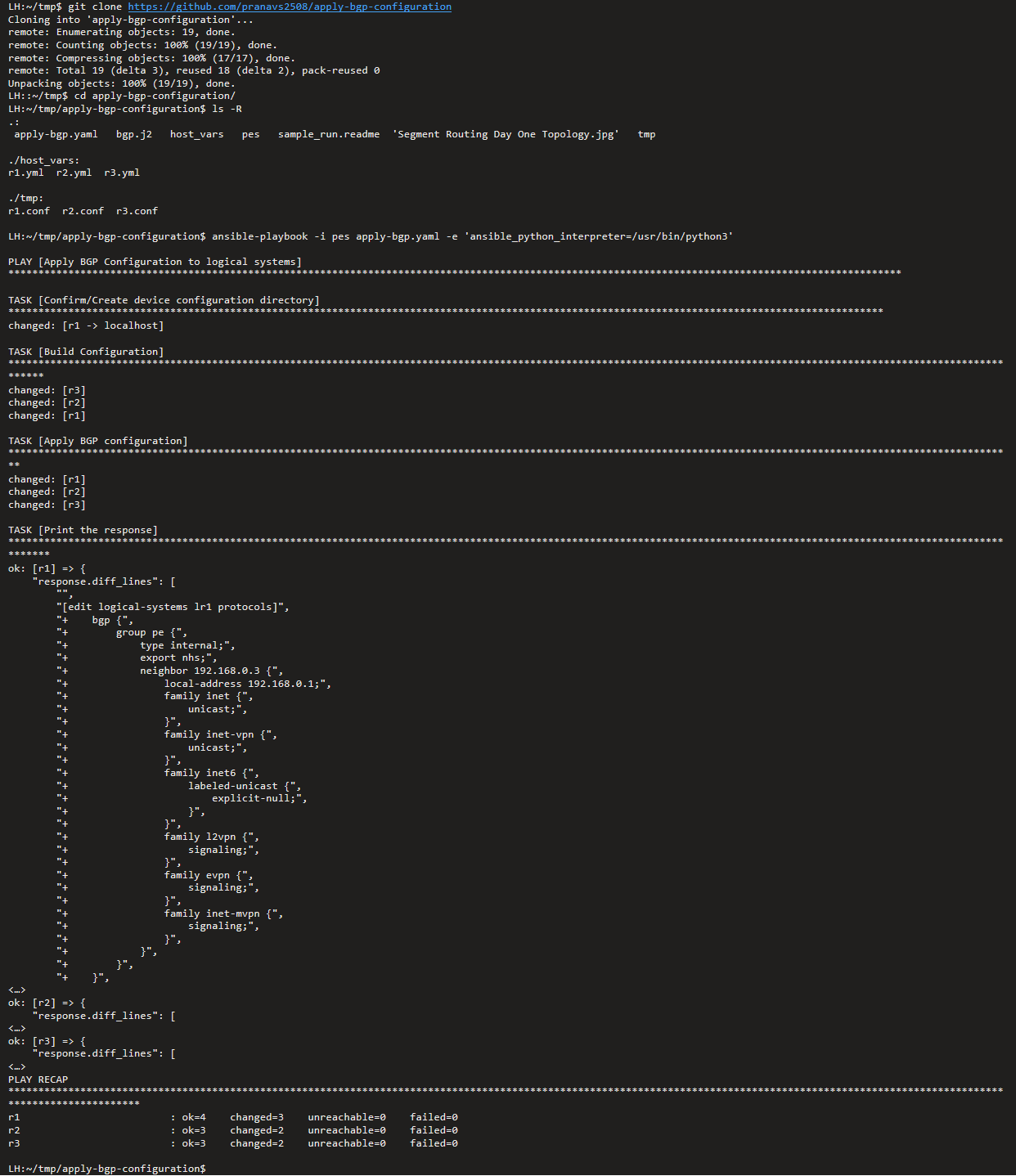

 Example:

• Project's Github Page
