This article demonstrates how to configure both inet unicast and inet labeled unicast Network Layer Reachability Information (NLRI) for a Border Gateway Protocol (BGP) peer if required.
When both the inet unicast and inet labeled unicast address families are enabled for a BGP neighbor, the following message is displayed during commit:
R1_re# set protocols bgp group BGP_RR family inet unicast [edit] R1_re# set protocols bgp group BGP_RR family inet labeled-unicast [edit] R1_re# commit and-quit [edit protocols] 'bgp' Error in neighbor 192.168.2.2 of group BGP_RR: peer cannot have both inet unicast and inet labeled-unicast nlri error: configuration check-out failed [edit]
BGP-LU has the following behavior by default.
If a router learns a BGP-LU prefix, it will place it in the inet.0 table.
If a BGP route exists in the inet.0 table, the router will advertise it with a label.
In the following example, R1 is receiving a prefix from its eBGP peer (AS65001) without any label and is advertising it with a label to its RR. R1 has established an iBGP session with RR with family inet labeled-unicast.

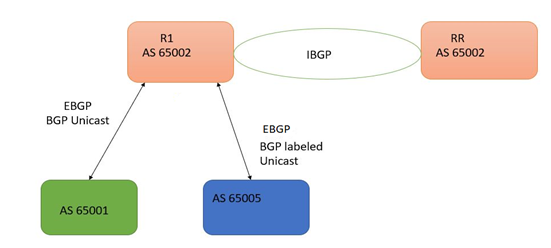

Note: In the above topology, R1 is Router 1 and RR is the Route Reflector. R1 has eBGP neighborship with two different Autonomous Systems: 65001 and 65005.
R1_re> show route receive-protocol bgp 10.1.1.2 detail inet.0: 70 destinations, 70 routes (70 active, 0 holddown, 0 hidden) * 172.16.1.0/24 (1 entry, 1 announced) Accepted Nexthop: 10.1.1.2 AS path: 65001 I ================================================ R1_re> show route advertising-protocol bgp 192.168.2.2 detail inet.0: 70 destinations, 70 routes (70 active, 0 holddown, 0 hidden) * 172.16.1.0/24 (1 entry, 1 announced) BGP group BGP_RR type Internal Route Label: 299872 Nexthop: Self Flags: Nexthop Change Localpref: 100 AS path: [65002] 65001 I Entropy label capable ========================== RR> show bgp summary Groups: 1 Peers: 4 Down peers: 0 Table Tot Paths Act Paths Suppressed History Damp State Pending inet.0 50 50 0 0 0 0 Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped... 192.168.1.1 65002 4 2 0 2 7 Establ inet.0: 50/50/50/0 ================================================== RR> show route receive-protocol bgp 192.168.1.1 detail inet.0: 70 destinations, 70 routes (70 active, 0 holddown, 0 hidden) * 172.16.1.0/24 (1 entry, 1 announced) Accepted Route Label: 299872 Nexthop: 192.168.1.1 Localpref: 100 AS path: 65001 I Entropy label capable, next hop field matches route next hop
In the above output, you see that RR places these labeled prefixes in the inet.0 table. When a router receives BGP prefixes from a particular neighbor, it will add the standard unicast prefixes into inet.0.
However, if that router receives a Labeled-Unicast prefix from the same neighbor, by default, it cannot add this prefix into inet.0 as well. This is the reason that you cannot configure both families simultaneously. These prefixes then have to go into inet.3.
Note: You need to configure a next-hop self-policy to make R1 as the next-hop when you re-advertise eBGP-learned prefixes into iBGP. However, when you re-advertise BGP unicast into BGP-LU, the next-hop changes by default without requiring configuration.
To be able to use both inet unicast and inet labeled-unicast families, you need to change the standard behavior of BGP-LU to allow a labeled unicast prefix into the inet.3 table. With this, you can keep the standard BGP prefixes and the labeled-unicast prefixes separate.
R1_re# set protocols bgp group BGP_RR family inet unicast R1_re# set protocols bgp group BGP_RR family inet labeled-unicast rib inet.3 [edit] R1_re# commit check configuration check succeeds
R1 has an eBGP peer (AS65005) with the inet labeled-unicast family enabled. It is receiving labeled BGP prefixes from this peer.
The following output shows how R1 is advertising these prefixes to RR.
R1_re> show route advertising-protocol bgp 192.168.2.2 inet.0: 70 destinations, 70 routes (70 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path * 172.16.1.0/24 Self 100 65001 I * 172.16.2.0/24 Self 100 65001 I * 172.16.3.0/24 Self 100 65001 I * 172.16.4.0/24 Self 100 65001 I * 172.16.5.0/24 Self 100 65001 I inet.3: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path * 10.0.0.0/24 Self 100 65005 I * 10.0.1.0/24 Self 100 65005 I * 10.0.2.0/24 Self 100 65005 I * 10.0.3.0/24 Self 100 65005 I * 10.0.4.0/24 Self 100 65005 I
As shown above, R1 is adding the standard BGP prefixes into inet.0 and labeled BGP prefixes into inet.3.
