This article uses an example to describe how to configure border gateway protocol (BGP) over IPsec VPN on SRX Series devices.

Solution

In BGP over IPsec VPN, you will be running the BGP on top of an st0 tunnel interface, so the BGP packet will be encapsulated in the ESP payload.

Topology

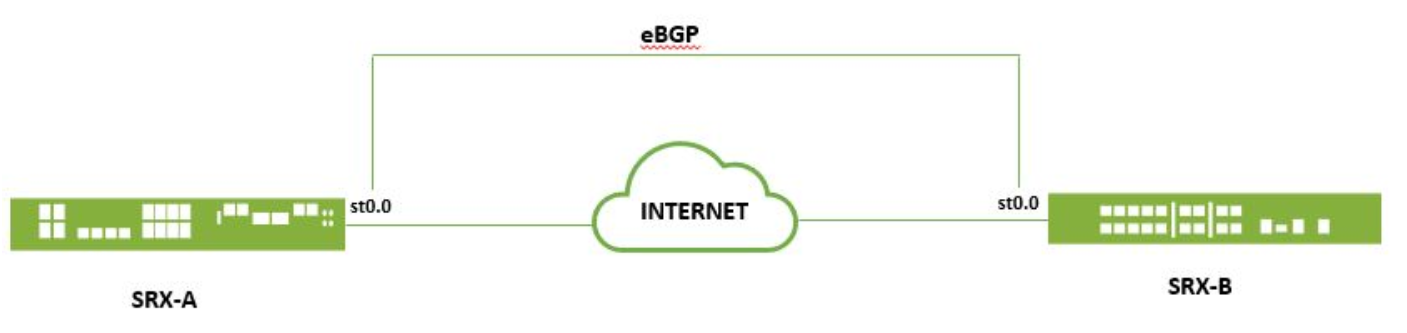

Assume the below topology for illustration.

The SRX-A and SRX-B devices are connected via an IPsec VPN.
eBGP neighborship is formed between these SRX devices by using the st0 IP addresses.

CLI Configuration

SRX-A VPN Configuration

set security ike proposal IKE-PROPOSAL authentication-method pre-shared-keys
set security ike proposal IKE-PROPOSAL dh-group group14
set security ike proposal IKE-PROPOSAL authentication-algorithm sha-256
set security ike proposal IKE-PROPOSAL encryption-algorithm aes-256-cbc
set security ike policy IKE-POLICY mode main
set security ike policy IKE-POLICY proposals IKE-PROPOSAL
set security ike policy IKE-POLICY pre-shared-key ascii-text Juniper
set security ike gateway IKE-GATEWAY ike-policy IKE-POLICY
set security ike gateway IKE-GATEWAY address 1.1.1.2
set security ike gateway IKE-GATEWAY external-interface ge-0/0/0.0
set security ike gateway IKE-GATEWAY version v1-only

set security ipsec proposal IPSEC-PROPOSAL protocol esp
set security ipsec proposal IPSEC-PROPOSAL authentication-algorithm hmac-sha-256-128
set security ipsec proposal IPSEC-PROPOSAL encryption-algorithm aes-256-cbc
set security ipsec policy IPSEC-POLICY proposals IPSEC-PROPOSAL
set security ipsec vpn IPSEC-VPN bind-interface st0.0
set security ipsec vpn IPSEC-VPN ike gateway IKE-GATEWAY
set security ipsec vpn IPSEC-VPN ike ipsec-policy IPSEC-POLICY
set security ipsec vpn IPSEC-VPN establish-tunnels immediately

SRX-A BGP Configuration

set protocols bgp group EBGP type external
set protocols bgp group EBGP peer-as 200
set protocols bgp group EBGP neighbor 10.0.0.2
set routing-options autonomous-system 100

You can optionally create different import/export policies so you can control what networks should be advertised over the VPN tunnel, and which ones should be accepted over the VPN tunnel: How to export/import routes in BGP.

SRX-A Interfaces and Zones Configuration

set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.1/24
set interfaces st0 unit 0 family inet address 10.0.0.1/24

set security zones security-zone UNTRUST interfaces ge-0/0/0.0 host-inbound-traffic system-services ike
set security zones security-zone UNTRUST interfaces ge-0/0/0.0 host-inbound-traffic system-services ping
set security zones security-zone UNTRUST interfaces ge-0/0/0.0 host-inbound-traffic protocols bgp
set security zones security-zone UNTRUST interfaces st0.0 host-inbound-traffic system-services ping
set security zones security-zone UNTRUST interfaces st0.0 host-inbound-traffic protocols bgp

SRX-B VPN Configuration

set security ike proposal IKE-PROPOSAL authentication-method pre-shared-keys
set security ike proposal IKE-PROPOSAL dh-group group14
set security ike proposal IKE-PROPOSAL authentication-algorithm sha-256
set security ike proposal IKE-PROPOSAL encryption-algorithm aes-256-cbc
set security ike policy IKE-POLICY mode main
set security ike policy IKE-POLICY proposals IKE-PROPOSAL
set security ike policy IKE-POLICY pre-shared-key ascii-text Juniper
set security ike gateway IKE-GATEWAY ike-policy IKE-POLICY
set security ike gateway IKE-GATEWAY address 1.1.1.1
set security ike gateway IKE-GATEWAY external-interface ge-0/0/0.0
set security ike gateway IKE-GATEWAY version v1-only

set security ipsec proposal IPSEC-PROPOSAL protocol esp
set security ipsec proposal IPSEC-PROPOSAL authentication-algorithm hmac-sha-256-128
set security ipsec proposal IPSEC-PROPOSAL encryption-algorithm aes-256-cbc
set security ipsec policy IPSEC-POLICY proposals IPSEC-PROPOSAL
set security ipsec vpn IPSEC-VPN bind-interface st0.0
set security ipsec vpn IPSEC-VPN ike gateway IKE-GATEWAY
set security ipsec vpn IPSEC-VPN ike ipsec-policy IPSEC-POLICY

SRX-B BGP Configuration

set protocols bgp group EBGP type external
set protocols bgp group EBGP peer-as 100
set protocols bgp group EBGP neighbor 10.0.0.1
set routing-options autonomous-system 200

You can optionally create different import/export policies so you can control what networks should be advertised over the VPN tunnel, and which ones should be accepted over the VPN tunnel: How to export/import routes in BGP.

SRX-B Interfaces and Zones Configuration

set interfaces ge-0/0/0 unit 0 family inet address 1.1.1.2/24
set interfaces st0 unit 0 family inet address 10.0.0.2/24

set security zones security-zone UNTRUST interfaces ge-0/0/0.0 host-inbound-traffic system-services ike
set security zones security-zone UNTRUST interfaces ge-0/0/0.0 host-inbound-traffic system-services ping
set security zones security-zone UNTRUST interfaces ge-0/0/0.0 host-inbound-traffic protocols bgp
set security zones security-zone UNTRUST interfaces st0.0 host-inbound-traffic system-services ping
set security zones security-zone UNTRUST interfaces st0.0 host-inbound-traffic protocols bgp

Verification

On SRX-A

root@SRX-A> show security ike security-associations Apr 09 19:38:09 Index State Initiator cookie Responder cookie Mode Remote Address 4398146 UP f1e858dea6f26493 4622741bb587cce2 Main 1.1.1.2 root@SRX-A> show security ipsec security-associations Apr 09 19:38:12 Total active tunnels: 1 Total Ipsec sas: 1 ID Algorithm SPI Life:sec/kb Mon lsys Port Gateway <131073 ESP:aes-cbc-256/sha256 192ac6b9 1324/ unlim - root 500 1.1.1.2 >131073 ESP:aes-cbc-256/sha256 4dda5e0 1324/ unlim - root 500 1.1.1.2 root@SRX-A> show bgp summary Apr 09 19:38:19 Threading mode: BGP I/O Groups: 1 Peers: 1 Down peers: 0 Table Tot Paths Act Paths Suppressed History Damp State Pending inet.0 0 0 0 0 0 0 Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped... 10.0.0.2 200 118 122 0 0 52:27 Establ inet.0: 0/0/0/0

On SRX-B

root@SRX-B> show security ike security-associations Apr 09 19:47:52 Index State Initiator cookie Responder cookie Mode Remote Address 3035558 UP f1e858dea6f26493 4622741bb587cce2 Main 1.1.1.1 root@SRX-B> show security ipsec security-associations Apr 09 19:47:59 Total active tunnels: 1 Total Ipsec sas: 1 ID Algorithm SPI Life:sec/kb Mon lsys Port Gateway <131073 ESP:aes-cbc-256/sha256 4dda5e0 1257/ unlim - root 500 1.1.1.1 >131073 ESP:aes-cbc-256/sha256 192ac6b9 1257/ unlim - root 500 1.1.1.1 root@SRX-B> show bgp summary Apr 09 19:48:06 Threading mode: BGP I/O Groups: 1 Peers: 1 Down peers: 0 Table Tot Paths Act Paths Suppressed History Damp State Pending inet.0 1 1 0 0 0 0 Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped... 10.0.0.1 100 126 121 0 0 53:33 Establ inet.0: 1/1/1/0

Route Advertisement from SRX-A to SRX-B

set interfaces lo0 unit 0 family inet address 192.168.1.1/32 set policy-options policy-statement BGP-EXPORT term 1 from route-filter 192.168.1.1/32 exact set policy-options policy-statement BGP-EXPORT term 1 then accept set protocols bgp group EBGP export BGP-EXPORT

root@SRX-A> show route advertising-protocol bgp 10.0.0.2 Apr 09 19:42:10 inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path * 192.168.1.1/32 Self I root@SRX-B> show route receive-protocol bgp 10.0.0.1 Apr 09 19:51:04 inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path * 192.168.1.1/32 10.0.0.1 100 I root@SRX-B> show route protocol bgp Apr 09 19:51:32 inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 192.168.1.1/32 *[BGP/170] 00:28:45, localpref 100 AS path: 100 I, validation-state: unverified > to 10.0.0.1 via st0.0
