This article demonstrates how to generate a PKCS10 certificate signing request (CSR) and load the signed certificate in SRX devices by using J-Web.
When a certificate has to be signed by the CA, the first step is to generate a CSR either within the SRX device or externally. This article shows how a CSR is generated within the SRX device by using J-Web.
Upon receiving the CSR, the CA will verify the information supplied by the entity or the user and generate an X.509 certificate. After that, the certificate is signed digitally by the CA.
The following items are provided by the CA upon successful signing:
Root CA certificate
Intermediate CA certificate (if any)
Signed Local certificate or End Entity certificate
CRL (Optional)
Note: SRX devices support the certificate only in .pem format. So, if the CA provides the certificate in any other format, it must be converted externally to PEM. For more information, refer to KB33506 - [SRX] Adding a P12/PKCS12 format certificate with Private Keys to an SRX device [juniper.net] .
.pem
This procedure has been executed on SRX1500 device that is running Junos OS version 20.2R1.10.
Step 1: Generating the CSR in the SRX Device
Log in to the SRX device via J-Web.
Navigate to Administration > Certificate Management > Device Certificates and click the " + " icon.

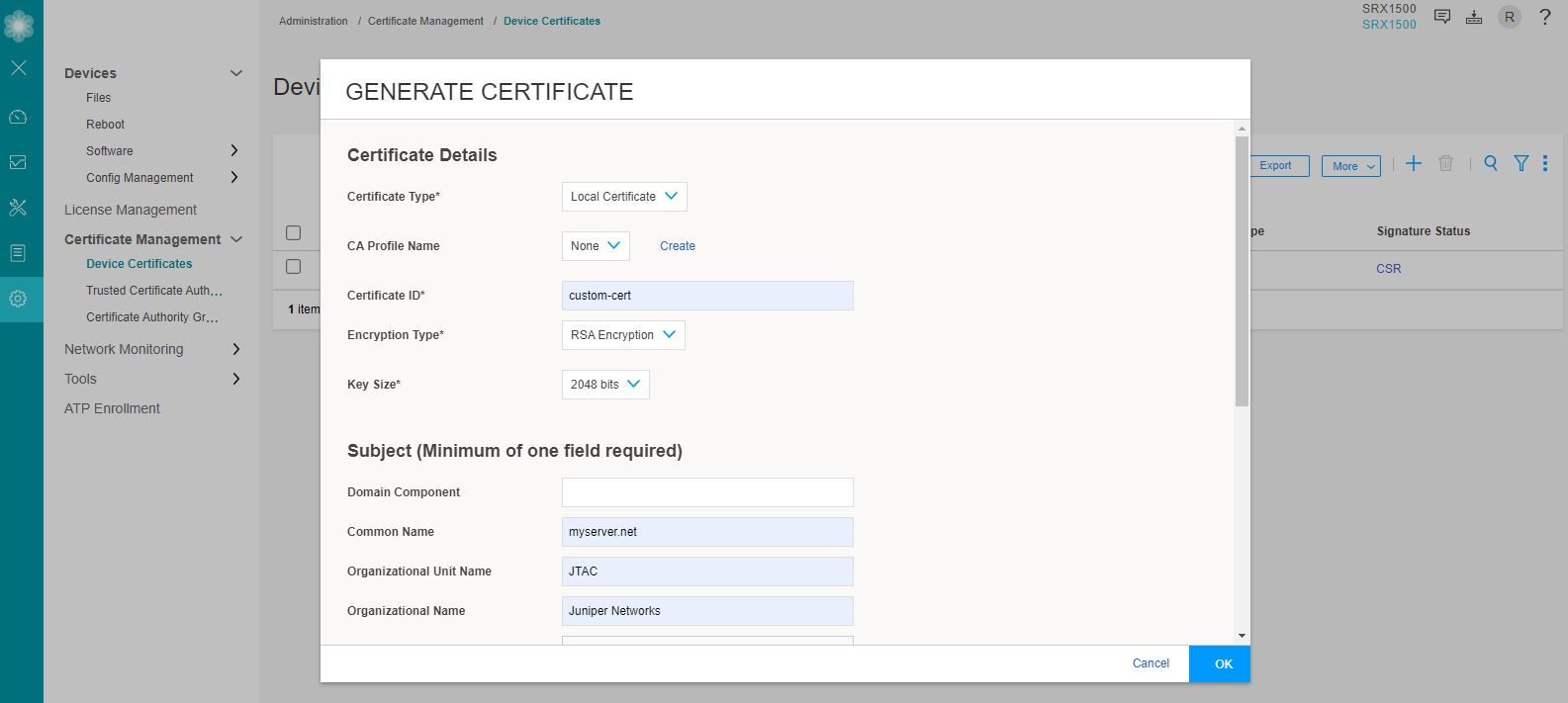

Under Certificate Type , select Local Certificate and provide the Certificate ID as any text string of your choice and a Key Size . Fill in the remaining necessary information.

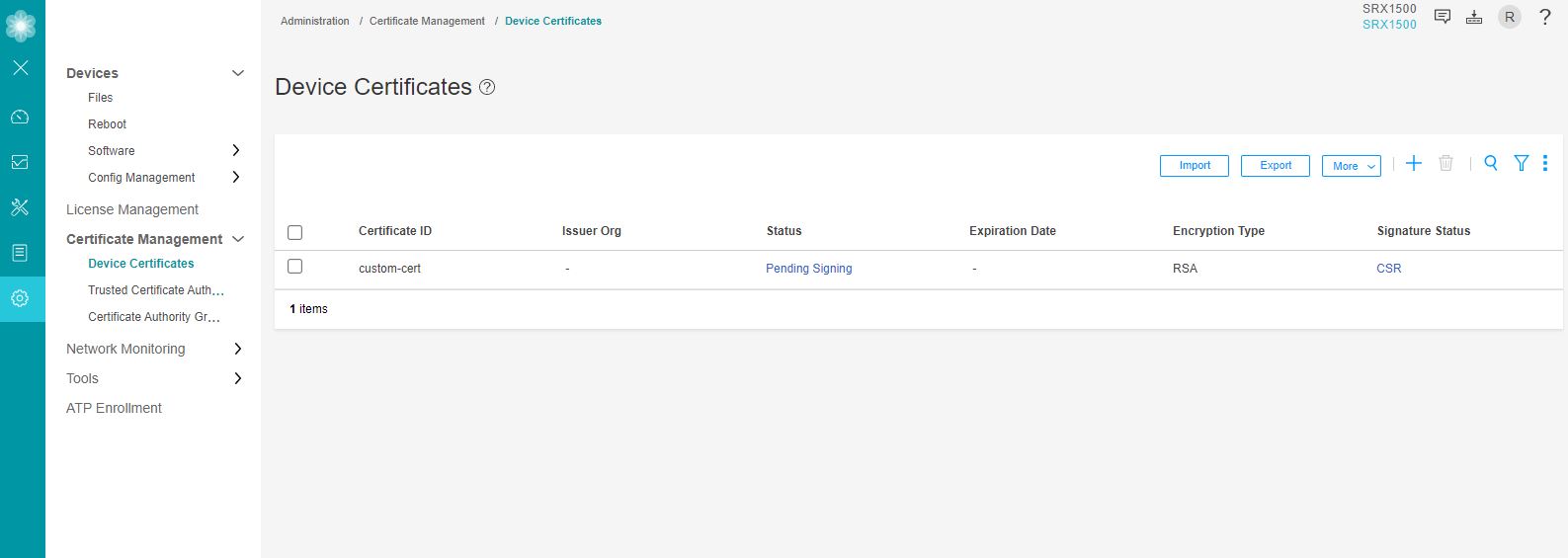

Click OK. The Status will now show as Pending Signing and the Signature Status will be CSR . (Click CSR to download the generated request).
Step 2: Loading the Signed Local Certificate or End Entity Certificate
Navigate to Administration > Certificate Management > Device Certificates and click Pending Signing .

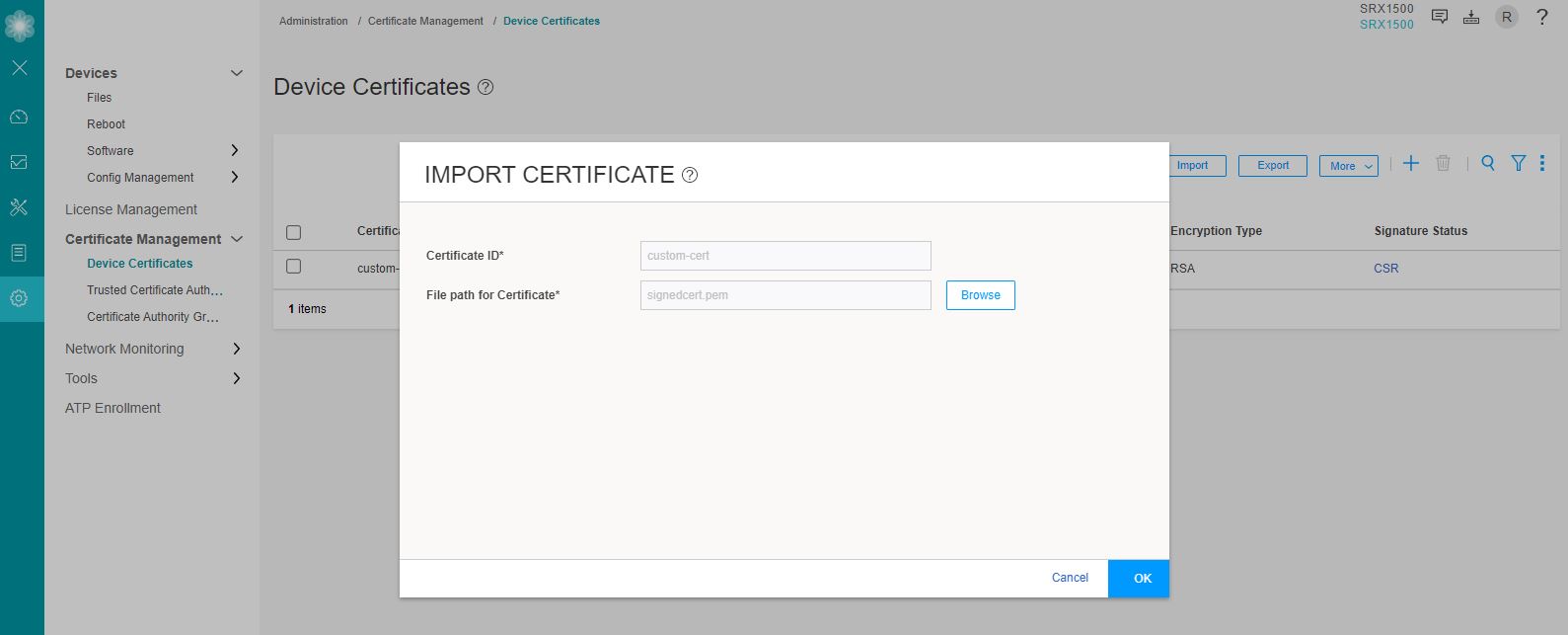

Under the File path for Certificate , select the signed End Entity certificate provided by your CA.

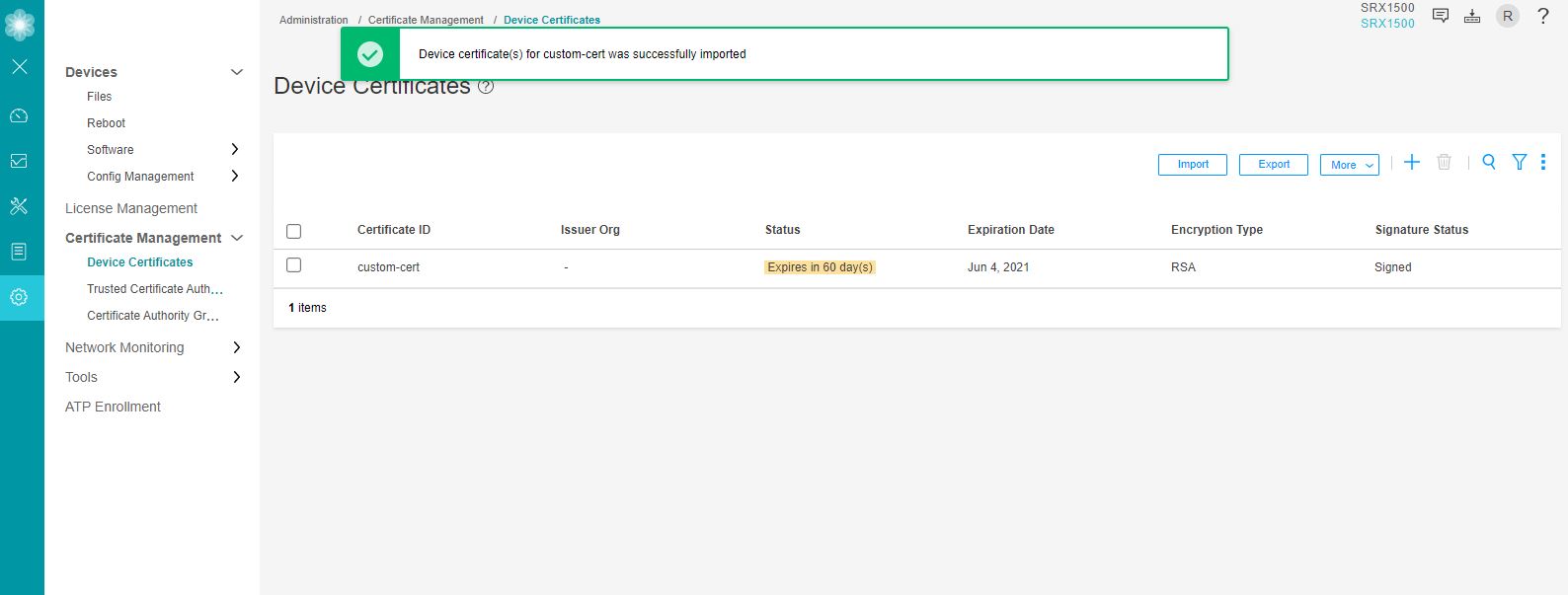

Click OK . Now the Status will be displayed as Expires in xx day(s) and Signature Status as Signed .
Step 3: Loading the Root CA Certificate
Navigate to Administration > Certificate Management > Certificate Authority Group and click Import .
Choose CA Group Name as any text string. File path for CA Group should be your Root CA certificate.
Click OK and you will be notified with a success message.
The procedure is the same for loading the Intermediate CA certificate. Only CA Group Name will differ and you will need to load the Intermediate CA certificate.
Common Troubleshooting Steps
" Failed to import the device certificate " is a generic error message, which can occur due to various reasons. To determine the reason for the failure, PKI traceoptions must be configured in the SRX device.
