This article explains the workflow for troubleshooting a UDF on a Contrail Healthbot system.

UDF are user defined functions that can be invoked from rules inside a playbook for a device group or a network group.

The Rule/Playbook detects an anomaly from a correct defined state via telemetry data received from configured devices. The Rule invokes a script that corrects the anomaly. The script would be executed inside the UDF Farm to perform the scripted action.

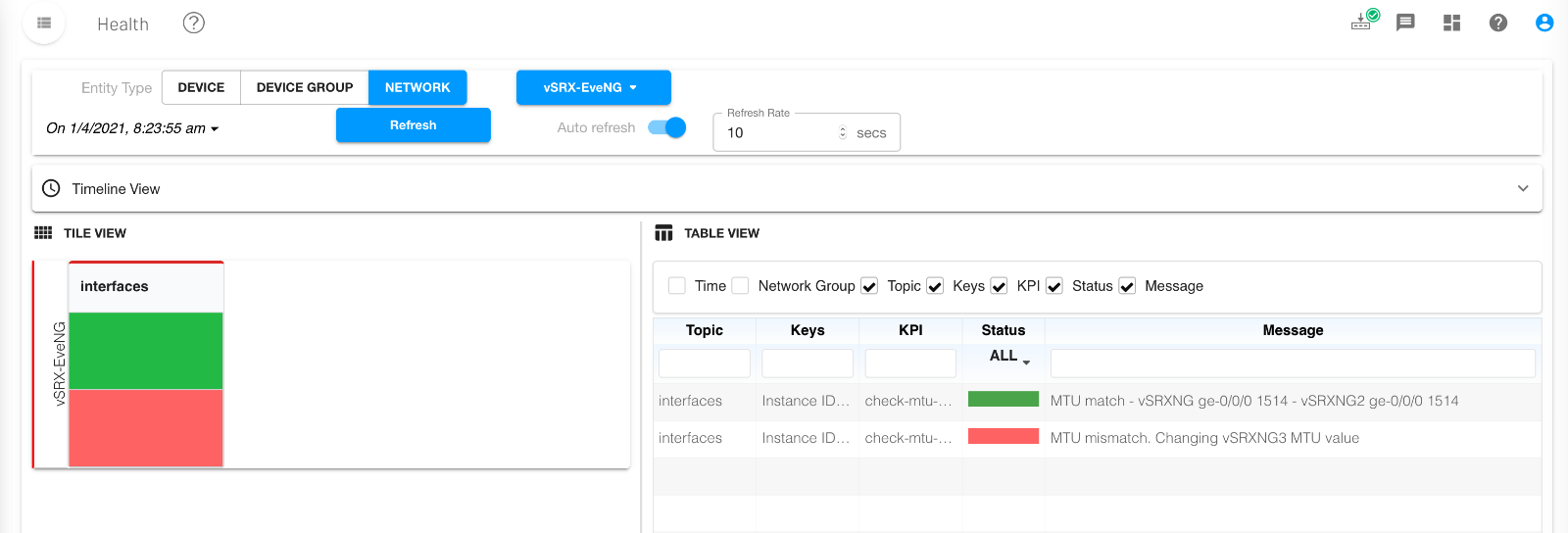

Let's say healthbot playbook detects a change as shown below:

UDF will come into action and need to correct the MTU. But the same is not happening.

To troubleshoot, take the following steps:

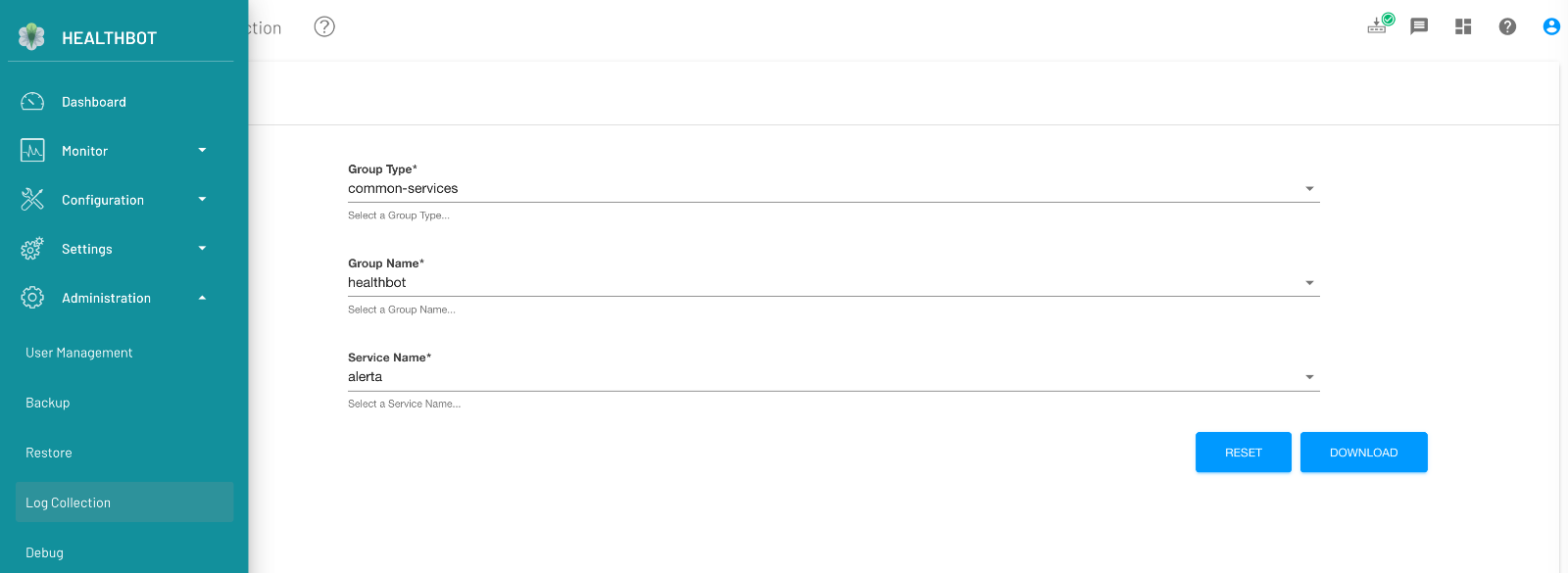

1. Navigate to Administration > Log Collection and enter the details as shown below to download the alert a logs:



2. Untar the downloaded file and open the "alerta.log" file.

3. Search with the script name to find the log to understand if the script was executed:

   2021-03-31 17:24:57,672 DEBG 'run_uda1' stdout output:
   script: change-mtu-config.py method: add_config args: {'device_group': 'vSRX-EveNG', 'device_id': '-', 'group_type': 'network', 'interface': 'ge-0/0/0', 'mtu': 1300, 'router': 'vSRXNG2', 'rule_name': 'compare-interfaces-mtu', 'topic_name': 'interfaces'}

   This confirms the script was executed by the healthbot.

4. Next, check for error logs to find a clue.

   2021-03-31 17:24:57,930 DEBG 'run_uda1' stdout output:
   HTTPConnectionPool(host='api_server', port=9000): Max retries exceeded with url: /api/v1/device/vSRXNG2/ (Caused by NewConnectionError('<urllib3.connection.HTTPConnection object at 0x7f91d2860208>: Failed to establish a new connection: [Errno -2] Name or service not known',))

5. Checking back at the script to understand the clue for the error "HTTPConnectionPool(host='api_server', port=9000):" The following was found in the script:

   r = requests.get('http://api_server:9000/api/v1/device/%s/' % router, verify=False)

6. Since Healthbot version 3.2 was used, base api has been shifted to version 2. Refer to device schema .

7. According to the documentation on  device schema , the api has to be polled from the config server. Hence, the UDF script needed to be corrected to the following:

   r = requests.get('http://cconfig-server:9000/api/v2/config/device/%s/' % router, verify=False)

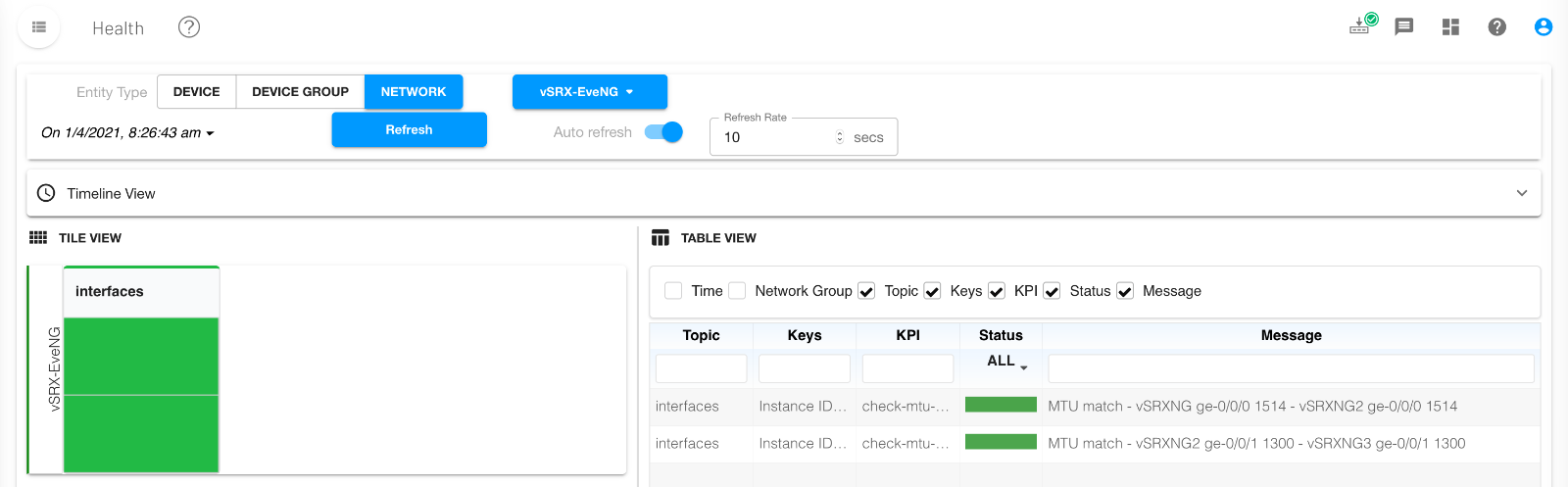

8. After correcting the script, the UDF correctly performed the change to fix the anomaly (mtu in this case):



Another way to test if the get statement in step 7 works can be tested via running a curl request from the config-server container.

1. Check the container ID for config server

   [root@localhost ~]# docker ps | grep config
   8a8a96309c2b   localhost:5000/healthbot_api_server          "python3 -m api_serv…"   3 weeks ago   Up 3 weeks             k8s_config-server_confi-server-64b748bd58-gmmwg_healthbot_25813bfa-b43c-4d0c-a130-a8f4f5fe672c_0

2. Run docker exec to login to the container:

   [root@localhost ~]# docker exec -ti -e COLUMNS=$COLUMNS -e LINES=$LINES 8a8a96309c2b /bin/bash

3. Execute the get request using curl command:

   root@config-server-64b748bd58-gmmwg:/# curl -G http://config-server:9000/api/v2/config/device/
   [
     "vSRXNG",
     "vSRXNG2",
     "vSRXNG3"
   ]
