This article demonstrates how to configure event-options to trigger configuration change based on RPM probe results. In this example, we deactivate an OSPF export policy when RPM fails to reach the target address and reactivate the OSPF export policy when the link is up.
event-options

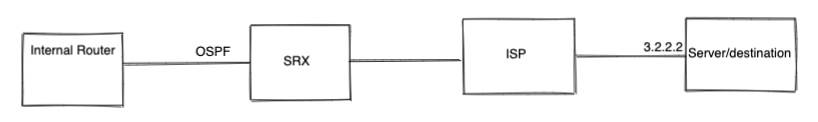

In this scenario, any routes learned on the SRX device should not be re-distributed on OSPF when the target address (3.2.2.2) is not reachable.
To achieve this requirement, we monitor the target address (3.2.2.2) by configuring an RPM probe.
With the help of the RPM probe results, we then configure event-options to deactivate OSPF so that the routes are not exported to the internal server.
Configuration
RPM probe configuration to monitor target address (3.2.2.2)
set services rpm probe Failover test probe-ge probe-type icmp-ping set services rpm probe Failover test probe-ge target address 3.2.2.2 set services rpm probe Failover test probe-ge probe-count 3 set services rpm probe Failover test probe-ge probe-interval 3 set services rpm probe Failover test probe-ge test-interval 3 set services rpm probe Failover test probe-ge thresholds successive-loss 3 set services rpm probe Failover test probe-ge thresholds total-loss 3 set services rpm probe Failover test probe-ge source-address 10.219.19.96
event-options configuration to deactivate OSPF export when the probe fails:
set event-options policy SLA_MONITOR events ping_probe_failed set event-options policy SLA_MONITOR attributes-match ping_probe_failed.test-owner matches Failover set event-options policy SLA_MONITOR attributes-match ping_probe_failed.test-name matches probe-ge set event-options policy SLA_MONITOR then change-configuration commands "deactivate protocols ospf export Static_OSPF" set event-options policy SLA_MONITOR then change-configuration commands "activate event-options policy MONITOR_EVENT"
event-options configuration to activate OSPF export when the destination is reachable
set event-options policy MONITOR_EVENT events ping_test_completed set event-options policy MONITOR_EVENT attributes-match ping_test_completed.test-owner matches Failover set event-options policy MONITOR_EVENT attributes-match ping_test_completed.test-name matches probe-ge set event-options policy MONITOR_EVENT then change-configuration commands "activate protocols ospf export Static_OSPF" set event-options policy MONITOR_EVENT then change-configuration commands "deactivate event-options policy MONITOR_EVENT"
How it Works
When the ping is successful, the event-options policy MONITOR_EVENT is triggered. If the ping is successful, the OSPF export policy is activated, which enables the routes to be redistributed.
MONITOR_EVENT
After the OSPF export policy is activated, the event-options policy then changes the configuration to deactivate itself.
Note: In the above configuration, it is very important to include the lines highlighted in blue. If MONITOR_EVENT is not deactivated, then as long as the link is up/the ping is successful, event-options will continue to execute itself and change the configuration to activate OSPF recursively, which will increase CPU utilization by the eventd and mgd processes. If this continues, it would have a considerable impact on the Routing Engine's CPU. Hence it is important to deactivate the event-options policy MONITOR_EVENT and activate it only when the link is down.
eventd
mgd
When the link is down, the probe to the target address fails. Following this event, the event-options policy SLA_MONITOR is triggered, which deactivates the OSPF export policy to stop route redistribution to the internal router.
SLA_MONITOR
After deactivating the OSPF, we enable/activate the event-options policy MONITOR_EVENT so that when the link is up again, MONITOR_EVENT activates the OSPF export policy.
Results Verification
When the ping is successful:
root@jtac-srx340-r2016> ping 3.2.2.2 PING 3.2.2.2 (3.2.2.2): 56 data bytes 64 bytes from 3.2.2.2: icmp_seq=0 ttl=64 time=12.314 ms 64 bytes from 3.2.2.2: icmp_seq=1 ttl=64 time=7.593 ms 64 bytes from 3.2.2.2: icmp_seq=2 ttl=64 time=6.588 ms ^C --- 3.2.2.2 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max/stddev = 6.588/8.832/12.314/2.496 ms root@jtac-srx340-r2016> show configuration event-options policy SLA_MONITOR { events ping_probe_failed; attributes-match { ping_probe_failed.test-owner matches Failover; ping_probe_failed.test-name matches probe-ge; } then { change-configuration { commands { "deactivate protocols ospf export Static_OSPF"; "activate event-options policy MONITOR_EVENT"; } } } } inactive: policy MONITOR_EVENT { events ping_test_completed; attributes-match { ping_test_completed.test-owner matches Failover; ping_test_completed.test-name matches probe-ge; } then { change-configuration { commands { "activate protocols ospf export Static_OSPF"; "deactivate event-options policy MONITOR_EVENT"; } } } } root@jtac-srx340-r2016> show configuration protocols ospf export | display set set protocols ospf export Static_OSPF
When the probe fails:
root@jtac-srx340-r2016> ping 3.2.2.2 PING 3.2.2.2 (3.2.2.2): 56 data bytes ^C --- 3.2.2.2 ping statistics --- 4 packets transmitted, 0 packets received, 100% packet loss root@jtac-srx340-r2016> show configuration event-options policy SLA_MONITOR { events ping_probe_failed; attributes-match { ping_probe_failed.test-owner matches Failover; ping_probe_failed.test-name matches probe-ge; } then { change-configuration { commands { "deactivate protocols ospf export Static_OSPF"; "activate event-options policy MONITOR_EVENT"; } } } } policy MONITOR_EVENT { events ping_test_completed; attributes-match { ping_test_completed.test-owner matches Failover; ping_test_completed.test-name matches probe-ge; } then { change-configuration { commands { "activate protocols ospf export Static_OSPF"; "deactivate event-options policy MONITOR_EVENT"; } } } } root@jtac-srx340-r2016> show configuration protocols ospf export | display set deactivate protocols ospf export Static_OSPF root@jtac-srx340-r2016> show log messages | match eventd Jan 14 jtac-srx340-r2016 eventd: EVENTD_CONFIG_CHANGE_SUCCESS: Configuration change successful: while executing policy SLA_MONITOR with user root privileges Jan 14 jtac-srx340-r2016 eventd: EVENTD_CONFIG_CHANGE_SUCCESS: Configuration change successful: while executing policy SLA_MONITOR with user root privileges Jan 14 jtac-srx340-r2016 eventd: EVENTD_CONFIG_CHANGE_SUCCESS: Configuration change successful: while executing policy SLA_MONITOR with user root privileges Jan 14 jtac-srx340-r2016 eventd: EVENTD_CONFIG_CHANGE_SUCCESS: Configuration change successful: while executing policy SLA_MONITOR with user root privileges Jan 14 jtac-srx340-r2016 eventd: EVENTD_CONFIG_CHANGE_SUCCESS: Configuration change successful: while executing policy SLA_MONITOR with user root privileges Jan 14 jtac-srx340-r2016 eventd: EVENTD_CONFIG_CHANGE_SUCCESS: Configuration change successful: while executing policy SLA_MONITOR with user root privileges
