Description

This article provides instructions for changing the schema logging level for troubleshooting purposes.



Symptoms

The schema is crashing in all Contrail nodes. How can I get more information about the failure?



Solution

The schema logging level in Contrail can be increased from Schema Introspect. Perform the following steps:

  1. Find the IP address of the active schema node in your environment by using the following command in all the nodes: contrail-status | grep active .

# contrail-status | grep schema
config           schema          contrail-controller-config-schema      running  76914072e7f2  Up 6 days
schema: active

  1. Note down the IP address of the active schema node.

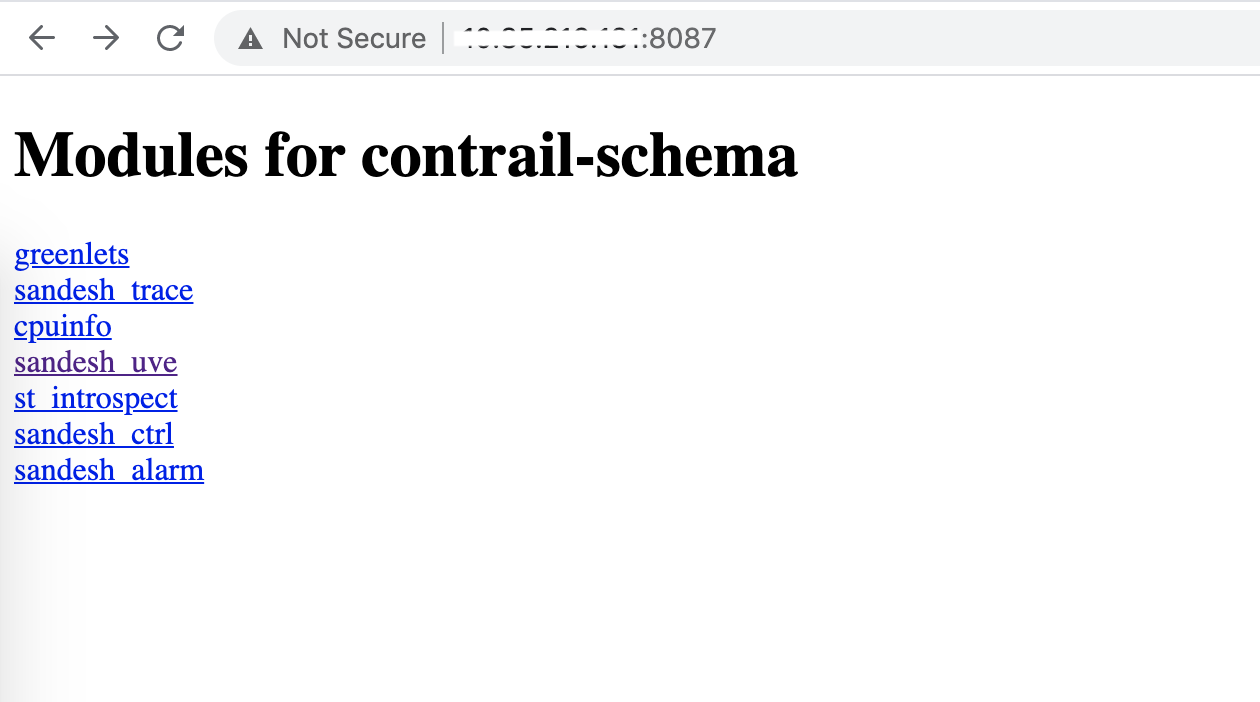

  2. Log in to Contrail Schema Introspect at http:// <active schema controller ip> :8087. The following screen appears.

alt

  1. Click sandesh_uve .

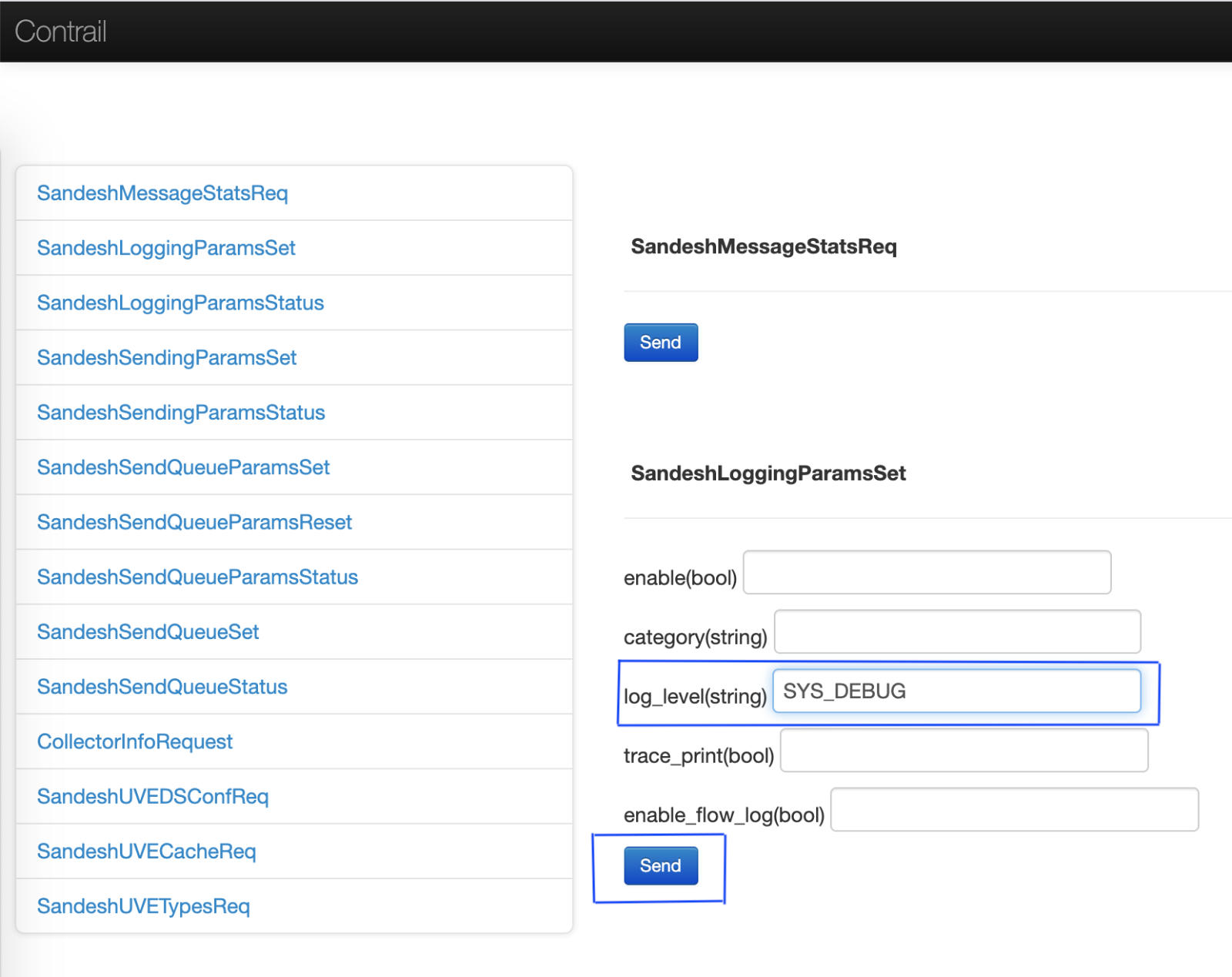

  2. Click SandeshLoggingParamsSet and in the log_level(string) field, enter SYS_DEBUG as the value. Click Send .

alt

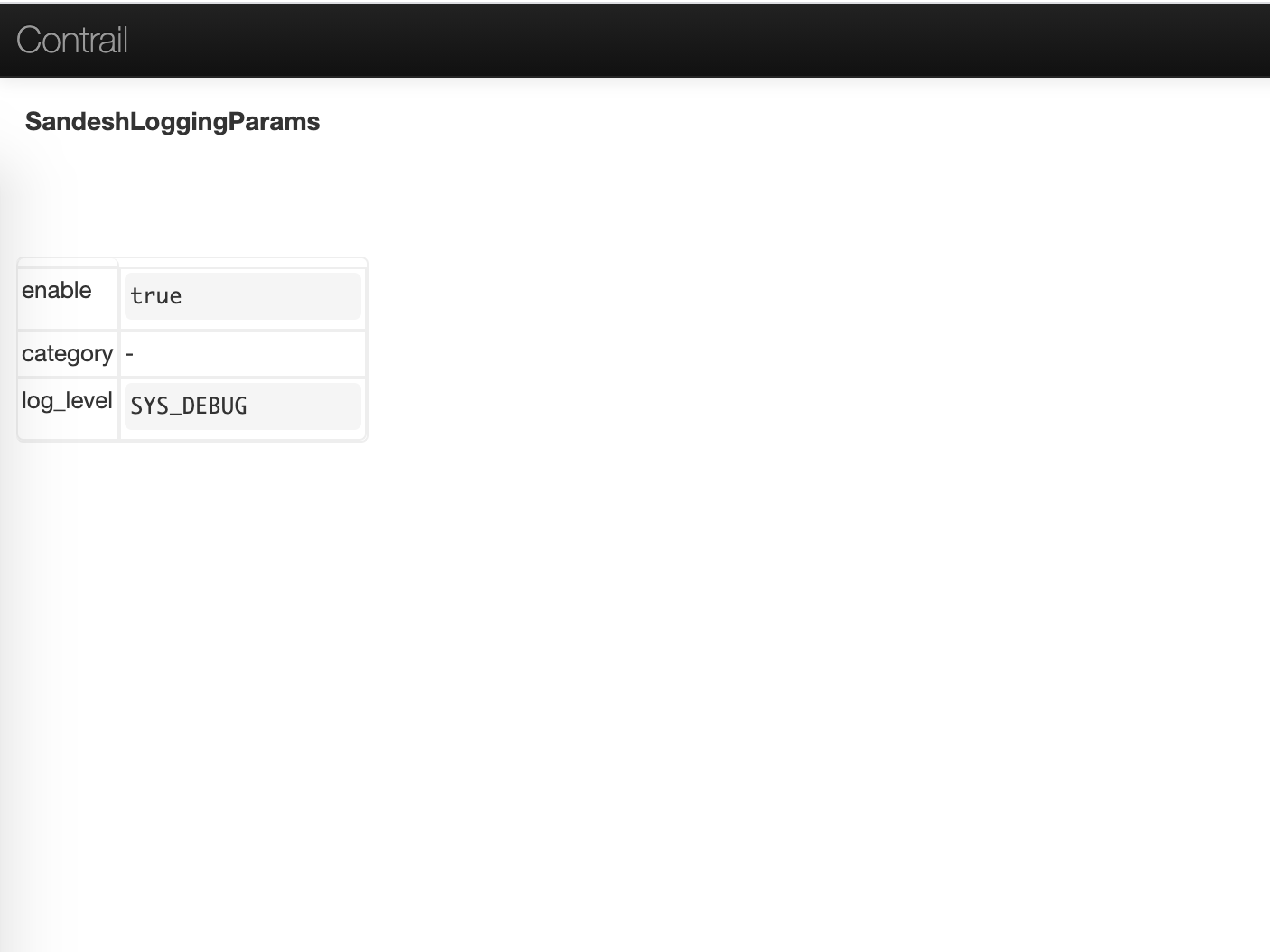

A successful log level change is indicated as shown below:

alt

  1. To revert to the earlier logging level, click SandeshLoggingParamsSet and in the log_level(string) field, enter SYS_NOTICE . Click Send.

Note: Restart of schema will automatically revert the logging level from  SYS_DEBUG to  SYS_NOTICE .
