This article demonstrates how to configure a router with two virtual routing instances as clients to traverse an EVPN/VXLAN environment with the help of an example.

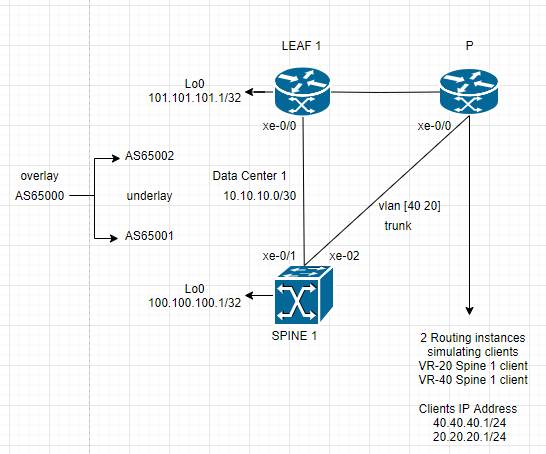

Topology Diagram
In this example, we are using two clients:
VR-20 20.20.20.1/24
VR-40 40.40.40.1/24
The goal is to ping from 20.20.20.1/24 to 40.40.40.1/24 and the other way round.
The two VLANs used here have the ID 20 and 40 and VNI and VTEP connections for the tunnel, respectively.
LEAF 1 is a router with a virtual switch instance to support IRBs for the two clients.
Configuration
LEAF 1
Configure IRBs for the clients on Leaf 1.
set interfaces irb unit 20 proxy-arp set interfaces irb unit 20 family inet address 20.20.20.100/24 set interfaces irb unit 40 proxy-arp set interfaces irb unit 40 family inet address 40.40.40.100/24
Configure the IP Fabric between Leaf 1 and Spine 1 as well as the Underlay and Overlay.
set interfaces xe-0/0/0 description TO-SPINE-1 set interfaces xe-0/0/0 unit 0 family inet address 10.10.10.1/30 set interfaces lo0 unit 0 family inet address 101.101.101.1/32 set routing-options router-id 101.101.101.1 set routing-options autonomous-system 65000 set protocols bgp group underlay type external set protocols bgp group underlay export lo0 set protocols bgp group underlay peer-as 65001 set protocols bgp group underlay local-as 65002 set protocols bgp group underlay neighbor 10.10.10.2 set protocols bgp group overlay type internal set protocols bgp group overlay local-address 101.101.101.1 set protocols bgp group overlay family evpn signaling set protocols bgp group overlay local-as 65000 set protocols bgp group overlay neighbor 100.100.100.1
As you can see, there is a policy called lo0. This is because an export policy has been created to export lo0 instead of using OSPF or a dynamic protocol under the underlay to connect the lo0s.
set policy-options policy-statement lo0 term 1 from interface lo0.0 set policy-options policy-statement lo0 term 1 then accept
Configure communities and VRF targets for VNIs and the IP Fabric.
set policy-options community FABRIC members target:65000:1 set policy-options community vni20 members target:65000:20 set policy-options community vni40 members target:65000:40 set policy-options policy-statement evpn-import term fabric from community FABRIC set policy-options policy-statement evpn-import term fabric from community vni20 set policy-options policy-statement evpn-import term fabric from community vni40 set policy-options policy-statement evpn-import term fabric then accept
Apply the evpn-import policy under routing instance type "virtual switch".
evpn-import
set routing-instances evpn1 vtep-source-interface lo0.0 set routing-instances evpn1 instance-type virtual-switch set routing-instances evpn1 route-distinguisher 101.101.101.1:1 set routing-instances evpn1 vrf-import evpn-import set routing-instances evpn1 vrf-target target:65000:1 set routing-instances evpn1 protocols evpn encapsulation vxlan set routing-instances evpn1 protocols evpn extended-vni-list 20 set routing-instances evpn1 protocols evpn extended-vni-list 40 set routing-instances evpn1 protocols evpn vni-options vni 20 vrf-target target:65000:20 set routing-instances evpn1 protocols evpn vni-options vni 40 vrf-target target:65000:40 set routing-instances evpn1 protocols evpn multicast-mode ingress-replication set routing-instances evpn1 protocols evpn default-gateway advertise set routing-instances evpn1 bridge-domains v20 vlan-id 20 set routing-instances evpn1 bridge-domains v20 routing-interface irb.20 set routing-instances evpn1 bridge-domains v20 vxlan vni 20 set routing-instances evpn1 bridge-domains v40 vlan-id 40 set routing-instances evpn1 bridge-domains v40 routing-interface irb.40 set routing-instances evpn1 bridge-domains v40 vxlan vni 40
Configure Spine 1.
set interfaces xe-0/0/1 description TO-LEAF-1 set interfaces xe-0/0/1 unit 0 family inet address 10.10.10.2/30
Configure the QFX device to allow VLANs over the trunk to the client.
set interfaces xe-0/0/2 description TO-CLIENT set interfaces xe-0/0/2 unit 0 family ethernet-switching interface-mode trunk set interfaces xe-0/0/2 unit 0 family ethernet-switching vlan members V20 set interfaces xe-0/0/2 unit 0 family ethernet-switching vlan members V40
Configure the Underlay and Overlay IP Fabric.
set interfaces lo0 unit 0 family inet address 100.100.100.1/32 set routing-options router-id 100.100.100.1 set routing-options autonomous-system 65000 set protocols bgp group underlay type external set protocols bgp group underlay export lo0 set protocols bgp group underlay peer-as 65002 set protocols bgp group underlay local-as 65001 set protocols bgp group underlay neighbor 10.10.10.1 set protocols bgp group overlay type internal set protocols bgp group overlay local-address 100.100.100.1 set protocols bgp group overlay family evpn signaling set protocols bgp group overlay local-as 65000 set protocols bgp group overlay neighbor 101.101.101.1
You must export lo0 and configure it under the Underlay on Spine 1.
set policy-options policy-statement lo0 from interface lo0.0 set policy-options policy-statement lo0 then accept
set policy-options policy-statement evpn-import term fabric from community FABRIC set policy-options policy-statement evpn-import term fabric from community vni20 set policy-options policy-statement evpn-import term fabric from community vni40 set policy-options policy-statement evpn-import then accept set policy-options community FABRIC members target:65000:1 set policy-options community vni20 members target:65000:20 set policy-options community vni40 members target:65000:40
Apply the evpn-import policy.
set protocols evpn vni-options vni 20 vrf-target export target:65000:20 set protocols evpn vni-options vni 40 vrf-target export target:65000:40 set protocols evpn encapsulation vxlan set protocols evpn multicast-mode ingress-replication set protocols evpn extended-vni-list 20 set protocols evpn extended-vni-list 40 set switch-options vtep-source-interface lo0.0 set switch-options route-distinguisher 100.100.100.1:1 set switch-options vrf-import evpn-import set switch-options vrf-target target:65000:1 set switch-options vrf-target export target:65000:1
Configure VXLAN under the VLANs.
set vlans V20 vlan-id 20 set vlans V20 vxlan vni 20 set vlans V40 vlan-id 40 set vlans V40 vxlan vni 40
The P router configuration for both routing instance clients is as follows:
set routing-instances VR-20 instance-type virtual-router set routing-instances VR-20 interface xe-0/0/0.20 set routing-instances VR-20 routing-options static route 0.0.0.0/0 next-hop 20.20.20.100 set interfaces xe-0/0/0 unit 20 vlan-id 20 set interfaces xe-0/0/0 unit 20 family inet address 20.20.20.1/24 set routing-instances VR-40 instance-type virtual-router set routing-instances VR-40 interface xe-0/0/0.40 set routing-instances VR-40 routing-options static route 0.0.0.0/0 next-hop 40.40.40.100 set interfaces xe-0/0/0 unit 40 vlan-id 40 set interfaces xe-0/0/0 unit 40 family inet address 40.40.40.1/24
The same physical interface has been used to connect both clients to Spine 1.
set interfaces xe-0/0/0 description TO-SPINE1 set interfaces xe-0/0/0 flexible-vlan-tagging set interfaces xe-0/0/0 encapsulation flexible-ethernet-services
From router P, use the source address 20.20.20.1 in routing instance VR-20 to ping the other client with IP address 40.40.40.1 in VR-40.
root@P# run ping 40.40.40.1 routing-instance VR-20 source 20.20.20.1 PING 40.40.40.1 (40.40.40.1): 56 data bytes 64 bytes from 40.40.40.1: icmp_seq=0 ttl=63 time=0.901 ms 64 bytes from 40.40.40.1: icmp_seq=1 ttl=63 time=0.851 ms 64 bytes from 40.40.40.1: icmp_seq=2 ttl=63 time=0.843 ms
SPINE 1
root@SPINE-1# run show interfaces terse |match vtep vtep up up vtep.32768 up up vtep.32769 up up eth-switch
The MAC address representing both clients is 00:23:9c:9d:2a:94. Remember that xe-0/0/0 has two logical unit interfaces, 20 and 40, which are assigned to two different virtual routing instances.
root@SPINE-1# run show ethernet-switching table MAC flags (S - static MAC, D - dynamic MAC, L - locally learned, P - Persistent static SE - statistics enabled, NM - non configured MAC, R - remote PE MAC, O - ovsdb MAC) Ethernet switching table : 4 entries, 4 learned Routing instance : default-switch Vlan MAC MAC Logical Active name address flags interface source V20 00:23:9c:9d:2a:94 D xe-0/0/2.0 V20 80:71:1f:95:9f:f0 D vtep.32769 101.101.101.1 V40 00:23:9c:9d:2a:94 D xe-0/0/2.0 V40 80:71:1f:95:9f:f0 D vtep.32769 101.101.101.1
Tunnel Endpoint Output
root@SPINE-1# run show ethernet-switching vxlan-tunnel-end-point source Logical System Name Id SVTEP-IP IFL L3-Idx <default> 0 100.100.100.1 lo0.0 0 L2-RTT Bridge Domain VNID MC-Group-IP default-switch V20+20 20 0.0.0.0 default-switch V40+40 40 0.0.0.0 {master:0}[edit] root@SPINE-1# run show ethernet-switching vxlan-tunnel-end-point remote Logical System Name Id SVTEP-IP IFL L3-Idx <default> 0 100.100.100.1 lo0.0 0 RVTEP-IP IFL-Idx NH-Id 101.101.101.1 558 1729 VNID MC-Group-IP 20 0.0.0.0 40 0.0.0.0
Another way to check the vxlan-tunnel-end-point is by using the following command:
{master:0}[edit] root@SPINE-1# run show interfaces vtep extensive |match "logical | end" Logical interface vtep.32768 (Index 557) (SNMP ifIndex 556) (HW Token 3) (Generation 147) VXLAN Endpoint Type: Source, VXLAN Endpoint Address: 100.100.100.1, L2 Routing Instance: default-switch, L3 Routing Instance: default Logical interface vtep.32769 (Index 558) (SNMP ifIndex 560) (HW Token 5) (Generation 148) VXLAN Endpoint Type: Remote, VXLAN Endpoint Address: 101.101.101.1, L2 Routing Instance: default-switch, L3 Routing Instance: default {master:0}[edit] root@SPINE-1# run show ethernet-switching vxlan-tunnel-end-point remote mac-table MAC flags (S -static MAC, D -dynamic MAC, L -locally learned, C -Control MAC SE -Statistics enabled, NM -Non configured MAC, R -Remote PE MAC, P -Pinned MAC) Logical system : <default> Routing instance : default-switch Bridging domain : V20+20, VLAN : 20, VNID : 20 MAC MAC Logical Remote VTEP address flags interface IP address 80:71:1f:95:9f:f0 D 101.101.101.1 MAC flags (S -static MAC, D -dynamic MAC, L -locally learned, C -Control MAC SE -Statistics enabled, NM -Non configured MAC, R -Remote PE MAC, P -Pinned MAC) Bridging domain : V40+40, VLAN : 40, VNID : 40 MAC MAC Logical Remote VTEP address flags interface IP address 80:71:1f:95:9f:f0 D 101.101.101.1 root@SPINE-1# run show evpn database Instance: default-switch VLAN DomainId MAC address Active source Timestamp IP address 20 00:23:9c:9d:2a:94 xe-0/0/2.0 Oct 01 12:06:25 20 80:71:1f:95:9f:f0 101.101.101.1 Oct 01 10:21:58 20.20.20.100 40 00:23:9c:9d:2a:94 xe-0/0/2.0 Oct 01 12:01:25 40 80:71:1f:95:9f:f0 101.101.101.1 Oct 01 10:21:58 40.40.40.100
root@LEAF-1# run show bridge evpn arp-table INET MAC Logical Routing Bridging address address interface instance domain 20.20.20.1 00:23:9c:9d:2a:94 irb.20 evpn1 v20 40.40.40.1 00:23:9c:9d:2a:94 irb.40 evpn1 v40 root@LEAF-1# run show arp MAC Address Address Name Interface Flags f0:1c:2d:44:a6:04 10.10.10.2 s1_itsupport.west.unisphe xe-0/0/0.0 none 00:00:5e:00:01:0a 10.85.17.1 10.85.17.1 fxp0.0 none d0:07:ca:57:d7:a0 10.85.17.3 10.85.17.3 fxp0.0 none 00:23:9c:9d:2a:94 20.20.20.1 20.20.20.1 irb.20 [vtep.32769] none 00:23:9c:9d:2a:94 40.40.40.1 40.40.40.1 irb.40 [vtep.32769] permanent remote 02:00:00:00:00:10 128.0.0.16 fpc0 em0.0 none root@LEAF-1# run show evpn database extensive mac-address 00:23:9c:9d:2a:94 Instance: evpn1 VN Identifier: 20, MAC address:: 00:23:9c:9d:2a:94 Source: 100.100.100.1, Rank: 1, Status: Active Timestamp: Oct 01 11:57:49 (0x5f7626ad) State: <Remote-To-Local-Adv-Done> History db: <No entries> VN Identifier: 40, MAC address:: 00:23:9c:9d:2a:94 Source: 100.100.100.1, Rank: 1, Status: Active Timestamp: Oct 01 12:24:26 (0x5f762cea) State: <Remote-To-Local-Adv-Done> IP address: 40.40.40.1 History db: <No entries>
SPINE-1
{master:0}[edit] root@SPINE-1# run show evpn database extensive mac-address 00:23:9c:9d:2a:94 Instance: default-switch VN Identifier: 20, MAC address: 00:23:9c:9d:2a:94 State: 0x0 Source: xe-0/0/2.0, Rank: 1, Status: Active Mobility sequence number: 0 (minimum origin address 100.100.100.1) Timestamp: Oct 01 12:06:25 (0x5f7628b1) State: <Local-MAC-Only Local-To-Remote-Adv-Allowed> MAC advertisement route status: Created History db: Time Event Oct 1 12:06:25 2020 Updated Oct 1 12:06:25 2020 No change to MAC state Oct 1 12:06:28 2020 Deleting local state Oct 1 12:06:28 2020 Deleting Oct 1 12:06:28 2020 Deleting all output state Oct 1 12:06:28 2020 Deleting MAC+IP advertisement route for locally learnt Oct 1 12:06:28 2020 Updating output state (change flags 0x0) Oct 1 12:06:28 2020 Active ESI unchanged (xe-0/0/0.0) Oct 1 12:06:28 2020 Updating output state (change flags 0x1000 <IP-Deleted>) Oct 1 12:06:28 2020 Clearing change flags <IP-Deleted> VN Identifier: 40, MAC address: 00:23:9c:9d:2a:94 State: 0x0 Source: xe-0/0/2.0, Rank: 1, Status: Active Mobility sequence number: 0 (minimum origin address 100.100.100.1) Timestamp: Oct 01 12:24:25 (0x5f762ce9) State: <Local-MAC-Only Local-To-Remote-Adv-Allowed> MAC advertisement route status: Created IP address: 40.40.40.1 History db: Time Event Oct 1 12:24:26 2020 Created Oct 1 12:24:26 2020 Updated Oct 1 12:24:26 2020 Updating output state (change flags 0x0) Oct 1 12:24:26 2020 Active ESI unchanged (xe-0/0/0.0) Oct 1 12:24:26 2020 Updating output state (change flags 0x800 <IP-Added>) Oct 1 12:24:26 2020 Updating output state (change flags 0x2000 <IP-Local-State>) Oct 1 12:24:26 2020 Creating MAC+IP advertisement route for locally learnt Oct 1 12:24:26 2020 IP host route cannot be created (no IRB interface in L2 domain) Oct 1 12:24:26 2020 Clearing change flags <IP-Added> Oct 1 12:24:26 2020 Clearing change flags <IP-Local-State>
Run the show route command on SPINE 1.
show route
:vxlan.inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 10.10.10.0/30 *[Direct/0] 02:13:38 > via xe-0/0/1.0 10.10.10.2/32 *[Local/0] 02:13:38 Local via xe-0/0/1.0 100.100.100.1/32 *[Direct/0] 02:13:38 > via lo0.0 101.101.101.1/32 *[Static/1] 02:13:37, metric2 0 > to 10.10.10.1 via xe-0/0/1.0 bgp.evpn.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 2:101.101.101.1:1::20::80:71:1f:95:9f:f0/304 MAC/IP *[BGP/170] 02:13:37, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 2:101.101.101.1:1::40::80:71:1f:95:9f:f0/304 MAC/IP *[BGP/170] 02:13:37, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 2:101.101.101.1:1::20::80:71:1f:95:9f:f0::20.20.20.100/304 MAC/IP *[BGP/170] 02:13:35, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 2:101.101.101.1:1::40::80:71:1f:95:9f:f0::40.40.40.100/304 MAC/IP *[BGP/170] 02:13:35, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 3:101.101.101.1:1::20::101.101.101.1/248 IM *[BGP/170] 02:13:34, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 3:101.101.101.1:1::40::101.101.101.1/248 IM *[BGP/170] 02:13:33, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 default-switch.evpn.0: 11 destinations, 11 routes (11 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 2:100.100.100.1:1::20::00:23:9c:9d:2a:94/304 MAC/IP *[EVPN/170] 00:29:07 Indirect 2:100.100.100.1:1::40::00:23:9c:9d:2a:94/304 MAC/IP *[EVPN/170] 00:34:07 Indirect 2:101.101.101.1:1::20::80:71:1f:95:9f:f0/304 MAC/IP *[BGP/170] 02:13:37, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 2:101.101.101.1:1::40::80:71:1f:95:9f:f0/304 MAC/IP *[BGP/170] 02:13:37, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 2:100.100.100.1:1::40::00:23:9c:9d:2a:94::40.40.40.1/304 MAC/IP *[EVPN/170] 00:11:07 Indirect 2:101.101.101.1:1::20::80:71:1f:95:9f:f0::20.20.20.100/304 MAC/IP *[BGP/170] 02:13:35, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 2:101.101.101.1:1::40::80:71:1f:95:9f:f0::40.40.40.100/304 MAC/IP *[BGP/170] 02:13:35, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 3:100.100.100.1:1::20::100.100.100.1/248 IM *[EVPN/170] 02:13:36 Indirect 3:100.100.100.1:1::40::100.100.100.1/248 IM *[EVPN/170] 02:13:36 Indirect 3:101.101.101.1:1::20::101.101.101.1/248 IM *[BGP/170] 02:13:34, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0 3:101.101.101.1:1::40::101.101.101.1/248 IM *[BGP/170] 02:13:33, localpref 100, from 101.101.101.1 AS path: I, validation-state: unverified > to 10.10.10.1 via xe-0/0/1.0
