This article contains a configuration example where a Dynamic VPN client is connected to the SRX via Pulse and the client needs to access protected resources located behind a different device and reachable over a Policy-based VPN.
For Route-based VPN, refer to KB36028 - How to access remote-protected-resources over Route-based VPN [juniper.net]
For information on how to configure a Policy-based VPN, refer to TN107 - Configuration Examples: Policy-Based site-to-site VPN (CLI instructions)

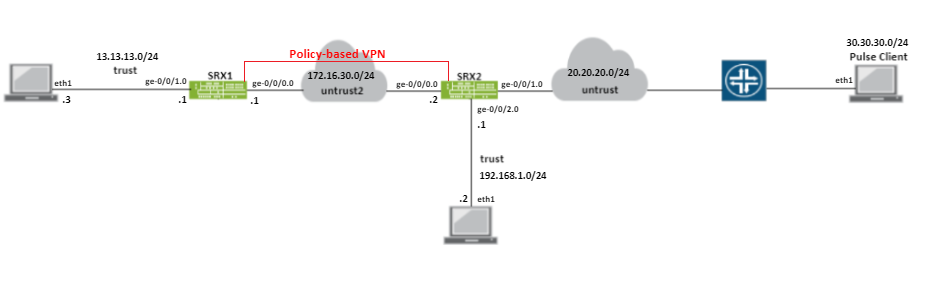

Topology:
In the scenario above, the Pulse client was assigned an IP address of 30.30.30.6 and can access the protected resources directly connected to the SRX2 (192.168.1.0/24):
root@srx2# run show security flow session source-prefix 30.30.30.6 Session ID: 215343, Policy name: Access-Protected-Resources-192/5, Timeout: 2, Valid In: 30.30.30.6/10405 --> 192.168.1.2/2;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 192.168.1.2/2 --> 30.30.30.6/10405;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 60 Session ID: 215346, Policy name: Access-Protected-Resources-192/5, Timeout: 2, Valid In: 30.30.30.6/10406 --> 192.168.1.2/2;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 192.168.1.2/2 --> 30.30.30.6/10406;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 60,
The Pulse client also needs to communicate with resources at the other side of a policy-based VPN so that traffic sourced from 30.30.30.0/24 can reach subnet 13.13.13.0/24 SRX2 Configuration:
set security ike proposal ike-prop-Pulse-13 authentication-method pre-shared-keys set security ike proposal ike-prop-Pulse-13 dh-group group20 set security ike proposal ike-prop-Pulse-13 authentication-algorithm sha1 set security ike proposal ike-prop-Pulse-13 encryption-algorithm aes-128-cbc set security ike policy ike-pol-Pulse-13 mode main set security ike policy ike-pol-Pulse-13 proposals ike-prop-Pulse-13 set security ike policy ike-pol-Pulse-13 pre-shared-key ascii-text "$9$PTF/uORlK8CtK8X7sYfTz" set security ike gateway ike-gat-Pulse-13 ike-policy ike-pol-Pulse-13 set security ike gateway ike-gat-Pulse-13 address 172.16.30.1 set security ike gateway ike-gat-Pulse-13 external-interface ge-0/0/0 set security ipsec proposal ipsec-pro-Pulse-13 protocol esp set security ipsec proposal ipsec-pro-Pulse-13 authentication-algorithm hmac-sha1-96 set security ipsec proposal ipsec-pro-Pulse-13 encryption-algorithm aes-128-cbc set security ipsec policy ipsec-pol-Pulse-13 perfect-forward-secrecy keys group20 set security ipsec policy ipsec-pol-Pulse-13 proposals ipsec-pro-Pulse-13 set security ipsec vpn Pulse-13 ike gateway ike-gat-Pulse-13 set security ipsec vpn Pulse-13 ike ipsec-policy ipsec-pol-Pulse-13
Create the address book to the subnets desired:
set security address-book global address 13.13.13.0 13.13.13.0/24 set security address-book global address 30.30.30.0 30.30.30.0/24
Create the security policy to permit traffic from untrust zone to untrust2 zone. Proxy-ids should match the interested traffic.
set security policies from-zone untrust to-zone untrust2 policy TEST match source-address 30.30.30.0 <--- set security policies from-zone untrust to-zone untrust2 policy TEST match destination-address 13.13.13.0 <--- set security policies from-zone untrust to-zone untrust2 policy TEST match application any set security policies from-zone untrust to-zone untrust2 policy TEST then permit tunnel ipsec-vpn Pulse-13
Notes:
Do not confuse the security policy above with the security policy any-any-any that establishes the communication between the Pulse Client and SRX2 to connect the directly protected resources (192.168.1.0/24)
The Dynamic VPN currently configured demonstrates that by deleting the protected resource 13.13.13.0/24 under the dynamic-vpn hierarchy, the Pulse client cannot ping the subnet 13.13.13.0/24 :
delete security dynamic-vpn clients ALL remote-protected-resources 13.13.13.0/24 C:\Users\Administrator>ping 13.13.13.3 Pinging 13.13.13.3 with 32 bytes of data: Request timed out. Request timed out. Request timed out. Request timed out. Ping statistics for 13.13.13.3: Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),
Do not forget to indicate the subnet 13.13.13.0/24 as a remote protected resource under the dynamic-vpn hierarchy:
set security dynamic-vpn clients ALL remote-protected-resources 192.168.1.0/24 set security dynamic-vpn clients ALL remote-protected-resources 13.13.13.0/24 <--- set security dynamic-vpn clients ALL remote-exceptions 0.0.0.0/0 set security dynamic-vpn clients ALL ipsec-vpn DYN-VPN set security dynamic-vpn clients ALL user borat
T-shoot:

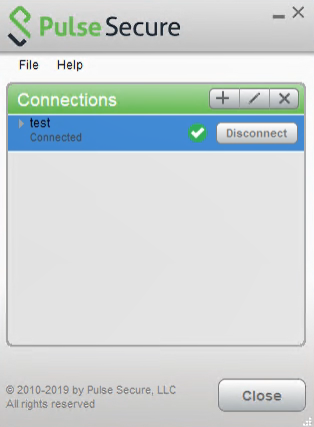

Pulse client successfully connected:
IP address assigned to Client Virtual Adapter is 30.30.30.6:
root@srx2# run show security ike active-peer Remote Address Port Peer IKE-ID AAA username Assigned IP 20.20.20.2 53244 boratdynvpn borat 30.30.30.6 <--- 172.16.30.1 500 172.16.30.1 not available 0.0.0.0
Ping from 30.30.30.6 to remote subnet 13.13.13.3 is successful:
C:\Users\Administrator>ping 13.13.13.3 Pinging 13.13.13.3 with 32 bytes of data: Reply from 13.13.13.3: bytes=32 time=4ms TTL=62 Reply from 13.13.13.3: bytes=32 time=2ms TTL=62 Reply from 13.13.13.3: bytes=32 time=2ms TTL=62 Reply from 13.13.13.3: bytes=32 time=2ms TTL=62 Ping statistics for 13.13.13.3: Packets: Sent = 4, Received = 4, Lost = 0 (0% loss), Approximate round trip times in milli-seconds: Minimum = 2ms, Maximum = 4ms, Average = 2ms
Session shown on SRX2:
root@srx2# run show security flow session source-prefix 30.30.30.6 Session ID: 213039, Policy name: TEST/4, Timeout: 2, Valid In: 30.30.30.6/9292 --> 13.13.13.3/2;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 13.13.13.3/2 --> 30.30.30.6/9292;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60, Session ID: 213041, Policy name: TEST/4, Timeout: 4, Valid In: 30.30.30.6/9293 --> 13.13.13.3/2;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 13.13.13.3/2 --> 30.30.30.6/9293;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60, Session ID: 213043, Policy name: TEST/4, Timeout: 4, Valid In: 30.30.30.6/9294 --> 13.13.13.3/2;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 13.13.13.3/2 --> 30.30.30.6/9294;icmp, Conn Tag: 0x0, If: ge-0/0/0.0, Pkts: 1, Bytes: 60,
