This article provides a configuration example where a Dynamic VPN client is connected to the SRX via Pulse and the client needs to access protected resources located behind a different device and reachable over a Route-based VPN.
For Policy-based VPN, refer to KB36032 - How to access remote-protected-resources over Policy-based VPN [juniper.net]
For more information on configuring Route-based VPN, refer to TN108 - Configuration Examples: Route-Based site-to-site VPN (CLI instructions)

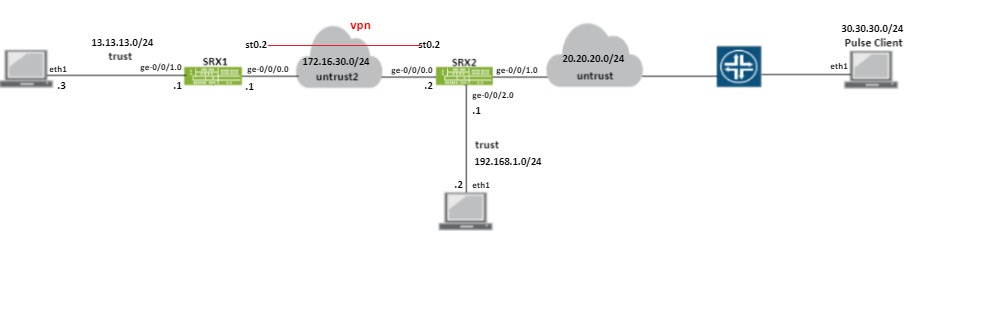

Topology:
In the scenario above, the Pulse client was assigned an IP address of 30.30.30.1 and can access the protected resources directly connected to the SRX2 (192.168.1.0/24):
root@srx2# run show security flow session source-prefix 30.30.30.1 Session ID: 4210, Policy name: Access-Protected-Resources-192/5, Timeout: 2, Valid In: 30.30.30.1/38795 --> 192.168.1.2/1;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 192.168.1.2/1 --> 30.30.30.1/38795;icmp, Conn Tag: 0x0, If: ge-0/0/2.0, Pkts: 1, Bytes: 60,
The Pulse client also needs to communicate with resources at the other side of a route-based VPN so that traffic sourced from 30.30.30.0/24 can reach subnet 13.13.13.0/24 via an st0.2 interface.
SRX2 Configuration:
Create a route-based VPN between SRX1 and SRX2. Take into consideration that Traffic Selectors should indicate the interested traffic:
set security ike proposal ike-prop-Pulse-13 authentication-method pre-shared-keys set security ike proposal ike-prop-Pulse-13 dh-group group20 set security ike proposal ike-prop-Pulse-13 authentication-algorithm sha1 set security ike proposal ike-prop-Pulse-13 encryption-algorithm aes-128-cbc set security ike policy ike-pol-Pulse-13 mode main set security ike policy ike-pol-Pulse-13 proposals ike-prop-Pulse-13 set security ike policy ike-pol-Pulse-13 pre-shared-key ascii-text "$9$PTF/uORlK8CtK8X7sYfTz" set security ike gateway ike-gat-Pulse-13 ike-policy ike-pol-Pulse-13 set security ike gateway ike-gat-Pulse-13 address 172.16.30.1 set security ike gateway ike-gat-Pulse-13 external-interface ge-0/0/0
set security ipsec proposal ipsec-pro-Pulse-13 protocol esp set security ipsec proposal ipsec-pro-Pulse-13 authentication-algorithm hmac-sha1-96 set security ipsec proposal ipsec-pro-Pulse-13 encryption-algorithm aes-128-cbc set security ipsec policy ipsec-pol-Pulse-13 perfect-forward-secrecy keys group20 set security ipsec policy ipsec-pol-Pulse-13 proposals ipsec-pro-Pulse-13 set security ipsec vpn Pulse-13 bind-interface st0.2 set security ipsec vpn Pulse-13 ike gateway ike-gat-Pulse-13 set security ipsec vpn Pulse-13 ike ipsec-policy ipsec-pol-Pulse-13 set security ipsec vpn Pulse-13 traffic-selector ts1 local-ip 30.30.30.0/24 <--- set security ipsec vpn Pulse-13 traffic-selector ts1 remote-ip 13.13.13.0/24 <--- set security ipsec vpn Pulse-13 establish-tunnels immediately
Since remote subnet (13.13.13.0/24) is reached via st0.2 which belongs to the security zone called vpn, configure the security policy from untrust zone to vpn zone
set security policies from-zone untrust to-zone vpn policy Access-to-VPN-site match source-address any set security policies from-zone untrust to-zone vpn policy Access-to-VPN-site match destination-address any set security policies from-zone untrust to-zone vpn policy Access-to-VPN-site match application any set security policies from-zone untrust to-zone vpn policy Access-to-VPN-site then permit
Do not forget to indicate the subnet 13.13.13.0/24 as a remote protected resource under the dynamic-vpn hierarchy:
set security dynamic-vpn clients ALL remote-protected-resources 192.168.1.0/24 set security dynamic-vpn clients ALL remote-protected-resources 13.13.13.0/24 <--- set security dynamic-vpn clients ALL remote-exceptions 0.0.0.0/0 set security dynamic-vpn clients ALL ipsec-vpn DYN-VPN set security dynamic-vpn clients ALL user borat
T-shoot:
Pulse client successfully connected:
IP address assigned to Client Virtual Adapter is 30.30.30.1
root@srx2# run show security ike active-peer Remote Address Port Peer IKE-ID AAA username Assigned IP 20.20.20.2 50825 boratdynvpn borat 30.30.30.1 <--- 172.16.30.1 500 172.16.30.1 not available 0.0.0.0
Session shown on SRX2
root@srx2# run show security flow session source-prefix 30.30.30.1 Session ID: 3359, Policy name: Access-to-VPN-site/6, Timeout: 2, Valid In: 30.30.30.1/38558 --> 13.13.13.3/1;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 13.13.13.3/1 --> 30.30.30.1/38558;icmp, Conn Tag: 0x0, If: st0.2, Pkts: 1, Bytes: 60, Session ID: 3361, Policy name: Access-to-VPN-site/6, Timeout: 2, Valid In: 30.30.30.1/38559 --> 13.13.13.3/1;icmp, Conn Tag: 0x0, If: ge-0/0/1.0, Pkts: 1, Bytes: 60, Out: 13.13.13.3/1 --> 30.30.30.1/38559;icmp, Conn Tag: 0x0, If: st0.2, Pkts: 1, Bytes: 60,
