On EX4300 platform, layer 3 IP route is deleted when an L2 next-hop change is seen (e.g., the VRRP/STP/LAG state change of interfaces). This causes traffic drop and only affects static routes.

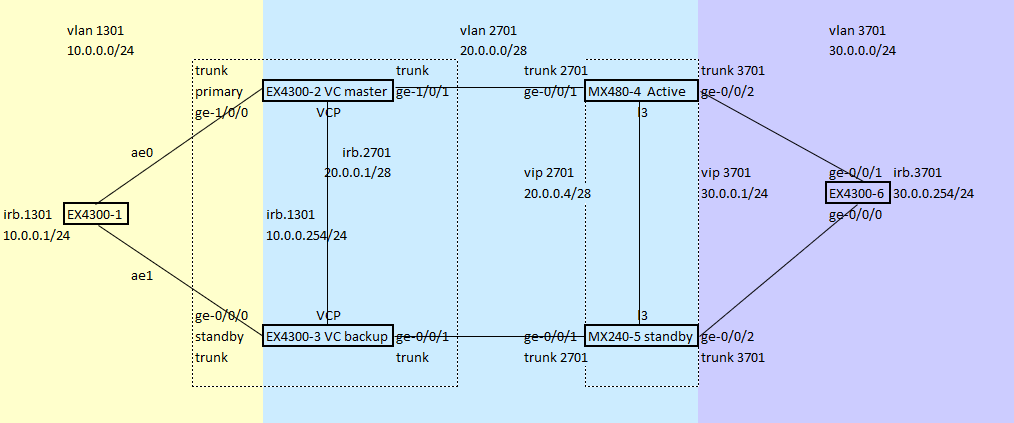

root@mx480# show interfaces irb.2701 family inet { address 20.0.0.5/28 { vrrp-group 100 { virtual-address 20.0.0.4; priority 200; accept-data; } } } root@mx480# show interfaces irb.3701 family inet { address 30.0.0.2/24 { vrrp-group 200 { virtual-address 30.0.0.1; priority 200; track { interface ge-0/0/1.0 { priority-cost 150; } } } } }
MX240:
root@MX240_RE0# show interfaces irb.2701 family inet { address 20.0.0.6/28 { vrrp-group 100 { virtual-address 20.0.0.4; priority 100; } } } root@MX240_RE0# show interfaces irb.3701 family inet { address 30.0.0.3/24 { vrrp-group 200 { virtual-address 30.0.0.1; priority 100; } } } ------------------------------
Before power off fpc1:
VC status:
root@EX4300VC# run show virtual-chassis status Virtual Chassis ID: 3e20.4b49.b1ea Virtual Chassis Mode: Enabled Mstr Mixed Route Neighbor List Member ID Status Serial No Model prio Role Mode Mode ID Interface 0 (FPC 0) Prsnt TW3710000133 ex4300-32f 128 Backup N VC 1 vcp-255/1/0 1 (FPC 1) Prsnt TW3710000007 ex4300-32f 128 Master* N VC 0 vcp-255/1/0 -------------------------
VRRP status:
MX480 [MASTER][edit] root@mx480# run show vrrp summary Interface State Group VR state VR Mode Type Address irb.2701 up 100 master Active lcl 20.0.0.5 vip 20.0.0.4 irb.3701 up 200 master Active lcl 30.0.0.2 vip 30.0.0.1
[edit] root@MX240_RE0# run show vrrp summary Interface State Group VR state VR Mode Type Address irb.2701 up 100 backup Active lcl 20.0.0.6 vip 20.0.0.4 irb.3701 up 200 backup Active lcl 30.0.0.3 vip 30.0.0.1 root@EX4300VC# run show route table vrf_mobile_001.inet.0 vrf_mobile_001.inet.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 0.0.0.0/0 *[Static/5] 01:05:45 <<<< > to 20.0.0.4 via irb.2701 20.0.0.0/28 *[Direct/0] 01:05:54 > via irb.2701 20.0.0.1/32 *[Local/0] 01:05:54 Local via irb.2701 100.80.0.6/32 *[Local/0] 01:07:09 Reject 10.0.0.0/24 *[Direct/0] 01:05:12 > via irb.1301 10.0.0.0.254/32 *[Local/0] 01:05:12 Local via irb.1301 root@EX4300VC:RE:1% cprod -A fpc1 -c "show route ip hw lpm " | grep "Rtt\| 45 " Rtt VRF Destination Type NH-ID Interface HW NH-ID Src-MAC-Address Port Dst-MAC-Address 46 45 100.75.0.0/28 Resolve 4466 irb .2701 ifl 930 100128 88:e6:4b:8f:c2:21 0 00:00:00:01:02:03 46 45 191.168.0/24 Resolve 4474 irb .1301 ifl 932 100130 88:e6:4b:8f:c2:21 0 00:00:00:01:02:03 46 45 default Unicast 12123 irb .2701 ifl 930 101151 88:e6:4b:8f:c2:21 2 00:00:5e:00:01:64 <<<< normal root@EX4300VC:RE:1% cprod -A fpc0 -c 'set exbcm bcm "l3 defip show"' | grep " 45 " 524 45 100.75.0.0/28 00:00:00:00:00:00 100128 0 0 0 1 n 967 45 191.168.0.0/24 00:00:00:00:00:00 100130 0 0 0 1 n 1706 45 0.0.0.0/0 00:00:00:00:00:00 101151 0 0 0 0 n <<<< normal [master:0][edit] root@EX4300-1#run ping 172.17.220.254 PING 172.17.220.254 (172.17.220.254): 56 data bytes 64 bytes from 172.17.220.254: icmp_seq=0 ttl=62 time=2.556 ms 64 bytes from 172.17.220.254: icmp_seq=1 ttl=62 time=2.166 ms 64 bytes from 172.17.220.254: icmp_seq=2 ttl=62 time=4.166 ms 64 bytes from 172.17.220.254: icmp_seq=3 ttl=62 time=2.167 ms 64 bytes from 172.17.220.254: icmp_seq=4 ttl=62 time=2.534 ms
After power off fpc1
root@EX4300VC> show virtual-chassis status Virtual Chassis ID: 3e20.4b49.b1ea Virtual Chassis Mode: Enabled Mstr Mixed Route Neighbor List Member ID Status Serial No Model prio Role Mode Mode ID Interface 0 (FPC 0) Prsnt TW3710000133 ex4300-32f 128 Master* N VC 1 vcp-255/1/0 1 (FPC 1) Prsnt TW3710000007 ex4300-32f
VRRP status
MX480:
[MASTER][edit] root@mx480# run show vrrp summary Interface State Group VR state VR Mode Type Address irb.2701 down 100 init Active lcl 20.0.0.5 init vip 20.0.0.4 irb.3701 up 200 backup Active lcl 30.0.0.2 backup vip 30.0.0.1
root@MX240_RE0# run show vrrp summary Interface State Group VR state VR Mode Type Address irb.2701 up 100 master Active lcl 20.0.0.6 vip 20.0.0.4 irb.3701 up 200 master Active lcl 30.0.0.3 vip 30.0.0.1
roroot@EX4300VC:RE:0% cprod -A fpc0 -c "show route ip hw lpm " | grep "Rtt\| 45 " Rtt VRF Destination Type NH-ID Interface HW NH-ID Src-MAC-Address Port Dst-MAC-Address 46 45 20.0.0.0/28 Resolve 4466 irb .2701 ifl 930 100128 88:e6:4b:8f:c2:21 0 00:00:00:01:02:03 46 45 10.0.0/24 Resolve 4474 irb .1301 ifl 932 100130 88:e6:4b:8f:c2:21 0 00:00:00:01:02:03 --->> default route(0.0.0.0/0) is missing root@EX4300VC@:RE:0% cprod -A fpc0 -c 'set exbcm bcm "l3 defip show"' | grep " 45 " 524 45 20.0.0.0/28 00:00:00:00:00:00 100128 0 0 0 1 n 967 45 30.0.0.0/24 00:00:00:00:00:00 100130 0 0 0 1 n root@:RE:0% vty fpc0 --->>default route(0.0.0.0/0) is missing {master:0}[edit] root@EX4300-1# run ping 172.17.220.254 PING 172.17.220.254 (172.17.220.254): 56 data bytes ^C --- 172.17.220.254 ping statistics --- 64 packets transmitted, 0 packets received, 100% packet loss
This issue affects only static routes. It has been fixed per PR1389688 . There is no workaround. Please refer to PR1389688 for fixed releases.
