Starting in Junos OS Release 19.2R1, ACX5448 Series devices support EVPN with VXLAN encapsulation and EVPN with MPLS encapsulation.
This article clarifies that EVPN traffic will be flooded to all remote PEs instead of being unicast to a single PE if enhanced-ip mode is not used while configuring EVPN with VXLAN encapsulation or EVPN with MPLS encapsulation in ACX5448 Series devices.
enhanced-ip
Topology

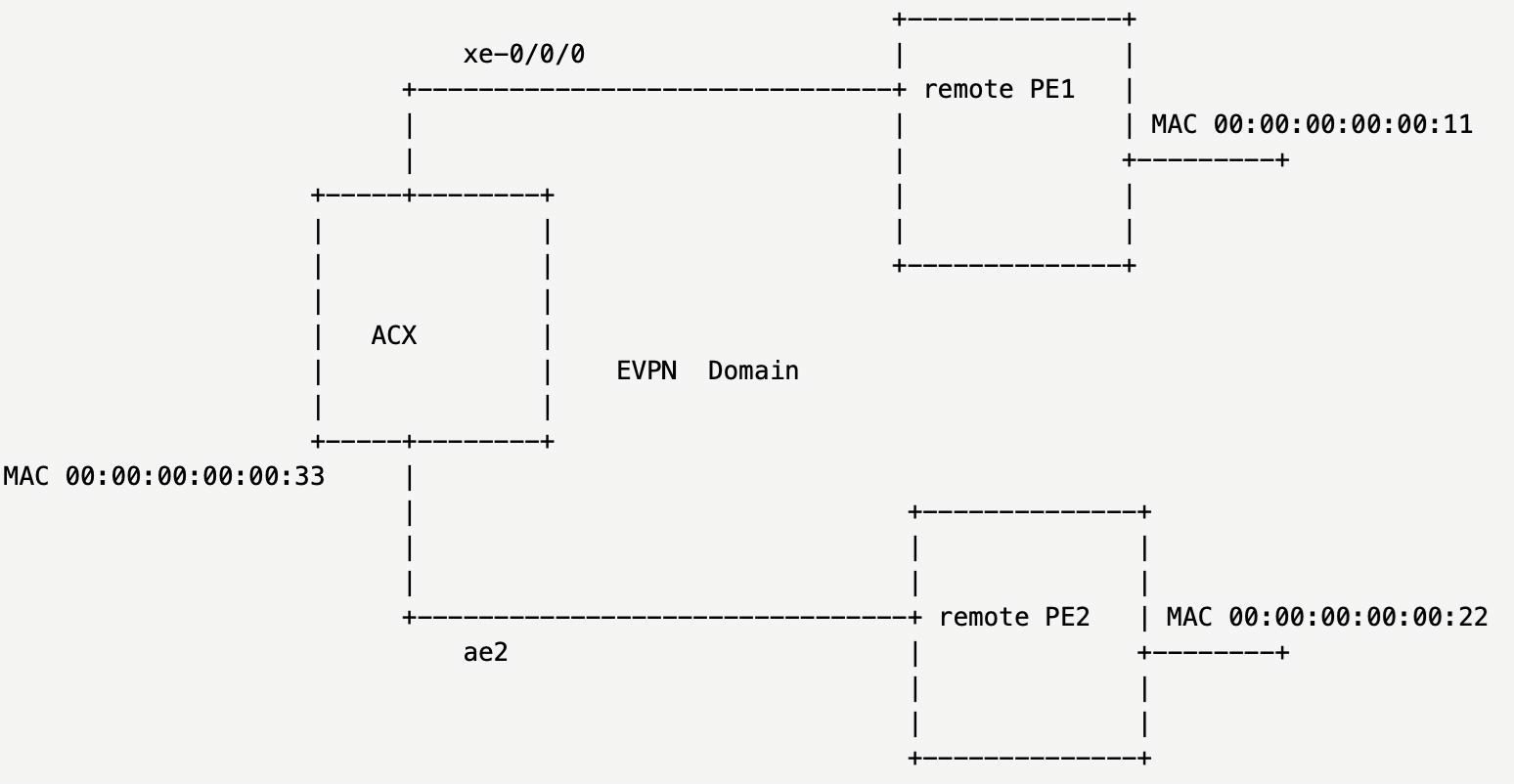

In a VPN environment (as shown above):
Through EVPN BGP advertisement, ACX5448 will learn the remote MAC address “00:00:00:00:00:11” from PE1. Similarly, MAC address “00:00:00:00:00:33” will be learned on PE1.
Traffic from MAC33 to MAC11 shall be sent from ACX to only PE1 by utilizing the xe-0/0/0 link.
However, the missing “ enhanced-ip ” configuration on ACX5448 will cause unicast traffic to be flooded to all remote PEs.
In such case, we see traffic to MAC11 being sent on links xe-0/0/0 and ae2.
Before Configuration Change
The next-hops are RNH_LE and the pip0 interface is missing:
[edit] user@router# run show route forwarding-table family evpn Routing table: EVPN-Set-15-1.evpn EVPN: Enabled protocols: Single VLAN, ACKed by all peers, EVPN, ARP/NDP suppression, Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 dscd 654 1 00:00:17:91:00:40/48 user 0 chain 14647294 2 00:00:17:91:00:50/48 user 0 chain 14647295 2 LNX-FPC0(router vty)# show route bridge BRIDGE Route Table 1808, default-switch.1808, 0x8 FRR: FALSE: BUM hashing: FALSE del CW: FALSE BD-ID Mesh-Group L2Token NH Type NH ID Interface ----- ---------- ------- ------- ------ --------- BRIDGE Route Table 1809, EVPN-Set-15-1.1809, 0x4000 FRR: FALSE: BUM hashing: FALSE del CW: FALSE BD-ID Mesh-Group L2Token NH Type NH ID Interface ----- ---------- ------- ------- ------ --------- 00002 00000 00:00:17:91:00:40/80 RNH_LE 14647294 rifl 0 00002 00000 00:00:17:91:00:50/80 RNH_LE 14647295 rifl 0 LNX-FPC0(router vty)# show nhdb id 14647294 ID Type Interface Next Hop Addr Protocol Encap MTU Flags PFE internal Flags ----- -------- ------------- --------------- ---------- ------------ ---- ------------------ ------------------ 14647294 RNH_LE - fe:ff:1f:00:00:00 - - 0 0x0000000000000004 0x0000000000000000 LNX-FPC0(router vty)# show nhdb id 14647294 recursive 14647294(RNH_LE, ifl:0:-, pfe-id:0)
To resolve the issue, add the enhanced-ip and evpn-mh-profile configuration as shown below:
enhanced-ip and
user@router# set chassis network-services enhanced-ip
[edit]user@router## set system packet-forwarding-options firewall-profile evpn-mh-profile
[edit]user@router# show | compare[edit system]+ packet-forwarding-options {+ firewall-profile {+ evpn-mh-profile;+ }+ }[edit chassis]+ network-services enhanced-ip;
After Configuration Change
user@router# run show route forwarding-table family evpn Routing table: EVPN-Set-15-1.evpn EVPN: Enabled protocols: Single VLAN, ACKed by all peers, EVPN, ARP/NDP suppression, Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 dscd 655 1 00:00:17:91:00:40/48 user 0 indr 2097155 3 10.21.60.0 Push 299776 881 2 xe-0/0/0.0 00:00:17:91:00:50/48 user 0 indr 2097151 3 ulst 2097150 2 10.60.61.1 Push 299776 871 2 ae0.0 10.21.60.0 Push 299776, Push 299904(top) 872 2 xe-0/0/0.0 LNX-FPC0(router vty)# show route bridge BRIDGE Route Table 1808, default-switch.1808, 0x8 FRR: FALSE: BUM hashing: FALSE del CW: FALSE BD-ID Mesh-Group L2Token NH Type NH ID Interface ----- ---------- ------- ------- ------ --------- BRIDGE Route Table 1812, EVPN-Set-15-1.1812, 0x4000 FRR: FALSE: BUM hashing: FALSE del CW: FALSE BD-ID Mesh-Group L2Token NH Type NH ID Interface ----- ---------- ------- ------- ------ --------- 00004 00000 00:00:17:91:00:40/80 rifl pip0.2097155 00004 00000 00:00:17:91:00:50/80 rifl pip0.2097151 LNX-FPC0(router vty)# show nhdb id 2097155 recursive 2097155(Indirect, VPLS, ifl:97:xe-0/0/0.0, pfe-id:0, i-ifl:0:-) 881(Unicast, VPLS->MPLS, ifl:97:xe-0/0/0.0, pfe-id:0) LNX-FPC0(router vty)# show nhdb id 2097151 recursive 2097151(Indirect, VPLS, ifl:95:ae0.0, pfe-id:0, i-ifl:0:-) 2097150(Unilist, IPv4, ifl:0:-, pfe-id:0) 871(Unicast, VPLS->MPLS, ifl:95:ae0.0, pfe-id:0) 872(Unicast, VPLS->MPLS, ifl:97:xe-0/0/0.0, pfe-id:0)
Note:ACX5448-M does not support this feature. EVPN MH profile is not supported in ACX5448-M (MACSEC SKU), the profile require external TCAM, which doesn't exist in this SKU.
