Description

This article provides a configuration example of how to configure reverse path multicasting (RPM) with event-options for route failover when you have static routing configured for the primary route and dynamic routing configured for the secondary route on SRX devices.

Symptoms

In some scenarios, when you have static routing configured for the primary route and dynamic routing configured for the secondary route on SRX devices, RPM with event-options can be used for failover of route from static to dynamic routing.

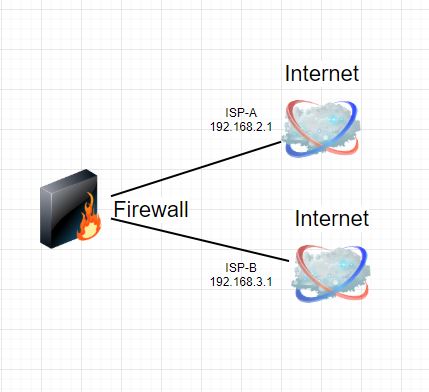

In this example setup, we have an SRX device connected to two ISPs: ISP-A to which a static route is configured and ISP-B to which a Border Gateway Protocol (BGP) is configured.

Topology

alt

Since static routes have the lowest preference value, the SRX device would choose it as the preferred route.

root> show route

0.0.0.0/0          *[Static/5] 00:01:57
                    > to 192.168.2.1 via ge-0/0/2.0
                    [BGP/170] 00:36:03, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 192.168.3.1 via ge-0/0/3.0

When ISP-A goes down, the static route will not be removed until the interface is physically down, resulting in traffic drop.

While you can disable the interface by configuring IP monitoring so that the static route is removed, the routes will not fall back when ISP-A is back again.

Solution

To configure RPM with event-options for route failover when you have configured static routing for the primary route and dynamic routing for the secondary route, use the following example:

RPM configuration to detect ISP liveliness

set services rpm probe STATIC-ROUTE-ISP-A test test-1 probe-type icmp-ping
set services rpm probe STATIC-ROUTE-ISP-A test test-1 target address 192.168.2.1
set services rpm probe STATIC-ROUTE-ISP-A test test-1 test-interval 3
set services rpm probe STATIC-ROUTE-ISP-A test test-1 thresholds successive-loss 3
set services rpm probe STATIC-ROUTE-ISP-A test test-1 next-hop 192.168.2.1

event-options configuration to deactivate the static route when ISP-A fails

set event-options policy disable-on-ping-failure events ping_test_failed
set event-options policy disable-on-ping-failure events ping_probe_failed
set event-options policy disable-on-ping-failure within 30 trigger until
set event-options policy disable-on-ping-failure within 30 trigger 4
set event-options policy disable-on-ping-failure within 25 trigger on
set event-options policy disable-on-ping-failure within 25 trigger 3
set event-options policy disable-on-ping-failure attributes-match ping_test_failed.test-owner matches STATIC-ROUTE-ISP-A
set event-options policy disable-on-ping-failure attributes-match ping_test_failed.test-name matches test-1
set event-options policy disable-on-ping-failure then change-configuration commands "deactivate routing-options static route 0.0.0.0/0"

event-options configuration to activate the static route when ISP-A is active again

set event-options policy enable-on-ping-success events ping_test_completed
set event-options policy enable-on-ping-success within 20 trigger on
set event-options policy enable-on-ping-success within 20 trigger 3
set event-options policy enable-on-ping-success within 25 trigger until
set event-options policy enable-on-ping-success within 25 trigger 4
set event-options policy enable-on-ping-success attributes-match ping_test_completed.test-owner matches STATIC-ROUTE-ISP-A
set event-options policy enable-on-ping-success attributes-match ping_test_completed.test-name matches test-1
set event-options policy enable-on-ping-success then change-configuration commands "activate routing-options static route 0.0.0.0/0"

Syslog configuration

set system syslog file DAEMON-INFO-LOG daemon info
set system syslog file CHANGE-LOG change-log any

Note: If you configure the trigger only on the third condition, the commit operation might go into a loop, which could trigger a high routing-engine CPU. The combination of trigger on 3 and trigger until 4 prevents the event policy from repeatedly making the same configuration change.

Verification

When ISP fails:

root>show services rpm history-results

STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:17:58 2020 Tue Mar  3 08:17:58 2020              934 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:01 2020 Tue Mar  3 08:18:01 2020             1351 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:04 2020 Tue Mar  3 08:18:04 2020              863 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:07 2020 Tue Mar  3 08:18:10 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:10 2020 Tue Mar  3 08:18:13 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:14 2020 Tue Mar  3 08:18:17 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:17 2020 Tue Mar  3 08:18:20 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:20 2020 Tue Mar  3 08:18:23 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:23 2020 Tue Mar  3 08:18:26 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:18:27 2020 Tue Mar  3 08:18:30 2020  Request timed out

root>show log DAEMON-INFO-LOG

Mar  3 08:18:20  SRX-Test rmopd[1835]: PING_TEST_FAILED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1
Mar  3 08:18:21  SRX-Test file[4408]: UI_CHILD_EXITED: Child exited: PID 4414, status 7, command '/usr/sbin/mustd'
Mar  3 08:18:23  SRX-Test rmopd[1835]: PING_TEST_FAILED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1
Mar  3 08:18:30  SRX-Test last message repeated 2 times
Mar  3 08:18:33  SRX-Test rmopd[1835]: PING_TEST_FAILED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1
Mar  3 08:18:36  SRX-Test rpd[1831]: JTASK_TASK_REINIT: Reinitializing
Mar  3 08:18:36  SRX-Test rpd[1831]: L2CKT acquiring mastership for primary
Mar  3 08:18:36  SRX-Test rpd[1831]: L2VPN acquiring mastership for primary
Mar  3 08:18:36  SRX-Test rpd[1831]: task_reconfigure reinitializing done
Mar  3 08:18:36  SRX-Test rmopd[1835]: PING_TEST_FAILED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1

root>show log CHANGE-LOG | no-more

Mar  3 08:18:19  SRX-Test file[4408]: UI_CFG_AUDIT_OTHER: User 'root' deactivate: [routing-options static route 0.0.0.0/0]

root>show route

inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[BGP/170] 03:27:49, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 192.168.3.1 via ge-0/0/3.0

When ISP-A is active again:

root>show services rpm history-results

STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:18 2020 Tue Mar  3 08:46:21 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:22 2020 Tue Mar  3 08:46:25 2020  Request timed out
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:25 2020 Tue Mar  3 08:46:25 2020             1330 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:28 2020 Tue Mar  3 08:46:28 2020             1331 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:31 2020 Tue Mar  3 08:46:31 2020              863 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:34 2020 Tue Mar  3 08:46:34 2020             1335 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:37 2020 Tue Mar  3 08:46:37 2020             1086 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:40 2020 Tue Mar  3 08:46:40 2020             1329 usec
STATIC_ROUTE_1, probe-dc-ge1 Tue Mar  3 08:46:43 2020 Tue Mar  3 08:46:43 2020             1199 usec

root>show log DAEMON-INFO-LOG

Mar  3 08:18:36  SRX-Test rmopd[1835]: PING_TEST_FAILED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1
Mar  3 08:18:59  SRX-Test last message repeated 7 times
Mar  3 08:46:25  SRX-Test rmopd[1835]: PING_TEST_COMPLETED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1
Mar  3 08:46:31  SRX-Test last message repeated 2 times
Mar  3 08:46:34  SRX-Test rmopd[1835]: PING_TEST_COMPLETED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1
Mar  3 08:46:35  SRX-Test file[4755]: UI_CHILD_EXITED: Child exited: PID 4761, status 7, command '/usr/sbin/mustd'
Mar  3 08:46:37  SRX-Test rmopd[1835]: PING_TEST_COMPLETED: pingCtlOwnerIndex = STATIC_ROUTE_1, pingCtlTestName = probe-dc-ge1
Mar  3 08:46:43  SRX-Test last message repeated 2 times

root>show log CHANGE-LOG

Mar  3 08:18:19  SRX-Test file[4408]: UI_CFG_AUDIT_OTHER: User 'root' deactivate: [routing-options static route 0.0.0.0/0]
Mar  3 08:46:33  SRX-Test file[4755]: UI_CFG_AUDIT_OTHER: User 'root' activate: [routing-options static route 0.0.0.0/0]

root>show route

inet.0: 9 destinations, 10 routes (9 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 00:00:15
                    > to 192.168.2.1 via ge-0/0/2.0
                    [BGP/170] 03:52:54, localpref 100
                      AS path: 100 I, validation-state: unverified
                    > to 192.168.3.1 via ge-0/0/3.0
