In Filter-Based Forwarding (FBF), IP packets are getting forwarded even though there is no route present for the destination in the respective routing table.

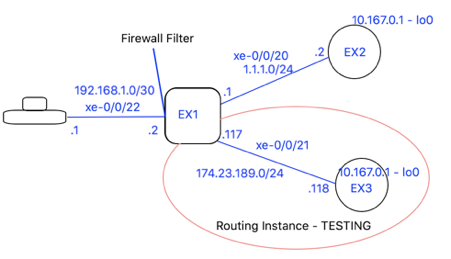

Topology:
EX 1 Configuration:
set routing-options interface-routes rib-group inet route-divert set routing-options rib-groups route-divert import-rib inet.0 set routing-options rib-groups route-divert import-rib TESTING.inet.0 set routing-options static route 10.167.0.0/16 next-hop 1.1.1.2 set interfaces xe-0/0/20 unit 0 family inet address 1.1.1.1/24 set interfaces xe-0/0/21 unit 0 family inet address 174.23.189.117/24 set interfaces xe-0/0/22 unit 0 family inet filter input test set interfaces xe-0/0/22 unit 0 family inet address 192.168.1.2/30 set firewall family inet filter test term 1 from interface xe-0/0/22.0 set firewall family inet filter test term 1 then count forward set firewall family inet filter test term 1 then routing-instance TESTING set firewall family inet filter test term 2 then count discard set firewall family inet filter test term 2 then discard set routing-instances TESTING instance-type virtual-router set routing-instances TESTING interface xe-0/0/21.0 set routing-instances TESTING routing-options static route 2.2.2.2/32 next-hop 174.23.189.118 set routing-instances TESTING routing-options static route 2.2.2.2/32 resolve
EX2 Configuration:
set interfaces xe-0/0/20 unit 0 family inet address 1.1.1.2/24 set interfaces lo0 unit 0 family inet address 10.167.0.1/32 set routing-options static route 192.168.1.1/32 next-hop 1.1.1.1
EX3 Configuration:
set interfaces xe-0/0/21 unit 0 family inet address 174.23.189.118/24 set interfaces lo0 unit 0 family inet address 10.167.0.1/32 set routing-options static route 192.168.1.1/32 next-hop 174.23.189.117
Test scenario:
Ping is initiated from Source VIP - 192.168.1.1 to destination VIP - 10.167.0.1 When the packet is received at interface xe-0/0/22 on EX 1, it hits the firewall filter applied to the interface and diverts the packets to TESTING routing-instance. (FF) However, there is no route for the destination VIP 10.167.0.1 in the TESTING.inet.0 routing table as shown in Snippet-1 below.
Snippet-1:
root# run show route table TESTING.inet.0 TESTING.inet.0: 7 destinations, 7 routes (7 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 1.1.1.0/24 *[Direct/0] 2w0d 23:48:52 > via xe-0/0/20.0 1.1.1.1/32 *[Local/0] 2w0d 23:48:52 Local via xe-0/0/20.0 2.2.2.2/32 *[Static/5] 2w0d 23:49:24 > to 174.23.189.118 via xe-0/0/21.0 174.23.189.0/24 *[Direct/0] 2w0d 23:48:57 > via xe-0/0/21.0 174.23.189.117/32 *[Local/0] 2w0d 23:49:13 Local via xe-0/0/21.0 192.168.1.0/30 *[Direct/0] 2w0d 23:48:48 > via xe-0/0/22.0 192.168.1.2/32 *[Local/0] 2w0d 23:48:48 Local via xe-0/0/22.0
Packets are still getting forwarded despite the missing route.
There is a route for the destination VIP 10.167.0.1 in the primary routing table inet.0 as shown in Snippet-2 below. Though there is no route in the TESTING routing table, VIP packet still gets forwarded to the destination through the primary routing table.
Snippet-2:
root# run show route table inet.0 inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 1.1.1.0/24 *[Direct/0] 2w0d 23:51:50 > via xe-0/0/20.0 1.1.1.1/32 *[Local/0] 2w0d 23:52:11 Local via xe-0/0/20.0 10.92.0.1/32 *[Static/5] 2w0d 23:51:50 > to 1.1.1.2 via xe-0/0/20.0 10.167.0.0/16 *[Static/5] 2w0d 23:51:50 . > to 1.1.1.2 via xe-0/0/20.0 10.219.20.64/26 *[Direct/0] 2w0d 23:52:22 > via me0.0 10.219.20.93/32 *[Local/0] 2w0d 23:52:22 Local via me0.0 192.168.1.0/30 *[Direct/0] 2w0d 23:51:46 > via xe-0/0/22.0 192.168.1.2/32 *[Local/0] 2w0d 23:52:11 Local via xe-0/0/22.0 224.0.0.22/32 *[IGMP/0] 2w0d 23:52:22 MultiRecv
Since there is no route for the destination in the routing-instance, the traffic will be rejected (There is an implicit reject). A rejected packet needs to be sent to the kernel to create the "Destination Unreachable" message. Note that the xe-0/0/22 in this case belongs to the default/Primary routing instance. So when this rejected packet reaches the kernel, there will be a route lookup in the kernel (default instance), which will forward the packet to the destination VIP.
This behavior is expected as the source interface is part of the default routing instance. In the scenario above, if the ingress interface would also be in the routing-instance TESTING, the packet will be dropped at the kernel as well.
