Publish policy job in Security Director ensures compiling of Policy and rules in Junos space for the particular device. Under some conditions, the job may hang or fail.

This article provides workarounds that may resolve the update behavior.

Some generic errors which are seen during Publish Job failure:

• Another preview, publish or update job is in progress
• Calculating rules to publish
• Error while converting rule
• [Error] Calculating rules to publish
• Failed to remove previous associated metadata

Check the following:

• Go to SD > Monitor > Job Management > Check for the Publish jobs (specific to the device) which are stuck in Pending/In-Progress State at 0% for more than an hour. ​

  • If Yes, Cancel the Job and try again.

• Run a re-synchronize with Network job for the device. Go to SD > Devices > Security Devices > Select the device with the issue > Run Re-synchronize with Network (from top right corner)

• Device re-assign for the policy:

  • Go to SD > Configure > Select the policy (FW,NAT or IPS) with issue > Right Click on the Policy > Un-assign Device > Click Yes to continue and confirm.

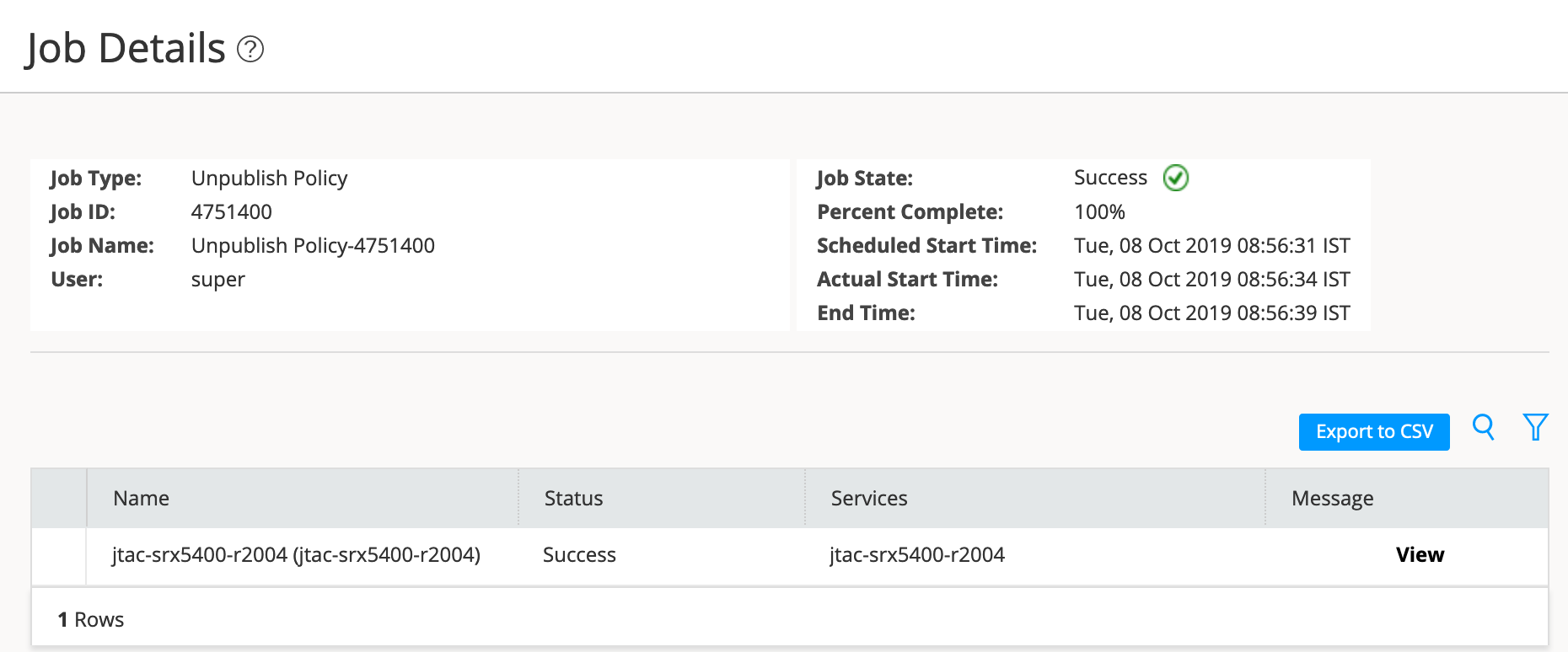

  • Validate the " Unpublish " job in the Job Management. Go to SD > Monitor > Job Management >


    The logs in the backend looks like:

less /var/log/jboss/servers/server1/SD.log | grep -i <Device Name>
Example : less /var/log/jboss/servers/server1/SD.log | grep -i  jtac-srx5400-r2004

2019-10-08 08:56:26,800 WARN  [net.juniper.jnap.sm.om.ejb.lock.ObjectLockManagerBean] (ajp-space-005056bd0e10/10.219.59.26:8009-6)
locking object Object ID: 3047425, Service Name: jtac-srx5400-r2004,Service Type: POLICY, User: super, Browser ID: 52619e0e-d6d2-4f8a-97b3-8fddff318625,
expiry time: 1570506116797, hasExpired: false
2019-10-08 08:56:36,446 WARN[net.juniper.jnap.sm.provisioning.jobManager.SDProvisioningJobManagerBean] (JobThread4751401) [Publish Sub Job :4751401]
[Device: jtac-srx5400-r2004] Starting conversion
2019-10-08 08:56:37,279 WARN  [net.juniper.jnap.sm.provisioning.jobManager.SDProvisioningJobManagerBean] (JobThread4751401) [Publish Sub Job :4751401]
[Device: jtac-srx5400-r2004] Conversion done
2019-10-08 08:56:37,310 WARN  [net.juniper.jnap.sm.provisioning.jobManager.SDProvisioningJobManagerBean] (JobThread4751401) [Publish Sub Job :4751401]
[Device: jtac-srx5400-r2004] Starting persit for
net.juniper.jmp.jpa.LogicalDevice:524289
2019-10-08 08:56:37,591 WARN  [net.juniper.jnap.sm.provisioning.jobManager.SDProvisioningJobManagerBean] (JobThread4751401) [Publish Sub Job :4751401]
[Device: jtac-srx5400-r2004] Publish to device is successfull.
2019-10-08 08:56:37,725 WARN  [net.juniper.jnap.sm.om.ejb.ServiceRegistryBean](JobThread4751401)Clear the time stamp for publish success case services:
[3047425],devices:[2949120], lastModifiedTime []

• Once validated, go to SD > Configure > Select the policy (FW,NAT or IPS) > Right Click on the Policy >  Assign Device > Select the Device (specific to the policy) from the drop-down > Click Ok to Confirm.

Check if the Publish issue is fixed. If not, try the device deletion process next.

• Check for the latest changes performed on the policy and try to rollback and Publish again.

• If the SD.log shows a 'NullPointerException' exception, check all the rules to find any Undefined object(s) and remove and then Publish.

• Device Deletion Process:

  • Ensure the device doesn't have VPNs created from Space.

  • Un-assign the device from the policy (steps shared as above)

  • Delete the device  and then  Re-discover the Device  in SD. Ensure that the option "Import policies automatically after device(s) being discovered successfully" is NOT checked.

  • Assign the device to the old policy (steps shared as above) and re-check for the Publish Job.
    ​
