This article describes the process to upload a VNF image via the Command Line Interface (CLI).
Generally to upload a VNF image via the CSO GUI, you navigate to the CSO Admin Portal > Resources > Images > Create.
However, the VNF image in CSO (such as a vSRX image for the GWR VM or the Riverbed WAN-OPT VM) could be several GB in file size and the CSO GUI upload might timeout during the file transfer.
In such cases, it is a better option to upload the VNF image into CSO by using CLI commands.
To upload a VNF image into CSO by using CLI commands, perform the following:
cspadmin
root@centralmsvm:~# curl -i http://<CSO IP or Hostname>:5000/v3/auth/tokens -H "Content-Type: application/json" -d '{"auth":{"identity":{"methods":["password"],"password":{"user":{"name":"cspadmin","domain":{"id":"default" },"password":"<password>"}}},"scope":{"project":{"domain":{"id":"default"},"name":"admin"}}}}' | egrep -i subject-token % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 3218 100 3016 100 202 27417 1836 --:--:-- --:--:-- --:--:-- 27669 X-Subject-Token: 89dac74130014b3f90b652c7fbcb4c02*
Note: Refer to KB34116 - How to execute Contrail Service Orchestrator HTTP API requests through CLI [juniper.net] for selecting the correct <CSO IP or Hostname> based on whether the CSO deployment is Small, Medium, or Large.
Then use the above token to upload a VNF image (Riverbed image in this example) in the CLI syntax as shown below:
root@centralmsvm:~# curl -v -F "imagefile=@RIVERBED_20170329.tgz" -H "x-auth-token: 89dac74130014b3f90b652c7fbcb4c02" -F "cname=riverbed-img" -F "device_family=riverbed-vx" -F "vendor=Riverbed" -F "major_version=9" -F "minor_version=2" -F "build_num=0" -F "supported_platform=NFX250" -F "image_type=VNF_IMAGE" -k https://<CSO IP or Hostname>/ims-central/upload_image_file * Hostname was NOT found in DNS cache * Trying 127.0.1.1... * Connected to centralmsvm (127.0.1.1) port 443 (#0) * successfully set certificate verify locations: * CAfile: none CApath: /etc/ssl/certs * SSLv3, TLS handshake, Client hello (1): * SSLv3, TLS handshake, Server hello (2): * SSLv3, TLS handshake, CERT (11): * SSLv3, TLS handshake, Server key exchange (12): * SSLv3, TLS handshake, Server finished (14): * SSLv3, TLS handshake, Client key exchange (16): * SSLv3, TLS change cipher, Client hello (1): * SSLv3, TLS handshake, Finished (20): * SSLv3, TLS change cipher, Client hello (1): * SSLv3, TLS handshake, Finished (20): * SSL connection using ECDHE-RSA-AES256-GCM-SHA384 * Server certificate: * subject: C=US; ST=CA; O=Juniper Networks; L=Sunnyvale; CN=centralmsvm.cso.juniper.net; OU=CSP; [email protected] * start date: 2019-01-10 00:33:21 GMT * expire date: 2020-01-10 00:33:21 GMT * issuer: C=US; ST=CA; O=Juniper Networks; L=Sunnyvale; CN=centralmsvm.cso.juniper.net; OU=CSP; [email protected] * SSL certificate verify result: self signed certificate (18), continuing anyway. > POST /ims-central/upload_image_file HTTP/1.1 > User-Agent: curl/7.35.0 > Host: centralmsvm > Accept: */* > x-auth-token: 89dac74130014b3f90b652c7fbcb4c02 > Content-Length: 763388557 > Expect: 100-continue > Content-Type: multipart/form-data; boundary=------------------------86251af7c4ac4d93 > < HTTP/1.1 100 Continue < HTTP/1.1 200 OK < Content-Type: text/html; charset=UTF-8 < X-Request-Id: api_server_db_09b4f7cf-277e-468b-9383-0c8ef4ce8b30 < Date: Tue, 11 Jun 2019 18:35:15 GMT < Transfer-Encoding: chunked < Strict-Transport-Security: max-age=15768000 < X-Frame-Options: SAMEORIGIN < X-XSS-Protection: 1; mode=block < X-Content-Type-Options: nosniff < * Connection #0 to host centralmsvm left intact { "output": {"progress": "..", "status": "SUCCESS", "imagefile_uuid": "076d0e38-4e8f-4a4a-9546-5974329d2035", "failed_list": [], "imagefile_uri": "/v1/AUTH_a74cf29fb1b3499cb0d77e7081d3f524/mycontainer/RIVERBED_20170329.tgz"}}

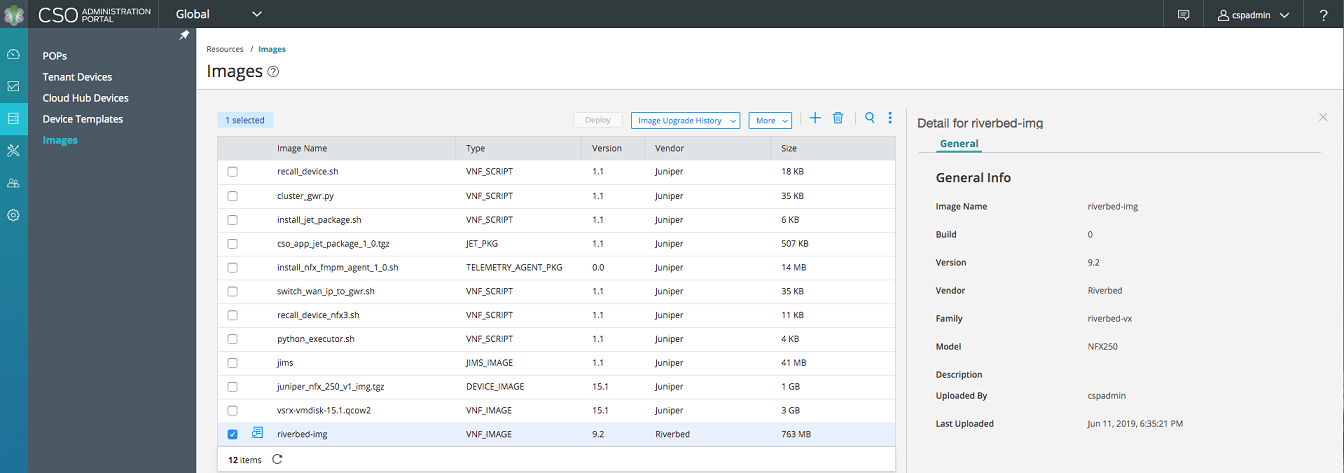

When a SUCCESS status is returned, it means that the VNF image (riverbed-img) has been uploaded successfully and that the image is available to use in the device template or the network service (the Riverbed WAN-OPT VNF service chain) for all tenants.
