This article uses an example to describe how to configure SNMPv3 traps on SRX devices by using the Command Line Interface (CLI).
To configure SNMPv3 traps on SRX devices and verify the configuration by using the Command Line Interface (CLI), perform the following:
CLI Configuration
set snmp v3 usm local-engine user jtac authentication-sha authentication-password Juniper set snmp v3 usm local-engine user jtac privacy-aes128 privacy-password Juniper set snmp v3 vacm security-to-group security-model usm security-name JUNOS group JTAC_GROUP set snmp v3 vacm access group JTAC_GROUP default-context-prefix security-model any security-level privacy read-view ALL set snmp v3 vacm access group JTAC_GROUP default-context-prefix security-model any security-level privacy write-view ALL set snmp v3 vacm access group JTAC_GROUP default-context-prefix security-model any security-level privacy notify-view ALL set snmp v3 target-address NMS address 192.168.100.10 <<<<< IP address of the NMS where you would like to receive the traps set snmp v3 target-address NMS tag-list MY_TAG set snmp v3 target-address NMS target-parameters MY_TARGET set snmp v3 target-parameters MY_TARGET parameters message-processing-model v3 set snmp v3 target-parameters MY_TARGET parameters security-model usm set snmp v3 target-parameters MY_TARGET parameters security-level privacy set snmp v3 target-parameters MY_TARGET parameters security-name jtac set snmp v3 target-parameters MY_TARGET notify-filter ALL <<<<< Responsible for sending traps out set snmp v3 notify NOTIFY_ALL type trap set snmp v3 notify NOTIFY_ALL tag MY_TAG set snmp v3 notify-filter ALL oid .1 include <<<<< Specific OID can be included/excluded here. set snmp trap-options source-address 192.168.100.1 <<<<< IP address that is used to source the traps
Verification
root@SRX> show security flow session source-prefix 192.168.100.1 destination-prefix 192.168.100.10 destination-port 162 Session ID: 70000022, Policy name: self-traffic-policy/1, Timeout: 58, Valid In: 192.168.100.1/51740 --> 192.168.100.10/162;udp, Conn Tag: 0x0, If: .local..0, Pkts: 2, Bytes: 662, CP Session ID: 70000022 Out: 192.168.100.10/162 --> 192.168.100.1/51740;udp, Conn Tag: 0x0, If: xe-2/0/0.0, Pkts: 0, Bytes: 0, CP Session ID: 70000022 Total sessions: 1
Check whether the SNMPv3 traps are being sent out of the SRX device by using the monitor traffic interface command.
monitor traffic interface
root@SRX> monitor traffic interface xe-2/0/0.0 no-resolve size 1500 matching "port 162" Jun 10 19:44:20 verbose output suppressed, use <detail> or <extensive> for full protocol decode Address resolution is OFF. Listening on xe-2/0/0.0, capture size 1500 bytes 19:45:07.113055 Out IP 192.168.100.1.51740 > 192.168.100.10.162: F=ap U=jtac [!scoped PDU]ec_91_b8_60_d5_72_a5_53_ca_85_d8_0f_4f_b9_f7_54_f3_bb_b7_ac_db_2a_af_25_65_e8_bb_4d_8f_72_64_8f_fb_a3_f7_79_36_c0_de_f6_90_92_8e_54_dc_e7_8d_c9_3b_bc_f2_c4_06_c4_2b_c1_1e_fc_c3_cb_24_9a_70_8e_08_d3_07_08_48_0b_1b_ab_52_ba_3f_f8_0a_3e_4b_14_4b_26_8f_0d_57_70_a2_22_d5_46_62_df_18_9a_52_66_57_fd_37_21_d9_47_8b_bd_b1_c6_6e_0e_f7_1e_99_a9_75_20_db_c8_82_8d_57_f5_ed_72_41_cb_dc_88_25_10_03_15_26_c7_45_5e_6c_27_b2_a7_14_b9_43_26_e2_70_09_2b_5a_d1_65_a2_3e_94_86_55_21_3b_45_91_62_3d_c0_21_af_c9_8d_cf_73_ac_24_af_dc_b9_3d_df_ad_06_c1_9a_b1_67_a8_23_55_db_cc_00_b4_b8_95_36_a0_f2_7f_91_b3_f4_a6_49_24_0d_5c_9e_9a_7b_b6_9f_b5_15_ef_7e_ed_32_e9_6b_62_de_2e_be_bd_b2_3e_23_7f 19:45:14.809418 Out IP 192.168.100.1.51740 > 192.168.100.10.162: F=ap U=jtac [!scoped PDU]1f_51_3c_5a_2f_1b_dd_ae_8c_87_04_dd_a1_61_28_88_f1_06_a3_27_8c_7a_94_10_31_d9_1d_c6_b8_c4_5a_1a_62_dc_a8_cf_ed_b8_96_86_46_a5_be_35_6f_43_b9_db_ec_94_a7_32_25_7c_36_db_59_a3_58_2d_cd_67_ed_09_3b_4c_61_07_f8_1c_48_92_28_b0_9b_7e_1f_b3_89_93_10_92_f0_d5_dc_51_cb_cb_ae_3f_bc_a4_c0_3e_02_54_85_88_99_06_f5_74_be_ad_b8_c9_90_54_dc_08_b3_93_bd_ec_54_94_53_59_2a_ad_cf_a6_df_55_e6_98_7d_c3_4d_53_cd_ef_b9_56_04_22_82_f5_83_8b_7a_18_e0_28_77_55_32_bf_9e_4e_26_11_1f_8f_03_c2_e2_5e_64_68_69_58_82_80_fe_76_ad_e5_bc_40_9e_af_42_e5_ec_90_93_d8_01_93_71_60_1c_d1_91_75_4c_39_f8_8b_8f_e1_1a_e1_88_b2_58_bd_15_3f_ea_7b_2f_9e_36_48_07_f9_8f_66_4e_b6_89_1d_dc_af_84_30_c6_e5_af_5e_1f ^C 4 packets received by filter 0 packets dropped by kernel
Check for User, Group name, Access control, SNMP target, Parameters, Notify, and Filter information by using the following command:
root@SRX> show snmp v3 Jun 11 03:59:55 Local engine ID: 80 00 0a 4c 01 c0 a8 64 01 Engine boots: 10 Engine time: 1624 seconds Max msg size: 65507 bytes Engine ID: local User Auth/Priv Storage Status jtac sha/aes128 nonvolatile active Group name Security Security Storage Status model name type JTAC_GROUP usm JUNOS nonvolatile active Access control: Group Context Security Read Write Notify prefix model/level view view view JTAC_GROUP any/privacy ALL ALL ALL SNMP Target: Address Address Port Parameters Storage Status name name type NMS 192.168.100.10 162 MY_TARGET nonvolatile active Parameters Security Security Notify Storage Status name name model/level filter type MY_TARGET jtac usm/privacy ALL nonvolatile active SNMP Notify: Notify Tag Type Storage Status name type NOTIFY_ALL MY_TAG trap nonvolatile active Filter Subtree Filter Storage Status name type type ALL 1 include nonvolatile active
SNMPv3 traps are logged in SNMP traceoptions with the flag " ALL ".
ALL
Jun 10 19:45:14.810116 jnxcm_send_trap: sent jnxCmCfgChange trap, event index:52 Jun 10 19:45:14.810126 jnxcm_read_commit_log: index: 52, time: 1560195914, user: root, source: cli Jun 10 19:45:14.810149 jnxcm_read_rescue_log: Warning cannot open rescue log file Jun 10 19:45:18.123795 sr_ifdm_handler: interface: xe-2/0/0, op: 2 Jun 10 19:45:18.167235 mdb_ifd_rts_handler: xe-2/0/0 (ifdindex: 138, snmpid: 512), rtsm_op: 2, generation number: 2199023255693 Jun 10 19:45:18.167264 mdb_ifd_update: Received ifdm (0x27fbf910) for interface xe-2/0/0 Jun 10 19:45:18.167279 if_track_update_ifd: kernel ifd CHANGE(2) from kernel snmpid(512) ifname(xe-2/0/0) snmp_index_consolidated(1) Jun 10 19:45:18.167290 if_track_update_ifd: snmpid(512) old ifname(xe-2/0/0) new ifname(xe-2/0/0) Jun 10 19:45:18.167300 media_specific_add_ifd: if name: xe-2/0/0, if index: 512, linktype = 1,porttype = 138, ifm_type = 3, desc = 6 Jun 10 19:45:18.167317 if_ether_add: setting lacp port data, snmp index: 512, lacp_data: 0x27fb8a24, mode: 1 Jun 10 19:45:18.167330 if_ether_add: setting lacp port data, snmp index: 512, lacp_data: 0x27fb8a24, mode: 1 Jun 10 19:45:18.173339 get_auto_neg_speed: get auto-neg speed = 0 Jun 10 19:45:18.173363 if_stack_update_ifd: snmpindex: 512 Jun 10 19:45:57.269978 ns_trap_internal Jun 10 19:45:57.270048 ns_trap_internal Jun 10 19:45:57.270168 snmpd[0] <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< Jun 10 19:45:57.270184 snmpd[0] <<< V2 Trap Jun 10 19:45:57.270196 snmpd[0] <<< Source: 192.168.100.1 Jun 10 19:45:57.270205 snmpd[0] <<< Destination: 192.168.100.10 Jun 10 19:45:57.270214 snmpd[0] <<< Version: SNMPv3 Jun 10 19:45:57.270223 snmpd[0] <<< Security Parameters: Jun 10 19:45:57.270231 snmpd[0] <<< SecModel: USM Jun 10 19:45:57.270245 snmpd[0] <<< EngId: 80 00 0a 4c 01 c0 a8 64 01 Jun 10 19:45:57.270253 snmpd[0] <<< User: jtac Jun 10 19:45:57.270266 snmpd[0] <<< EngBoots: 2 EngTime: 116 Jun 10 19:45:57.270303 snmpd[0] <<< Jun 10 19:45:57.270322 snmpd[0] <<< OID : sysUpTime.0 Jun 10 19:45:57.270332 snmpd[0] <<< type : TimeTicks Jun 10 19:45:57.270343 snmpd[0] <<< value: (11603) 0:01:56.03 Jun 10 19:45:57.270353 snmpd[0] <<< Jun 10 19:45:57.270369 snmpd[0] <<< OID : snmpTrapOID.0 Jun 10 19:45:57.270379 snmpd[0] <<< type : Object Jun 10 19:45:57.270392 snmpd[0] <<< value: jnxCmCfgChange Jun 10 19:45:57.270401 snmpd[0] <<< Jun 10 19:45:57.270416 snmpd[0] <<< OID : jnxCmCfgChgEventTime.53 Jun 10 19:45:57.270426 snmpd[0] <<< type : TimeTicks Jun 10 19:45:57.270436 snmpd[0] <<< value: (11603) 0:01:56.03 Jun 10 19:45:57.270445 snmpd[0] <<< Jun 10 19:45:57.270457 snmpd[0] <<< OID : jnxCmCfgChgEventDate.53 Jun 10 19:45:57.270466 snmpd[0] <<< type : OctetString Jun 10 19:45:57.270479 snmpd[0] <<< HEX : 07 e3 06 0a 13 2d 39 00 Jun 10 19:45:57.270490 snmpd[0] <<< 2b 00 00 Jun 10 19:45:57.270499 snmpd[0] <<< Jun 10 19:45:57.270511 snmpd[0] <<< OID : jnxCmCfgChgEventSource.53 Jun 10 19:45:57.270520 snmpd[0] <<< type : Number Jun 10 19:45:57.270530 snmpd[0] <<< value: 2 Jun 10 19:45:57.270539 snmpd[0] <<< Jun 10 19:45:57.270551 snmpd[0] <<< OID : jnxCmCfgChgEventUser.53 Jun 10 19:45:57.270560 snmpd[0] <<< type : OctetString Jun 10 19:45:57.270570 snmpd[0] <<< value: "root" Jun 10 19:45:57.270607 snmpd[0] <<< HEX : 72 6f 6f 74 Jun 10 19:45:57.270618 snmpd[0] <<< Jun 10 19:45:57.270631 snmpd[0] <<< OID : jnxCmCfgChgEventLog.53 Jun 10 19:45:57.270640 snmpd[0] <<< type : OctetString Jun 10 19:45:57.270650 snmpd[0] <<< HEX : Jun 10 19:45:57.270659 snmpd[0] <<< Jun 10 19:45:57.270672 snmpd[0] <<< OID : snmpTrapEnterprise.0 Jun 10 19:45:57.270681 snmpd[0] <<< type : Object Jun 10 19:45:57.270811 snmpd[0] <<< value: jnxProductNameSRX5400 Jun 10 19:45:57.270820 snmpd[0] <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<< Jun 10 19:45:57.270838 jnxcm_send_trap: sent jnxCmCfgChange trap, event index:53 Jun 10 19:45:57.270847 jnxcm_read_commit_log: index: 53, time: 1560195957, user: root, source: cli Jun 10 19:45:57.270870 jnxcm_read_rescue_log: Warning cannot open rescue log file Jun 10 19:45:57.309117 re-reading configuration, pid 3707 Jun 10 19:45:57.312139 re-reading configuration, PID 1711

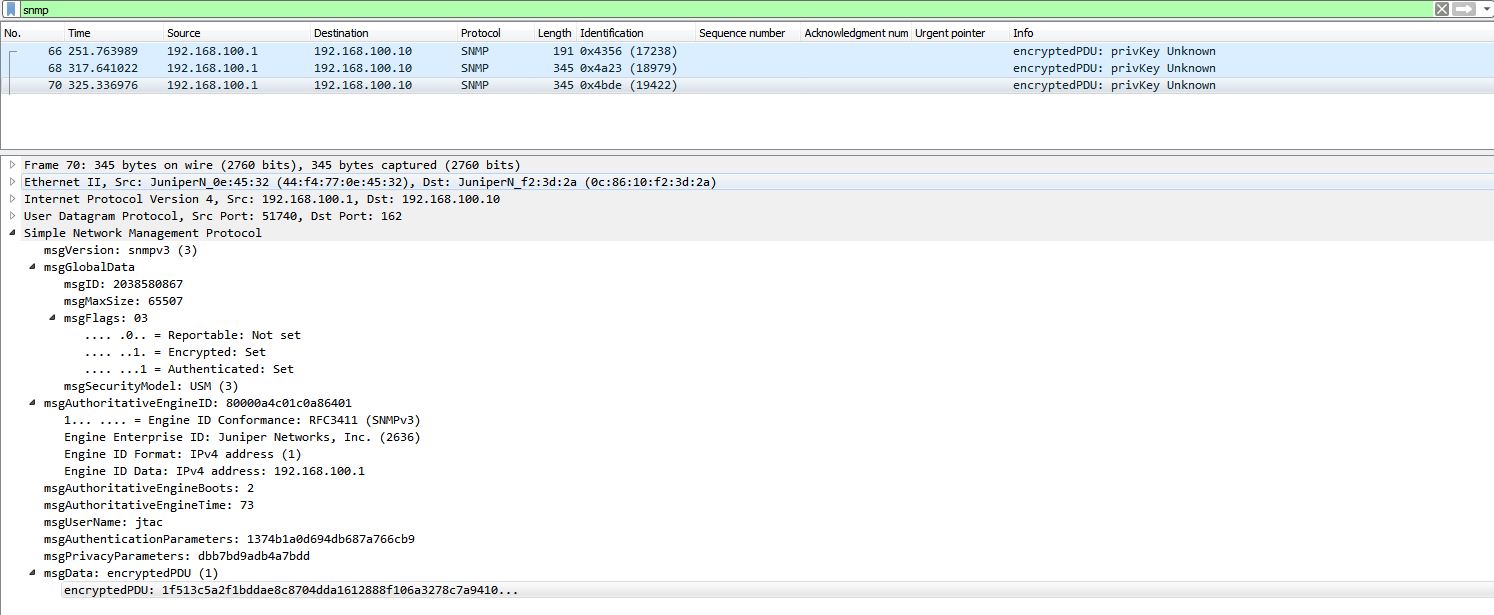

A packet capture on SNMPv3 trap with Authentication-SHA and Privacy-AES128 is as follows:
Common configuration mistakes
The name defined for tag-list under " snmp v3 target-address " must be the same as that defined for tag under " snmp v3 notify ". For example, in the above configuration, the name defined is MY_TAG .
snmp v3 target-address
snmp v3 notify
MY_TAG
The line, " set snmp v3 target-parameters MY_TARGET notify-filter ALL " is responsible for sending the traps out. So, it needs to be configured properly.
set snmp v3 target-parameters MY_TARGET notify-filter ALL
You can include or exclude an appropriate OID in the notify-filter options in order to send/filter particular OIDs to the NMS. Pay attention to these OIDs because a misconfiguration might result in traps not being sent out. For more information about OIDs, refer to SNMP MIB Explorer .
notify-filter
2020-03-30: Minor, non-technical edit.2022-11-21: Corrected the CLI configuration from authentication-key to authentication-password & from privacy-key to privacy-password
