This article is to demonstrates configuring and verifying a WAG client for Enhanced Subscriber Management using IP-DEMUX and DHCP Local Server functionality.
Wifi Access Gateway is supported 16.1R4 Enhanced Subscriber Management.

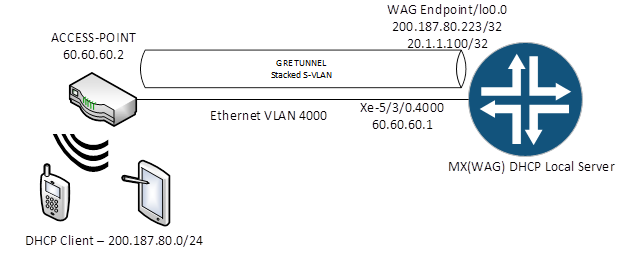

The configuration noted below based on this simple topology is using DHCPv4 only with the WAG acting as a DHCPv4 local server. In this example, VLAN-demux0 and IP-DEMUX is used to terminate these subscribers.
Define tunnel-services for FPC/PIC used for LT interfaces.
set chassis fpc 5 pic 0 tunnel-services bandwidth 10g
Define the amount of pseudo interfaces used globally.
set chassis pseudowire-service device-count 100
Interface receiving the GRE encapsulated DHCP control/traffic.
set interfaces xe-5/3/0 vlan-tagging set interfaces xe-5/3/0 unit 4000 vlan-id 4000 set interfaces xe-5/3/0 unit 4000 family inet address 60.60.60.1/24
Define PSX interface for GRE tunnel termination.
set interfaces ps1 anchor-point lt-5/0/0 set interfaces ps1 flexible-vlan-tagging <-- must use even with untagged set interfaces ps1 unit 0 encapsulation ethernet-ccc <-- must use as it’s the transport logical interface
Define lt-x/x/x to support HS for COS at the subscriber level. If one needs COS for clients, then HS maybe added to the lt-x/x/x. COS is NOT supported for GRE Tunnels attachments.
set interfaces lt-5/0/0 hierarchical-scheduler
Profile used for dynamically creating GRE tunnels. This contains a nested profile for the auto-sensed VLAN creation .
labroot@MXtest# run show configuration dynamic-profiles WAG-GRE-TUNNEL interfaces { "$junos-interface-ifd-name" { unit "$junos-interface-unit" { auto-configure { stacked-vlan-ranges { dynamic-profile WAG-SVLAN { accept inet; ranges { any,any; } } } remove-when-no-subscribers; } family inet { unnumbered-address lo0.0; <-- tunnel will fail if family inet is missing }
Profile used to create dynamic VLAN’s within the GRE tunnel. In this example, dual-tagged VLAN are required. Single/dual-tag and untagged are supported. VLAN and VLAN demux0 is supported.
labroot@MXtest# run show configuration dynamic-profiles WAG-SVLAN interfaces { demux0 { unit "$junos-interface-unit" { demux-source inet; vlan-tags outer "$junos-stacked-vlan-id" inner "$junos-vlan-id"; demux-options { underlying-interface "$junos-interface-ifd-name"; } family inet { unnumbered-address lo0.0; }
labroot@MXtest> show configuration dynamic-profiles IP-DEMUX routing-instances { "$junos-routing-instance" { interface "$junos-interface-name"; } } interfaces { demux0 { unit "$junos-interface-unit" { demux-options { underlying-interface "$junos-underlying-interface"; } family inet { demux-source { $junos-subscriber-ip-address; } unnumbered-address "$junos-loopback-interface"; }
Define GRE source and destination address. Source address would typically be lo0.0. Destination address is networks used for the access-points. PS and GRE dynamic-profile defined.
set services soft-gre GRE-DHCP source-address 20.1.1.100 ****lo0.0 set services soft-gre GRE-DHCP destination-networks 60.60.60.0/24 ****Access points set services soft-gre GRE-DHCP service-interface ps1 set services soft-gre GRE-DHCP dynamic-profile WAG-GRE-TUNNEL
set system services dhcp-local-server group WAG-DHCPv4 interface demux0.0 set system services dhcp-local-server group WAG-DHCPv4 interface ps1.0 set access address-assignment pool WAG-POOL family inet network 200.187.80.0/24 set access address-assignment pool WAG-POOL family inet range TEST low 200.187.80.2 set access address-assignment pool WAG-POOL family inet range TEST high 200.187.80.221 set access address-assignment pool WAG-POOL family inet dhcp-attributes server-identifier 20.1.1.100 set access address-assignment pool WAG-POOL family inet dhcp-attributes router 60.60.60.1
Service Tunnel output – SA/DA of tunnel with traffic stats. Subscriber count seems to be only accurate with IP-DEMUX0 interfaces.
labroot@MXtest> show services soft-gre tunnel extensive Interface Name: ps1.3221231188, Group Name: GRE-DHCP Local IP: 20.1.1.100 Remote IP: 60.60.60.2 Subscribers: 1 Routing Instance: default Create time: 2018-04-06 15:03:44 UTC Statistics since: Fri Apr 6 15:03:44 2018 Statistic Packets Bytes Data Rx 11 2492 Data Tx 10 2495
labroot@MXtest> show subscribers Interface IP Address/VLAN ID User Name LS:RI ps1.3221231188 60.60.60.2 ****GRE TUNNEL Endpoint demux0.3221231189 0x8100.100 0x8100.1 default:default***VLAN-DMEUX demux0.3221231191 200.187.80.14 default:default***IP-Demux0 labroot@MXtest> show subscribers client-type gre extensive Type: GRE IP Address: 60.60.60.2 Interface: ps1.3221231188 Dynamic Profile Name: WAG-GRE-TUNNEL Dynamic Profile Version: 2 State: Active Session ID: 5717 PFE Flow ID: 5904 Login Time: 2018-04-06 15:03:44 UTC labroot@MXtest> show subscribers client-type vlan extensive Type: VLAN Logical System: default Routing Instance: default Interface: demux0.3221231189 Interface type: Dynamic Underlying Interface: ps1 **** ps1.3221231188 (bug) Dynamic Profile Name: WAG-SVLAN Dynamic Profile Version: 2 State: Active Session ID: 5718 PFE Flow ID: 5906 Stacked VLAN Id: 0x8100.100 VLAN Id: 0x8100.1 Login Time: 2018-04-06 15:03:44 UTC labroot@MXtest> show subscribers client-type dhcp extensive Type: DHCP IP Address: 200.187.80.14 IP Netmask: 255.255.255.0 Logical System: default Routing Instance: default Interface: demux0.3221231191 Interface type: Dynamic Underlying Interface: demux0.3221231189 Dynamic Profile Name: IP-DEMUX Dynamic Profile Version: 1 MAC Address: 00:15:01:00:00:01 State: Active Radius Accounting ID: 5720 Session ID: 5720 PFE Flow ID: 5908 Stacked VLAN Id: 100 VLAN Id: 1 Login Time: 2018-04-06 15:16:59 UTC DHCP Options: len 11 35 01 01 37 06 01 03 33 36 3a 3b IP Address Pool: WAG-POOL Accounting interval: 28800
labroot@MXtest# run show dhcp server binding detail Client IP Address: 200.187.80.14 Hardware Address: 00:15:01:00:00:01 State: BOUND(LOCAL_SERVER_STATE_BOUND) Protocol-Used: DHCP Lease Expires: 2018-04-10 06:17:27 UTC Lease Expires in: 61515 seconds Lease Start: 2018-04-06 15:17:00 UTC Last Packet Received: 2018-04-09 06:17:27 UTC Incoming Client Interface: demux0.3221231189***VlAN-DEMUX0 Interface Client Interface Svlan Id: 100 Client Interface Vlan Id: 1 Demux Interface: demux0.3221231191 ***IP-DEMUX0 Interface Server Identifier: 20.1.1.100 Session Id: 5720 Client Pool Name: WAG-POOL Client Profile Name: IP-DEMUX
SMGD statistics does have a counter for RX GRE packets
labroot@MXtest# run show system subscriber-management statistics extensive all | match gre rx inet gre : 6
Route-table information. Access/Access-internal routes will always show as Private Unicast for JSM subscribers.
labroot@MXtest# run show route protocol access-internal inet.0: 265 destinations, 266 routes (147 active, 0 holddown, 118 hidden) @ = Routing Use Only, # = Forwarding Use Only + = Active Route, - = Last Active, * = Both 200.187.80.14/32 *[Access-internal/12] 2d 21:56:37 Private unicast
labroot@MXtest# run show system subscriber-management route family inet route-type access-internal detail
Route: 200.187.80.14/32 Routing-instance: default:default Kernel rt-table id : 0 Family: AF_INET Route Type: Access-internal Protocol Type: Unspecified Interface: demux0.3221231191 Interface index: 5908 Internal Interface index: 5908 Route index: 5711 Next-Hop: 1288 Reference-count: 1 L2 Address: 00:15:01:00:00:01 Flags: 0x0 Dirty Flags: 0x0
labroot@MXtest# run show system subscriber-management route family inet route-type kernel detail
Route: 20.1.1.100.60.60.60/56 Routing-instance: default:default Kernel rt-table id : 0 Family: AF_INET Route Type: Kernel Protocol Type: Access Interface: none Interface index: 0 Internal Interface index: 0 Route index: 1 Next-Hop: 0 Reference-count: 1 L2 Address: 00:00:00:00:00:00 Flags: 0x80800 Dirty Flags: 0x0 Route: 20.1.1.100.60.60.60.2.47.0.0.101.88/104 **Long route will be installed on every FPC Routing-instance: default:default Kernel rt-table id : 0 Family: AF_INET Route Type: Kernel Protocol Type: Access Interface: ps1.3221231188 Interface index: 5904 Internal Interface index: 5904 Route index: 5709 Next-Hop: 1288 Reference-count: 1 L2 Address: 00:00:00:00:00:00 Flags: 0x80400 Dirty Flags:
There is a new clear command that will clear out all/specific tunnels. The tunnel must not have any upper bindings attached such as DHCP/VLAN.
Example:
labroot@MXtest# run show subscribers Interface IP Address/VLAN ID User Name LS:RI ps1.3221231185 60.60.60.2 [edit] labroot@MXtest# run clear services soft-gre tunnel all [edit] labroot@MXtest# run show subscribers Total subscribers: 0, Active Subscribers: 0
