DHCP option 119 is for DHCP domain search. In traditional DHCPD on SRX, the command 'set system services dhcp domain-search' supports option 119.

In new JDHCPD, SRX no longer have this command. Configuring option 119 is a manual task.

Here is an example of how to configure option 119 on SRX for new JDHCPD. This example configures SRX to offer domain search for 'jnpr.net' and 'juniper.net'.

Topology:

To support option 119 on JDHCPD, 'hex-string' is needed. Tools for converting text to hex can be found on the Internet. Here is the explanation for hex-string.

• jnpr.net

  j    n    p   r   .    n   e   t
  6a 6e 70 72 2e 6e 65 74

• juniper.net

  j    u   n   i    p   e   r    .   n   e    t
  6a 75 6e 69 70 65 72 2e 6e 65 74

The client expects the full domain to be split (get rid of the separating periods "2e"), with each section prefixed by it's length (e.g. 4 jnpr 3 net) and then the whole string is null terminated "00").

Based on the above rule:

Here is SRX configuration:

set interfaces ge-0/0/3 unit 0 family inet address 20.20.20.1/24
set security zones security-zone trust host-inbound-traffic system-services all
set security zones security-zone trust host-inbound-traffic protocols all
set security zones security-zone trust interfaces ge-0/0/3.0

set system services dhcp-local-server group hawk interface ge-0/0/3.0
set access address-assignment pool hawk family inet network 20.20.20.0/24
set access address-assignment pool hawk family inet range 1 low 20.20.20.10
set access address-assignment pool hawk family inet range 1 high 20.20.20.20
set access address-assignment pool hawk family inet dhcp-attributes maximum-lease-time 3600
set access address-assignment pool hawk family inet dhcp-attributes server-identifier 20.20.20.1
set access address-assignment pool hawk family inet dhcp-attributes name-server 20.20.20.1
set access address-assignment pool hawk family inet dhcp-attributes wins-server 20.20.20.1
set access address-assignment pool hawk family inet dhcp-attributes router 20.20.20.1
set access address-assignment pool hawk family inet dhcp-attributes propagate-settings ge-0/0/3
set access address-assignment pool hawk family inet dhcp-attributes option 119 array hex-string 046a6e7072036e657400
set access address-assignment pool hawk family inet dhcp-attributes option 119 array hex-string 076a756e69706572036e657400

After DHCP client obtains the IP address:

[root@localhost ~]# ifconfig eno33557248
eno33557248: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 20.20.20.11  netmask 255.255.255.0  broadcast 20.20.20.255
        inet6 fe80::250:56ff:fe9e:68c0  prefixlen 64  scopeid 0x20<link>
        ether 00:50:56:9e:68:c0  txqueuelen 1000  (Ethernet)
        RX packets 70  bytes 12378 (12.0 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 93  bytes 16082 (15.7 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

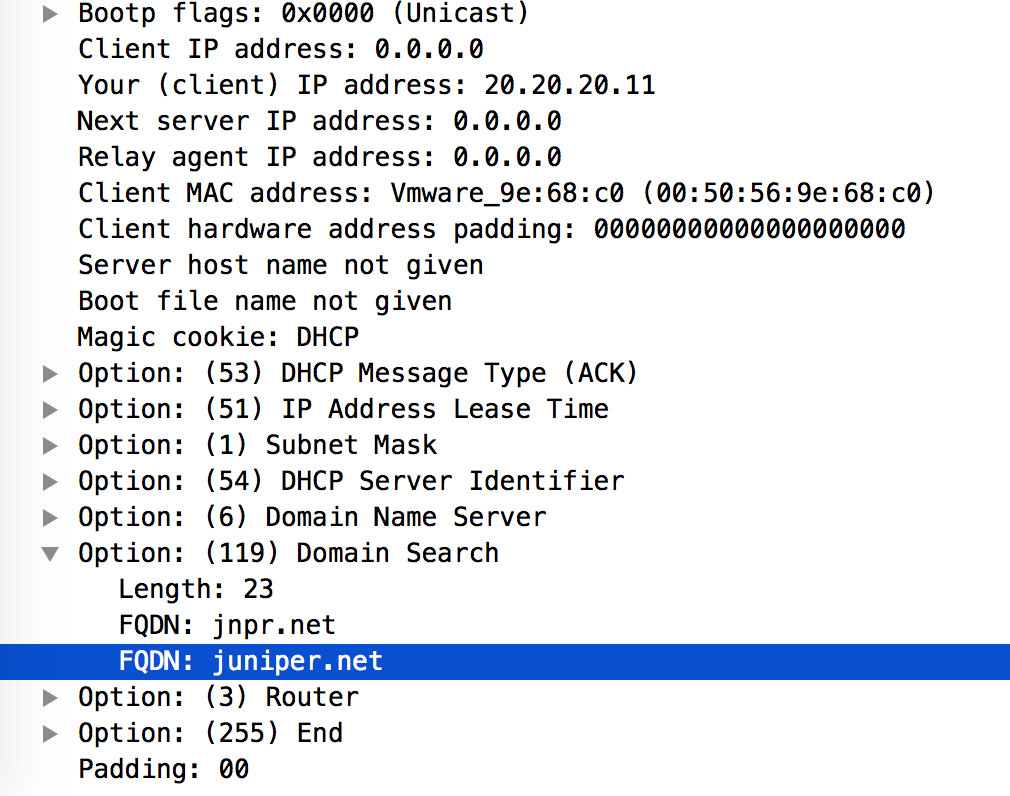

From tcpdump, we can see SRX offer option 119 to client.

21:43:32.024993  In
    Juniper PCAP Flags [Ext, no-L2, In], PCAP Extension(s) total length 16
      Device Media Type Extension TLV #3, length 1, value: Ethernet (1)
      Logical Interface Encapsulation Extension TLV #6, length 1, value: Ethernet (14)
      Device Interface Index Extension TLV #1, length 2, value: 35584
      Logical Interface Index Extension TLV #4, length 4, value: 74
    -----original packet-----
    IP (tos 0x10, ttl 128, id 0, offset 0, flags [none], proto: UDP (17), length: 328) 0.0.0.0.68 > 255.255.255.255.67: [udp sum ok] BOOTP/DHCP, Request from 00:50:56:9e:68:c0, length 300, xid 0x66bdc648, Flags [none] (0x0000)
      Client-Ethernet-Address 00:50:56:9e:68:c0
      Vendor-rfc1048 Extensions
        Magic Cookie 0x63825363
        DHCP-Message Option 53, length 1: Request
        Requested-IP Option 50, length 4: 20.20.20.11
        Parameter-Request Option 55, length 18:
          Subnet-Mask, BR, Time-Zone, Classless-Static-Route
          Domain-Name, Domain-Name-Server, Hostname, YD
          YS, NTP, MTU, Option 119
          Default-Gateway, Classless-Static-Route, Classless-Static-Route-Microsoft, Static-Route
          Option 252, NTP
        END Option 255, length 0
        PAD Option 0, length 0, occurs 30
21:43:32.029842 Out
    Juniper PCAP Flags [Ext], PCAP Extension(s) total length 16
      Device Media Type Extension TLV #3, length 1, value: Ethernet (1)
      Logical Interface Encapsulation Extension TLV #6, length 1, value: Ethernet (14)
      Device Interface Index Extension TLV #1, length 2, value: 35584
      Logical Interface Index Extension TLV #4, length 4, value: 74
    -----original packet-----
    IP (tos 0x0, ttl  64, id 44681, offset 0, flags [none], proto: UDP (17), length: 328) 20.20.20.1.67 > 20.20.20.11.68: [udp sum ok] BOOTP/DHCP, Reply, length 300, xid 0x66bdc648, Flags [none] (0x0000)
      Your-IP 20.20.20.11
      Client-Ethernet-Address 00:50:56:9e:68:c0
      Vendor-rfc1048 Extensions
        Magic Cookie 0x63825363
        DHCP-Message Option 53, length 1: ACK
        Lease-Time Option 51, length 4: 3600
        Subnet-Mask Option 1, length 4: 255.255.255.0
        Server-ID Option 54, length 4: 20.20.20.1
        Domain-Name-Server Option 6, length 4: 20.20.20.1
        T119 Option 119, length 23: 4.106.110.112.114.3.110.101.116.0.7.106.117.110.105.112.101.114.3.110.101.116.0
        Default-Gateway Option 3, length 4: 20.20.20.1
        END Option 255, length 0
        PAD Option 0, length 0

• PR1307979 - QFX5100: string and hex-string do not work as expected for DHCP option 119
