Description

This article provides a configure example for how to let traffic without VLAN tag rewriting pass through SRX when VLAN tag rewrite is used in Switching mode.

Symptoms

SRX supports VLAN rewrite when working in switching mode.

For a related topic, refer to KB32245 - VLAN tag rewrite in SRX L2 mode (switching and transparent mode) [juniper.net]

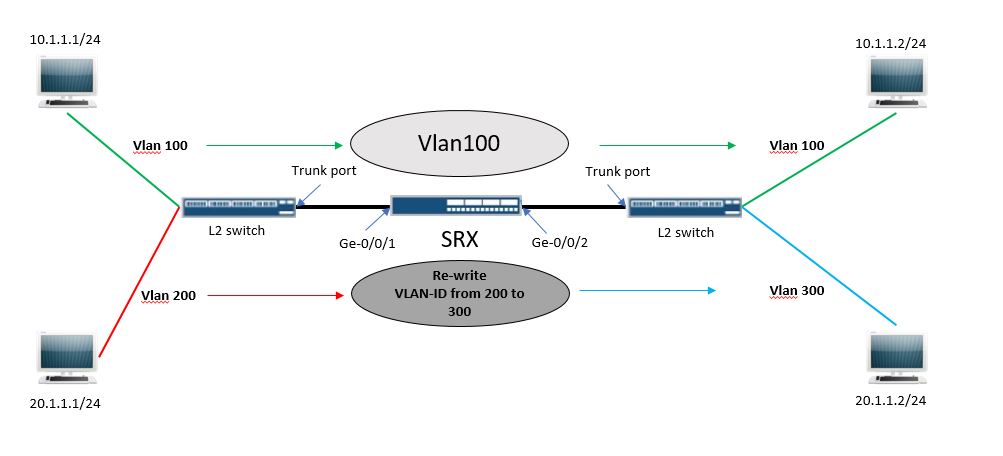

In certain scenarios, you may want to let traffic without VLAN tag rewriting pass through SRX when VLAN tag rewrite is used at the same time.

alt


Solution

Configuration:

set interfaces ge-0/0/1 flexible-vlan-tagging
set interfaces ge-0/0/1 encapsulation extended-vlan-bridge
set interfaces ge-0/0/1 unit 100 vlan-id 100
set interfaces ge-0/0/1 unit 100 family ethernet-switching
set interfaces ge-0/0/1 unit 200 vlan-id 200
set interfaces ge-0/0/1 unit 200 input-vlan-map swap
set interfaces ge-0/0/1 unit 200 input-vlan-map tag-protocol-id 0x8100
set interfaces ge-0/0/1 unit 200 input-vlan-map vlan-id 300
set interfaces ge-0/0/1 unit 200 output-vlan-map swap
set interfaces ge-0/0/1 unit 200 family ethernet-switching vlan members 300
set interfaces ge-0/0/2 unit 0 family ethernet-switching interface-mode trunk
set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members 100
set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan members 300
set protocols l2-learning global-mode switching
set vlans vlan100 vlan-id 100
set vlans vlan100 interface ge-0/0/1.100
set vlans vlan200 vlan-id 200
set vlans vlan300 vlan-id 300


Verification:

root# run show vlans detail
Routing instance: default-switch
VLAN Name: default                        State: Active
Tag: 1
Internal index: 2, Generation Index: 1, Origin: Static
MAC aging time: 300 seconds
VXLAN Enabled : No
Number of interfaces: Tagged 0    , Untagged 0
Total MAC count: 0

Routing instance: default-switch
VLAN Name: vlan100                        State: Active
Tag: 100
Internal index: 3, Generation Index: 2, Origin: Static
MAC aging time: 300 seconds
VXLAN Enabled : No
Interfaces:
ge-0/0/1.100*,tagged,trunk  <<<
ge-0/0/2.0*,tagged,trunk   <<<
Number of interfaces: Tagged 2    , Untagged 0
Total MAC count: 2


Routing instance: default-switch

VLAN Name: vlan200                        State: Active
Tag: 200
Internal index: 4, Generation Index: 3, Origin: Static
MAC aging time: 300 seconds
VXLAN Enabled : No
Number of interfaces: Tagged 0    , Untagged 0
Total MAC count: 0

Routing instance: default-switch

VLAN Name: vlan300                        State: Active
Tag: 300
Internal index: 5, Generation Index: 4, Origin: Static
MAC aging time: 300 seconds
VXLAN Enabled : No
Interfaces:
ge-0/0/1.200*,tagged,trunk
ge-0/0/2.0*,tagged,trunk
Number of interfaces: Tagged 2    , Untagged 0
Total MAC count: 2
