Contrail supports a port mirror feature, which can be used to mirror traffic of specific port(s) on a compute node (mirror vrouter) to a specified destination IP address where a traffic analyzer VM is located. This article demonstrates how to configure and verify the port mirror.
+---+ +---+ | | | |analyzer VM +-+-+ mirror traffic +-+-+ | ====================> | | 4.4.4.4 | 4.4.4.14 | tap(port:tap1c6a93ae-c2) | tap +---+----+ +---+----+ | | | | |bcomp79 | |comp106 | | | | | +--------+ +--------+ 172.18.79.79 172.18.102.106 Mirror VRouter Analyer VRouter
+---+ +---+ | | | |analyzer VM +-+-+ mirror traffic +-+-+ | ====================> | | 4.4.4.4 | 4.4.4.14 | tap(port:tap1c6a93ae-c2) | tap +---+----+ +---+----+ | | | | |bcomp79 | |comp106 | | | | | +--------+ +--------+ 172.18.79.79 172.18.102.106
Mirror VRouter Analyer VRouter

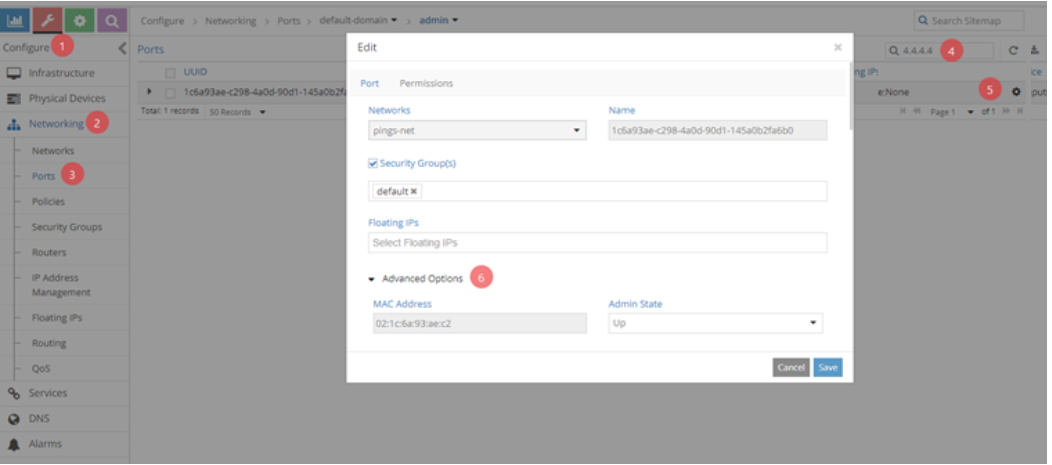

From the Contrail GUI, do the following:
d. Scroll down and check the "Mirroring" option

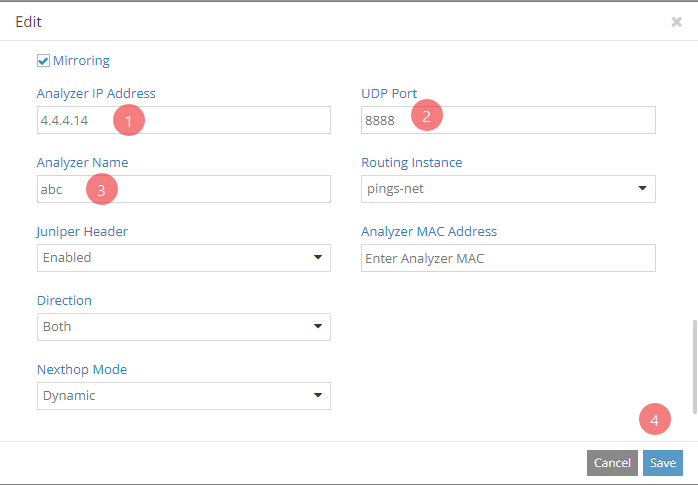

e. Enter: (Circles 1, 2, and 3 in the figure below)
f. Save the configuration. (Circle 4 in the figure below)
Once the port mirror is enabled on a port, use the vif command on the mirrored port of the mirror vrouter to print the port mirror information:
vif
root@bcomp79:~# vif --get 5 Vrouter Interface Table Flags: P=Policy, X=Cross Connect, S=Service Chain, Mr=Receive Mirror Mt=Transmit Mirror, Tc=Transmit Checksum Offload, L3=Layer 3, L2=Layer 2 D=DHCP, Vp=Vhost Physical, Pr=Promiscuous, Vnt=Native Vlan Tagged Mnp=No MAC Proxy, Dpdk=DPDK PMD Interface, Rfl=Receive Filtering Offload, Mon=Interface is Monitored Uuf=Unknown Unicast Flood, Vof=VLAN insert/strip offload, Df=Drop New Flows, Proxy=MAC Requests Proxied Always Mn=Mirror without Vlan Tag vif0/5 OS: tap1c6a93ae-c2 Type:Virtual HWaddr:00:00:5e:00:01:00 IPaddr:4.4.4.4 Vrf:1 Flags:P MrMt L3L2D QOS:-1 Ref:5 Mirror index 2 ^^^^ RX packets:93060 bytes:3928765 errors:0 TX packets:236083 bytes:53085897 errors:0 Ingress Mirror Metadata: 3 1e 64 65 66 61 75 6c 74 2d 64 6f 6d 61 69 6e 3a 61 64 6d 69 6e 3a 70 69 6e 67 73 2d 6e 65 74 ff 0 Egress Mirror Metadata: 4 1e 64 65 66 61 75 6c 74 2d 64 6f 6d 61 69 6e 3a 61 64 6d 69 6e 3a 70 69 6e 67 73 2d 6e 65 74 ff 0 Drops:2
The `Flags` now shows `Mr` and `Mt`, where:
`Mr` means mirror ingress (Rx traffic) `Mt` means mirror egress (Tx traffic)
These flags indicates we now have bidirectional traffic mirror enabled on this port.
The `mirror` command can be used to dump the current port mirror configuration on the mirror vrouter:
root@bcomp79:~# mirror --dump Mirror Table Flags:D=Dynamic Mirroring Index NextHop Flags VNI ------------------------------------------------ 0 37 D 0 1 62 D 0 2 21 D 0 #<-----
In this test, the new mirror configuration with a index "2" was added. To verify the destination IP addresses and port number associated with the mirror traffic, use the "nh" command:
root@bcomp79:~# nh --get 21 Id:21 Type:Tunnel Fmly: AF_INET Rid:0 Ref_cnt:2 Vrf:-1 Flags:Valid, Udp, Copy SIP, Oif:0 Len:14 Flags Valid, Udp, Copy SIP, Data:00 00 00 00 00 00 14 02 ec 66 b1 25 08 00 Vrf:-1 Sip:172.18.79.79 Dip:4.4.4.14 #<------ Sport:8097 Dport:8888 #<------
root@bcomp79:~# nh --get 21 Id:21 Type:Tunnel Fmly: AF_INET Rid:0 Ref_cnt:2 Vrf:-1 Flags:Valid, Udp, Copy SIP, Oif:0 Len:14 Flags Valid, Udp, Copy SIP, Data:00 00 00 00 00 00 14 02 ec 66 b1 25 08 00 Vrf:-1 Sip:172.18.79.79 Dip:4.4.4.14 #<------
Sport:8097 Dport:8888 #<------
On the destination (analyzer) compute, the mirror traffic will trigger flows:
root@comp106:~# flow --match 4.4.4.4 Flow table(size 80609280, entries 629760) Entries: Created 874652 Added 874652 Deleted 1749132 Changed 1749132 Processed 874652 Used Overflow entries 0 (Created Flows/CPU: 178 416 690 55099 2640 95128 721 40305 663 34496 704 18602 962 540788 251 10942 2620 7763 2313 5656 1579 31840 1862 18434)(oflows 0) Action:F=Forward, D=Drop N=NAT(S=SNAT, D=DNAT, Ps=SPAT, Pd=DPAT, L=Link Local Port) Other:K(nh)=Key_Nexthop, S(nh)=RPF_Nexthop Flags:E=Evicted, Ec=Evict Candidate, N=New Flow, M=Modified Dm=Delete Marked TCP(r=reverse):S=SYN, F=FIN, R=RST, C=HalfClose, E=Established, D=Dead Listing flows matching ([4.4.4.4]:*) Index Source:Port/Destination:Port Proto(V) ----------------------------------------------------------------------------------- 484260<=>517288 4.4.4.4:8097 17 (8) 4.4.4.14:8888 (Gen: 7, K(nh):70, Action:F, Flags:, QOS:-1, S(nh):0, Stats:707/73528, SPort 61851, TTL 0, Sinfo 172.18.79.79) 517288<=>484260 4.4.4.14:8888 17 (8) 4.4.4.4:8097 (Gen: 1, K(nh):70, Action:F, Flags:, QOS:-1, S(nh):0, Stats:481/70226, SPort 63950, TTL 0, Sinfo 7.0.0.0)
From the above flow table we can see that the mirror traffic arrives and triggered these flow entries. The flow entries including source/destination IP/port and packet counter statistics information.
