This article provides a configuration example of how to configure RPM probes with IP monitoring to failover between multiple ISPs.

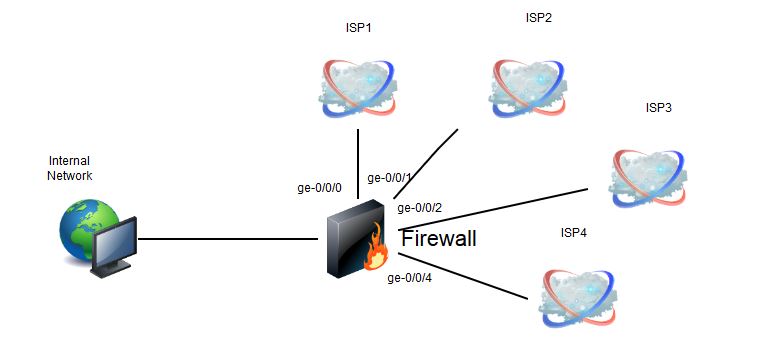

Test SRX Interfaces
root@SRX-Firewall# show interfaces | display set set interfaces ge-0/0/0 unit 0 family inet address 2.1.1.1/30 set interfaces ge-0/0/1 unit 1 family inet address 2.1.1.5/30 set interfaces ge-0/0/2 unit 2 family inet address 2.1.1.9/30 set interfaces ge-0/0/4 unit 80 family inet address 80.10.126.1/24
In this article, ge-0/0/0 is referred to as GE1, ge-0/0/1 is referred to as GE2, ge-0/0/2 is referred to as GE3, and ge-0/0/4 is referred to as GE4.
In some scenarios, connecting to more than two ISPs is better for redundancy. In such cases, RPM probe is the feature to enable failing over a traffic path between different ISPs.
The normal next qualified hop method is not feasible for active redundancy, hence RPM probes are used.
To achieve this, the probes have to be configured accordingly.:
Note: The target address is simply an address that you want to monitor. You can use any address, such as 8.8.8.8. In this example, the next-hop address is used for monitoring.
set services rpm probe Failover1 test probe-ge1 probe-type icmp-ping set services rpm probe Failover1 test probe-ge1 target address 2.1.1.2<<<< Monitoring 1 address set services rpm probe Failover1 test probe-ge1 probe-count 5 set services rpm probe Failover1 test probe-ge1 probe-interval 1 set services rpm probe Failover1 test probe-ge1 test-interval 5 set services rpm probe Failover1 test probe-ge1 thresholds total-loss 3 set services rpm probe Failover1 test probe-ge1 next-hop 2.1.1.2 set services rpm probe Failover2 test probe2-ge1 probe-type icmp-ping set services rpm probe Failover2 test probe2-ge1 target address 2.1.1.2 <<<< 1st address in probe2 set services rpm probe Failover2 test probe2-ge1 probe-count 5 set services rpm probe Failover2 test probe2-ge1 probe-interval 1 set services rpm probe Failover2 test probe2-ge1 test-interval 5 set services rpm probe Failover2 test probe2-ge1 thresholds total-loss 3 set services rpm probe Failover2 test probe2-ge1 next-hop 2.1.1.2 set services rpm probe Failover2 test probe2-ge2 probe-type icmp-ping set services rpm probe Failover2 test probe2-ge2 target address 2.1.1.6<<<< 2nd address in probe2 set services rpm probe Failover2 test probe2-ge2 probe-count 5 set services rpm probe Failover2 test probe2-ge2 probe-interval 1 set services rpm probe Failover2 test probe2-ge2 test-interval 5 set services rpm probe Failover2 test probe2-ge2 thresholds total-loss 3 set services rpm probe Failover2 test probe2-ge2 next-hop 2.1.1.6 set services rpm probe Failover3 test probe3-ge1 probe-type icmp-ping set services rpm probe Failover3 test probe3-ge1 target address 2.1.1.2<<<< 1st address in probe3 set services rpm probe Failover3 test probe3-ge1 probe-count 5 set services rpm probe Failover3 test probe3-ge1 probe-interval 1 set services rpm probe Failover3 test probe3-ge1 test-interval 5 set services rpm probe Failover3 test probe3-ge1 thresholds total-loss 3 set services rpm probe Failover3 test probe3-ge1 next-hop 2.1.1.2 set services rpm probe Failover3 test probe3-ge2 probe-type icmp-ping set services rpm probe Failover3 test probe3-ge2 target address 2.1.1.6<<<< 2nd address in probe3 set services rpm probe Failover3 test probe3-ge2 probe-count 5 set services rpm probe Failover3 test probe3-ge2 probe-interval 1 set services rpm probe Failover3 test probe3-ge2 test-interval 5 set services rpm probe Failover3 test probe3-ge2 thresholds total-loss 3 set services rpm probe Failover3 test probe3-ge2 next-hop 2.1.1.6 set services rpm probe Failover3 test probe3-ge3 probe-type icmp-ping set services rpm probe Failover3 test probe3-ge3 target address 2.1.1.10<<<< 3rd address in probe3 set services rpm probe Failover3 test probe3-ge3 probe-count 5 set services rpm probe Failover3 test probe3-ge3 probe-interval 1 set services rpm probe Failover3 test probe3-ge3 test-interval 5 set services rpm probe Failover3 test probe3-ge3 thresholds total-loss 3 set services rpm probe Failover3 test probe3-ge3 next-hop 2.1.1.10
After configuring probes, call these probes in the ip-monitoring policy as shown below.
set services ip-monitoring policy GE1 match rpm-probe Failover1 set services ip-monitoring policy GE1 then preferred-route route 0.0.0.0/0 next-hop 2.1.1.6 set services ip-monitoring policy GE1 then preferred-route route 0.0.0.0/0 preferred-metric 4 set services ip-monitoring policy GE1_2 match rpm-probe Failover2 set services ip-monitoring policy GE1_2 then preferred-route route 0.0.0.0/0 next-hop 2.1.1.10 set services ip-monitoring policy GE1_2 then preferred-route route 0.0.0.0/0 preferred-metric 3 set services ip-monitoring policy GE1_2_3 match rpm-probe Failover3 set services ip-monitoring policy GE1_2_3 then preferred-route route 0.0.0.0/0 next-hop 80.10.126.254 set services ip-monitoring policy GE1_2_3 then preferred-route route 0.0.0.0/0 preferred-metric 2
If the 1 st probe fails, that means the 1 st target address is not reachable and the preferred route will be taken as configured in the 1 st policy.
If the 1 st and 2 nd ISP are down, that means the 1 st and 2 nd target addresses are not reachable. In this case, the 1 st and 2 nd probe will fail, and the preferred route will be taken as configured in the 2 nd ip-monitoring policy.
The same goes for other configured ISPs and ip-monitoring policies.
TEST 1
---------------------All ISPs are up-----------------------------------
[edit] root@SRX-Firewall# run show services ip-monitoring status Policy - GE1 (Status: PASS) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover1 probe-ge1 2.1.1.2 PASS Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.6 NOT-APPLIED Policy - GE1_2 (Status: PASS) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover2 probe2-ge1 2.1.1.2 PASS Failover2 probe2-ge2 2.1.1.6 PASS Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.10 NOT-APPLIED Policy - GE1_2_3 (Status: PASS) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover3 probe3-ge1 2.1.1.2 PASS Failover3 probe3-ge2 2.1.1.6 PASS Failover3 probe3-ge3 2.1.1.10 PASS Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 80.10.126.254 NOT-APPLIED [edit] root@SRX-Firewall# run show route 0.0.0.0 inet.0: 28 destinations, 28 routes (28 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 0.0.0.0/0 *[Static/5] 08:57:12 > to 2.1.1.2 via ge-0/0/0.0
TEST 2:
Route configured in policy GE1 will be applied.
---------------------ISP1 is down-----------------------------------
[edit] root@SRX-Firewall# run show services ip-monitoring status Policy - GR1 (Status: FAIL) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover1 probe-ge1 2.1.1.2 FAIL Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.6 APPLIED Policy - GE1_2 (Status: PASS) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover2 probe2-ge1 2.1.1.2 FAIL Failover2 probe2-ge2 2.1.1.6 PASS Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.10 NOT-APPLIED <<<< As all tests have not failed; this route is not applied. Policy - GE1_2_3 (Status: PASS) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover3 probe3-ge1 2.1.1.2 FAIL Failover3 probe3-ge2 2.1.1.6 PASS Failover3 probe3-ge3 2.1.1.10 PASS Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 80.10.126.254 NOT-APPLIED [edit] root@SRX-Firewall# run show route 0.0.0.0 inet.0: 28 destinations, 29 routes (28 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 0.0.0.0/0 *[Static/1] 00:00:12, metric2 0 > to 2.1.1.6 via ge-0/0/0.1 <<<<<<<<<<<<<< Applied route [Static/5] 08:57:43 > to 2.1.1.2 via ge-0/0/0.0
TEST 3:
Route configured in policy GE1_2 will be applied in the routing table even if route-action in GE1 and GE1_2 is showing applied because the metric is configured lower than GE1
---------------------ISP1 and ISP2 are down--------------------------
[edit] root@SRX-Firewall# run show services ip-monitoring status Policy - GE1 (Status: FAIL) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover1 probe-ge1 2.1.1.2 FAIL Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.6 APPLIED Policy - GE1_2 (Status: FAIL) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover2 probe2-ge1 2.1.1.2 FAIL Failover2 probe2-ge2 2.1.1.6 FAIL Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.10 APPLIED<<<< This route will be applied as the lower metric is configured Policy - GE1_2_3 (Status: PASS) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover3 probe3-ge1 2.1.1.2 FAIL Failover3 probe3-ge2 2.1.1.6 FAIL Failover3 probe3-ge3 2.1.1.10 PASS Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 80.10.126.254 NOT-APPLIED
TEST 4:
Route configured in policy GE1_2_3 will be applied in the routing table even if route-action in GE1, GE1_2 and GE1_2_3 is showing applied because the metric is configured lower than GE1 and GE1_2.
--------------------- ISP1, ISP2 and ISP3 are down------------------------------
[edit] root@SRX-Firewall# run show services ip-monitoring status Policy - GE1 (Status: FAIL) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover1 probe-ge1 2.1.1.2 FAIL Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.6 APPLIED Policy - GE1_2 (Status: FAIL) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover2 probe2-ge1 2.1.1.2 FAIL Failover2 probe2-ge2 2.1.1.6 FAIL Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 2.1.1.10 APPLIED Policy - GE1_2_3 (Status: FAIL) RPM Probes: Probe name Test Name Address Status ---------------------- --------------- ---------------- --------- Failover3 probe3-ge1 2.1.1.2 FAIL Failover3 probe3-ge2 2.1.1.6 FAIL Failover3 probe3-ge3 2.1.1.10 FAIL Route-Action: route-instance route next-hop state ----------------- ----------------- ---------------- ------------- inet.0 0.0.0.0/0 80.10.126.254 APPLIED<<<< This route will be applied as the metric is configured lower than GE1_2
2019-10-10: Minor, non-technical changes made in Symptoms section; article valid and accurate
