Traffic initiated from the Protected Resource to the VPN Client can pass through the VPN tunnel using NCP Client Software.
There is a limitation of Dynamic-VPNs using Pulse Client Software that prevented traffic initiation from remote protected Resource to Pulse client (refer KB21800 [juniper.net] ).
VPNs established between SRX from NCP clients support traffic initiated from remote protected resource.
VPNs established between SRX devices and NCP Client software allow for traffic being initiated from either from the VPN client or from the remote protected resource using a route-based VPN concept allowing the bi-directional session setup.
Note: Juniper specific NCP client is available for SRX deployments using Junos OS 15.1X49-D80 or higher by using NCP Exclusive Remote Access Solution for Juniper SRX Series.
Refer to the following links for NCP:
Client(NCP_Client_Software)----(ge-0/0/0)_SRX_(ge-0/0/1)----Remote_protected_resource(1.1.1.1/32)
Phase1:
set security ike proposal ike-prop1 authentication-method pre-shared-keys set security ike proposal ike-prop1 dh-group group2 set security ike proposal ike-prop1 authentication-algorithm md5 set security ike proposal ike-prop1 encryption-algorithm 3des-cbc set security ike proposal ike-prop1 lifetime-seconds 86400 set security ike policy ike-pol2 mode aggressive set security ike policy ike-pol2 proposals ike-prop1 set security ike policy ike-pol2 pre-shared-key ascii-text "$9$0/S5OhrW87Vs4xNjH.mTQhSy" set security ike gateway remote-vpn1 ike-policy ike-pol2 set security ike gateway remote-vpn1 dynamic hostname "[email protected]" set security ike gateway remote-vpn1 dynamic connections-limit 2 set security ike gateway remote-vpn1 dynamic ike-user-type shared-ike-id set security ike gateway remote-vpn1 external-interface ge-0/0/0 set security ike gateway remote-vpn1 aaa access-profile aaa-prof1 set security ike gateway remote-vpn1 version v1-only
Phase2:
set security ipsec proposal ipsec-prop1 protocol esp set security ipsec proposal ipsec-prop1 authentication-algorithm hmac-md5-96 set security ipsec proposal ipsec-prop1 encryption-algorithm 3des-cbc set security ipsec proposal ipsec-prop1 lifetime-seconds 28800 set security ipsec policy ipsec-policy proposals ipsec-prop1 set security ipsec vpn remote-vpn1 bind-interface st0.0 set security ipsec vpn remote-vpn1 ike gateway remote-vpn1 set security ipsec vpn remote-vpn1 ike ipsec-policy ipsec-policy set security ipsec vpn remote-vpn1 traffic-selector TS1 local-ip 1.1.1.1/32 <-- Remote_protected_resource to which client wants to reach set security ipsec vpn remote-vpn1 traffic-selector TS1 remote-ip 0.0.0.0/0
Access_profile:
set access profile aaa-prof1 authentication-order password set access profile aaa-prof1 client win1 firewall-user password "$9$K2yWXNs2aikPdbkP5Q9CKM8" set access profile aaa-prof1 address-assignment pool xauth-pool set access address-assignment pool xauth-pool family inet network 30.1.1.0/24 <--Subnet from which IP assigned to Client set access address-assignment pool xauth-pool family inet xauth-attributes primary-dns 4.2.2.2/32
Other configuration:
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.1/24 set interfaces st0 unit 0 family inet set security zones security-zone VM_SRX_340 interfaces ge-0/0/0.0 host-inbound-traffic system-services all set security zones security-zone VM_SRX_340 interfaces ge-0/0/0.0 host-inbound-traffic protocols all set security zones security-zone VM_SRX_340 interfaces st0.0
Security policies for bi-direction traffic:
set security policies from-zone VM_SRX_340 to-zone 340_210_r2323 policy VM_SRX match source-address any set security policies from-zone VM_SRX_340 to-zone 340_210_r2323 policy VM_SRX match destination-address any set security policies from-zone VM_SRX_340 to-zone 340_210_r2323 policy VM_SRX match application any set security policies from-zone VM_SRX_340 to-zone 340_210_r2323 policy VM_SRX then permit set security policies from-zone 340_210_r2323 to-zone VM_SRX_340 policy SRX_VM match source-address any set security policies from-zone 340_210_r2323 to-zone VM_SRX_340 policy SRX_VM match destination-address any set security policies from-zone 340_210_r2323 to-zone VM_SRX_340 policy SRX_VM match application any set security policies from-zone 340_210_r2323 to-zone VM_SRX_340 policy SRX_VM then permit

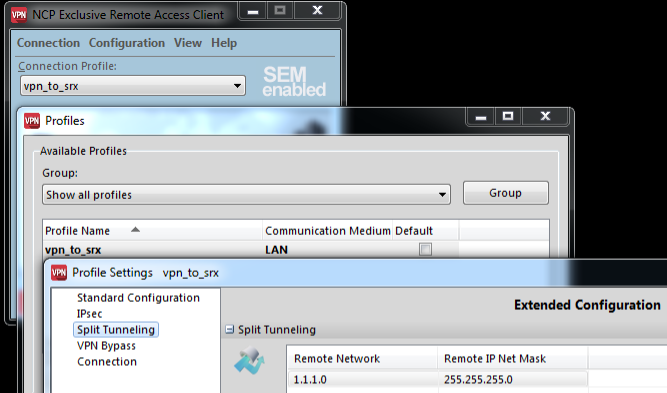

On NCP Client:
Verification:
root@srx340-r2012# run show security ike active-peer Remote Address Port Peer IKE-ID AAA username Assigned IP 10.1.1.2 10952 [email protected] win1 30.1.1.1
C:\Windows\system32>ping 1.1.1.1 Pinging 1.1.1.1 with 32 bytes of data: Reply from 1.1.1.1: bytes=32 time=1ms TTL=63 Reply from 1.1.1.1: bytes=32 time=1ms TTL=63
root@srx210he2-r2323# run ping 30.1.1.1 source 1.1.1.1 PING 30.1.1.1 (30.1.1.1): 56 data bytes 64 bytes from 30.1.1.1: icmp_seq=0 ttl=127 time=3.336 ms 64 bytes from 30.1.1.1: icmp_seq=1 ttl=127 time=3.526 ms
