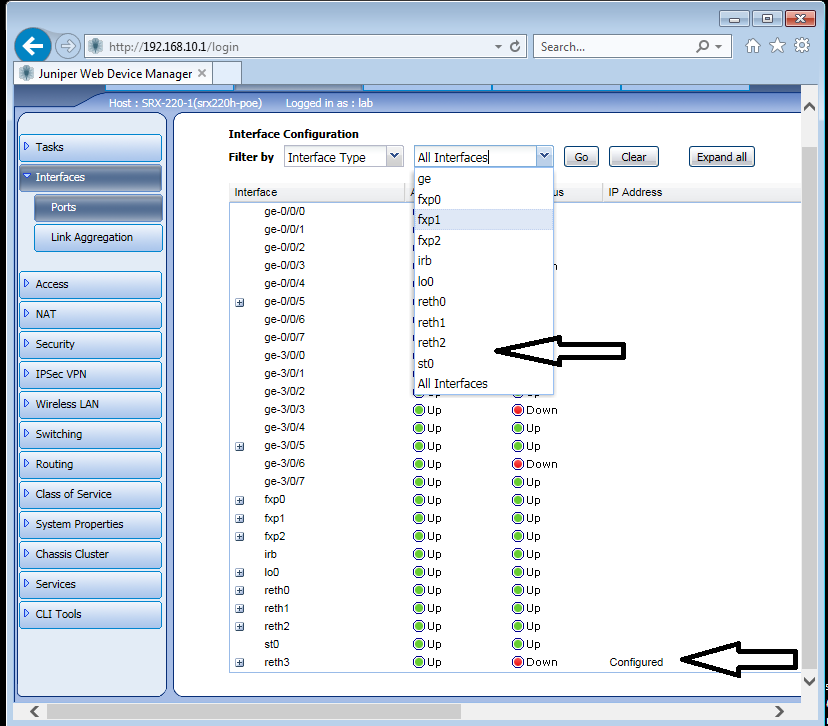

After configuring HA on SRX and checking the interface status via J-web, reth3 is marked as 'configured', but cannot be recognized correctly. This article explains why changing reth-count from 3 to 4 resolves this issue.
HA is configured as follows: {primary:node0}[edit]
{primary:node0}[edit]
root@SRX-220-1# run show configuration |display set|no-more set version 12.1X46-D67 set groups node0 system host-name SRX-220-1 set groups node0 interfaces fxp0 unit 0 family inet address 192.168.10.1/24 set groups node1 system host-name SRX-220-2 set groups node1 interfaces fxp0 unit 0 family inet address 192.168.10.2/24 set apply-groups "${NODE.EN_US}" ...... set chassis cluster reth-count 3 set chassis cluster redundancy-group 0 node 0 priority 100 set chassis cluster redundancy-group 0 node 1 priority 1 set chassis cluster redundancy-group 1 node 0 priority 100 set chassis cluster redundancy-group 1 node 1 priority 1 set chassis cluster redundancy-group 1 interface-monitor ge-0/0/0 weight 255 set chassis cluster redundancy-group 1 interface-monitor ge-0/0/1 weight 255 set chassis cluster redundancy-group 1 interface-monitor ge-3/0/0 weight 255 set chassis cluster redundancy-group 1 interface-monitor ge-3/0/1 weight 255 set interfaces ge-0/0/0 gigether-options redundant-parent reth0 set interfaces ge-0/0/1 gigether-options redundant-parent reth1 set interfaces ge-0/0/2 gigether-options redundant-parent reth2 set interfaces ge-0/0/4 gigether-options redundant-parent reth3 set interfaces ge-3/0/0 gigether-options redundant-parent reth0 set interfaces ge-3/0/1 gigether-options redundant-parent reth1 set interfaces ge-3/0/2 gigether-options redundant-parent reth2 set interfaces ge-3/0/4 gigether-options redundant-parent reth3 set interfaces fab0 fabric-options member-interfaces ge-0/0/5 set interfaces fab1 fabric-options member-interfaces ge-3/0/5 set interfaces reth0 redundant-ether-options redundancy-group 1 set interfaces reth0 unit 0 family inet address 192.168.0.1/24 set interfaces reth1 redundant-ether-options redundancy-group 1 set interfaces reth1 unit 0 family inet address 192.168.1.1/24 set interfaces reth2 redundant-ether-options redundancy-group 1 set interfaces reth2 unit 0 family inet address 192.168.20.1/24 set interfaces reth3 redundant-ether-options redundancy-group 1 set interfaces reth3 unit 0 family inet address 10.75.252.20/24 set routing-options static route 0.0.0.0/0 next-hop 10.75.252.251 ...... set security zones security-zone test interfaces reth0.0 set security zones security-zone test interfaces reth1.0 set security zones security-zone test interfaces reth2.0 set security zones security-zone test interfaces reth3.0 {primary:node0}[edit] root@SRX-220-1# run show interfaces terse |no-more Interface Admin Link Proto Local Remote ge-0/0/0 up up ge-0/0/0.0 up up aenet --> reth0.0 gr-0/0/0 up up ip-0/0/0 up up ge-0/0/1 up up ge-0/0/1.0 up up aenet --> reth1.0 ge-0/0/2 up up ge-0/0/2.0 up up aenet --> reth2.0 ge-0/0/3 up down ge-0/0/4 up up ge-0/0/4.0 up up aenet --> reth3.0 ge-0/0/5 up up ge-0/0/5.0 up up aenet --> fab0.0 ge-0/0/6 up up ge-0/0/7 up up ge-3/0/0 up up ge-3/0/0.0 up up aenet --> reth0.0 ge-3/0/1 up up ge-3/0/1.0 up up aenet --> reth1.0 ge-3/0/2 up up ge-3/0/2.0 up up aenet --> reth2.0 ge-3/0/3 up down ge-3/0/4 up up ge-3/0/4.0 up up aenet --> reth3.0 ge-3/0/5 up up ge-3/0/5.0 up up aenet --> fab1.0 ge-3/0/6 up down ge-3/0/7 up up ...... reth0 up up reth0.0 up up inet 192.168.0.1/24 reth1 up up reth1.0 up up inet 192.168.1.1/24 reth2 up up reth2.0 up up inet 192.168.20.1/24 --> There is no interface reth3. ......
The object of ' Configured ' is caused by configuration mismatch, 'set chassis cluster reth-count 3' . The count is 3 but there are 4 reth interfaces. Due to “reth-count 3”, the last interface which is reth3 is not working.
'set chassis cluster reth-count 3'
There is no route even when the following is configured:
set routing-options static route 0.0.0.0/0 next-hop 10.75.252.251 set interfaces reth3 redundant-ether-options redundancy-group 1 set interfaces reth3 unit 0 family inet address 10.75.252.20/24 set routing-options static route 0.0.0.0/0 next-hop 10.75.252.251 {primary:node0}[edit] root@SRX-220-1# run show route inet.0: 8 destinations, 8 routes (8 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 192.168.0.0/24 *[Direct/0] 00:49:08 > via reth0.0 192.168.0.1/32 *[Local/0] 00:49:08 Local via reth0.0 192.168.1.0/24 *[Direct/0] 00:54:33 > via reth1.0 192.168.1.1/32 *[Local/0] 00:58:09 Local via reth1.0 192.168.10.0/24 *[Direct/0] 00:58:09 > via fxp0.0 192.168.10.1/32 *[Local/0] 00:58:09 Local via fxp0.0 192.168.20.0/24 *[Direct/0] 00:54:33 > via reth2.0 192.168.20.1/32 *[Local/0] 00:58:09 Local via reth2.0 {primary:node0}[edit] root@SRX-220-1# run ping 8.8.8.8 PING 8.8.8.8 (8.8.8.8): 56 data bytes ping: sendto: No route to host ping: sendto: No route to host ping: sendto: No route to host ^C --- 8.8.8.8 ping statistics --- 4 packets transmitted, 0 packets received, 100% packet loss
Change reth-count from 3 to 4 could resolve this issue.
root@SRX-220-1# delete chassis cluster reth-count 3 root@SRX-220-1# set chassis cluster reth-count 4 root@SRX-220-1# commit

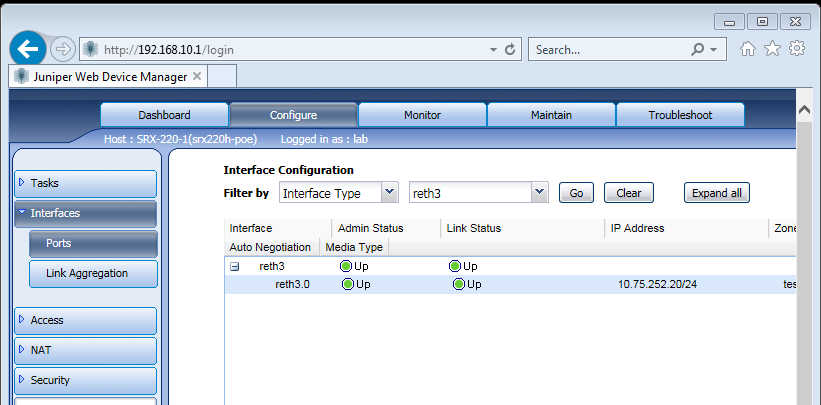

{primary:node0}[edit] root@SRX-220-1# run show interfaces terse |no-more Interface Admin Link Proto Local Remote ge-0/0/0 up up ge-0/0/0.0 up up aenet --> reth0.0 gr-0/0/0 up up ip-0/0/0 up up ge-0/0/1 up up ge-0/0/1.0 up up aenet --> reth1.0 ge-0/0/2 up up ge-0/0/2.0 up up aenet --> reth2.0 ge-0/0/3 up down ge-0/0/4 up up ge-0/0/4.0 up up aenet --> reth3.0 ge-0/0/5 up up ge-0/0/5.0 up up aenet --> fab0.0 ge-0/0/6 up up ge-0/0/7 up up ge-3/0/0 up up ge-3/0/0.0 up up aenet --> reth0.0 ge-3/0/1 up up ge-3/0/1.0 up up aenet --> reth1.0 ge-3/0/2 up up ge-3/0/2.0 up up aenet --> reth2.0 ge-3/0/3 up down ge-3/0/4 up up ge-3/0/4.0 up up aenet --> reth3.0 ge-3/0/5 up up ge-3/0/5.0 up up aenet --> fab1.0 ge-3/0/6 up down ge-3/0/7 up up ...... reth0 up up reth0.0 up up inet 192.168.0.1/24 reth1 up up reth1.0 up up inet 192.168.1.1/24 reth2 up up reth2.0 up up inet 192.168.20.1/24 reth3 up up reth3.0 up up inet 10.75.252.20/24 ...... {primary:node0}[edit] root@SRX-220-1# run show route inet.0: 11 destinations, 11 routes (11 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 0.0.0.0/0 *[Static/5] 00:00:07 > to 10.75.252.251 via reth3.0 10.75.252.0/24 *[Direct/0] 00:00:07 > via reth3.0 10.75.252.20/32 *[Local/0] 00:00:07 Local via reth3.0 192.168.0.0/24 *[Direct/0] 00:55:33 > via reth0.0 192.168.0.1/32 *[Local/0] 00:55:33 Local via reth0.0 192.168.1.0/24 *[Direct/0] 01:00:58 > via reth1.0 192.168.1.1/32 *[Local/0] 01:04:34 Local via reth1.0 192.168.10.0/24 *[Direct/0] 01:04:34 > via fxp0.0 192.168.10.1/32 *[Local/0] 01:04:34 Local via fxp0.0 192.168.20.0/24 *[Direct/0] 01:00:58 > via reth2.0 192.168.20.1/32 *[Local/0] 01:04:34 Local via reth2.0 {primary:node0}[edit] root@SRX-220-1# run ping 8.8.8.8 PING 8.8.8.8 (8.8.8.8): 56 data bytes 64 bytes from 8.8.8.8: icmp_seq=0 ttl=39 time=75.822 ms 64 bytes from 8.8.8.8: icmp_seq=1 ttl=39 time=77.098 ms ^C --- 8.8.8.8 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max/stddev = 74.599/75.840/77.098/1.020 ms
