This article discusses the commands required to spin vSRX and the resulting VNF descriptor/XML file. The same concepts can be applied to spin any other VNF on NFX with enhanced orchestration enabled. Enhanced orchestration is enabled by default, starting from Junos OS 15.1X53-D45.

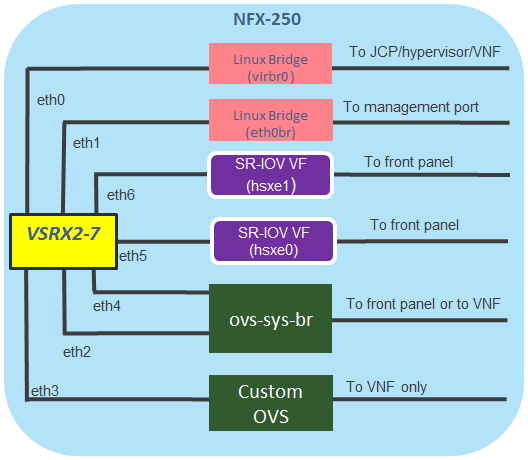

• ovs-sys-br is the default Open vSwitch (OVS) on NFX. You do not have to create it. VLAN is created on the ovs-sys-br

• virbr0 and eth0br are default Linux bridges available on NFX. You do not have to configure them. By default, when you spin a VNF via JDM, the first and second NIC of the VNF will be added to virbr0 and eth0br respectively.

1. Configuration to create VLANs on the default  ovs-sys-br

   set host-os vlans v1 vlan-id 1
   set host-os vlans v7 vlan-id 7

2. Configuration to create custom OVS bridge. Use this custom OVS bridge to glue between VSRX/VNFs.

   set host-os vlans custom-ovs vlan-id none

3. Configuration to spin VSRX:

   set virtual-network-functions vSRX-7 image /var/third-party/images/media-vsrx-vmdisk-15.1X49-D80.4.qcow2
   set virtual-network-functions vSRX-7 virtual-cpu 0 physical-cpu 4 <-- vCPU pinning
   set virtual-network-functions vSRX-7 virtual-cpu 1 physical-cpu 11
   set virtual-network-functions vSRX-7 virtual-cpu count 2
   set virtual-network-functions vSRX-7 virtual-cpu features hardware-virtualization
   set virtual-network-functions vSRX-7 interfaces eth2 mapping vlan members v7 <-- Configurable interface name starts from eth2
   set virtual-network-functions vSRX-7 interfaces eth3 mapping vlan members custom-ovs <-- Attaching vnic to custom OVS bridge
   set virtual-network-functions vSRX-7 interfaces eth4 mapping vlan members v1
   set virtual-network-functions vSRX-7 interfaces eth5 mapping hsxe0 virtual-function <-- SR-IOV assignment
   set virtual-network-functions vSRX-7 interfaces eth6 mapping hsxe1 virtual-function
   set virtual-network-functions vSRX-7 memory size 4194304
   set virtual-network-functions vSRX-7 memory features hugepages

   Below is the XML template of the generated VNF, that was created via the JDM CLI.

   virsh dumpxml vSRX-7
   ---------------------
   <domain type='kvm' id='5' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
     <name>vSRX-7
     <uuid>0fbb2d52-c4ae-44c1-bf35-8955c0c19735
     <memory unit='KiB'>4194304
     <currentMemory unit='KiB'>4194304
     <memoryBacking>
       <hugepages>  <-- Command 'set virtual-network-functions vSRX-7 memory features hugepages' enables description about huge pages
       <page size='1048576' unit='KiB'/>

       <locked/>

     <vcpu placement='static' current='2'>4
     <cputune>
       <vcpupin vcpu='0' cpuset='4'/> <-- vCPU pinning
       <vcpupin vcpu='1' cpuset='11'/>
       <emulatorpin cpuset='0-5,7-11'/>

     <resource>
       <partition>/machine

     <os>
       <type arch='x86_64' machine='pc-i440fx-1.7'>hvm
       <boot dev='hd'/>

     <features>
       <acpi/>
       <apic/>
       <pae/>
      <-- Details under <features> tag get added with command 'set virtual-network-functions vSRX-7 virtual-cpu features hardware-virtualization'
     <cpu mode='host-model'>
       <model fallback='allow'/>
       <feature policy='require' name='vmx'/>

     <clock offset='utc'/>
     <on_poweroff>destroy
     <on_reboot>restart
     <on_crash>restart
     <devices>
       <emulator>/usr/bin/kvm
       <disk type='file' device='disk'>
         <driver name='qemu' type='qcow2' cache='none'/>
         <source file='/var/third-party/images/media-vsrx-vmdisk-15.1X49-D80.4.qcow2'/>
         <backingStore/>
         <target dev='vda' bus='virtio'/>
         <alias name='virtio-disk0'/>


   <controller type='usb' index='0'> <alias name='usb'/>
   <controller type='pci' index='0' model='pci-root'> <alias name='pci.0'/> <interface type='network'> <mac address='ec:13:db:db:21:4e'/> <source network='default' bridge='virbr0'/> <target dev='vnet3'/> <model type='virtio'/> <alias name='net0'/>
   <interface type='bridge'> <mac address='ec:13:db:db:21:4f'/> <source bridge='eth0br'/> <target dev='vnet5'/> <model type='virtio'/> <driver name='qemu'/> <alias name='net1'/>
   <interface type='vhostuser'> <mac address='ec:13:db:db:21:53'/> <source type='unix' path='/var/run/openvswitch/vSRX-7_eth2' mode='client'/> <guest dev='eth2'/> <model type='virtio'/> <alias name='net2'/>
   <interface type='vhostuser'> <mac address='ec:13:db:db:21:50'/> <source type='unix' path='/var/run/openvswitch/vSRX-7_eth3' mode='client'/> <guest dev='eth3'/> <model type='virtio'/> <alias name='net3'/>
   <interface type='vhostuser'> <mac address='ec:13:db:db:21:51'/> <source type='unix' path='/var/run/openvswitch/vSRX-7_eth4' mode='client'/> <guest dev='eth4'/> <model type='virtio'/> <alias name='net4'/>
   <interface type='hostdev' managed='yes'> <mac address='ec:13:db:db:21:56'/> <driver name='kvm'/> <source>
   <alias name='hostdev0'/>
   <interface type='hostdev' managed='yes'> <mac address='ec:13:db:db:21:57'/> <driver name='kvm'/> <source>
   <-- SR-IOV VF <alias name='hostdev1'/>
   <serial type='pty'> <source path='/dev/pts/0'/> <target port='0'/> <alias name='serial0'/> <console type='pty' tty='/dev/pts/0'> <source path='/dev/pts/0'/> <target type='serial' port='0'/> <alias name='serial0'/> <memballoon model='none'> <alias name='balloon0'/> <qemu:commandline> <-- This line and below is added due to command 'set virtual-network-functions vSRX-7 memory features hugepages' <qemu:arg value='-object'/> <qemu:arg value='memory-backend-file,id=mem,size=4096M,mem-path=/dev/huge1G,share=on'/> <qemu:arg value='-numa'/> <qemu:arg value='node,memdev=mem'/> <qemu:arg value='-mem-prealloc'/>

2020-09-26: Article verified for accuracy. Article is valid and accurate.
