Description

This article provides an example for configuring an EX device to send SNMPv3 traps to SNMP Server.

Solution

Step 1 - Switch Configuration

  • Configure a user name.

  • Set the security level and the authentication Keys for this user.

  • Security level (Choose according to the switch configuration):

Auth, Priv
No Auth, No Priv
Auth, No Priv

  • Choose the type of SecurityPossible completions:

    •   authentication-md5                  Configure MD5 authentication
    •   authentication-none                 Set no authentication for the user​
    •   authentication-sha                 Configure SHA authentication
    •   privacy-3des                           Configure Triple DES privacy
    •   privacy-aes128                       Configure AES128 privacy
    •   privacy-des                             Configure DES privacy
    •   privacy-none                           Set no privacy for the use​

​set snmp v3 usm local-engine user AuthPrivSHAUser authentication-sha authentication-key <plain text password>

set snmp v3 usm local-engine user AuthPrivSHAUser privacy-aes128 privacy-key <plain text password>

  • Set Security Model for the Security model context for group assignment.

security-to-group    Assigns security names to group
  usm                    User-based security model
  v1                       SNMPv1 model
  v2c                     SNMPv2c model

  • Set the privacy level:

  notify-view          View used to notifications
  read-view            View used for read access
  write-view           View used for write access

set snmp v3 vacm security-to-group security-model usm security-name AuthPrivSHAUser group test
set snmp v3 vacm access group test default-context-prefix security-model usm security-level privacy read-view view-all
set snmp v3 vacm access group test default-context-prefix security-model usm security-level privacy notify-view view-all

  • Set the Target IP Address. It is the IP address of SNMP Server.

  • Configure the target parameters.

  security-level          Security-level used when generating SNMP notifications
  security-model       Security-model used when generating SNMP notifications
  security-name        Security name used when generating SNMP notifications

set snmp v3 target-address TARGET address 10.9.221.199 <-- SNMP Server Address
set snmp v3 target-address TARGET port 162
set snmp v3 target-address TARGET target-parameters target1
set snmp v3 target-parameters target1 parameters message-processing-model v3
set snmp v3 target-parameters target1 parameters security-model usm
set snmp v3 target-parameters target1 parameters security-level privacy
set snmp v3 target-parameters target1 parameters security-name AuthPrivSHAUser

  • Configure Notify type (Trap/Tag)

set snmp v3 notify NOTIFY type trap
set snmp v3 notify NOTIFY tag trapreceiver
set snmp v3 notify-filter filter oid .1 include
set snmp view view-all oid .1 include

  • Set the Source Address as the device IP

set snmp trap-options source-address <Ip Address>

  <oid-name>     OID to include/exclude from notify filter
  .1                   OID to include/exclude from notify filter

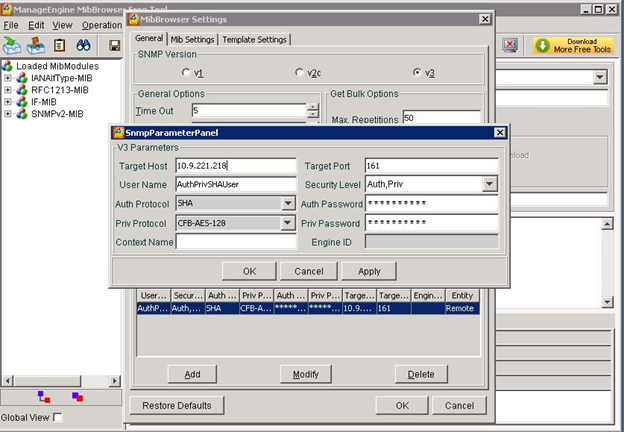

Step 2 - Configure the server for receiving traps

(example of Manage Engine)

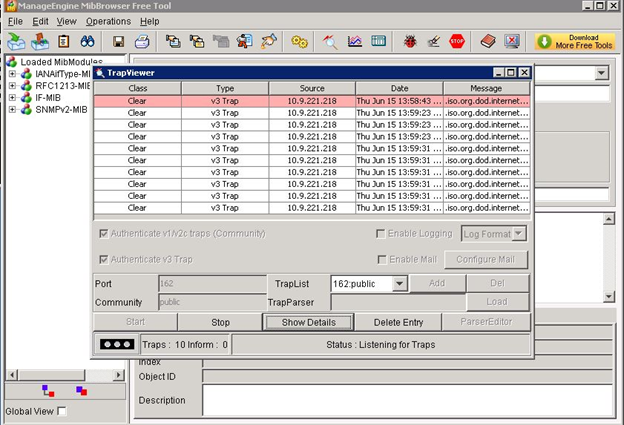

If an Interface is flapped on the switch, the traps will look similar to the ones in the following image:



The details of the messages can be seen by clicking on the “ Show Details ” button. The details will appear similar to the following image:



Modification History

2020-04-18: Article reviewed for accuracy; no changes required.
