Beginning with Junos 15.1X49-D40, Application identification (AppID) supports user-defined custom application signatures and signature groups. See Configuring Junos OS Application Identification Custom Application Signatures .

Since AppID had a major update in Junos 12.1X47 (also called AppID 2.0), custom application signature had been unsupported. See TSB16704 - AppID Major Update [juniper.net] .

This article provides an example on how to configure and verify AppFW using a custom application signature.

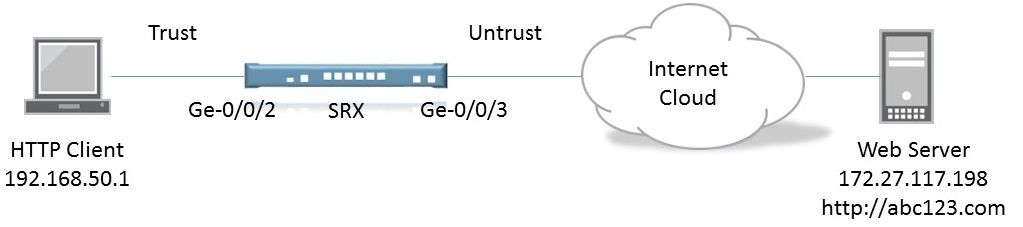

Topology

Goal

Prerequisite

An AppID license is required to configure the custom AppID signature. Verify the license is installed in SRX with the command, ‘show system license’.

root> show system license
License usage:
                                 Licenses     Licenses    Licenses    Expiry
  Feature name                       used    installed      needed
  appid-sig                             0            1           0    2017-11-24 00:00:00 UTC

For information about AppID license, refer to Understanding the Junos OS Application Package Installation .

Configuration

1. Define custom signature

   Example:  Create 'custom-http'

   set services application-identification application custom-http over HTTP signature s1 member m01 context http-header-host
set services application-identification application custom-http over HTTP signature s1 member m01 pattern ".*abc123.*"
set services application-identification application custom-http over HTTP signature s1 member m01 direction client-to-server

   Notes:
   - Regular expressions can be used to define patterns. For example, pattern ".*abc123.*" will match "abc123.com" or "www.abc123.net" etc.
   - The pattern should not start with "*". For example, patter "*.abc123.*" will either fail in commit. In some combinations, even if commit succeeds, they will be looked as actual characters and not wildcard. Refer to the KB link below for more details on supported patterns.

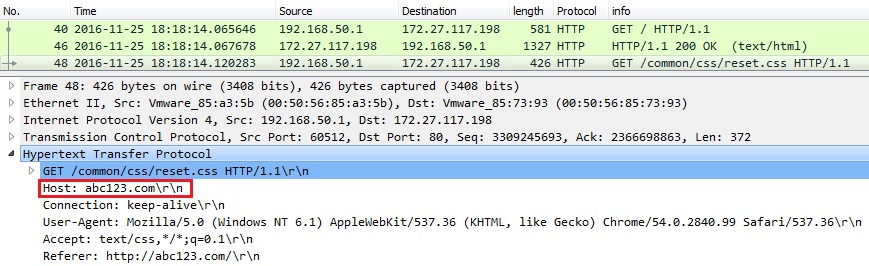

   - The Context http-header-host (see configuration above) checks the string in "Host" in the http get command (see picture below).
   - For troubleshooting, if SRX does not block the URL in spite of the custom signature being configured, collect the packet capture and check that the string written in pattern is included in "Host".



   For more details, refer to Example: Configuring Junos OS Application Identification Custom Application Signatures.
2. Create application firewall

   Example: Configure application firewall to deny traffic to "abc123.com".

   set security application-firewall rule-sets block rule r1 match dynamic-application custom-http
set security application-firewall rule-sets block rule r1 then deny
set security application-firewall rule-sets block default-rule permit
3. Apply application firewall to security policy

   set security policies from-zone trust to-zone untrust policy tr-un match source-address any
set security policies from-zone trust to-zone untrust policy tr-un match destination-address any
set security policies from-zone trust to-zone untrust policy tr-un match application any
set security policies from-zone trust to-zone untrust policy tr-un then permit application-services application-firewall rule-set block
set security policies from-zone trust to-zone untrust policy tr-un then log session-close


Verification

root> show security application-firewall rule-set all
Rule-set: block
    Rule: r1
        Dynamic Applications: custom-http
        SSL-Encryption: any
        Action:deny
        Number of sessions matched: 21     <<<
        Number of sessions redirected: 0
Default rule:permit
        Number of sessions matched: 314
        Number of sessions redirected: 0
Number of sessions with appid pending: 0

2024-10-09: minor non tech changes

2020-10-01: Added an additional note on supported patterns and added a related link.
