A switch can be recovered by performing a format installation with a bootable USB if it does not boot successfully. This article explains how the format installation can be performed on EX2300 and EX3400 switching devices.
Warning: This procedure will format the switch and all configurations will be lost.
For TFTP format install steps, refer to: KB31462 - How to recover EX2300s and EX3400s with format install procedure via TFTP [juniper.net]
If you are getting the "can't load 'kernel" error, refer to KB33842 - Fix Device is not booting up with 'can't load kernel' error on EX3400/EX2300 Devices [juniper.net] .
To perform format installation on EX3400 and EX2300 switches, perform the following steps:

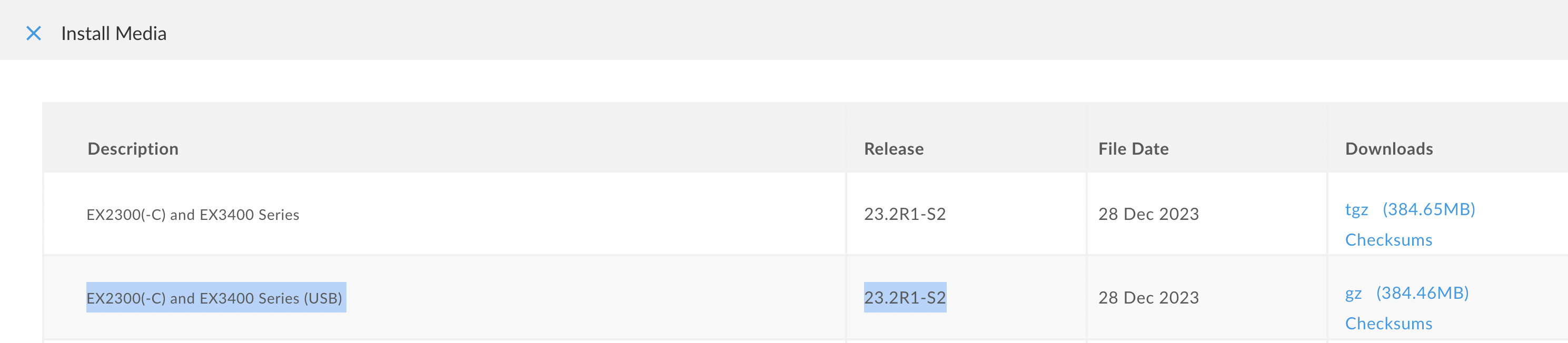

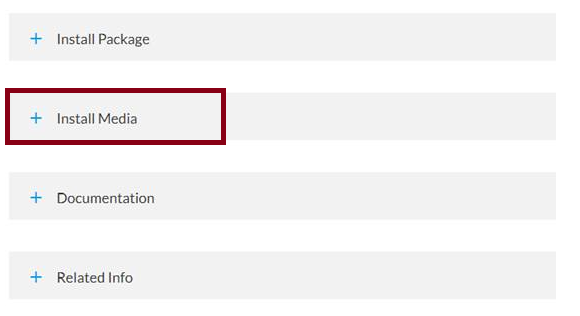

Download the corresponding " USB " image under the " Install Media " section from Juniper's Support site.
Transfer the image to a bootable USB. You can make a USB drive bootable by using the dd command in shell, or use GUI-based USB flash drive utilities such as Rufus or ISO Burner for Windows.
dd
#dd if=/dev/zero of=/dev/da0 count=20 <<<<-Erase the initial sectors of the USB drive:
#dd if=install-media-xxx.img of=/dev/da0 bs=1m <<<<-Burn the image on the USB drive:
Note: " img.gz " files may need to be extracted to " img ."
img.gz
Insert the USB into the EX3400/EX2300 switch.
Reboot the switch and interrupt the boot sequence by using the up/down arrow keys or Ctrl C.
Warning: Using the numbers or hotkey menu letters may select an undesired option.
Example working condition
U-Boot 2016.01-rc1 (May 23 2016 - 08:45:58 -0700) VERSION=1.2.0 DRAM: AVS: 0x0 DEV ID = 0xdc14 SKU ID = 0xb548 DDR type: DDR3 MEMC 0 DDR speed = 750MHz PHY revision version: 0x00044006 SF: Detected MX25L6405D with page size 256 Bytes, erase size 64 KiB, total 8 MiB In: serial Out: serial Err: serial FLASH bank: 1 Board: EX3400-24P Base MAC: F4CC55CC9661 Net: bcmiproc_eth-0 Last Reset Reason: 8 Hit ^C to stop autoboot: 0 SF: Detected MX25L6405D with page size 256 Bytes, erase size 64 KiB, total 8 MiB device 0 offset 0x3c0000, size 0x10000 SF: 65536 bytes @ 0x3c0000 Read: OK ## Checking Image at 61000000 ... Legacy image found Image Name: Juniper U-Boot Script File Image Type: ARM Unknown OS Script (uncompressed) Data Size: 1803 Bytes = 1.8 KiB Load Address: 00000000 Entry Point: 00000000 Contents: Image 0: 1795 Bytes = 1.8 KiB Verifying Checksum ... OK ## Executing script at 61000000 Setting bus to 0 SF: Detected MX25L6405D with page size 256 Bytes, erase size 64 KiB, total 8 MiB device 0 offset 0x140000, size 0x140000 SF: 1310720 bytes @ 0x140000 Read: OK 6113fffc: f1c1fb43 C... crc32 for 61000000 ... 6113ffff ==> 43fbc1f1 Total of 1 word(s) were the same starting USB... USB0: phy ctrl 01d36440 Initial usb2h clock is: 000003fc Initial usb2h clock is: 000003fd iClk = 00000078, USBClk = 01536440 Bring usb2h_out of reset....... usb2_reset_state is set and now it is: 00000000 usb2_reset_state is: 00000000 USB EHCI 1.00 scanning bus 0 for devices... 3 USB Device(s) found scanning usb for storage devices... 1 Storage Device(s) found SF: Detected MX25L6405D with page size 256 Bytes, erase size 64 KiB, total 8 MiB, mapped at 00000088 ## Starting application at 0x00000074 ... Consoles: U-Boot console FreeBSD/armv6 U-Boot loader, Revision 1.2 ([email protected], Wed May 18 12:32:06 PDT 2016) DRAM: 2048MB Number of U-Boot devices: 2 U-Boot env: loaderdev not set, will probe all devices. Found U-Boot device: disk Probing all disk devices... Checking unit=0 slice=<auto> partition=<auto>... good. - Main Menu 1. Boot [J]unos volume 2. Boot Junos volume in [S]afe mode 3. [R]eboot 4. [B]oot menu 5. [M]ore options
Press 4 for Boot Menu.
Boot Menu 1. Boot [P]revious installed Junos packages 2. Boot Junos in [S]ingle user mode 3. Boot from [R]ecovery snapshot 4. Boot from [U]SB 5. Boot to [O]AM shell 6. Snapshot [B]oot menu 7. [M]ain menu Choice:
Press 4 again for Boot from USB.
You will see a message about attempting to boot from USB.
After the USB image installation is complete, log in and verify that the new version of the software is properly installed.
Note: If the process fails with the error "can't load 'kernel" , refer to KB33842 - Fix Device is not booting up with 'can't load kernel' error on EX3400/EX2300 Devices [juniper.net] .
2020-08-25: Added link to KB article (KB33842 [juniper.net]) to reference when users encounter the error "can't load 'kernel"
2020-06-19: Reworded step 4
2020-04-30: Added reference link to KB31462 [juniper.net]
2019-09-30: Minor modifications made to steps 1 and 2 in Solution section; image added to Step 1
