This article provides an example on how to configure Dynamic VPN (DVPN) with user grouping using external LDAP authentication.
The goal is to demonstrate how to configure user grouping in Dynamic VPN.
Begining with Junos 12.1X44-D10, DVPN with grouping is supported.
The following excerpt is from Dynamic Virtual Private Network (DVPN) Enhancement :
When users are configured locally—When users are configured locally, they will be configured under the [access] hierarchy and arranged into groups using the already existing configuration knob client-group. This group name will then be used to look up the client configuration under the [dynamic-vpn] hierarchy for users belonging to that group. The user-groups knob under the [dynamic-vpn] hierarchy will contain the user group names.
set security dynamic-vpn access-profile dvpn-xauth set security dynamic-vpn clients all remote-protected-resources 192.168.200.0/24 set security dynamic-vpn clients all remote-exceptions 0.0.0.0/0 set security dynamic-vpn clients all ipsec-vpn p2-dvpn set security dynamic-vpn clients all user-groups Sales set access profile dvpn-xauth authentication-order password set access profile dvpn-xauth address-assignment pool d-pool set access profile dvpn-xauth client desmond firewall-user password <DELETE> set access profile dvpn-xauth client desmond client-group Sales set access profile dvpn-xauth session-options client-group Sales set access address-assignment pool d-pool family inet network 192.168.200.0/24 set access address-assignment pool d-pool family inet range d-range low 192.168.200.150 set access address-assignment pool d-pool family inet range d-range high 192.168.200.155
When users are configured on an external authentication server, such as a Radius server—when users are configured remotely, they will no longer have to be configured under the [access] hierarchy. When authd authenticates a user, it will also include the client-group in the reply. This information is extracted and a matching user-group in the [dynamic-vpn] hierarchy is looked for to determine which client configuration to retrieve and return to the client for tunnel establishment.
Example: LDAP authentication configured and group configured under [dynamic-vpn]. Notice the user/group is configured under [access]
set security dynamic-vpn access-profile dvpn-xauth set security dynamic-vpn clients all remote-protected-resources 192.168.200.0/24 set security dynamic-vpn clients all remote-exceptions 0.0.0.0/0 set security dynamic-vpn clients all ipsec-vpn p2-dvpn set security dynamic-vpn clients all user-groups Sales set access profile dvpn-xauth authentication-order ldap set access profile dvpn-xauth address-assignment pool d-pool set access profile dvpn-xauth ldap-options base-distinguished-name CN=Users,DC=rittal,DC=china set access profile dvpn-xauth ldap-options search search-filter sAMAccountName= set access profile dvpn-xauth ldap-options search admin-search distinguished-name CN=Administrator,CN=Users,DC=rittal,DC=china set access profile dvpn-xauth ldap-options search admin-search password juniper123 set access profile dvpn-xauth ldap-server 1.1.1.1 set access address-assignment pool d-pool family inet network 192.168.200.0/24 set access address-assignment pool d-pool family inet range d-range low 192.168.200.150 set access address-assignment pool d-pool family inet range d-range high 192.168.200.155

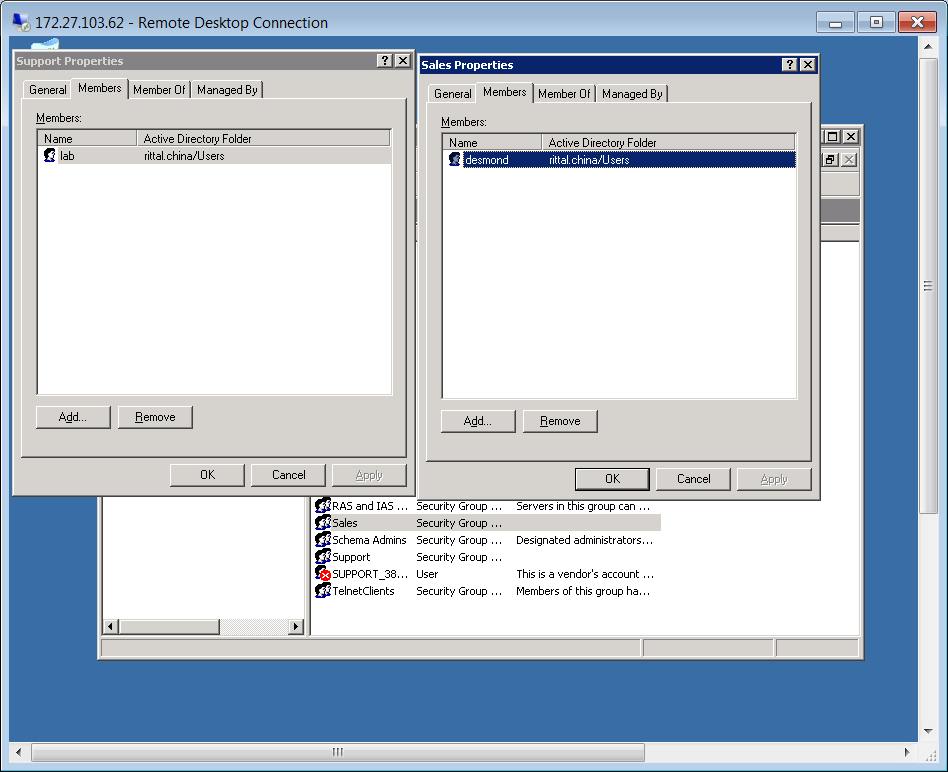

The folowing screenshot shows user "desmond" config with group "Sales" in Microsoft LDAP Server:
Note the following for DVPN user grouping:
The following DVPN debug shows that Group attribute in LDAP Response cannot be extracted from SRX in Junos 12.1X44:
//12.1X44 Oct 29 10:12:51 httpd gk sending DVPN LOGIN request for username (desmond) ip (172.27.6.103) Oct 29 10:12:51 httpd_gk_mgd_connect_cb: httpd gk request for fd 6 type 3 Oct 29 10:12:51 acadia_authenticate_user: username = desmond, token = , client_identifier = df6d64acdcdaf34cab589de0391f1f4d Oct 29 10:12:51 dvpn_username_password_authentication: username = desmond Oct 29 10:12:51 acadia_fwauthd_authenticate: checking socket connection for write on socket 13 ... Oct 29 10:12:51 acadia_fwauthd_check_socket: checking socket connection... Oct 29 10:12:51 acadia_fwauthd_authenticate: sending auth request to fwauthd to socket 13 Oct 29 10:12:51 source IP: ac1b0667 Oct 29 10:12:51 acadia_fwauthd_authenticate: write to fwauthd ret=6628, errno=45
Oct 29 10:12:51 acadia_fwauthd_authenticate: checking socket connection for read on socket 13 ... Oct 29 10:12:51 acadia_fwauthd_check_socket: checking socket connection... Oct 29 10:12:51 acadia_fwauthd_authenticate: Waiting for response from fwauthd user desmond Oct 29 10:12:51 source IP: ac1b0667 Oct 29 10:12:51 acadia_fwauthd_authenticate: firewall authentication completed Read 6628 bytes from fwauthd on socket 13, auth code 2, username desmond
Oct 29 10:12:51 source IP: ac1b0667 Oct 29 10:12:51 Authentication of user desmond with fwauthd successful Oct 29 10:12:51 dvpn_username_password_authentication: fwauthd succeeded Oct 29 10:12:51 print_group_list Oct 29 10:12:51 "" Oct 29 10:12:51 check_user: user does not exist Oct 29 10:12:51 get_config_by_username: First connection for user desmond at IP 172.27.6.103 Oct 29 10:12:51 get_client_vpn_config_for_user: Looking for a config for user desmond Oct 29 10:12:51 get_client_vpn_config_for_group: Looking for a config for usergroup Oct 29 10:12:51 dvpn_username_password_authentication: return code from get_client_config_by_username: -1 Oct 29 10:12:51 dvpn_username_password_authentication: no user config available. Oct 29 10:12:51 DVPN LOGIN request received for username (desmond) ip (172.27.6.103): Failed
//12.1X46 Oct 28 17:40:02 httpd gk sending DVPN LOGIN request for username (desmond) ip (172.27.6.103) Oct 28 17:40:02 httpd_gk_mgd_connect_cb: httpd gk request for fd 12 type 3 Oct 28 17:40:02 acadia_authenticate_user: username = desmond, token = , client_identifier = df6d64acdcdaf34cab589de0391f1f4d Oct 28 17:40:02 dvpn_username_password_authentication: username = desmond Oct 28 17:40:02 acadia_fwauthd_authenticate: checking socket connection for write on socket 13 ... Oct 28 17:40:02 acadia_fwauthd_check_socket: checking socket connection... Oct 28 17:40:02 acadia_fwauthd_authenticate: sending auth request to fwauthd to socket 13 Oct 28 17:40:02 source IP: ac1b0667 Oct 28 17:40:02 acadia_fwauthd_authenticate: write to fwauthd ret=6628, errno=45
Oct 28 17:40:02 acadia_fwauthd_authenticate: checking socket connection for read on socket 13 ... Oct 28 17:40:02 acadia_fwauthd_check_socket: checking socket connection... Oct 28 17:40:02 acadia_fwauthd_authenticate: Waiting for response from fwauthd user desmond Oct 28 17:40:02 source IP: ac1b0667 Oct 28 17:40:02 acadia_fwauthd_authenticate: firewall authentication completed Read 6628 bytes from fwauthd on socket 13, auth code 2, username desmond
Oct 28 17:40:02 source IP: ac1b0667 Oct 28 17:40:02 Authentication of user desmond with fwauthd successful Oct 28 17:40:02 groups_str2list: num_groups: 1 Oct 28 17:40:02 store_groups: group_name from authd: Sales Oct 28 17:40:02 store_groups: group_name in httpd-gk: Sales Oct 28 17:40:02 dvpn_username_password_authentication: fwauthd succeeded Oct 28 17:40:02 print_group_list Oct 28 17:40:02 "Sales" Oct 28 17:40:02 check_user: user does not exist Oct 28 17:40:02 do_add_token: username "desmond", usergroup "Sales", ike user type = 2 Oct 28 17:40:02 find_acadia_cib_by_user: Searching CIB info for user: desmond Oct 28 17:40:02 find_acadia_cib_by_user: Could not find cinfo for user: desmond Oct 28 17:40:02 get_token_entry_by_ike_id: Searching token info for user connection with ike-id: 92a710db3e9471324fe0f0f299948176 Oct 28 17:40:02 get_token_entry_by_ike_id: Found token entry for user connection at 172.27.6.103 with ike id 92a710db3e9471324fe0f0f299948176 Oct 28 17:40:02 dvpn_check_license--license available Oct 28 17:40:02 prepare_client_config: License check request sent with token_idx 0, ike-id desmonddvpn, socket 12, gk type 3 Oct 28 17:40:02 send_msg_to_gk: received license check status for token_idx 0 on socket 12 and gk type 3.
Oct 28 17:40:02 send_msg_to_gk: License available for desmond with ike-id desmonddvpn.
