This article explains how a DHCPv6 client(SRX) using IA_NA and IA_PD obtains the IPv6 address from an SRX device which is running as the DHCPv6 server. This article provides commands to configure and verify an entire configuration suite.

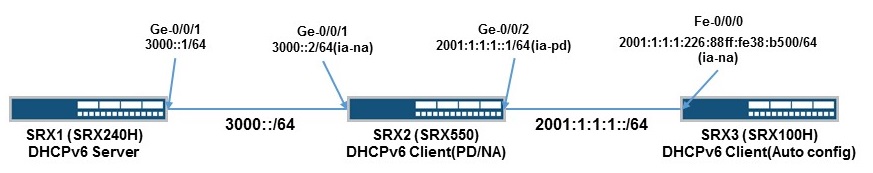

This article will provide a configuration suite using SRX devices for DHCPv6 Topology as shown below.
All the configurations below have been confirmed using Junos OS 12.1X46-D45.
SRX1 DHCPv6 server
DHCPv6 server configuration /*delegated-pool <PD address pool > is needed, when DHCPv6 server act as both PD and NA server. set system services dhcp-local-server dhcpv6 overrides interface-client-limit 100 set system services dhcp-local-server dhcpv6 group my-group overrides interface-client-limit 200 set system services dhcp-local-server dhcpv6 group my-group overrides delegated-pool v6-pd-pool set system services dhcp-local-server dhcpv6 group my-group interface ge-0/0/1.0 Interface configuration set interfaces ge-0/0/1 unit 0 family inet6 address 3000::1/64 Router advertisement configuration set protocols router-advertisement interface ge-0/0/1.0 max-advertisement-interval 10 set protocols router-advertisement interface ge-0/0/1.0 min-advertisement-interval 5 set protocols router-advertisement interface ge-0/0/1.0 other-stateful-configuration set protocols router-advertisement interface ge-0/0/1.0 prefix 3000::/64 Enable IPv6 (chassis reboot is required) set security forwarding-options family inet6 mode flow-based PD address pool configuration set access address-assignment pool v6-pd-pool family inet6 prefix 2001:1:1::/48 set access address-assignment pool v6-pd-pool family inet6 range vp-pd prefix-length 48 NA address pool configuration set access address-assignment pool v6-na-pool family inet6 prefix 3000::/64 set access address-assignment pool v6-na-pool family inet6 range v6-range low 3000::2/128 set access address-assignment pool v6-na-pool family inet6 range v6-range high 3000::10/128 SRX2 DHCPv6 client (PD/NA)
/*delegated-pool <PD address pool > is needed, when DHCPv6 server act as both PD and NA server. set system services dhcp-local-server dhcpv6 overrides interface-client-limit 100 set system services dhcp-local-server dhcpv6 group my-group overrides interface-client-limit 200 set system services dhcp-local-server dhcpv6 group my-group overrides delegated-pool v6-pd-pool set system services dhcp-local-server dhcpv6 group my-group interface ge-0/0/1.0
set interfaces ge-0/0/1 unit 0 family inet6 address 3000::1/64
set protocols router-advertisement interface ge-0/0/1.0 max-advertisement-interval 10 set protocols router-advertisement interface ge-0/0/1.0 min-advertisement-interval 5 set protocols router-advertisement interface ge-0/0/1.0 other-stateful-configuration set protocols router-advertisement interface ge-0/0/1.0 prefix 3000::/64
set security forwarding-options family inet6 mode flow-based
set access address-assignment pool v6-pd-pool family inet6 prefix 2001:1:1::/48 set access address-assignment pool v6-pd-pool family inet6 range vp-pd prefix-length 48
set access address-assignment pool v6-na-pool family inet6 prefix 3000::/64 set access address-assignment pool v6-na-pool family inet6 range v6-range low 3000::2/128 set access address-assignment pool v6-na-pool family inet6 range v6-range high 3000::10/128
Interface configuration set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-type statefull set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-ia-type ia-pd set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-ia-type ia-na set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client update-router-advertisement interface ge-0/0/2.0 max-advertisement-interval 10 set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client update-router-advertisement interface ge-0/0/2.0 min-advertisement-interval 5 set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-identifier duid-type duid-ll Router advertisement configuration /*This is to receive router advertisement from the server to create default route automatically. set protocols router-advertisement interface ge-0/0/1.0 Enable IPv6 (chassis reboot is required) set security forwarding-options family inet6 mode flow-based SRX3 DHCPv6 Client (Auto config)
set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-type statefull set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-ia-type ia-pd set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-ia-type ia-na set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client update-router-advertisement interface ge-0/0/2.0 max-advertisement-interval 10 set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client update-router-advertisement interface ge-0/0/2.0 min-advertisement-interval 5 set interfaces ge-0/0/1 unit 0 family inet6 dhcpv6-client client-identifier duid-type duid-ll
/*This is to receive router advertisement from the server to create default route automatically. set protocols router-advertisement interface ge-0/0/1.0
Interface configuration set interfaces fe-0/0/0 unit 0 family inet6 dhcpv6-client client-type autoconfig set interfaces fe-0/0/0 unit 0 family inet6 dhcpv6-client client-ia-type ia-na set interfaces fe-0/0/0 unit 0 family inet6 dhcpv6-client client-identifier duid-type duid-ll Router advertisement configuration /*This is to receive router advertisement from PD device to create default route automatically. set protocols router-advertisement interface fe-0/0/0.0 Enable IPv6 (chassis reboot is required) set security forwarding-options family inet6 mode flow-based
set interfaces fe-0/0/0 unit 0 family inet6 dhcpv6-client client-type autoconfig set interfaces fe-0/0/0 unit 0 family inet6 dhcpv6-client client-ia-type ia-na set interfaces fe-0/0/0 unit 0 family inet6 dhcpv6-client client-identifier duid-type duid-ll
/*This is to receive router advertisement from PD device to create default route automatically. set protocols router-advertisement interface fe-0/0/0.0
Note : On DHCPv6 Server SRX, for Router advertisement configuration, "prefix 3000::/64" is configured in this article. If "equal or less than /48 prefix" is preferred, see PR1161394 (addressed from 12.1X46-D50, 12.1X47-D40, 12.3X48-D30).
root@SRX1> show dhcpv6 server binding detail Session Id: 46 Client IPv6 Prefix: 2001:1:1::/48 Client IPv6 Address: 3000::2/128 Client DUID: LL0x1-3c:94:d5:98:90:01 State: BOUND(DHCPV6_LOCAL_SERVER_STATE_BOUND) Lease Expires: 2016-03-16 02:15:34 UTC Lease Expires in: 84778 seconds Lease Start: 2016-03-15 02:15:34 UTC Last Packet Received: 2016-03-15 02:15:35 UTC Incoming Client Interface: ge-0/0/1.0 Server Ip Address: 0.0.0.0 Client Pool Name: v6-na-pool Client Prefix Pool Name: v6-pd-pool Client Id Length: 10 Client Id: /0x00030001/0x3c94d598/0x9001 root@SRX1> show route table inet6 inet6.0: 6 destinations, 6 routes (6 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 2001:1:1::/48 *[Access/13] 00:27:04 <<<<<< Route for end device will be automatically generated > to fe80::3e94:d5ff:fe98:8601 via ge-0/0/1.0 3000::/64 *[Direct/0] 3d 19:09:08 > via ge-0/0/1.0 3000::1/128 *[Local/0] 3d 19:09:08 Local via ge-0/0/1.0 3000::2/128 *[Access-internal/12] 00:27:04 > to 3000::1 via ge-0/0/1.0 fe80::/64 *[Direct/0] 2w4d 22:24:52 > via ge-0/0/1.0 fe80::b2c6:9aff:fe7d:6901/128 *[Local/0] 2w4d 22:25:00 Local via ge-0/0/1.0 root@SRX1> show ipv6 router-advertisement Interface: ge-0/0/1.0 Advertisements sent: 13, last sent 00:00:08 ago Solicits received: 0 Advertisements received: 0 root@SRX1>
SRX2 DHCPv6 client (PD/NA)
root@SRX2> show dhcpv6 client binding detail Client Interface: ge-0/0/1.0 Hardware Address: 3c:94:d5:98:86:01 State: BOUND(DHCPV6_CLIENT_STATE_BOUND) ClientType: STATEFUL Lease Expires: 2016-03-16 02:17:50 UTC Lease Expires in: 84739 seconds Lease Start: 2016-03-15 02:17:50 UTC Bind Type: IA_NA IA_PD Client DUID: LL0x3-3c:94:d5:98:86:01 Rapid Commit: Off Server Ip Address: fe80::b2c6:9aff:fe7d:6901 Client IP Address: 3000::2/128 Client IP Prefix: 2001:1:1::/48 DHCP options: Name: server-identifier, Value: VENDOR0x00000583-0x41453530 root@SRX2> show route table inet6 inet6.0: 8 destinations, 10 routes (8 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both ::/0 *[Access-internal/12] 00:27:43 > to fe80::b2c6:9aff:fe7d:6901 via ge-0/0/1.0 2001:1:1:1::/64 *[Direct/0] 00:27:45 > via ge-0/0/2.0 2001:1:1:1::1/128 *[Local/0] 00:27:45 <<<<<< IPv6 address allocated by Prefix delegation Local via ge-0/0/2.0 3000::/64 *[Access-internal/12] 00:27:43 > to fe80::b2c6:9aff:fe7d:6901 via ge-0/0/1.0 3000::2/128 *[Direct/0] 00:27:43 <<<<<< IPv6 address assigned by DHCPv6 server > via ge-0/0/1.0 [Local/0] 00:27:43 Local via ge-0/0/1.0 fe80::/64 *[Direct/0] 17:52:39 > via ge-0/0/1.0 [Direct/0] 00:27:45 > via ge-0/0/2.0 fe80::3e94:d5ff:fe98:8601/128 *[Local/0] 17:52:39 Local via ge-0/0/1.0 fe80::3e94:d5ff:fe98:8602/128 *[Local/0] 00:27:45 Local via ge-0/0/2.0 root@SRX2> show ipv6 router-advertisement Interface: ge-0/0/1.0 Advertisements sent: 0, last sent 00:03:34 ago Solicits received: 0 Advertisements received: 21 Advertisement from fe80::b2c6:9aff:fe7d:6901, heard 00:00:07 ago Managed: 0 Other configuration: 1 [0] Reachable time: 0 ms Default lifetime: 30 sec [1800 sec] Retransmit timer: 0 ms Current hop limit: 64 Prefix: 3000::/64 Valid lifetime: 2592000 sec Preferred lifetime: 604800 sec On link: 1 Autonomous: 1 Interface: ge-0/0/2.0 Advertisements sent: 15, last sent 00:00:00 ago Solicits received: 0 Advertisements received: 0 root@SRX2>
root@SRX2> show dhcpv6 client binding detail Client Interface: ge-0/0/1.0 Hardware Address: 3c:94:d5:98:86:01 State: BOUND(DHCPV6_CLIENT_STATE_BOUND) ClientType: STATEFUL Lease Expires: 2016-03-16 02:17:50 UTC Lease Expires in: 84739 seconds Lease Start: 2016-03-15 02:17:50 UTC Bind Type: IA_NA IA_PD Client DUID: LL0x3-3c:94:d5:98:86:01 Rapid Commit: Off Server Ip Address: fe80::b2c6:9aff:fe7d:6901 Client IP Address: 3000::2/128 Client IP Prefix: 2001:1:1::/48 DHCP options: Name: server-identifier, Value: VENDOR0x00000583-0x41453530 root@SRX2> show route table inet6 inet6.0: 8 destinations, 10 routes (8 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both ::/0 *[Access-internal/12] 00:27:43 > to fe80::b2c6:9aff:fe7d:6901 via ge-0/0/1.0 2001:1:1:1::/64 *[Direct/0] 00:27:45 > via ge-0/0/2.0 2001:1:1:1::1/128 *[Local/0] 00:27:45 <<<<<< IPv6 address allocated by Prefix delegation Local via ge-0/0/2.0 3000::/64 *[Access-internal/12] 00:27:43 > to fe80::b2c6:9aff:fe7d:6901 via ge-0/0/1.0 3000::2/128 *[Direct/0] 00:27:43 <<<<<< IPv6 address assigned by DHCPv6 server > via ge-0/0/1.0 [Local/0] 00:27:43 Local via ge-0/0/1.0 fe80::/64 *[Direct/0] 17:52:39 > via ge-0/0/1.0 [Direct/0] 00:27:45 > via ge-0/0/2.0 fe80::3e94:d5ff:fe98:8601/128 *[Local/0] 17:52:39 Local via ge-0/0/1.0 fe80::3e94:d5ff:fe98:8602/128 *[Local/0] 00:27:45 Local via ge-0/0/2.0
root@SRX2> show ipv6 router-advertisement Interface: ge-0/0/1.0 Advertisements sent: 0, last sent 00:03:34 ago Solicits received: 0 Advertisements received: 21 Advertisement from fe80::b2c6:9aff:fe7d:6901, heard 00:00:07 ago Managed: 0 Other configuration: 1 [0] Reachable time: 0 ms Default lifetime: 30 sec [1800 sec] Retransmit timer: 0 ms Current hop limit: 64 Prefix: 3000::/64 Valid lifetime: 2592000 sec Preferred lifetime: 604800 sec On link: 1 Autonomous: 1 Interface: ge-0/0/2.0 Advertisements sent: 15, last sent 00:00:00 ago Solicits received: 0 Advertisements received: 0
root@SRX2>
SRX3 DHCPv6 client (Autoconfig)
root@SRX3> show dhcpv6 client binding detail Client Interface: fe-0/0/0.0 Hardware Address: 00:26:88:38:b5:00 State: BOUND(DHCPV6_CLIENT_STATE_BOUND) ClientType: AUTO Lease Expires: 2016-03-16 02:35:48 UTC Lease Expires in: 86391 seconds Lease Start: 2016-03-15 02:35:48 UTC Bind Type: IA_NA Client DUID: LL0x3-00:26:88:38:b5:00 Rapid Commit: Off Server Ip Address: ::/0 Client IP Address: 2001:1:1:1:226:88ff:fe38:b500/128 Client IP Prefix: 2001:1:1:1::/64 root@SRX3> show route table inet6 inet6.0: 5 destinations, 6 routes (5 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both ::/0 *[Access-internal/12] 00:28:22 > to fe80::3e94:d5ff:fe98:8602 via fe-0/0/0.0 2001:1:1:1::/64 *[Access-internal/12] 00:28:22 > to fe80::3e94:d5ff:fe98:8602 via fe-0/0/0.0 2001:1:1:1:226:88ff:fe38:b500/128 *[Direct/0] 00:28:22 > via fe-0/0/0.0 [Local/0] 00:28:22 Local via fe-0/0/0.0 fe80::/64 *[Direct/0] 17:22:30 > via fe-0/0/0.0 fe80::226:88ff:fe38:b500/128 *[Local/0] 17:22:30 Local via fe-0/0/0.0 root@SRX3> show ipv6 router-advertisement Interface: fe-0/0/0.0 Advertisements sent: 0, last sent 00:02:11 ago Solicits received: 0 Advertisements received: 24 Advertisement from fe80::3e94:d5ff:fe98:8602, heard 00:00:03 ago Managed: 0 Other configuration: 0 Reachable time: 0 ms Default lifetime: 30 sec [1800 sec] Retransmit timer: 0 ms Current hop limit: 64 Prefix: 2001:1:1:1::/64 Valid lifetime: 86400 sec Preferred lifetime: 86400 sec On link: 1 Autonomous: 1 root@SRX3>
Client Interface: fe-0/0/0.0 Hardware Address: 00:26:88:38:b5:00 State: BOUND(DHCPV6_CLIENT_STATE_BOUND) ClientType: AUTO Lease Expires: 2016-03-16 02:35:48 UTC Lease Expires in: 86391 seconds Lease Start: 2016-03-15 02:35:48 UTC Bind Type: IA_NA Client DUID: LL0x3-00:26:88:38:b5:00 Rapid Commit: Off Server Ip Address: ::/0 Client IP Address: 2001:1:1:1:226:88ff:fe38:b500/128 Client IP Prefix: 2001:1:1:1::/64 root@SRX3> show route table inet6 inet6.0: 5 destinations, 6 routes (5 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both ::/0 *[Access-internal/12] 00:28:22 > to fe80::3e94:d5ff:fe98:8602 via fe-0/0/0.0 2001:1:1:1::/64 *[Access-internal/12] 00:28:22 > to fe80::3e94:d5ff:fe98:8602 via fe-0/0/0.0 2001:1:1:1:226:88ff:fe38:b500/128 *[Direct/0] 00:28:22 > via fe-0/0/0.0 [Local/0] 00:28:22 Local via fe-0/0/0.0 fe80::/64 *[Direct/0] 17:22:30 > via fe-0/0/0.0 fe80::226:88ff:fe38:b500/128 *[Local/0] 17:22:30 Local via fe-0/0/0.0
root@SRX3> show ipv6 router-advertisement Interface: fe-0/0/0.0 Advertisements sent: 0, last sent 00:02:11 ago Solicits received: 0 Advertisements received: 24 Advertisement from fe80::3e94:d5ff:fe98:8602, heard 00:00:03 ago Managed: 0 Other configuration: 0 Reachable time: 0 ms Default lifetime: 30 sec [1800 sec] Retransmit timer: 0 ms Current hop limit: 64 Prefix: 2001:1:1:1::/64 Valid lifetime: 86400 sec Preferred lifetime: 86400 sec On link: 1 Autonomous: 1 root@SRX3>
