Description

Please see below for SRX 5K module Hardware and Software compatibility.

Solution



SRX 5400, 5600 and 5800 series HW/SW Compatibility Matrix


Junos Milestones12.3X48-D10  * 15.1X49-D1018.2R1-S119.3R1
Software
Support 		FRS Date2015-06-032015-06-302018-08-142019-09-26
End of JTAC Support2022-06-302020-05-012021-12-292023-03-26
Midplane MidplaneYesYesYesYes
Enhanced MidplaneNoYesYesYes
Switch
Control
Board 		SCB1 **
SRX5K-SCB 		YesNo No No
SCB2  (HC)
SRX5K-SCBE 		YesYesYesYes
SCB3  (HC)
SRX5K-SCB3 		No YesYesYes
SCB4 (HC)   (3)
SRX5K-SCB4 		No No No Yes
Routing
Engine 		RE1 **
SRX5K-RE-13-20 		YesNo No No
RE2  (HC)
SRX5K-RE-1800X4 		YesYesYesYes
RE3  (HC)
SRX5K-RE3-128G 		No No No Yes
Services
Card 		SPC1 **
SRX5K-SPC-2-10-40 		YesNo No No
SPC2 (HC)   (2)
SRX5K-SPC-4-15-320 		YesYesYesYes
SPC3  (HC)   (SR:11)
SRX5K-SPC3 		No No Yes  (1) Yes
I/O Card IOC1 **
SRX5K-40GE-SFP
SRX5K-4XGE-XFP
SRX5K-FPC-IOC 		YesNo No No
IOC2  (HC)
SRX5K-MPC 		YesYesYesYes
IOC3  (HC)
SRX5K-MPC3-100G-10G
SRX5K-MPC3-40G10G 		No YesYesYes
IOC4  (HC)   (SR:0,11)
SRX5K-IOC4-10G
SRX5K-IOC4-MRAT 		No No No Yes

(1) Requires minimum 18.2R1-S1 (TSB17414) [juniper.net] .
(2) Refer to TSB16742 [juniper.net] for minimum OS recommendation
(3) Not supported on SRX5400.
(HC)  Requires high-capacity Fans and PEMs
(SR:0,11)  Slot restrictions: Not supported on slots 0 and 11 of the SRX5800.
(SR:11)  Slot restriction: Not supported on slot 11of the SRX5800.
SRX5K Services Gateway Card Reference

*  Extended EOL SW release – (NOT HW SUPPORT DATES)
**  HW: End of Eng Support = 5/1/2019; End of JTAC = 5/1/2021
Junos EOL page




HW Interoperability Matrix for SRX5400, SRX5600, and SRX5800 Services Gateways

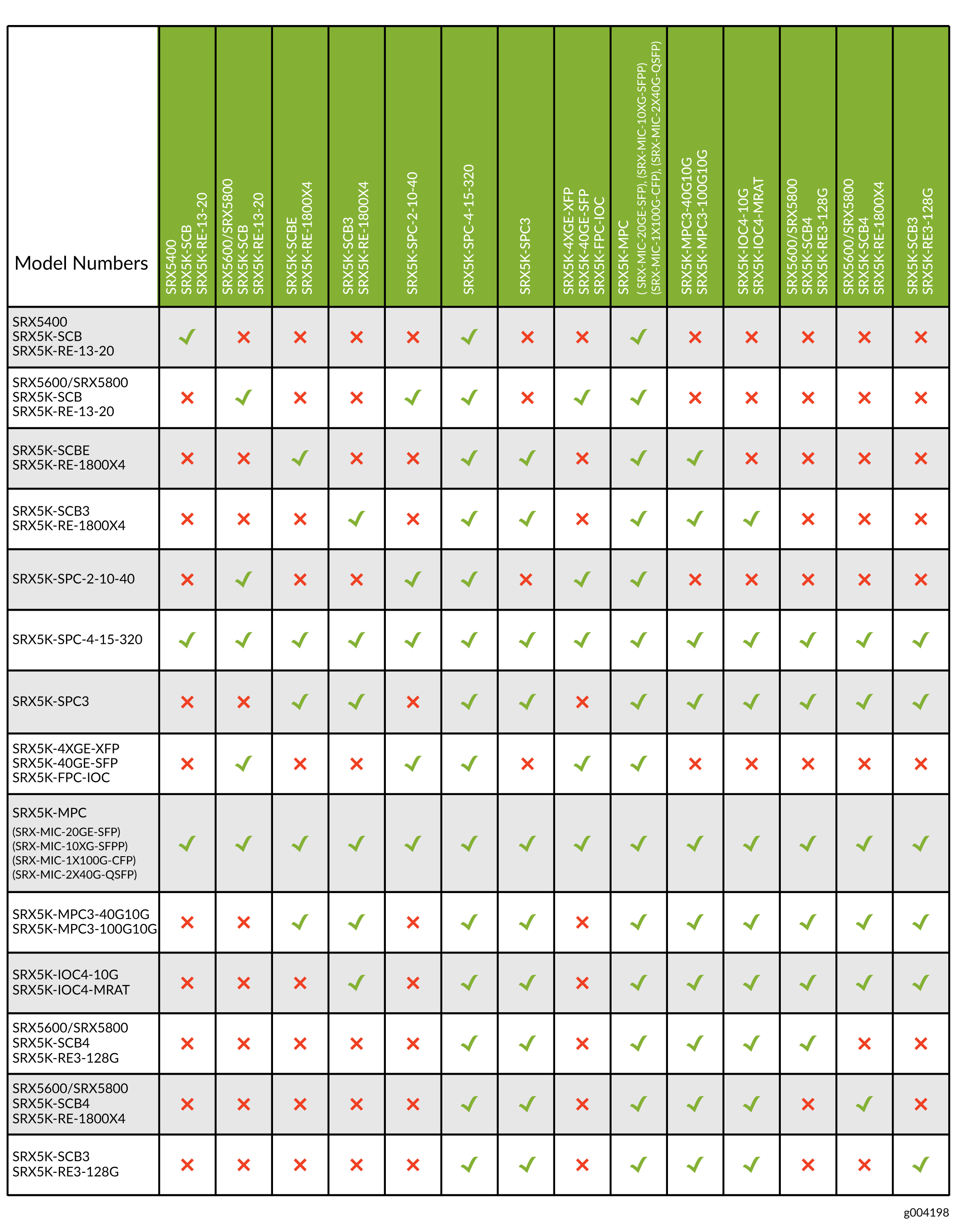

 KB30446 - SRX Matrix Image.png
Notes:
  • SPC3 mixed mode (SPC3s and SPC2s in the same chassis) is supported starting from 18.4R1 with restrictions . ISHU is not supported.
