There is a limitation with EX4300 and QFX5100 switches where more than one Layer 2 interface cannot be configured for static ARP.

Microsoft network load balancing uses multicast MAC address 03:XX and unicast IP. The ARP entries are not updated with multicast MAC and unicast IP (this goes against RFC 1812). Static ARP (unicast IP to multicast MAC) mapping needs to be created as there is a limitation where you cannot configure more than a single Layer 2 interface for static ARP.

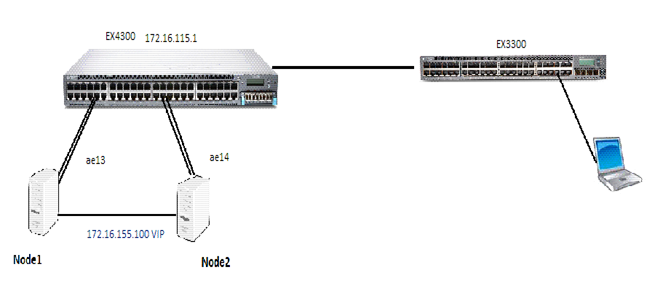

This limitation in EX4300/QFX5100 switches is shown below:

{master:1}[edit interfaces irb]
root@Switch# show
unit 172 {
 family inet {
   address 172.1.1.1/24 {
    arp 172.1.1.2 l2-interface ge-ae13.0 multicast-mac 03:bf:ac:01:01:02; <== (Note: In the 14.1x version we can commit config without l2-interface but it does not work until you specify the l2-interface)
    }
  }
}


Below are two example workarounds for the network load-balancing issue:

• Connect a Layer 2 switch between the EX4300 switch and the server.
• Create a Layer 3 inet interface and loop it back to a Layer 2 VLAN.

Workaround 1: Connect a Layer 2 switch between the EX4300 switch and server

We need to change the setup by introducing a Layer 2 switch between the EX4300 switch and server.

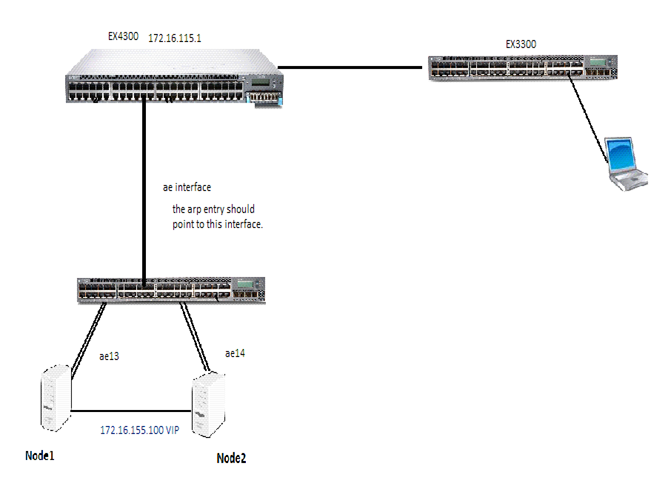

The refined topology would look like this:

This is mentioned in the Microsoft documentation:

See the Microsoft documentation at technet.microsoft.com/en-us/library/cc962174.aspx  for more information.

Workaround 2: Create a Layer 3 inet interface and loop it back to the network load-balancing Layer 2 server VLAN

We have to create a separate Layer 3 inet interface using the subnet address that the network load-balancing server will utilize and then connect (loop) this Layer 3 interface to a port on the same VC/switch in the Layer 2 VLAN. This will overcome the limitation of pointing the ARP entry only to one Layer 2 interface and then connecting the server to the Layer 2 VLAN.

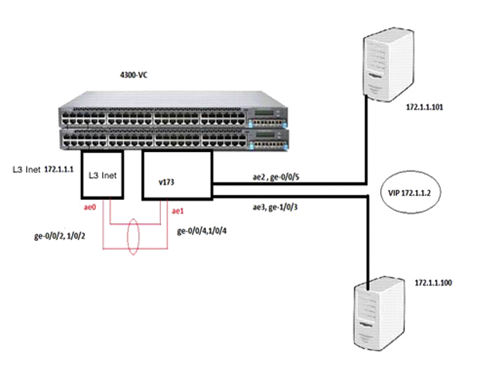

A similar setup with the network load-balancing scenario was tested:

The example shows the following network load-balancing scenario:

• Subnet gateway address as 172.1.1.1/24
• Layer 3 interface as AE0 (this interface will be connected to AE1)
• Cluster address as 172.1.1.2
• Multicast MAC as 01:00:5e:7f:5c:d3
• Layer 2 VLAN as v173
• Layer 2 LAG as AE1 (this interface will be connected to AE0)
• Server ports as AE2 (ge-0/0/5) and AE3 (ge-1/0/3)

Configuration

The Layer 3 interface needs to be configured, can be a LAG or single interface. The example is shown with a LAG:

The Layer 2 VLAN needs to be configured with looped-backed LAG and ports (can be LAGs or single interfaces) going to the network load-balancing servers placed in the same network load-balancing VLAN:

The LAG number needs to be set:

Caveats:

• xSTP needs to be disabled on individual ports that are part of the LAGs.
• The network load-balancing Layer 3 port should not be part of xSTP.
• Network load-balancing Layer 2 ports can be part of xSTP, depending on your requirements.
• Multiple network load-balancing ARP-to-multicast MAC entries can be done under the Layer 3 interface.

• PR 986781 - EX 4300//13.2X51-D15//Configuring static Arp requires a l2-interface
