This article contains a configuration example of site-to-site, route-based VPNs between SRX and Cisco ASA, with multiple networks behind the SRX and ASA, and full mesh traffic between the networks. For additional configuration examples, see KB28861 - Examples – Configuring site-to-site VPNs between SRX and Cisco ASA [juniper.net] . For related technical documentation, see IPsec VPN Feature Guide for Security Devices .
Problem: VPNs to Cisco peers utilizing full-mesh networks, require proper traffic routing to allow correct VPN tunnel selection Goal: Configure a site-to-site, route-based VPN between SRX and Cisco ASA, with full-mesh traffic between multiple networks behind SRX and ASA by using Filter Based Forwarding and routing instances.

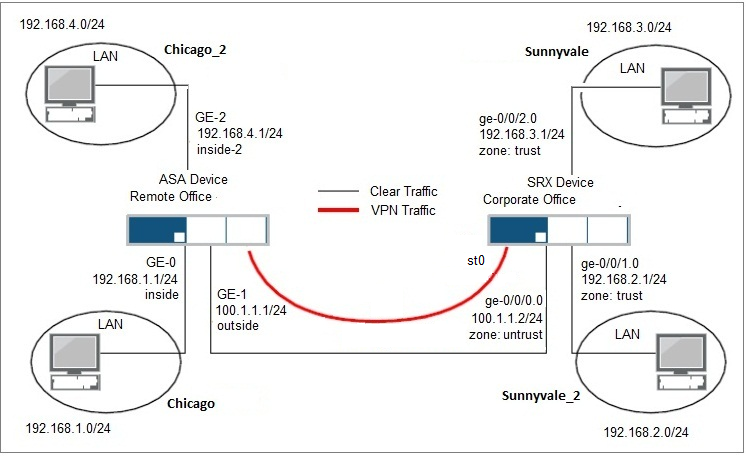

Network Topology:
Configuration for SRX
Note: Multiple security zones and policies are necessary as st0 interfaces are bound to different routing-instances. Each time a interface is bound to a routing instance it must reside separate from other security zones, as security zones cannot span routing-instances. For more information about security zones and its restrictions, refer to KB16556 - SRX Getting Started - Configure Interfaces and Security Zone [juniper.net] .
st0
root# show |no-more system { root-authentication { encrypted-password “$ABC123"; ## SECRET-DATA } services { ssh; telnet; xnm-clear-text; } syslog { archive size 100k files 3; user * { any emergency; } file messages { any critical; authorization info; } file interactive-commands { interactive-commands error; } } } interfaces { ge-0/0/0 { unit 0 { family inet { address 100.1.1.2/24; } } } ge-0/0/1 { unit 0 { family inet { filter { input ASA_vpn: } address 192.168.2.1/24; } } } ge-0/0/2 { unit 0 { family inet { filter { input ASA_vpn: } address 192.168.3.1/24; } } } st0 { unit 0 { family inet; } unit 1 { family inet; } unit 2 { family inet; } unit 3 { family inet; } } } routing-options { interface-routes { rib-group inet group1; } static { route 0.0.0.0/0 next-hop 100.1.1.1; } rib-groups { group1 { import-rib [ inet.0 ASA-1.inet.0 ASA-2.inet.0 ]; } } } security { ike { proposal ike-phase1-proposal { authentication-method pre-shared-keys; dh-group group2; authentication-algorithm sha1; encryption-algorithm 3des-cbc; lifetime-seconds 86400; } policy ike-phase1-policy { mode main; proposals ike-phase1-proposal; pre-shared-key ascii-text "$ABC123"; ## SECRET-DATA } gateway gw-chicago { ike-policy ike-phase1-policy; address 100.1.1.1; external-interface ge-0/0/0.0; } } ipsec { proposal ipsec-phase2-proposal { protocol esp; authentication-algorithm hmac-md5-96; encryption-algorithm des-cbc; lifetime-seconds 28800; } policy ipsec-phase2-policy { perfect-forward-secrecy { keys group2; } proposals ipsec-phase2-proposal; } vpn ike-vpn-chicago { bind-interface st0.0; ike { gateway gw-chicago; proxy-identity { local 192.168.2.0/24; remote 192.168.1.0/24; service any; } ipsec-policy ipsec-phase2-policy; } establish-tunnels immediately; } vpn ike-vpn-chicago_1 { bind-interface st0.1; ike { gateway gw-chicago; proxy-identity { local 192.168.2.0/24; remote 192.168.4.0/24; service any; } ipsec-policy ipsec-phase2-policy; } establish-tunnels immediately; } vpn ike-vpn-chicago_2 { bind-interface st0.2; ike { gateway gw-chicago; proxy-identity { local 192.168.3.0/24; remote 192.168.1.0/24; service any; } ipsec-policy ipsec-phase2-policy; } establish-tunnels immediately; } vpn ike-vpn-chicago_3 { bind-interface st0.3; ike { gateway gw-chicago; proxy-identity { local 192.168.3.0/24; remote 192.168.4.0/24; service any; } ipsec-policy ipsec-phase2-policy; } establish-tunnels immediately; } } policies { from-zone trust to-zone untrust_vpn_1 { policy vpn_tr_untr_vpn_1a { match { source-address sunnyvale; destination-address chicago; application any; } then { permit; } } policy vpn_tr_untr_vpn_1b { match { source-address sunnyvale; destination-address chicago_2; application any; } then { permit; } } } from-zone trust to-zone untrust_vpn_2 { policy vpn_tr_untr_vpn_2a { match { source-address sunnyvale_2; destination-address chicago; application any; } then { permit; } } policy vpn_tr_untr_vpn_2b { match { source-address sunnyvale_2; destination-address chicago_2; application any; } then { permit; } } } from-zone untrust_vpn_1 to-zone trust { policy vpn_untr_tr_vpn_1a { match { source-address chicago; destination-address sunnyvale; application any; } then { permit; } } policy vpn_untr_tr_vpn_1b { match { source-address chicago_2; destination-address sunnyvale; application any; } then { permit; } } } from-zone untrust_vpn_2 to-zone trust { policy vpn_untr_tr_vpn_2a { match { source-address chicago; destination-address sunnyvale_2; application any; } then { permit; } } policy vpn_untr_tr_vpn_2b { match { source-address chicago_2; destination-address sunnyvale_2; application any; } then { permit; } } } } zones { security-zone trust { address-book { address sunnyvale 192.168.2.0/24; address sunnyvale_2 192.168.3.0/24; } host-inbound-traffic { system-services { all; } } interfaces { ge-0/0/1.0; ge-0/0/2.0; } } security-zone untrust { host-inbound-traffic { system-services { ike; } } interfaces { ge-0/0/0.0; } } security-zone untrust_vpn_1 { address-book { address chicago 192.168.1.0/24; address chicago_2 192.168.4.0/24; } interfaces { st0.0; st0.1; } } security-zone untrust_vpn_2 { address-book { address chicago 192.168.1.0/24; address chicago_2 192.168.4.0/24; } interfaces { st0.2; st0.3; } } } } firewall { family inet { filter ASA_vpn { term 1 { from { source-address { 192.168.2.0/24; } destination-address { 192.168.1.0/24; 192.168.4.0/24; } } then { routing-instance ASA-1; } } term 2 { from { source-address { 192.168.3.0/24; } destination-address { 192.168.1.0/24; 192.168.4.0/24; } } then { routing-instance ASA-2; } term 3 { then accept; } } } } routing-instances { ASA-1 { instance-type virtual-router; interface st0.0; interface st0.1; routing-options { static { route 192.168.1.0/24 next-hop st0.0; route 192.168.4.0/24 next-hop st0.1; } } } ASA-2 { instance-type virtual-router; interface st0.2; interface st0.3; routing-options { static { route 192.168.1.0/24 next-hop st0.2; route 192.168.4.0/24 next-hop st0.3; } } } }
Interface Configuration: -------------------------------------------------------- ! interface GigabitEthernet0 nameif inside security-level 100 ip address 192.168.1.1 255.255.255.0 ! interface GigabitEthernet1 nameif outside security-level 0 ip address 100.1.1.1 255.255.255.0 ! interface GigabitEthernet2 nameif inside-2 security-level 100 ip address 192.168.4.1 255.255.255.0 ! Policy Configuration : --------------------------------------------------------------------------------------------- access-list s2s extended permit ip 192.168.4.0 255.255.255.0 192.168.2.0 255.255.255.0 access-list s2s extended permit ip 192.168.4.0 255.255.255.0 192.168.3.0 255.255.255.0 access-list s2s extended permit ip 192.168.1.0 255.255.255.0 192.168.2.0 255.255.255.0 access-list s2s extended permit ip 192.168.1.0 255.255.255.0 192.168.3.0 255.255.255.0 IPSEC/IKE Configuration : ---------------------------------------------------------------------------------------------- crypto ipsec ikev1 transform-set CISCO esp-des esp-md5-hmac crypto map outside_map 20 match address s2s crypto map outside_map 20 set pfs crypto map outside_map 20 set peer 100.1.1.2 crypto map outside_map 20 set ikev1 transform-set CISCO crypto map outside_map 20 set security-association lifetime seconds 28800 crypto map outside_map interface outside crypto isakmp identity address no crypto isakmp nat-traversal crypto ikev1 enable outside crypto ikev1 policy 20 authentication pre-share encryption 3des hash sha group 2 lifetime 86400 tunnel-group 100.1.1.2 type ipsec-l2l tunnel-group 100.1.1.2 ipsec-attributes ikev1 pre-shared-key *****
SRX:
root>show security ike security-associations Index State Initiator cookie Responder cookie Mode Remote Address 6809471 UP e0205a738b30309a 6745d4109557d3bf Main 100.1.1.1 root>show security ipsec security-associations Total active tunnels: 4 ID Algorithm SPI Life:sec/kb Mon vsys Port Gateway <131073 ESP:des/ md5 3fd2de13 27886/unlim - root 500 100.1.1.1 >131073 ESP:des/ md5 4bff0b8d 27886/unlim - root 500 100.1.1.1 <131074 ESP:des/ md5 e149c0c3 28679/unlim - root 500 100.1.1.1 >131074 ESP:des/ md5 d6a81a5 28679/unlim - root 500 100.1.1.1 <131075 ESP:des/ md5 c1fc05e7 27946/unlim - root 500 100.1.1.1 >131075 ESP:des/ md5 52553c18 27946/unlim - root 500 100.1.1.1 <131076 ESP:des/ md5 d243ace7 28679/unlim - root 500 100.1.1.1 >131076 ESP:des/ md5 a1b5d1f 28679/unlim - root 500 100.1.1.1 root>show security ipsec security-associations detail | no-more Virtual-system: root Local Gateway: 100.1.1.2, Remote Gateway: 100.1.1.1 Local Identity: ipv4_subnet(any:0,[0..7]=192.168.2.0/24) Remote Identity: ipv4_subnet(any:0,[0..7]=192.168.1.0/24) Version: IKEv1 DF-bit: clear Direction: inbound, SPI: 3fd2de13, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 27876 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27254 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Direction: outbound, SPI: 4bff0b8d, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 27876 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27254 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Virtual-system: root Local Gateway: 100.1.1.2, Remote Gateway: 100.1.1.1 Local Identity: ipv4_subnet(any:0,[0..7]=192.168.3.0/24) Remote Identity: ipv4_subnet(any:0,[0..7]=192.168.1.0/24) Version: IKEv1 DF-bit: clear Direction: inbound, SPI: e149c0c3, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28669 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 28029 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Direction: outbound, SPI: d6a81a5, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28669 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 28029 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Virtual-system: root Local Gateway: 100.1.1.2, Remote Gateway: 100.1.1.1 Local Identity: ipv4_subnet(any:0,[0..7]=192.168.2.0/24) Remote Identity: ipv4_subnet(any:0,[0..7]=192.168.4.0/24) Version: IKEv1 DF-bit: clear Direction: inbound, SPI: c1fc05e7, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 27936 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27313 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Direction: outbound, SPI: 52553c18, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 27936 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27313 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Virtual-system: root Local Gateway: 100.1.1.2, Remote Gateway: 100.1.1.1 Local Identity: ipv4_subnet(any:0,[0..7]=192.168.3.0/24) Remote Identity: ipv4_subnet(any:0,[0..7]=192.168.4.0/24) Version: IKEv1 DF-bit: clear Direction: inbound, SPI: d243ace7, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28669 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 28052 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Direction: outbound, SPI: a1b5d1f, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28669 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 28052 seconds Mode: Tunnel, Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 root>show security ipsec statistics ESP Statistics: Encrypted bytes: 20480 Decrypted bytes: 3944 Encrypted packets: 150 Decrypted packets: 46 AH Statistics: Input bytes: 0 Output bytes: 0 Input packets: 0 Output packets: 0 Errors: AH authentication failures: 0, Replay errors: 0 ESP authentication failures: 0, ESP decryption failures: 0 Bad headers: 0, Bad trailers: 0 root# run show route inet.0: 9 destinations, 9 routes (9 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 0.0.0.0/0 *[Static/5] 00:18:46 > to 100.1.1.1 via ge-0/0/0.0 100.1.1.0/24 *[Direct/0] 00:18:46 > via ge-0/0/0.0 100.1.1.2/32 *[Local/0] 00:18:55 Local via ge-0/0/0.0 192.168.2.0/24 *[Direct/0] 00:18:40 > via ge-0/0/1.0 192.168.2.1/32 *[Local/0] 00:18:55 Local via ge-0/0/1.0 192.168.3.0/24 *[Direct/0] 00:18:40 > via ge-0/0/2.0 192.168.3.1/32 *[Local/0] 00:18:55 Local via ge-0/0/2.0 ASA-1.inet.0: 3 destinations, 3 routes (3 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 100.1.1.0/24 *[Direct/0] 00:18:46 > via ge-0/0/0.0 192.168.1.0/24 *[Static/5] 00:02:14 > via st0.0 192.168.2.0/24 *[Direct/0] 00:18:40 > via ge-0/0/1.0 192.168.3.0/24 *[Direct/0] 00:18:40 > via ge-0/0/2.0 192.168.4.0/24 *[Static/5] 00:02:14 > via st0.1 ASA-2.inet.0: 3 destinations, 3 routes (3 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 100.1.1.0/24 *[Direct/0] 00:18:46 > via ge-0/0/0.0 192.168.1.0/24 *[Static/5] 00:02:14 > via st0.2 192.168.2.0/24 *[Direct/0] 00:18:40 > via ge-0/0/1.0 192.168.3.0/24 *[Direct/0] 00:18:40 > via ge-0/0/2.0 192.168.4.0/24 *[Static/5] 00:02:14 > via st0.3
2020-02-21: Changed encrypted password to “$ABC123".
