This article provides a scenario where the vrf-table-label is not working, along with a work-around.
The vrf-table-label is not working when configured on multiple logical systems (or a logical and main instance) when the core-facing physical interface (IFD) is the same and hosted on ichip (DPC)/ABC/LMNR.

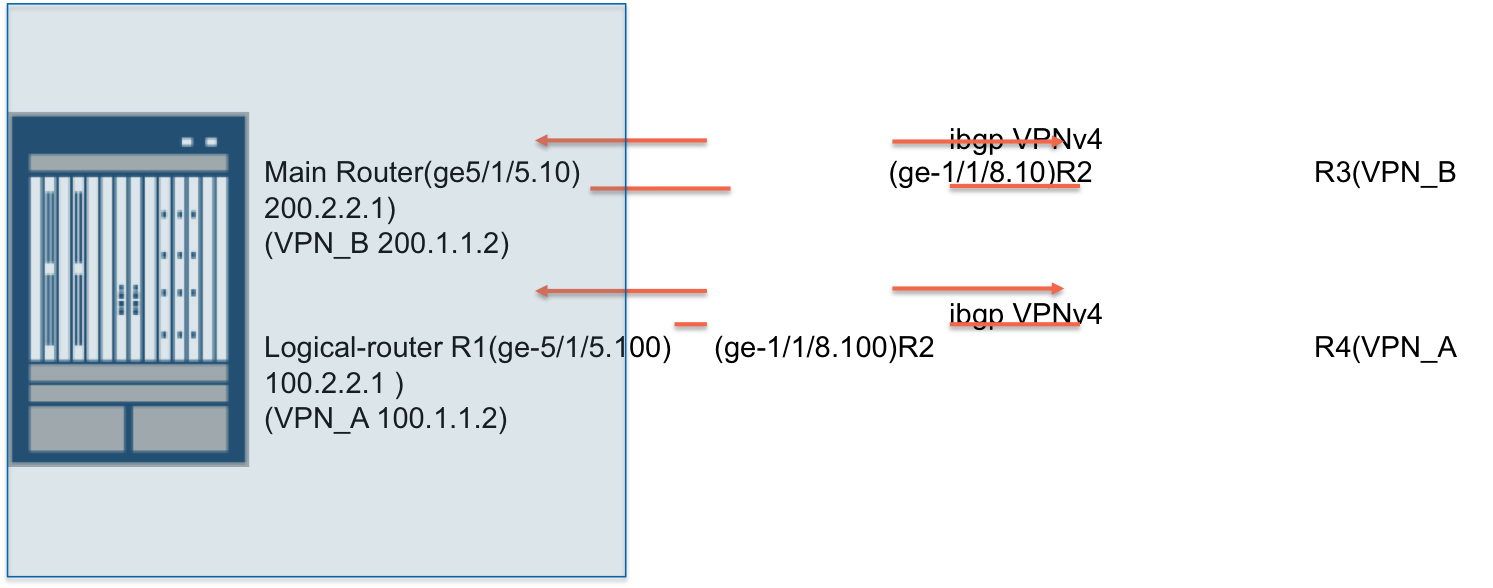

The common interface for the main router and logical-router is ge-5/1/5 .
ge-5/1/5
root@R1-re0# show routing-instances VPN_B { instance-type vrf; interface lo0.3; route-distinguisher 2:1; vrf-target target:2:1; vrf-table-label; } root@R1-re0# show logical-systems R1 routing-instances VPN_A { instance-type vrf; interface ge-5/1/9.0; interface lo0.2; route-distinguisher 1:1; vrf-target target:1:1; vrf-table-label; root@R1-re0# run show route table mpls logical-system R1 | match VPN 16 *[VPN/0] 01:37:53 to table VPN_A.inet.0, Pop [edit] root@R1-re0# run show route table mpls | match VPN 16 *[VPN/0] 01:13:55 to table VPN_B.inet.0, Pop root@R1-re0# run show route advertising-protocol bgp 172.16.1.3 VPN_B.inet.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path * 200.1.1.2/32 Self 100 I root@R1-re0# run show route advertising-protocol bgp 172.16.1.4 logical-system R1 VPN_A.inet.0: 4 destinations, 4 routes (4 active, 0 holddown, 0 hidden) Prefix Nexthop MED Lclpref AS path * 100.1.1.2/32 Self 100 I * 100.1.2.0/24 Self 100 I
The PFE (Packet Forwarding Engine) has the label 16 programmed on the same core facing interface IFD, ge-5/1/5, for all logical-systems/main router. Now, the problem happens depending upon which logical systems/main router VRF (Virtual Routing and Forwarding) label gets programmed last in the iif (incoming interface) channel table. IFL (logical interface) which gets programmed last will work fine and it will override what was earlier programmed on the PFE.
lab@R3-#run ping 200.1.1.2 routing-instance VPN_B rapid count 10000000 source 200.2.2.1 PING 200.1.1.2 (200.1.1.2): 56 data bytes !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! root@R1-re0> show chassis hardware | match "FPC 5" FPC 5 REV 25 750-022765 CAAA5577 DPCE 20x 1GE + 2x 10GE R root@R1-re0> request pfe execute command "show ifd brief" target fpc5 | match ge-5/1/5 GOT: 159 ge-5/1/5 Ethernet 0x0000000000008000 5 Up root@R1-re0> request pfe execute command "show iif ifd 159" target fpc5 | no-more | except " 0 " SENT: Ukern command: show iif ifd 159 GOT: GOT: ge-5/1/5, stream 0, chip 1, lookup idx 2 GOT: Stream default 0xe0022710, srw 0x00000000, iif 141072 GOT: Lookup tree: GOT: idx chan_type key_len level tree_type stream refcnt GOT: ----- ----- ----- ----- ----- ----- ----- GOT: Chan1 Chan2 iif Pkt_cnt pkt_rate byte_cnt continue GOT: ---------- --------- ----- ------------- --------- ------------- -------- GOT: 0x50000 0x88 364 247129 650 20758836 GOT: GOT: total channel entries entries 6 LOCAL: End of file For IFD 159 (ge-5/1/5) IFL 364 gets programmed in the PFE.
root@R1-re0> request pfe execute command "show ifl 364" target fpc5| match "Logical|IPv4" GOT: Logical interface lsi.1 (Index 364, Alias-Index 0 Peer-Index 0) GOT: Protocol: IPv4, MTU: 1496 bytes, Flags: 0x0000000000000080, Route table: 10
Routing-table 10 is associated with IFL 364 , which belongs to VPN_B.
root@R1-re0> request pfe execute command "show route ip table" target fpc5 | match "Name|10" GOT: Table Name Table Index (lrid ) # of Routes Bytes FRRP TID GOT: VPN_B.10 10 (0 ) 7 864 low 65535 (seg-0) 65535 (seg-0) 65535 (seg-0) 65535 (seg-0)
root@R4# run ping 100.1.1.2 routing-instance VPN_A rapid count 100000 source 100.2.2.1 PING 100.1.1.2 (100.1.1.2): 56 data bytes .................................................................................. root@R1-re0> request pfe execute command "show ifd brief" target fpc5 | match ge-5/1/5 GOT: 159 ge-5/1/5 Ethernet 0x0000000000008000 5 Up root@R1-re0> request pfe execute command "show iif ifd 159" target fpc5 | no-more | except " 0 " SENT: Ukern command: show iif ifd 159 GOT: GOT: ge-5/1/5, stream 0, chip 1, lookup idx 2 GOT: Stream default 0xe0022710, srw 0x00000000, iif 141072 GOT: Lookup tree: GOT: idx chan_type key_len level tree_type stream refcnt GOT: ----- ----- ----- ----- ----- ----- ----- GOT: Chan1 Chan2 iif Pkt_cnt pkt_rate byte_cnt continue GOT: ---------- --------- ----- ------------- --------- ------------- -------- GOT: 0x50002 n/a 321 5753 1 431830 GOT: 0x50003 n/a 65541 4710 1 323765 GOT: GOT: total channel entries entries 6 LOCAL: End of file
Two IFLs are programmed in the PFE for IFD 159.
root@R1-re0> request pfe execute command "show ifl 321" target fpc5| match "Logical|IPv4" GOT: Logical interface ge-5/1/5.10 (Index 321, Alias-Index 0 Peer-Index 0) GOT: Protocol: IPv4, MTU: 1500 bytes, Flags: 0x8000000200000000, Route table: 0 root@R1-re0> request pfe execute command "show ifl 65541" target fpc5| match "Logical|IPv4" GOT: Logical interface ge-5/1/5.100 (Index 65541, Alias-Index 0 Peer-Index 0) GOT: Protocol: IPv4, MTU: 1500 bytes, Flags: 0x8000000200000080, Route table: 6 root@R1-re0> request pfe execute command "show route ip table" target fpc5 | match "Name|R1/" GOT: Table Name Table Index (lrid ) # of Routes Bytes FRRP TID GOT: R1/VPN_A.9 9 (1 ) 12 1484 low 65535 (seg-0) 65535 (seg-0) 65535 (seg-0) 65535 (seg-0) GOT: R1/__master.anon__.7 7 (1 ) 5 616 low 65535 (seg-0) 65535 (seg-0) 65535 (seg-0) 65535 (seg-0) GOT: R1/default.6 6 (1 ) 21 2600 low 65535 (seg-0) 65535 (seg-0) 65535 (seg-0) 65535 (seg-0)
root@R1-re0# show | compare [edit logical-systems R1 routing-instances VPN_A] - vrf-table-label; root@R1-re0# commit commit complete lab@R1-re0# run show route table mpls logical-system R1 | match VPN 299840 *[VPN/170] 00:00:23 receive table VPN_A.inet.0, Pop root@R1-re0# show | compare [edit logical-systems R1 routing-instances VPN_A] + vrf-table-label; root@R1-re0# commit commit complete lab@R1-re0# run show route table mpls logical-system R1 | match VPN 17 *[VPN/0] 00:00:05 to table VPN_A.inet.0, Pop root@R4# run ping 100.1.1.2 routing-instance VPN_A rapid count 100000 source 100.2.2.1 PING 100.1.1.2 (100.1.1.2): 56 data bytes !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
At R3;
lab@R3#run ping 200.1.1.2 routing-instance VPN_B rapid count 10000000 source 200.2.2.1 PING 200.1.1.2 (200.1.1.2): 56 data bytes ......................................................................................
Now VPN_A traffic is getting leaked into VPN_B or in inet.0.
MPCs (Modular Port Concentrator) do not have this problem as they do not use same IIF channel table infrastructure like DPC's (Dense Port Concentrator), hence this issue would not happen there.
