This article contains a configuration example of site-to-site, route-based VPNs between a Juniper Networks SRX and Cisco ASA device with multiple networks behind the SRX. For additional configuration examples, see KB28861 - Examples – Configuring site-to-site VPNs between SRX and Cisco ASA [juniper.net] . For related technical documentation, see IPsec VPN Feature Guide for Security Devices .
Goal:

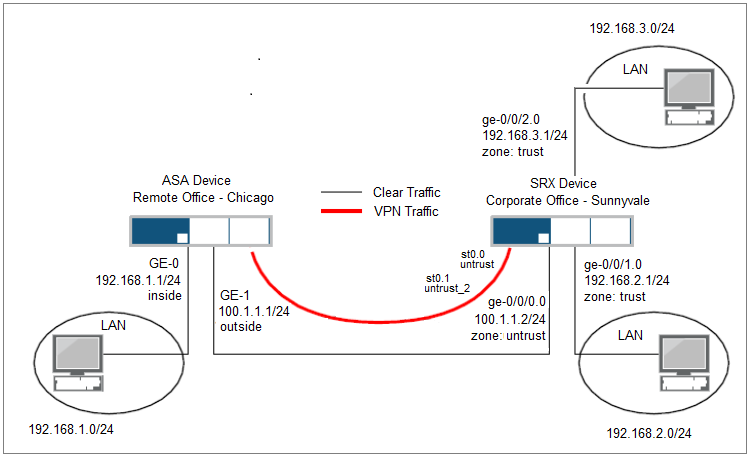

Network Topology:
Configuration for SRX
root# show |no-more system { root-authentication { encrypted-password “$ABC123"; ## SECRET-DATA } services { ssh; telnet; } syslog { archive size 100k files 3; user * { any emergency; } file messages { any critical; authorization info; } file interactive-commands { interactive-commands error; } } } interfaces { ge-0/0/0 { unit 0 { family inet { address 100.1.1.2/24; } } } ge-0/0/1 { unit 0 { family inet { address 192.168.2.1/24; } } } ge-0/0/2 { unit 0 { family inet { filter { input ASA; } address 192.168.3.1/24; } } } st0 { unit 0 { family inet; } unit 1 { family inet; } } } routing-options { interface-routes { rib-group inet myrib; } static { route 0.0.0.0/0 next-hop 100.1.1.1; route 192.168.1.0/24 next-hop st0.0; } rib-groups { myrib { import-rib [ inet.0 ASA.inet.0 ]; import-policy import-sunnyvale_1; } } } policy-options { policy-statement import-sunnyvale_1 { term 1 { from { route-filter 192.168.3.0/24 exact; } then accept; } term 2 { then reject; } } } security { ike { proposal ike-phase1-proposal { authentication-method pre-shared-keys; dh-group group2; authentication-algorithm sha1; encryption-algorithm 3des-cbc; lifetime-seconds 86400; } policy ike-phase1-policy { mode main; proposals ike-phase1-proposal; pre-shared-key ascii-text "$9$6qsMAtOrlMXNbp0MX"; ## SECRET-DATA } gateway gw-chicago { ike-policy ike-phase1-policy; address 100.1.1.1; external-interface ge-0/0/0.0; } } ipsec { proposal phase-2 { protocol esp; authentication-algorithm hmac-md5-96; encryption-algorithm des-cbc; lifetime-seconds 28800; } policy phase2-policy { perfect-forward-secrecy { keys group2; } proposals phase-2; } vpn ike-vpn-chicago { bind-interface st0.0; ike { gateway gw-chicago; proxy-identity { local 192.168.2.0/24; remote 192.168.1.0/24; service any; } ipsec-policy phase2-policy; } establish-tunnels immediately; } vpn ike-vpn-chicago_1 { bind-interface st0.1; ike { gateway gw-chicago; proxy-identity { local 192.168.3.0/24; remote 192.168.1.0/24; service any; } ipsec-policy phase2-policy; } establish-tunnels immediately; } } policies { from-zone trust to-zone untrust { policy vpn-tr-untr { match { source-address sunnyvale; destination-address chicago; application any; } then { permit; } } } from-zone trust to-zone untrust_2 { policy vpn-tr-untr_1 { match { source-address sunnyvale_1; destination-address chicago; application any; } then { permit; } } } from-zone untrust to-zone trust { policy vpn-untr-tr { match { source-address chicago; destination-address sunnyvale; application any; } then { permit ; } } } from-zone untrust_2 to-zone trust { policy vpn-untr-tr_1 { match { source-address chicago; destination-address sunnyvale_1; application any; } then { permit ; } } } } zones { security-zone trust { address-book { address sunnyvale 192.168.2.0/24; address sunnyvale_1 192.168.3.0/24; } host-inbound-traffic { system-services { all; } } interfaces { ge-0/0/1.0; ge-0/0/2.0; } } security-zone untrust { address-book { address chicago 192.168.1.0/24; } host-inbound-traffic { system-services { ike; } } interfaces { ge-0/0/0.0; st0.0; } } security-zone untrust_2 { address-book { address chicago 192.168.1.0/24; } interfaces { st0.1; } } } } firewall { family inet { filter ASA { term 1 { from { source-address { 192.168.3.0/24; } destination-address { 192.168.1.0/24; } } then { routing-instance ASA; } } term 2 { then accept; } } } } routing-instances { ASA { instance-type virtual-router; interface st0.1; routing-options { static { route 192.168.1.0/24 next-hop st0.1; } } } }
Interface Configuration: ------------------------------------------------------------------------------------------------------------------ ! interface GigabitEthernet0 nameif inside security-level 100 ip address 192.168.1.1 255.255.255.0 ! interface GigabitEthernet1 nameif outside security-level 0 ip address 100.1.1.1 255.255.255.0 ! Policy Configuration : ------------------------------------------------------------------------------------------------------------------ access-list 1to2 extended permit ip 192.168.1.0 255.255.255.0 192.168.2.0 255.255.255.0 access-list 1to3 extended permit ip 192.168.1.0 255.255.255.0 192.168.3.0 255.255.255.0 IPSEC/IKE Configuration : ----------------------------------------------------------------------------------------------------------------- crypto ipsec ikev1 transform-set CISCO esp-des esp-md5-hmac crypto map mymap 10 match address 1to2 crypto map mymap 10 set pfs crypto map mymap 10 set peer 100.1.1.2 crypto map mymap 10 set ikev1 transform-set CISCO crypto map mymap 10 set security-association lifetime seconds 28800 crypto map mymap 20 match address 1to3 crypto map mymap 20 set pfs crypto map mymap 20 set peer 100.1.1.2 crypto map mymap 20 set ikev1 transform-set CISCO crypto map mymap 20 set security-association lifetime seconds 28800 crypto map mymap interface outside crypto isakmp identity address no crypto isakmp nat-traversal crypto ikev1 enable outside crypto ikev1 policy 15 authentication pre-share encryption 3des hash sha group 2 lifetime 86400 tunnel-group 100.1.1.2 type ipsec-l2l tunnel-group 100.1.1.2 ipsec-attributes ikev1 pre-shared-key *****
SRX:
root> show security ike sa Index State Initiator cookie Responder cookie Mode Remote Address 1286965 UP 755c0b36446c59c8 32e6f87164c2b0c9 Main 100.1.1.1 root> show security ipsec sa Total active tunnels: 2 ID Algorithm SPI Life:sec/kb Mon vsys Port Gateway <131073 ESP:des/ md5 7224024b 28335/unlim - root 500 100.1.1.1 >131073 ESP:des/ md5 56783db3 28335/unlim - root 500 100.1.1.1 <131074 ESP:3des/sha1 bb9bcbc8 28366/unlim - root 500 100.1.1.1 >131074 ESP:3des/sha1 5857802 28366/unlim - root 500 100.1.1.1 root> show security ipsec sa detail ID: 131073 Virtual-system: root, VPN Name: ike-vpn-chicago Local Gateway: 100.1.1.2, Remote Gateway: 100.1.1.1 Local Identity: ipv4_subnet(any:0,[0..7]=192.168.2.0/24) Remote Identity: ipv4_subnet(any:0,[0..7]=192.168.1.0/24) Version: IKEv1 DF-bit: clear Bind-interface: st0.0 Direction: inbound, SPI: 7224024b, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28331 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27693 seconds Mode: Tunnel(0 0), Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Direction: outbound, SPI: 56783db3, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28331 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27693 seconds Mode: Tunnel(0 0), Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 ID: 131074 Virtual-system: root, VPN Name: ike-vpn-chicago_1 Local Gateway: 100.1.1.2, Remote Gateway: 100.1.1.1 Local Identity: ipv4_subnet(any:0,[0..7]=192.168.3.0/24) Remote Identity: ipv4_subnet(any:0,[0..7]=192.168.1.0/24) Version: IKEv1 DF-bit: clear Bind-interface: st0.1 Direction: inbound, SPI: bb9bcbc8, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28362 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27722 seconds Mode: Tunnel(0 0), Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-sha1-96, Encryption: 3des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 Direction: outbound, SPI: 5857802, AUX-SPI: 0 , VPN Monitoring: - Hard lifetime: Expires in 28362 seconds Lifesize Remaining: Unlimited Soft lifetime: Expires in 27722 seconds Mode: Tunnel(0 0), Type: dynamic, State: installed Protocol: ESP, Authentication: hmac-md5-96, Encryption: des-cbc Anti-replay service: counter-based enabled, Replay window size: 64 root> show security ipsec statistics | no-more ESP Statistics: Encrypted bytes: 110840 Decrypted bytes: 64932 Encrypted packets: 815 Decrypted packets: 773 AH Statistics: Input bytes: 0 Output bytes: 0 Input packets: 0 Output packets: 0 Errors: AH authentication failures: 0, Replay errors: 0 ESP authentication failures: 0, ESP decryption failures: 0 Bad headers: 0, Bad trailers: 0
2020-02-21: Changed encrypted password to “$ABC123".
