Description

This article describes the issue of the 'ESX configuration of Node <node-ip> is incorrect' error message being generated when attempting a snapshot of the Junos Space VA via the Junos Space UI.

Symptoms

The ' ESX configuration of Node <node-ip> is incorrect ' error message is generated when attempting a snapshot of the Junos Space VA install via the Junos Space UI.

Solution

This issue is due to the missing ESX server configuration in Junos Space.

The following error is generated, when a snapshot is taken. Go to Space > Platform > Administration >  Fabric > System Snapshot :
ESX configuration of Node <node-ip> is incorrect

To configure the ESX parameters, you should have the following details to proceed with the subsequent procedure:

  • ESX server IP
  • ESX server Username
  • ESX server password
  • Node name as configured on the ESX server

Go to Space > Platform > Administration >  Fabric :

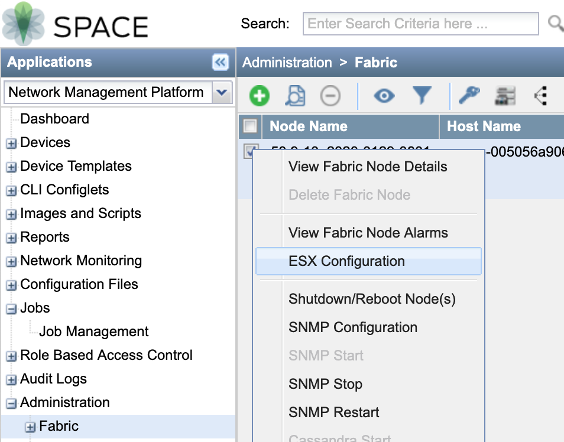

  • Select a node (select the check box), right-click it, and select ESX Configuration :

    alt

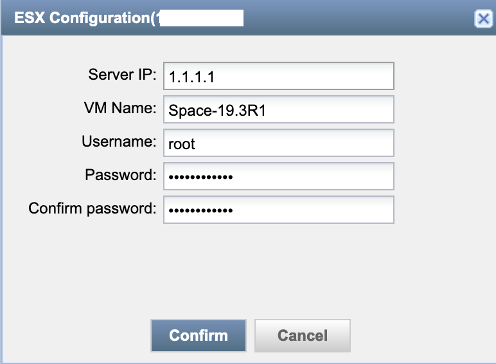

  • Type the following parameters:

    alt

    • Server IP : Server IP of the ESX server.

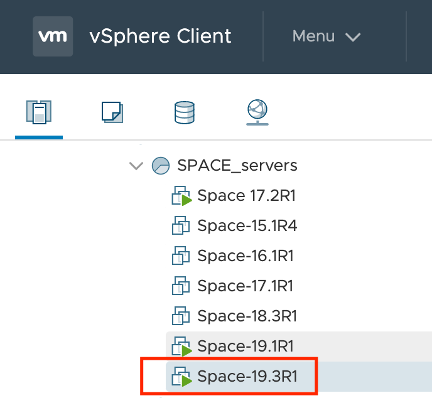

    • VM name : Name of the node as configured in the ESX server (please note that the name seen on Fabric page may not be same as that given in ESX server, and you need to use the VM name as per the ESX server, here Space-19.3R1)

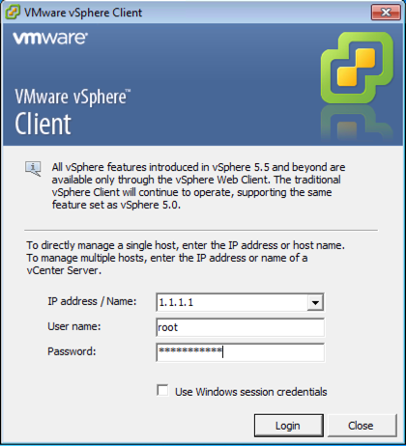

    • Username : Username to logon to the ESX server (refer to the VMware vSphere Client image).
    • Password : Password to logon to the ESX server (refer to the VMware vSphere Client image).
    • Confirm password : re-type the same password.

      alt

      alt
When the above configuration is set, you will be able to successfully run the Snapshot tool:

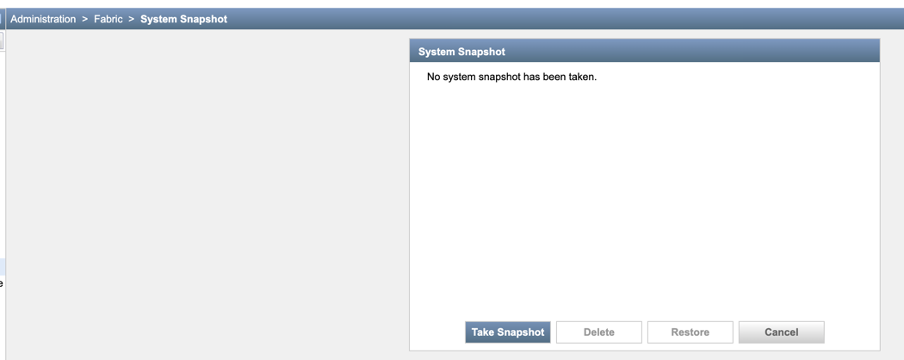

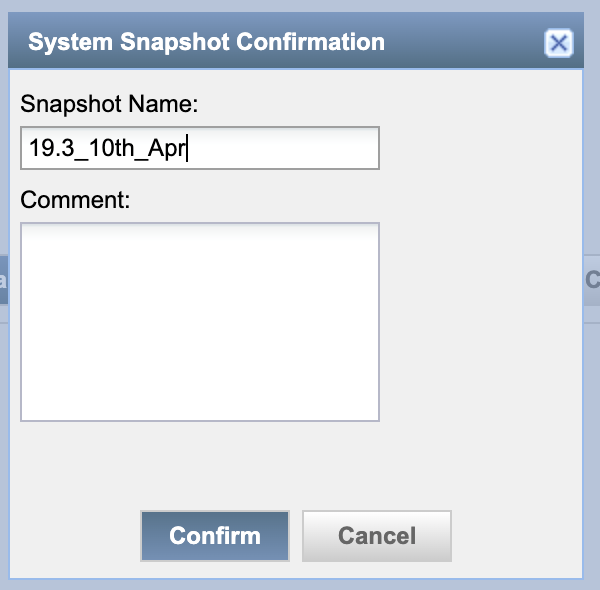

Go to Space Platform > Administration >  Fabric > System Snapshot > Take Snapshot . Type the details for Snapshot Name and Comments and click on Confirm.

alt

alt

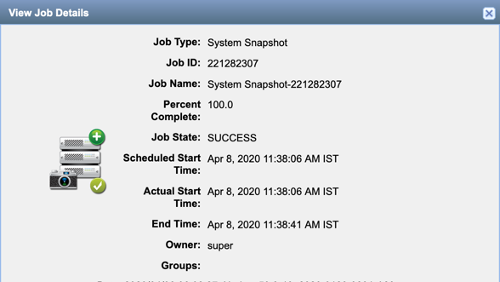

When the Job is complete, the following message will be displayed:

alt

This message indicates that the job is complete and the snapshot has been successfully taken.

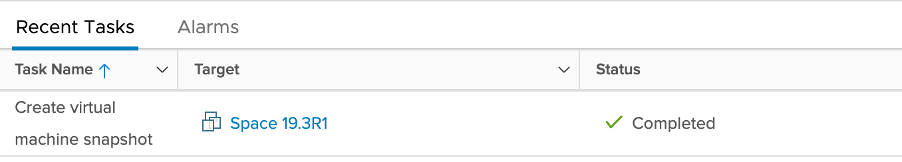

You will also see a 'Create virtual machine snapshot' task on the vSphere client under Recent Tasks, like below:
alt

If the above procedure does not work, contact your JTAC Representative for assistance.

Modification History

2020-04-09: Updated screenshots.
