In the EX-series switch implementation, sFlow-sampled records will not be exported out of management interfaces ( me0 or vme0 ) to avoid the possibility of overwhelming the CPU. In certain situations, the need to export sFlow data to a remote collector via the management network path still exists. To accommodate this requirement, it is possible to use the virtual routing instance feature on the EX-series Ethernet switch and utilize one of the network ports as a dedicated management port for sFlow to be exported via the management network.

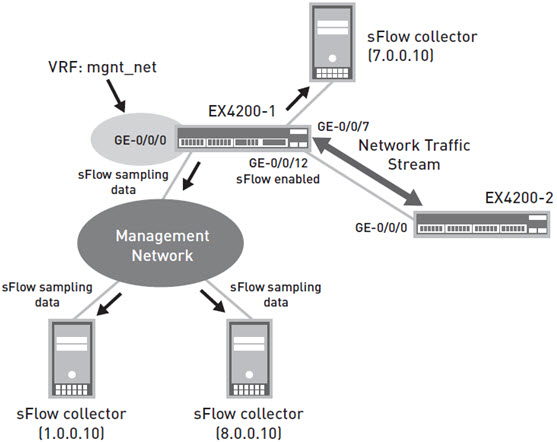

The three sFlow collectors are configured under the sFlow protocol on the EX4200-1 device:
user@switch# show protocols sflow { polling-interval 20; sample-rate 100; collector 1.0.0.10; collector 8.0.0.10; collector 7.0.0.10; interfaces ge-0/0/12.0; }
The following configuration places ge-0/0/0 on the EX4200-switch into the separate mgnt_net virtual routing instance to isolate it from other network interfaces on the switch. Static routes are also configured for out-of-band management for the EX4200-1 switch:
user@switch# show routing-instances mgnt_net { instance-type virtual-router; interface ge-0/0/0.0; routing-options { static { route 0.0.0.0/0 next-hop 30.0.0.13; route 1.0.0.10/32 next-hop 30.0.0.13; route 8.0.0.10/32 next-hop 30.0.0.13; } } }
The routing table on the EX4200-1 switch displays the following information:
user@switch# run show route inet.0:7 destinations, 7 routes (7 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 5.0.0.0/24 *[Direct/0] 23:23:22 > via ge-0/0/5.0 5.0.0.15/32 *[Local/0] 1d 03:20:14 Local via ge-0/0/5.0 6.0.0.0/24 *[Static/5] 1d 03:17:49 > to 20.0.0.16 via ge-0/0/12.0 7.0.0.0/24 *[Direct/0] 00:26:17 > via ge-0/0/7.0 7.0.0.15/32 *[Local/0] 00:26:17 Local via ge-0/0/7.0 mgnt_net.inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 0.0.0.0/0 *[Static/5] 00:26:17 > to 30.0.0.13 via ge-0/0/0.0 1.0.0.10/32 *[Static/5] 00:26:17 > to 30.0.0.13 via ge-0/0/0.0 8.0.0.10/32 *[Static/5] 00:26:17 > to 30.0.0.13 via ge-0/0/0.0 30.0.0.0/24 *[Direct/0] 00:26:17 > via ge-0/0/0.0 30.0.0.15/32 *[Local/0] 00:26:17 Local via ge-0/0/0.0
The sFlow agent on EX4200-1 needs the routing information in its default routing table to reach the sFlow collectors; so that it can export the sFlow data records to the collectors via the network interfaces. As shown above, EX4200-1 can reach the 7.0.0.10 collector, as this collector is connected to EX4200-1 via the ge-0/0/7 interface, which belongs to the default global routing instance. So, a route is pointing to 7.0.0.0/24 subnets in its default global routing table. The other collectors, 8.0.0.10 and 1.0.0.10 , are connected to EX4200-1 via the pseudo ge-0/0/0 management interface, which belongs to the separate mgnt_net virtual routing instance. So, EX4200-1 does not have routes to reach these two collectors in the default global routing table and the routes show up only in the mgnt_net virtual routing table. For EX4200-1 to export sFlow data records to the 8.0.0.10 and 1.0.0.10 collectors via the pseudo ge-0/0/0 management interface, the routes ( 8.0.0.10/32 and 1.0.0.10/32 ) must be advertised from the mgnt_net virtual routing instance to the default global routing instance. First, the policy statement must be set up, so that the sflow_collector policy statement will advertise two routes, 1.0.0.10/32 and 8.0.0.10/32 , from the mgnt_net virtual routing instance to the default global routing instance:
user@switch# show policy-options policy-statement sflow_collector { term t1 { from { instance mgnt_net; route-filter 1.0.0.10/32 exact; } then accept; } term t2 { from { instance mgnt_net; route-filter 8.0.0.10/32 exact; } then accept; } term default { then reject; } }
Next, the policy statement must be attached to the default global instance:
userswitch# show routing-options instance-import sflow_collector;
A quick review of the routing table indicates that two more routes ( 1.0.0.10/32 and 8.0.0.10/32 ) have been redistributed from the mgnt_net routing instance and the outgoing interface is ge-0/0/0 . The forwarding table also indicates that the next hop is 30.0.0.13 :
user@switch# run show route inet.0:9 destinations, 9 routes (9 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 1.0.0.10/32 *[Static/5] 00:01:08 > to 30.0.0.13 via ge-0/0/0.0 5.0.0.0/24 *[Direct/0] 23:23:22 > via ge-0/0/5.0 5.0.0.15/32 *[Local/0] 1d 03:20:14 Local via ge-0/0/5.0 6.0.0.0/24 *[Static/5] 1d 03:17:49 > to 20.0.0.16 via ge-0/0/12.0 7.0.0.0/24 *[Direct/0] 00:26:17 > via ge-0/0/7.0 7.0.0.15/32 *[Local/0] 00:26:17 Local via ge-0/0/7.0 8.0.0.10/32 *[Static/5] 00:01:08 > to 30.0.0.13 via ge-0/0/0.0 20.0.0.0/24 *[Direct/0] 1d 03:23:07 > via ge-0/0/12.0 20.0.0.15/32 *[Local/0] 1d 03:23:07 Local via ge-0/0/12.0 mgnt_net.inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 0.0.0.0/0 *[Static/5] 00:26:17 > to 30.0.0.13 via ge-0/0/0.0 1.0.0.10/32 *[Static/5] 00:26:17 > to 30.0.0.13 via ge-0/0/0.0 8.0.0.10/32 *[Static/5] 00:26:17 > to 30.0.0.13 via ge-0/0/0.0 30.0.0.0/24 *[Direct/0] 00:26:17 > via ge-0/0/0.0 30.0.0.15/32 *[Local/0] 00:26:17 Local via ge-0/0/0.0 user@switch # run show route forwarding-table destination 1.0.0.10 Routing table: default.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif 1.0.0.10/32 user 0 30.0.0.13 ucst 1315 7 ge-0/0/0.0 Routing table: __juniper_private1__.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 rjct 116 1 Routing table: __juniper_private2__.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 rjct 196 1 Routing table: __master.anon__.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 rjct 1286 1 Routing table: mgnt_net.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif 1.0.0.10/32 user 0 30.0.0.13 ucst 1315 7 ge-0/0/0.0 user@switch # run show route forwarding-table destination 8.0.0.10 Routing table: default.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif 8.0.0.10/32 user 0 30.0.0.13 ucst 1315 7 ge-0/0/0.0 Routing table: __juniper_private1__.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 rjct 116 1 Routing table: __juniper_private2__.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 rjct 196 1 Routing table: __master.anon__.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif default perm 0 rjct 1286 1 Routing table: mgnt_net.inet Internet: Destination Type RtRef Next hop Type Index NhRef Netif 8.0.0.10/32 user 0 30.0.0.13 ucst 1315 7 ge-0/0/0.0

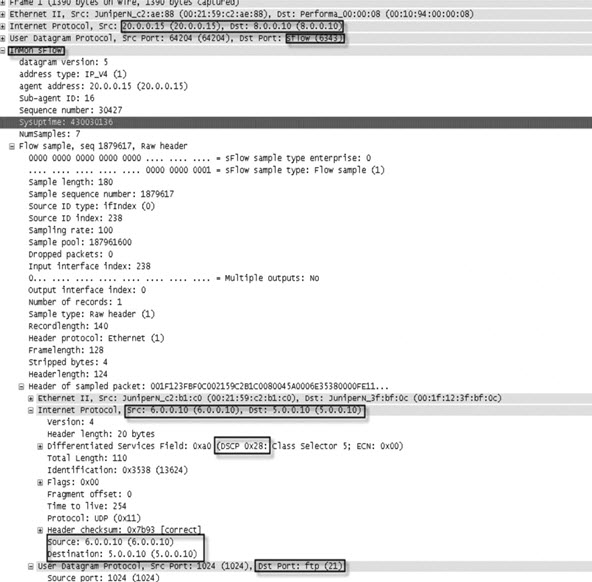

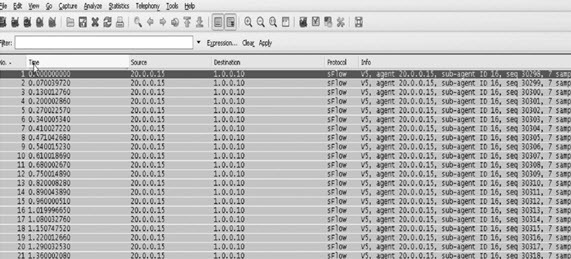

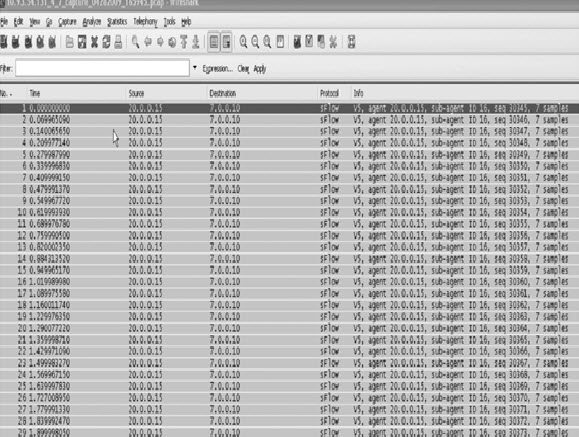

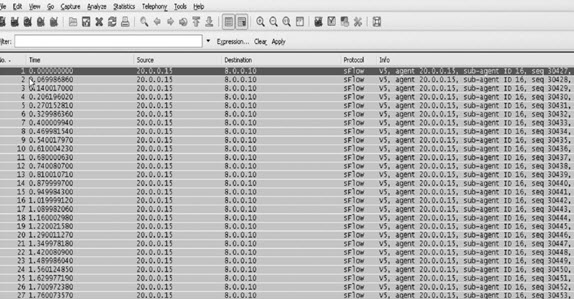

After starting the traffic between EX4200-1 and EX4200-2, sFlow sampled records are being sent to all three collectors, which are actually in different virtual routing instances. The following image illustrates the captures on the 7.0.0.10 collector: The following image illustrates the capturs on the 1.0.0.10 collector: The following image illustrates the captures on the 8.0.0.10 collector: A closer look at the sFlow sampled data records, which were exported to the 8.0.0.10 collector, indicate that the network traffic stream that enters the sFlow-enabled interface - ge-0/0/12 on EX4200-1 switch has the following patterns:
