This article provides a method to configure an IP-IP tunnel on SRX.

How to configure an IP-IP tunnel on SRX.

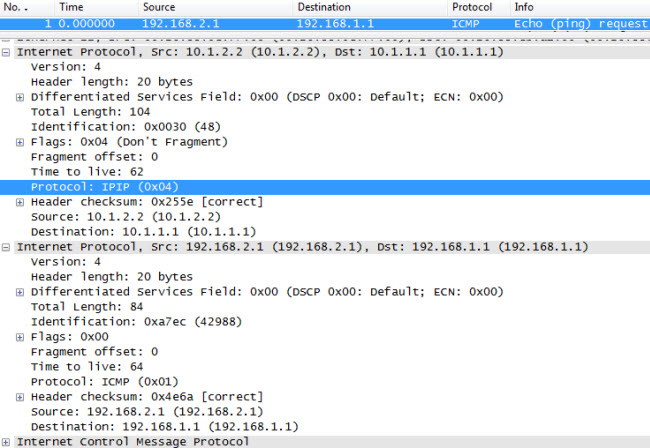

IP-IP tunneling is a method by which an IP datagram is encapsulated within an IP datagram. This is a method to establish communication between two networks, which otherwise would not be able to communicate.

1. Configure an IP tunnel interface. In the following example, 1.1.1.1/30 is the IP address of the IP tunnel interface and 10.1.1.1 and 10.1.2.2 are the end points of the tunnel.

   root@PR-PRO-MDC-SRX02# show interfaces
ge-0/0/0 {
    unit 0 {
        family inet {
            address 10.1.1.1/24;
        }
    }
}
ip-0/0/0 {
    unit 0 {
        tunnel {
            source 10.1.1.1;
            destination 10.1.2.2;
        }
family inet {
    address 1.1.1.1/30;
}
    }
}
ge-0/0/1 {
    unit 0 {
        family inet {
            address 192.168.1.1/24;
        }
    }
}

• Bind the ip-0/0/0 interface to a security zone:

  root@PR-PRO-MDC-SRX02# show security zones security-zone untrust
host-inbound-traffic {
    system-services {
        all;
    }
protocols {
    all;
}
}
interfaces {
    ge-0/0/0.0;
    ip-0/0/0.0;
}

• Configure a route to the remote network. In this example, 192.168.2.0/24 is the remote network.

  [edit routing-options]
root@PR-PRO-MDC-SRX02# show
static {
    route 0.0.0.0/0 next-hop 10.1.2.2;
    route 192.168.2.0/24 next-hop ip-0/0/0.0;
}

• Ensure that the appropriate security policies are in place for the traffic to successfully flow.

Note: Currently IP-IP tunnel in chassis cluster is not supported for branch SRX devices and J-series devices. In case the support is required in Chassis Cluster, please raise an Enhancement Request (ER) by contacting the SE.
