This article provides information on how to configure the IAS server.

How to configure the IAS server.

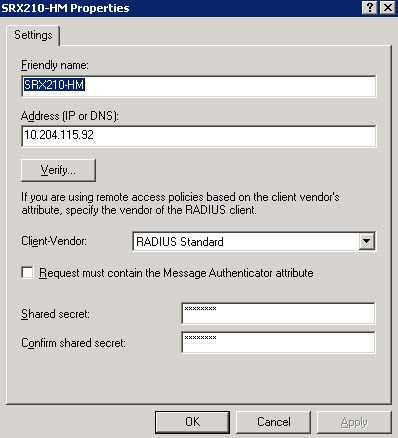

1. Right click Radius Client and select New Radius Client . The following image will be displayed; type the details and click OK :

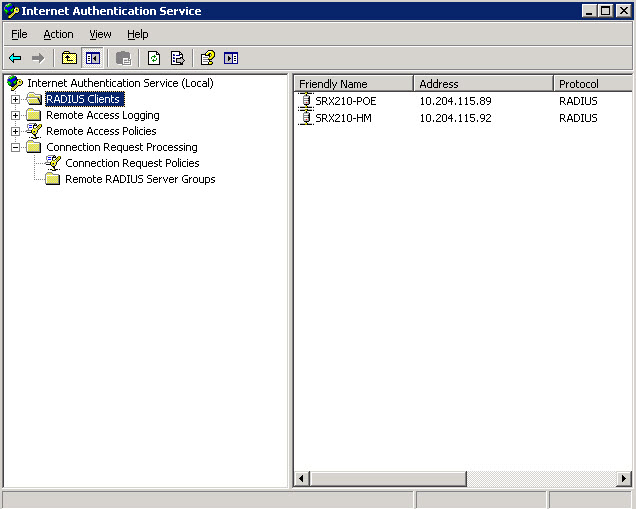

2. The newly created Radius client will be listed as shown in the image below:



1. Right click Remote Access Policy and select New Remote Access Policy :

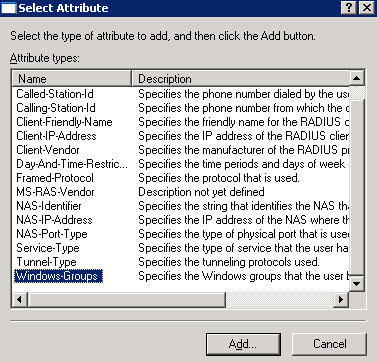

2. Click Add ; the Select Attribute dialog box is displayed:

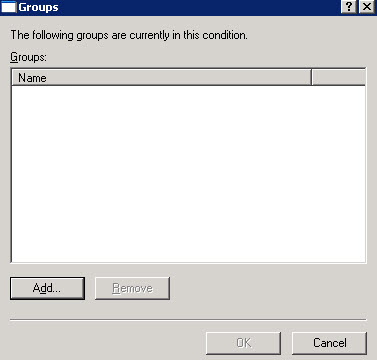

3. Select  Windows-Group and click Add ; the Groups dialog box is displayed:

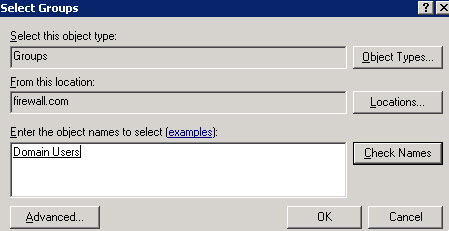

4. Click Add; the Select Groups dialog box is displayed:

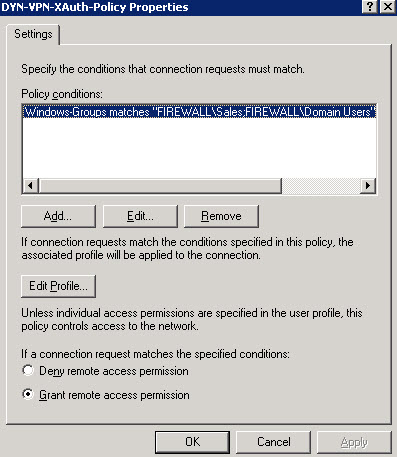

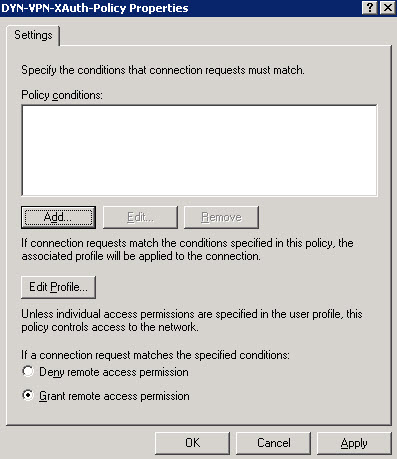

5. Search for the user group, click Check Names , and select the group. The Domain Users user group has been used as an example. After selecting the group, click OK . The following dialog box is displayed:




6. Click Edit Profile ; the following dialog box is displayed:

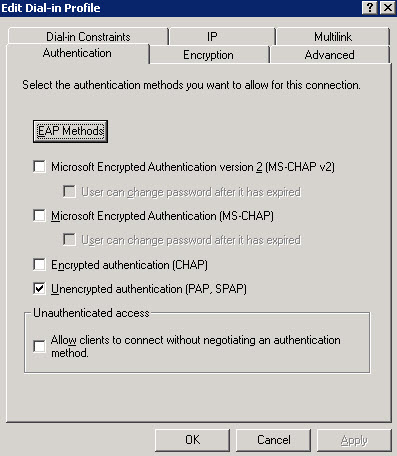

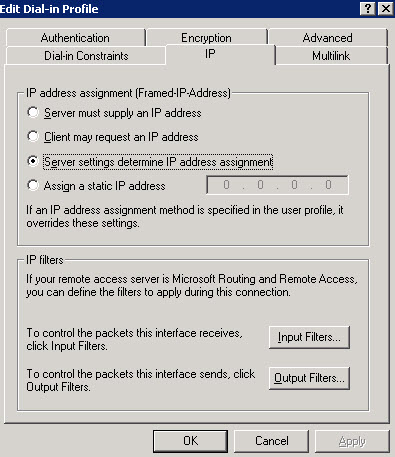

7. Click the Authentication tab and uncheck all options; except for Unencrypted authentication [PAP , SPAP] . Now click the IP tab and select only the Server settings determine IP address assignment option:

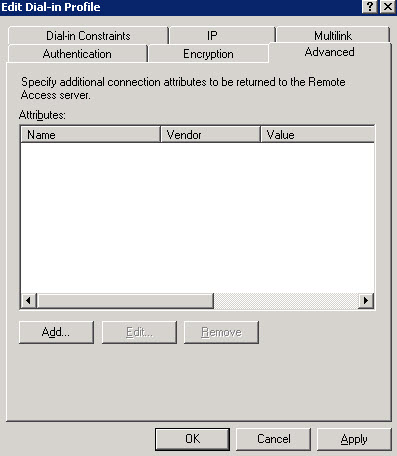

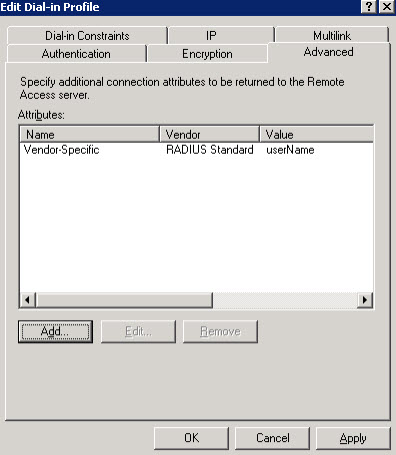

8. Click the Advanced tab:




9. In the Advanced tab, click Add; the Add Attribute dialog box is displayed:

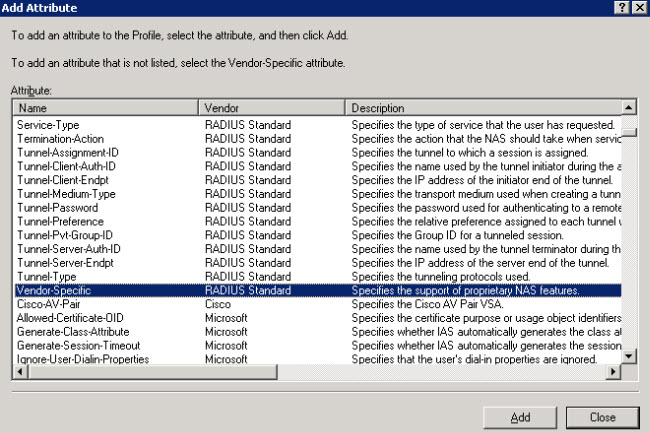

10. In the Add Attribute dialog box, select Vendor Specific and click Add :

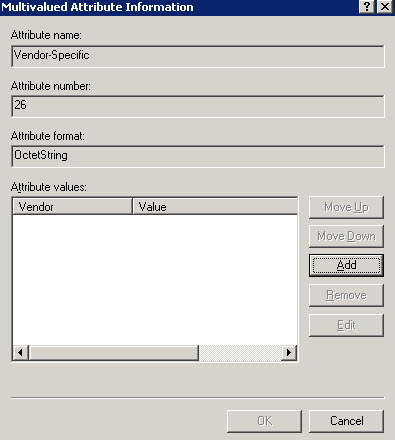

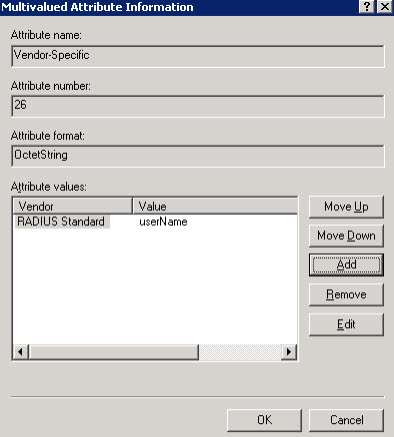

    In the above window, click Add :

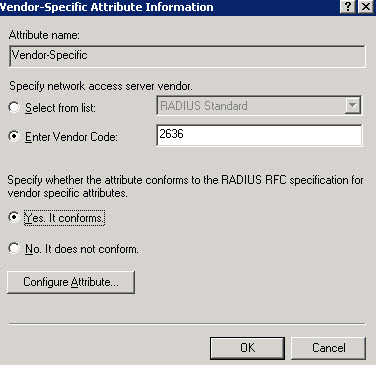

11. Select the options, as specified in the above image and click Configure Attributes :

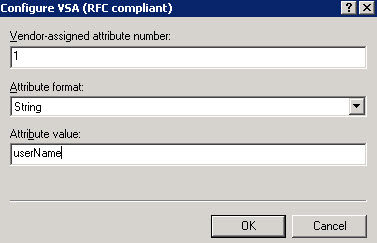

12. Type the information in the text fields, as shown in the above image and click OK :

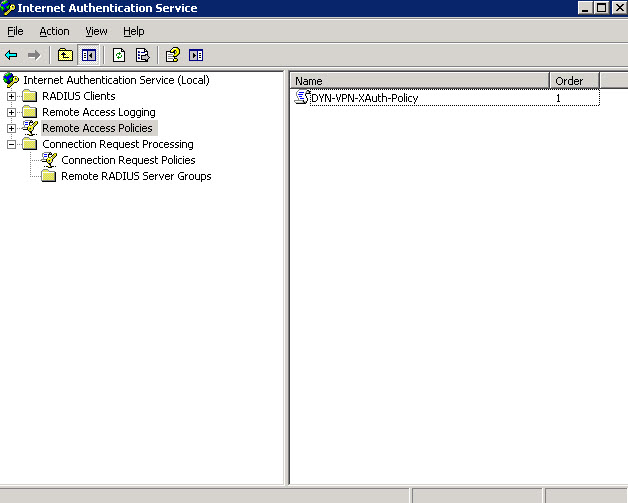

13. Keep clicking OK, till you get to the following window:




14. Click OK to get to the following window:

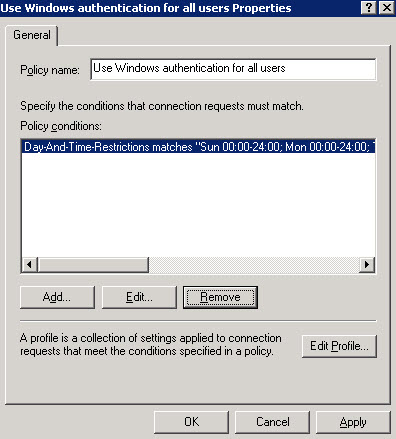

15. Select Connection Request Processing, Right click Use Windows authentication for all users , and click Properties :




16. In the above window, click Add :

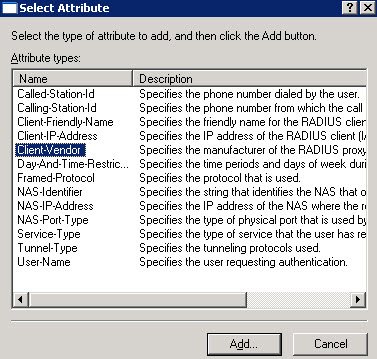

17. In the above window, select Client-Vendor and then click Add :

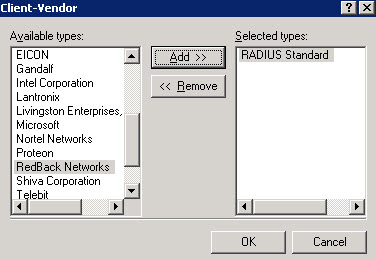

18. In the above window, select Radius Standard , click Add to move it to Selected types , and then OK :

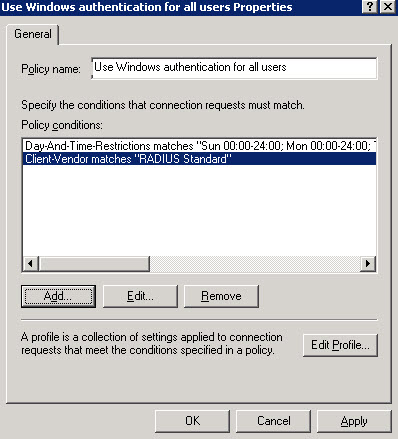

19. In the above window, click OK to complete the IAS server configuration. Now you can use your AD credentials for web-auth and XAuth, to establish the Dynamic VPN.
